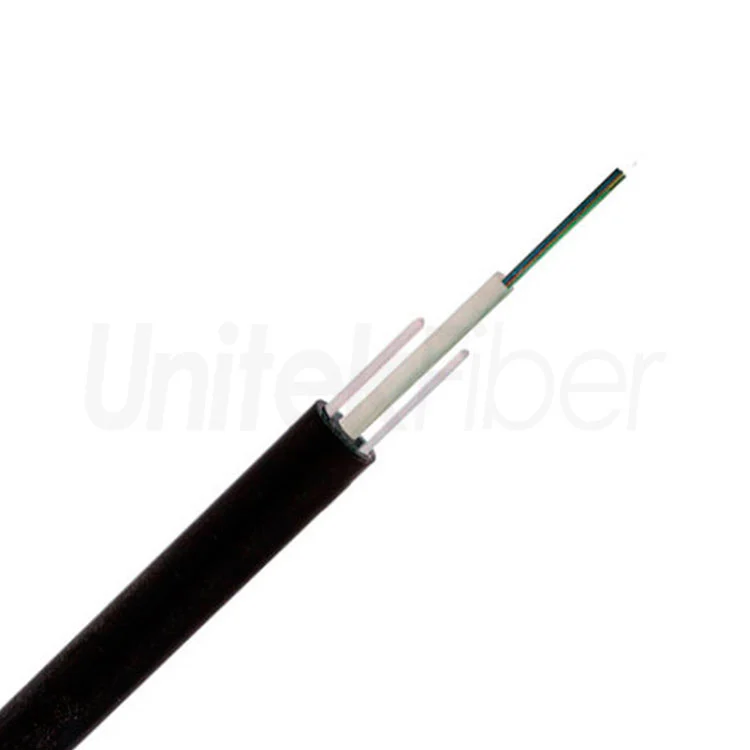

New Designed Outdoor Fiber Optic Cable ASU Aerial Non-armored Mini ADSS Fiber Cable 2~24core PE

Compared with the stranded ADSS fiber optic cable, ASU fiber optic cable can not only save the use of imported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overall structure size. Compared with the common 150meters span of 24cores ADSS fiber optic cable , the price of the ASU fiber optic cable with same specification can be reduced by 20% or more.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of New Designed Outdoor Fiber Optic Cable ASU Aerial Non-armored Mini ADSS fiber Cable 2

Optical Cable for Sale

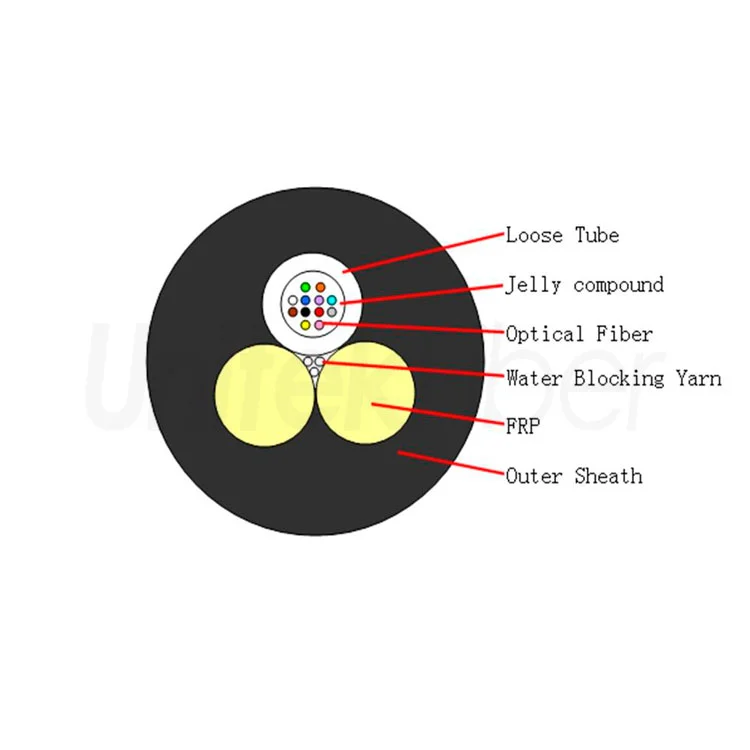

The ASU fiber optic cable is covered with a single PE outer sheath. Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides.


Optical Cable Price


The fiber cores of ASU Fiber Cable is from 2 cores to 24 cores. The main idea of the aerial fiber optic cable  design is to use two rigid FRP and a single loose tube to mix and twist, and the three-in-one steady-state twisting unit includes both tensile elements and optical units. Due to the existence of a certain pitch when twisting, the bendability of the aerial cable is ensured.


Features of ASU Fiber optic Cable


Optical Cable Wire


ASU fiber optic cable adopt proven all-dielectric loose tube construction. This fiber optic cable adopt round cable profiles minimize wind and ice loading. The ASU Fiber optic cable is stable and compact in structure, and also has excellent performance in other performances such as crushing, impact, and torsion, and conforms to the existing technical standards for outdoor overhead optical cables. All Dielectric Self Supporting Cable adopts all-dielectric structure design, which can avoid potential safety hazards caused by power lines or lightning.


Applications of ASU Fiber optic Cable


AUS Aerial fiber optic cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for short-distance communication. The pole span no more than 120m. ASU Aerial Cable with small span is an important part of the distribution line, ASU optical cables are erected on the original towers of power lines, and have become the first choice of special optical cables for power system networking.


Optical Fibre Price


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of New Designed Outdoor Fiber Optic Cable ASU Aerial Non-armored Mini ADSS fiber Cable 2~2

No. of cable

1-12

Fiber Model

G.652D

Strength Member

Material

FRP


Diameter(±0.05)mm

1.8

Loose Tube

Material

PBT


Diameter(±0.06)mm

1.8


Thickness(±0.03)mm

0.35


The Max.Core NO./Tube

12

Outer Sheath

Material

PE

Cable Diameter(±0.2)mm

6.7

Cable Weight(±5)kg/km

38

Min. bending radius

Without Tension

10.0×Cable-φ


Under Maximum Tension

20.0×Cable-φ

Temperature range
(℃)

Installation

-20~+60


Transport&Storage

-40~+70


Operation

-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
