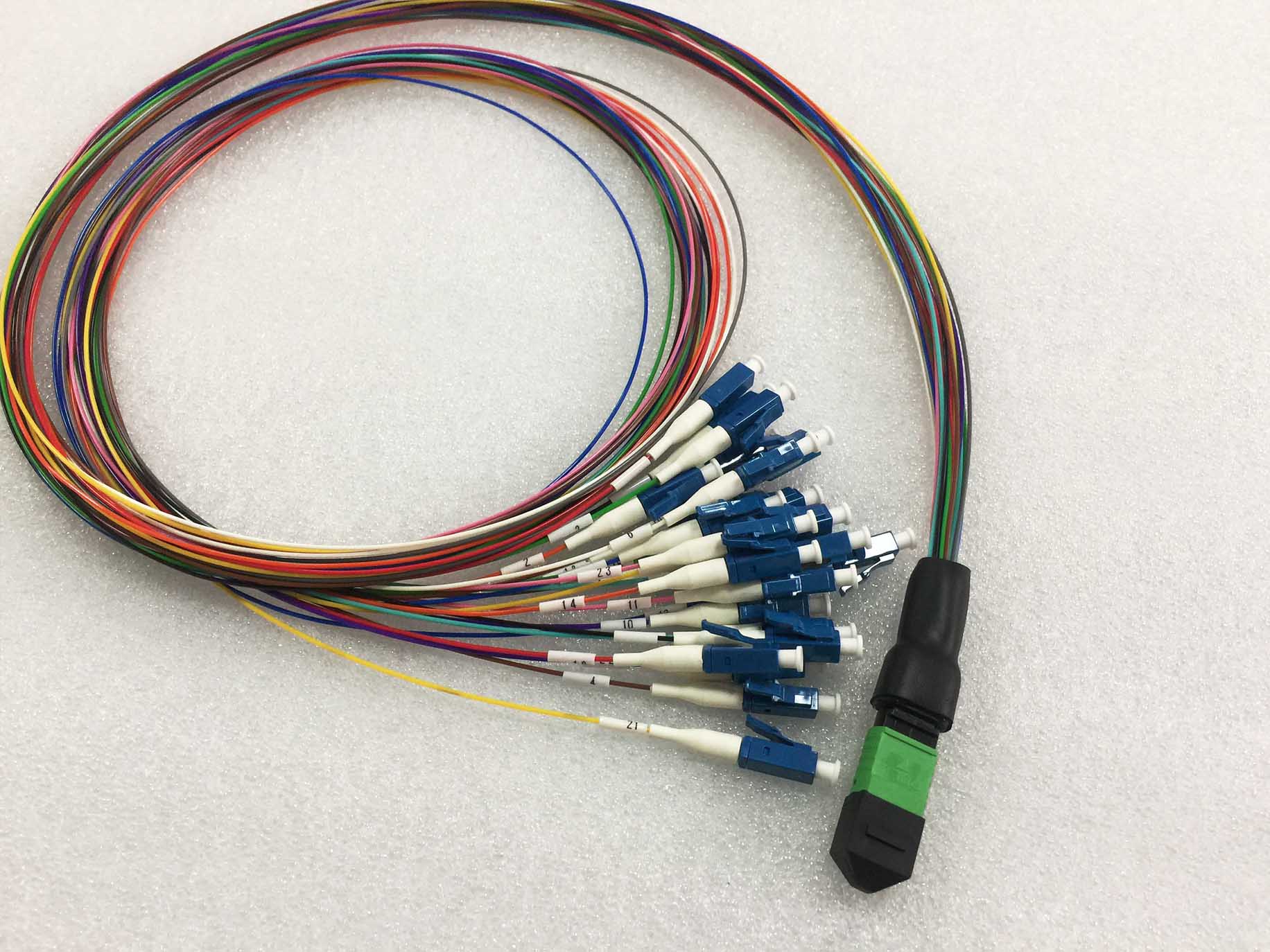

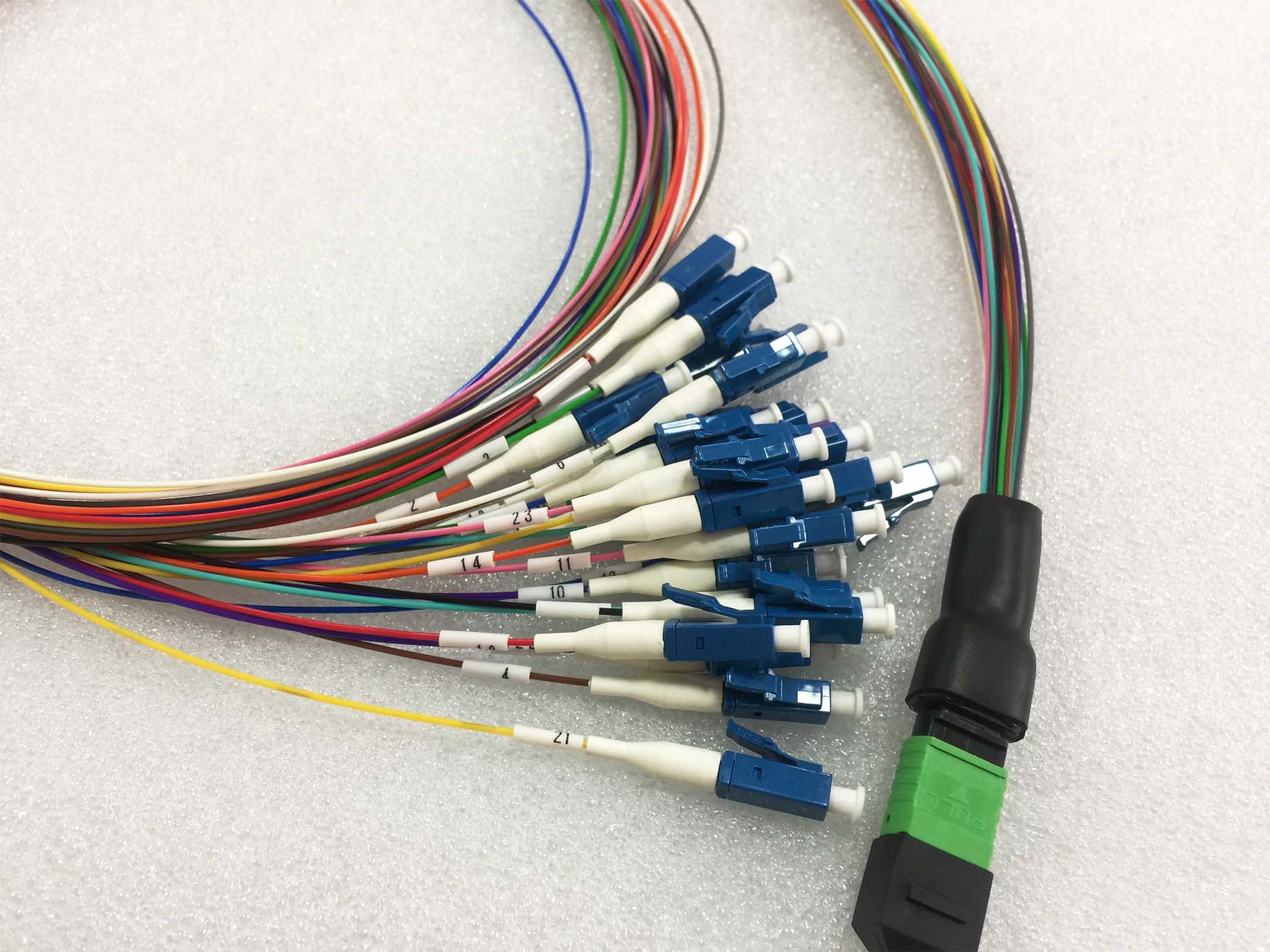

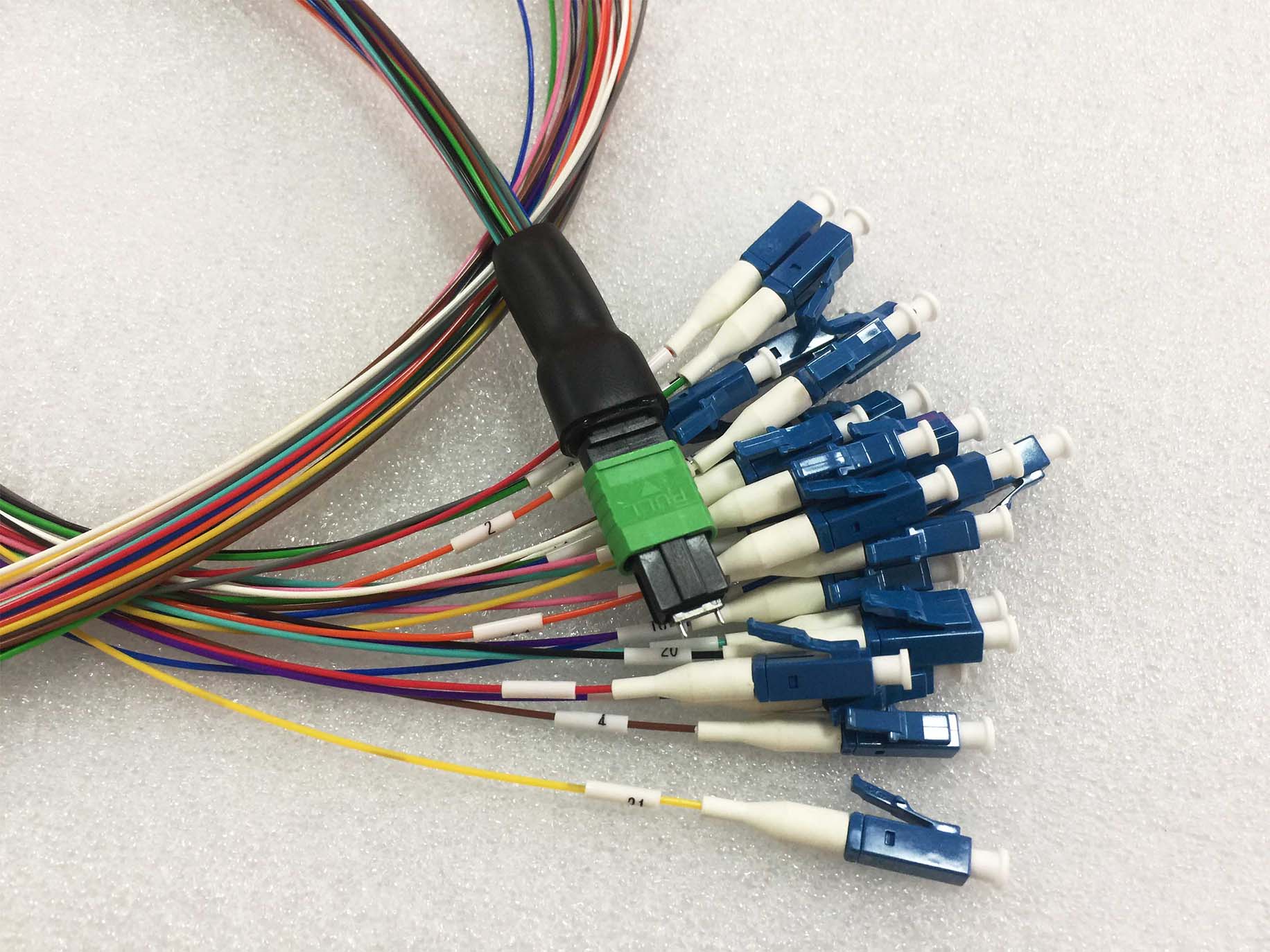

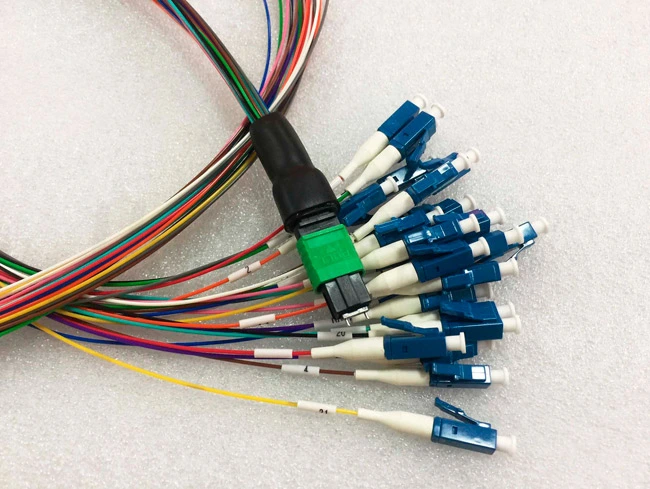

Data Center Cabling 12 Cores MPO MTP-12 * LC Fiber Optic Jumper 10 Gigabit OS2 Yellow 3M LSZH

The MPO/MTP fiber Jumpers are divided into branch type and trunk cable type. All kinds of MPO/MTP fiber jumpers, MPO/MTP adapter jumpers, MPO/MTP types, MPO/MTP 10 Gigabit jumpers, MPO/MTP breakout jumpers and other forms of MPO/MTP jumpers products, all comply with Telcordia-GR-326 , IEC standards and Rohs requirements.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of Data Center Cabling 12 cores MPO MTP-12 * LC Fiber Optic Jumper 10 Gigabit OS2 Yellow 3M

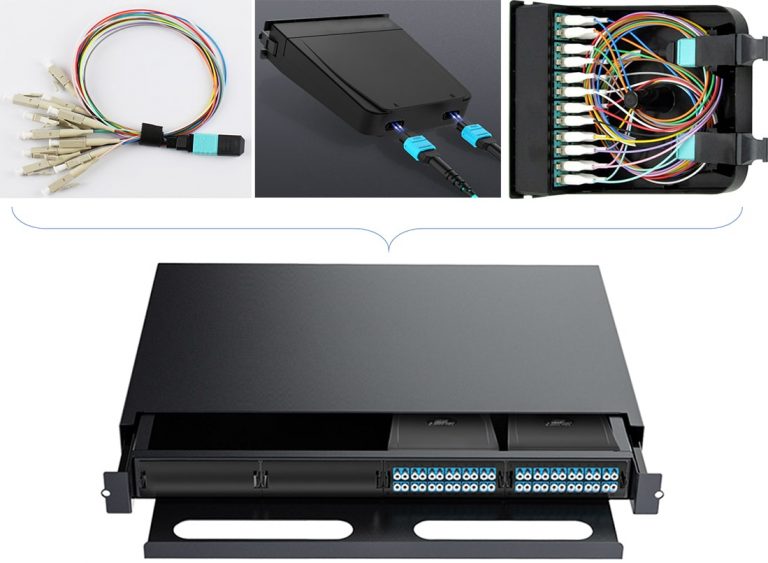

MPO/MTP cables are used in Plug-and-Play cassettes for multi-fiber to single-fiber splitting out interconnects. MTP/MPO fiber cables are fully configurable and available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.



Network Connectivity


Data Center Cabling 12 Cores MPO MTP-12 * LC Fiber Optic Jumper 10 Gigabit OS2 Yellow 3M LSZH

Product Highlights

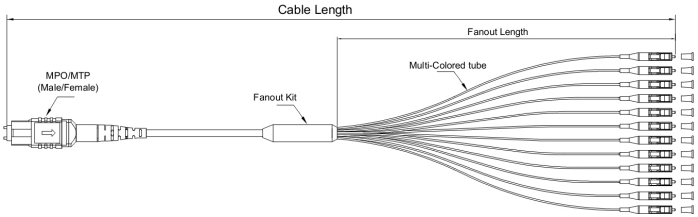

MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.



Data Center Cabling 12 Cores MPO MTP-12 * LC Fiber Optic Jumper 10 Gigabit OS2 Yellow 3M LSZH


Product Highlights



Superior Workmanship Guarantees Stable Transmission



Data Center Cabling 12 Cores MPO MTP-12 * LC Fiber Optic Jumper 10 Gigabit OS2 Yellow 3M LSZH


MPO connectors are the proven and trusted MPO style format, MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.



Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling.








Custom Standard Connectors




UnitekFiber MTP MPO cables deliver the higher bandwidth needed for high-def conferencing and HDTV configurations. We offer a variety of MTP cables in several types and lengths. MPO stands for "multi-fiber push on." MPO cables have a higher port density, meaning you pull one cable with 12 fibers! MTP is a brand name for an MPO connector, but the two acronyms are often used interchangeably.

Parameter of Data Center Cabling 12 cores MPO MTP-12 * LC Fiber Optic Jumper 10 Gigabit OS2 Yellow 3

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Annie
Jul 25, 2022

I am extremely impressed with your products, fiber optic cable. My father would have loved buying these products from your company.

Verified Purchase
Helpful 1

Video
Contact UnitekFiber
Contact UnitekFiber

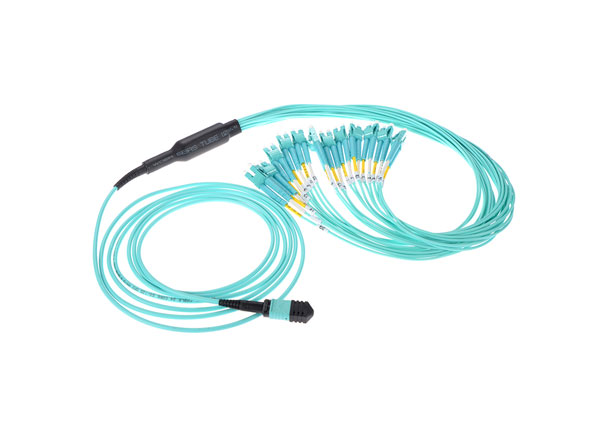

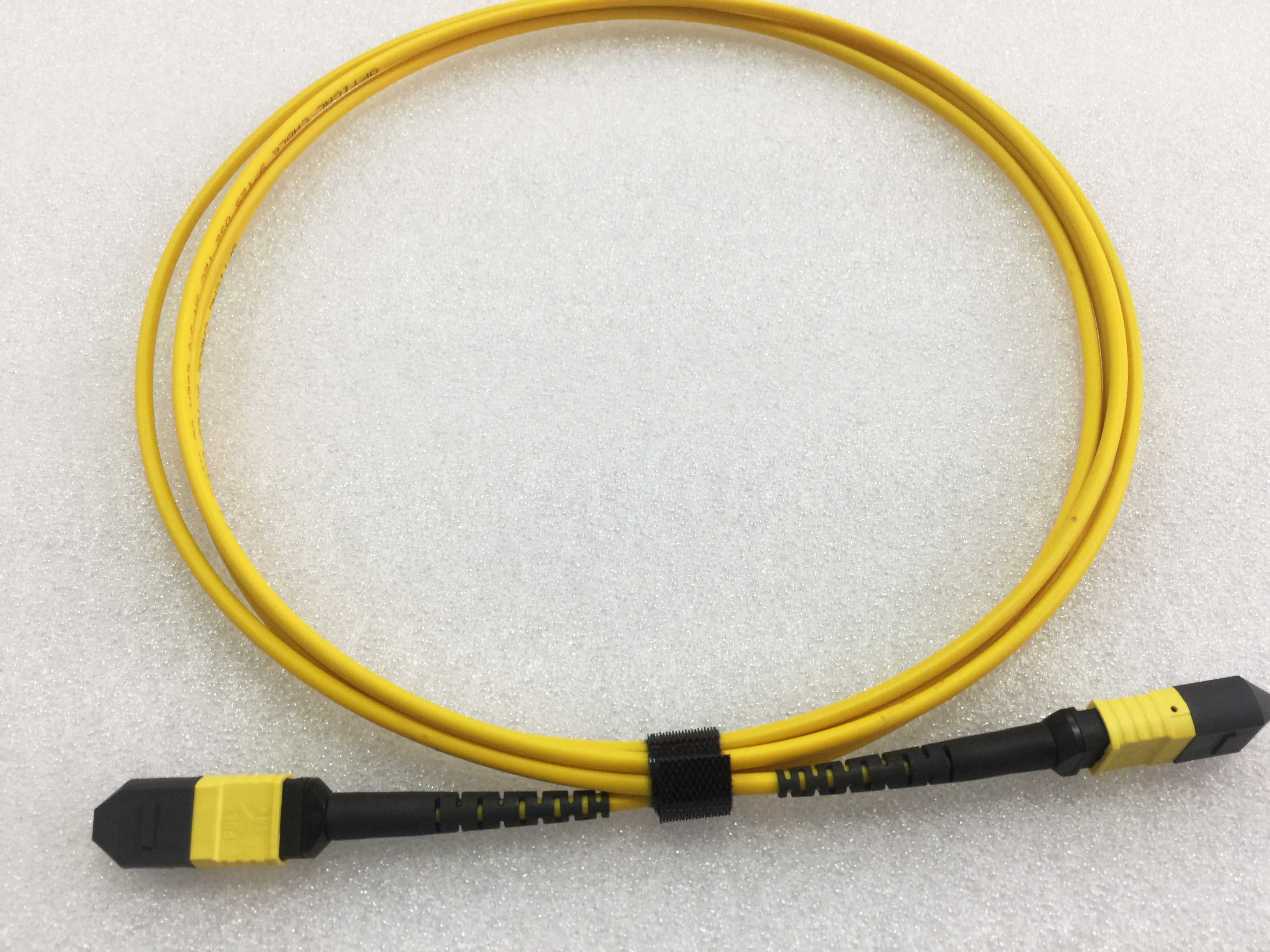

Other MTP/MPO Fiber Cable Products
