Indoor|Outdoor Fiber Optic Drop Cable 4.8mm G657 1 2 Core Double Jacket Rated FR LSZH Black

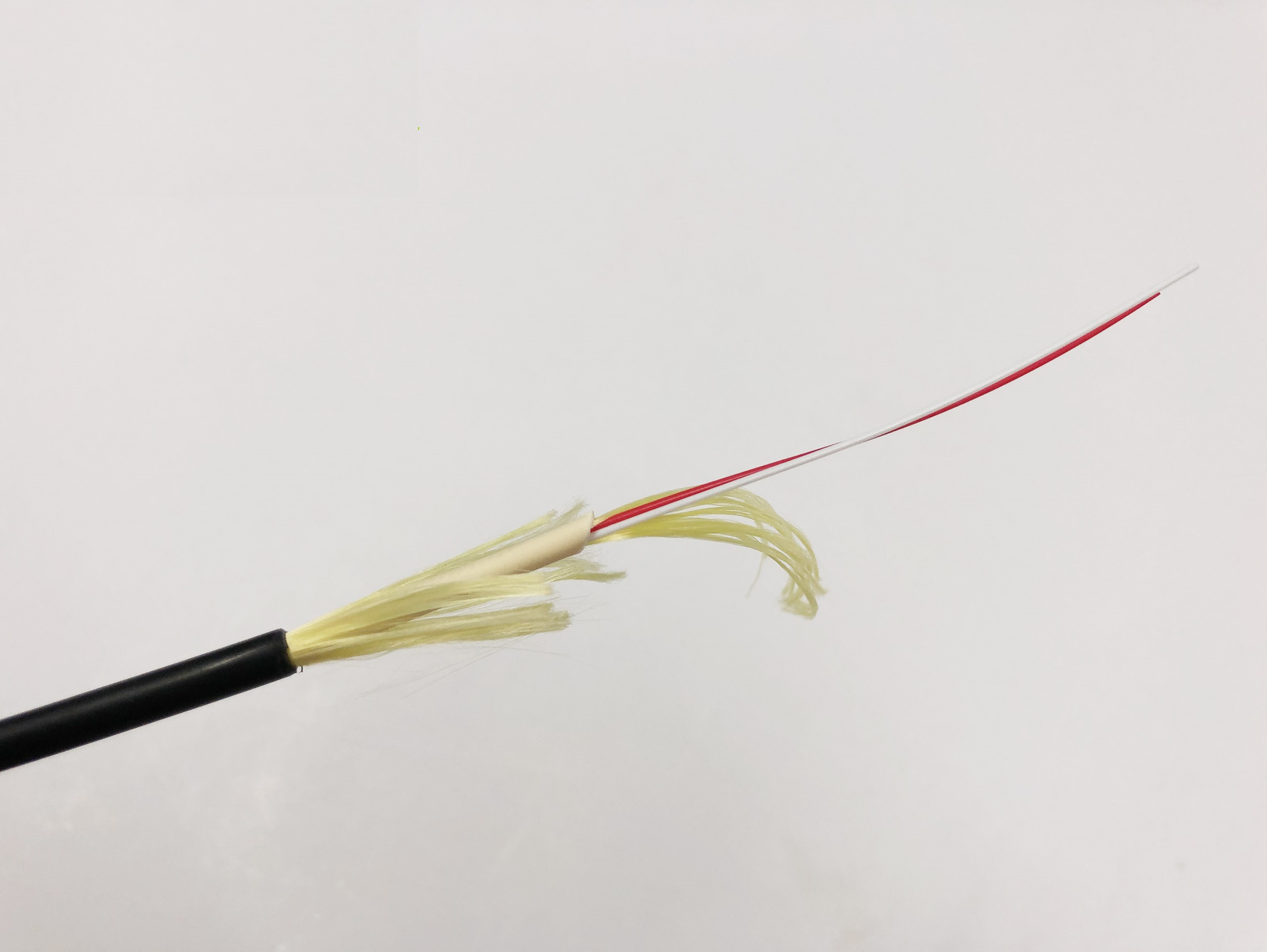

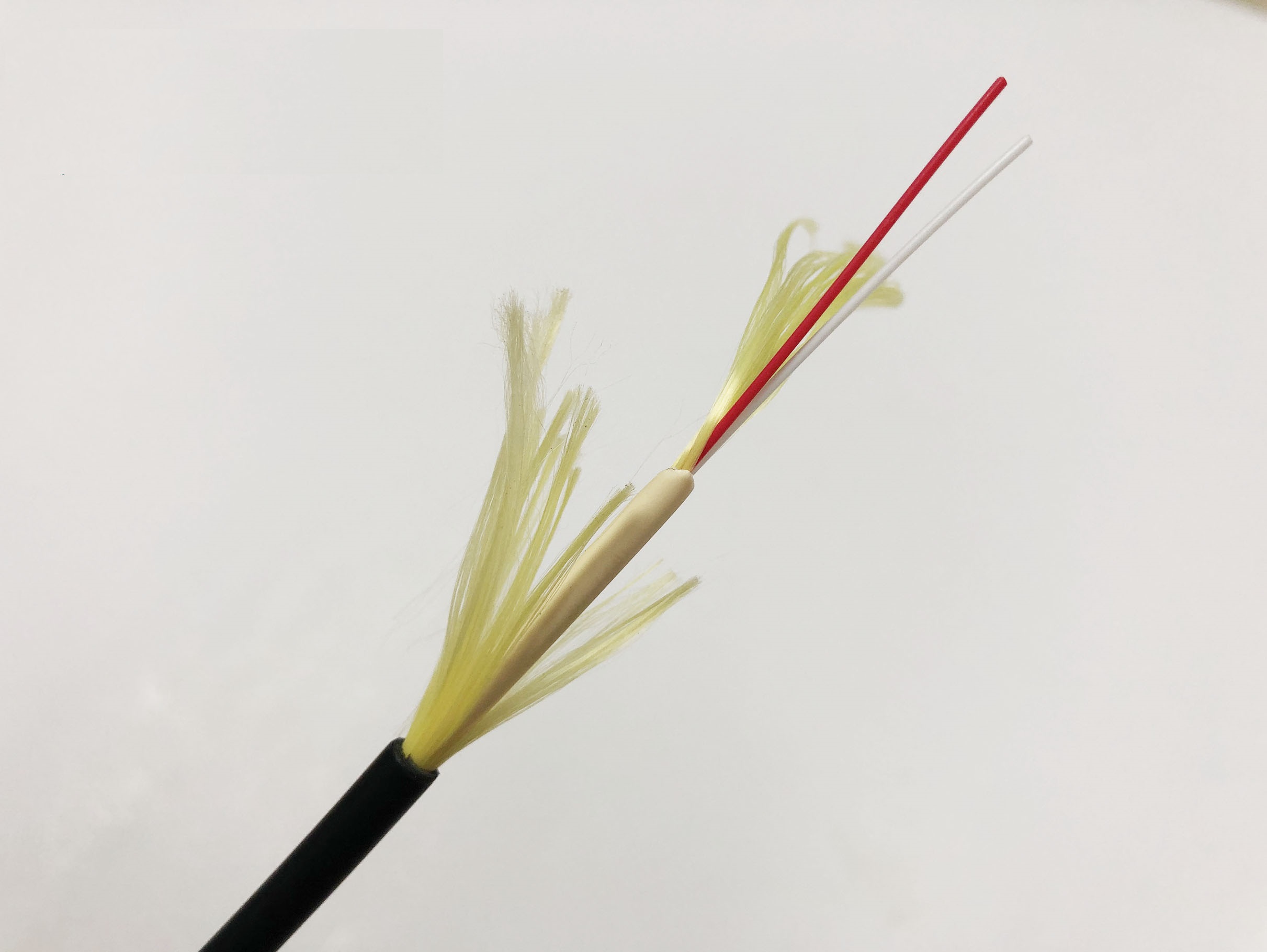

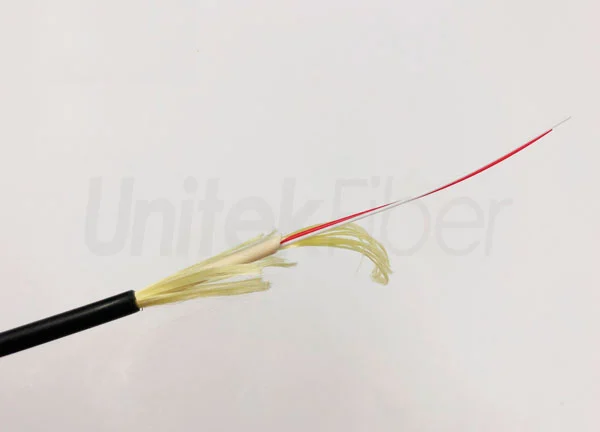

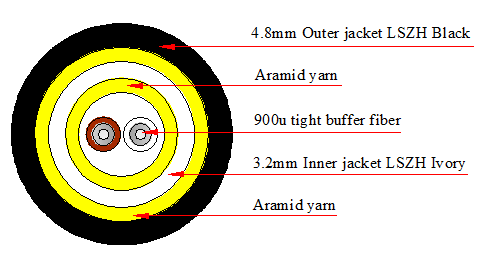

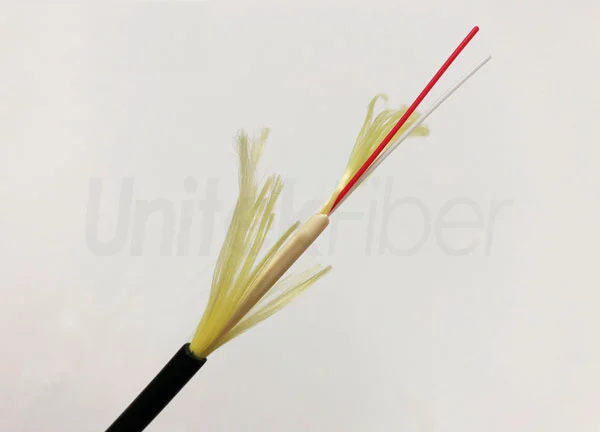

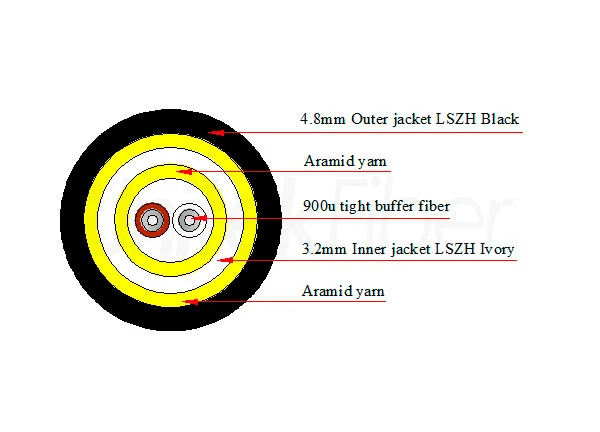

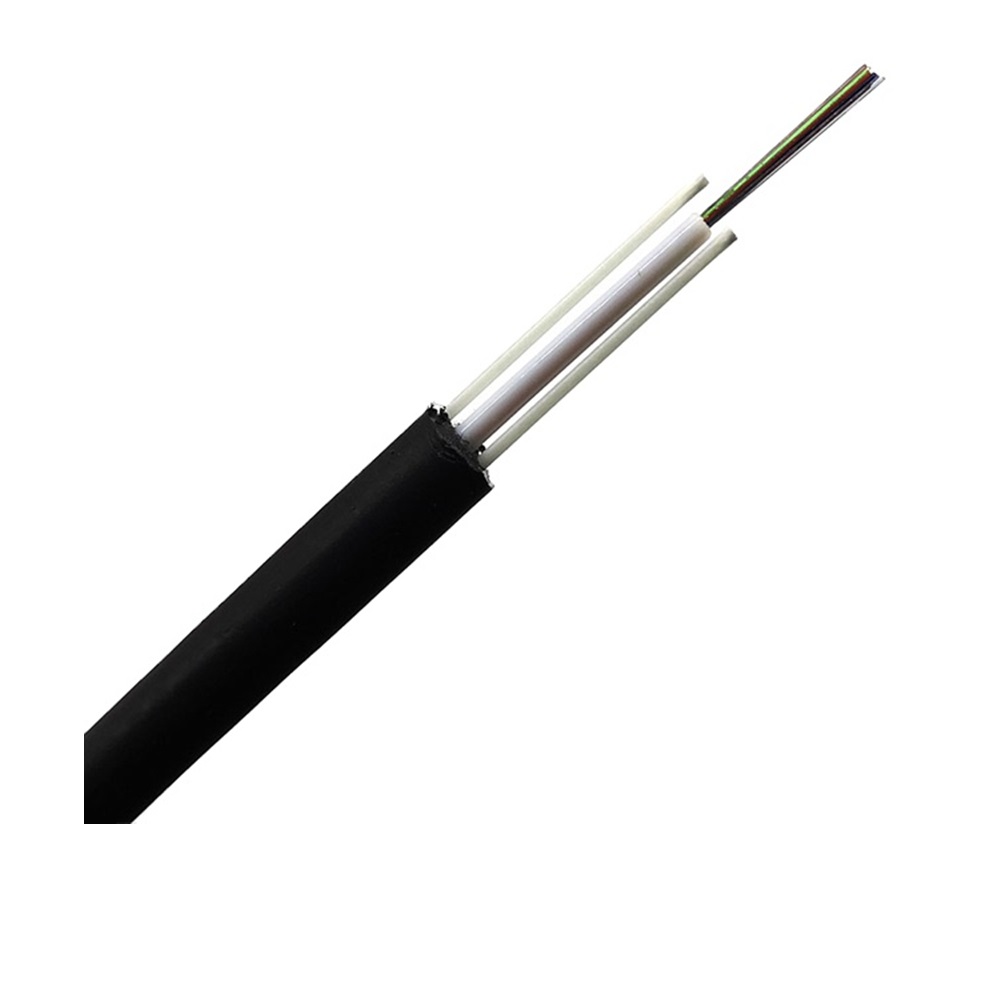

Indoor|Outdoor Fiber Optic Drop Cable is double jacket 4.8mm outdoor aerial drop fiber Cable. The structure of this fiber optic drop cable is a high flame retardant LSZH double sheath sheathed with a 900μm tight buffered fiber with a buffer layer. The fiber count is 2 cores with ITU-T- G652D, G657A fiber and G657B fiber etc. And the Kevlar yarn is requested as reinforcement to enhance tensile resistant.




Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Video
Reviews

Description of Indoor|Outdoor Fiber Optic Drop Cable 4.8mm G657 1 2 core Double Jacket Rated FR LSZH

Features:


  • Fiber type: ITU-T- G652D, G657A fiber, G657B fiber

  • It has good mechanical and environmental performance

  • Flame (or not flame retardant) performance to meet the requirements of the standard

  • Mechanical and physical properties of the sheath to meet the relevant standards Soft, flexible and convenient

  • Small size and light weight, easy for installation

  • LSZH sheath ensuring good flame-retardant performance

  • Especially applicable to vertical wiring in buildings


Application:


  • This fiber cable is applied in Duct, Aerial FTTx, Access installations.

  • Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

  • Adopted to core network;

  • access network, fiber to the home;

  • For optical communication equipment room, optical distribution frame optical connection

  • For pigtails and jumpers


Packaging & Shipping


Fiber Drop Cable Price

Parameter of Indoor|Outdoor Fiber Optic Drop Cable 4.8mm G657 1 2 core Double Jacket Rated FR LSZH B

Fiber Core

2

Tight-buffered Diameter(μm)

850 ± 50

Inner jacket cable size(mm)

3.2 ± 0.2

Outer jacket cable Dimension(mm)

4.8 ± 0.2

Cable Weight(kg/km)

20.5


Tensile strength(N)

Long Term

200

Short Term

800

Crush resistance(N/100mm)

Long Term

500

Short Term

1200

Bending Radius(MM)

Dynamic

20×D(D: Cable Diameter)

Static

10×D(D: Cable Diameter)


Transmission Characteristics: G657A2

Characteristics

Conditions

Specified Values

Units

Geometrical characteristics

Cladding diameter


125.0±0.7

µm

Cladding non-circularity


≤0.7

%

Coating diameter


242±5

µm

Coating/cladding concentricity error

<12

µm

Core/cladding concentricity error

≤0.5

µm

Curl

≥4

m

Optical characteristics

Attenuation

1310nm

≤0.4

dB/km

1383nm

≤0.4

dB/km

1490nm

≤0.3

dB/km

1550nm

≤0.3

dB/km

1625nm

≤0.3

dB/km

Attenuation vs. Wavelength
max. A difference

1285~1330nm

≤0.03

MHz*km

1525~1575nm

≤0.02

MHz*km

Dispersion coefficient

1550nm

≤18

ps/(nm*km)

1625nm

≤22

ps/(nm*km)

Zero dispersion wavelength


1304~1324

nm

Zero dispersion slope


≤0.092

ps/(nm2*km)

Polarization mode dispersion




PMD maximum individual fibre


≤0.1

ps/km1/2

PMD design link value


≤0.04

ps/km1/2

Cable cut off wavelength


≤1260

nm

Mode field diameter

1310nm

8.8~9.6

µm

1550nm

9.9~10.9

µm

Group index of refraction

1310nm

1.4691


1550nm

1.4696


Environmental characteristics

1310nm、1550nm&1625nm


Temperature cycling

-60℃ to +85℃

≤0.05

dB/km

Temperature-humidity cycling

-10℃ to +85℃

4% to 98% RH

≤0.05

dB/km

Water immersion

23℃, 30 days

≤0.05

dB/km

Dry heat

85℃, 30 days

≤0.05

dB/km

Damp heat

85℃, 85%RH, 30 days

≤0.05

dB/km

Mechanical specification

Proof test

≥100

kpsi

Macro bending induced loss




1Turns @10mm Radius

1550nm

≤0.5

dB

1Turns @10mm Radius

1625nm

≤1.5

dB

10Turns @15mm Radius

1550nm

≤0.05

dB

10Turns @15mm Radius

1625nm

≤0.30

dB

100Turns @25mm Radius

1310&1550&1625 nm

≤0.01

dB

Dynamic stress corrosion susceptibility parameter

20



Fibre Colours

No.

1

2

3

4

5

6

7

8

9

10

11

12

Color

Red

Blue

Green

Yellow

Violet

White

Orange

Gray

Brown

Light Green

aqua

pink














No.

13

14

15

16

17

18

19

20

21

22

23

24

Color

Red

Blue

Green

Yellow

Violet

White

Orange

Gray

Brown

Light Green

aqua

pink


How to terminate the FTTH Drop cable?

This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.

Does FTTH Drop Cable work with singlemode upc 9-125 micro fiber?

Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.

Do any LC fast connectors work with FTTH drop cable?

Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.

What is the main application for FTTH drop cable?

The main application for FTTH drop cable is Fiber to The Home project.

Is FTTH drop cable suitable for outdoor runs?

Yes, it is suitable for outdoor application with 70meters pole span.

What is the strength members for FTTH drop cable?

The strength member for FTTH drop cable can be FRP or steel wire.

What is the function of FRP?

FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
