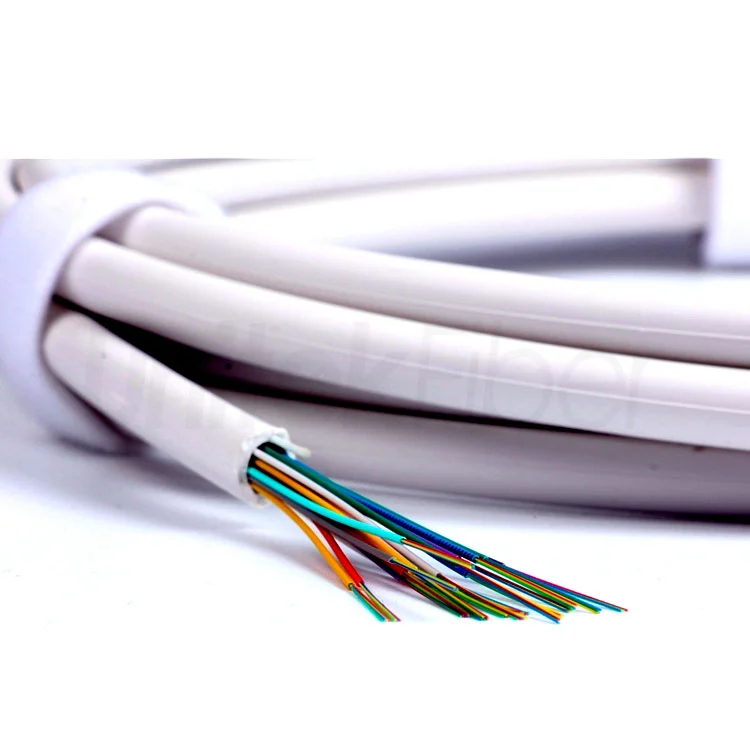

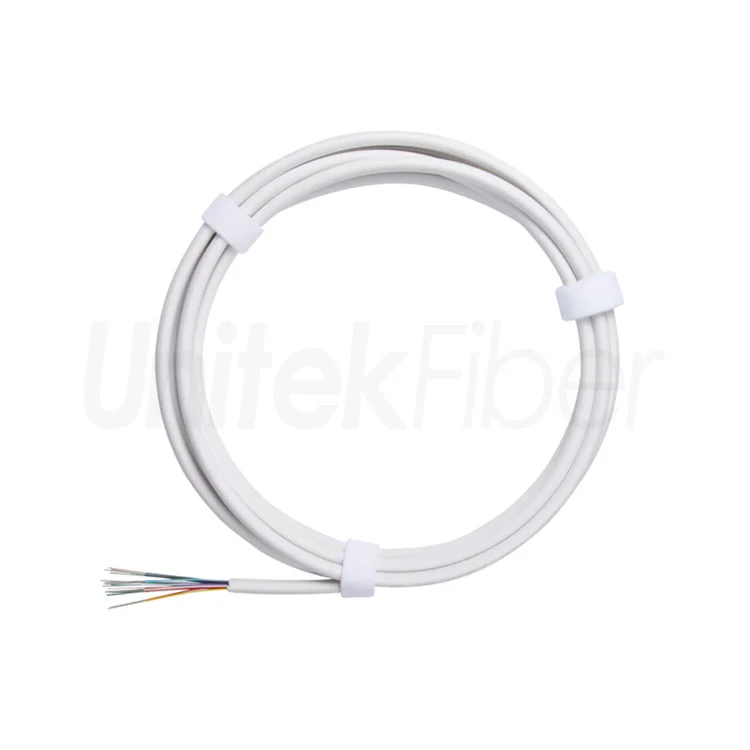

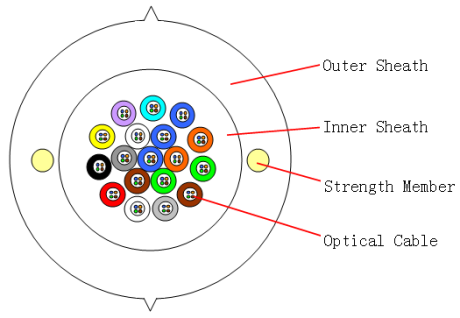

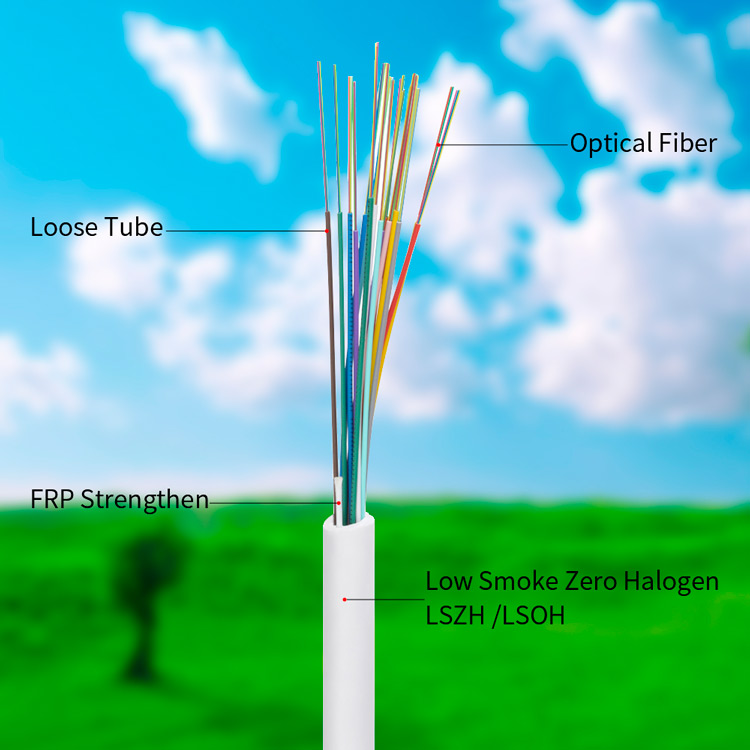

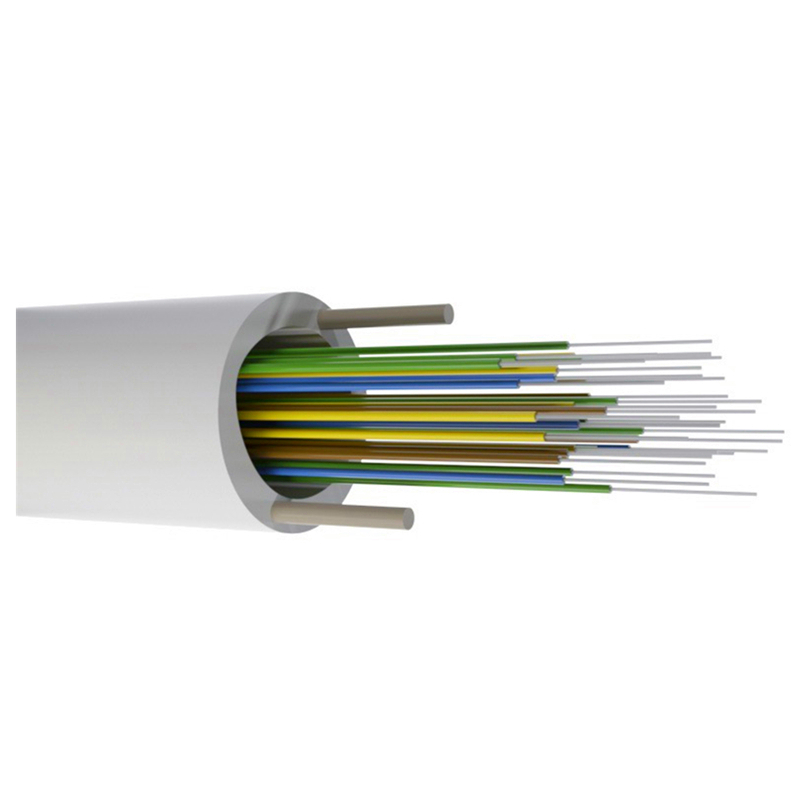

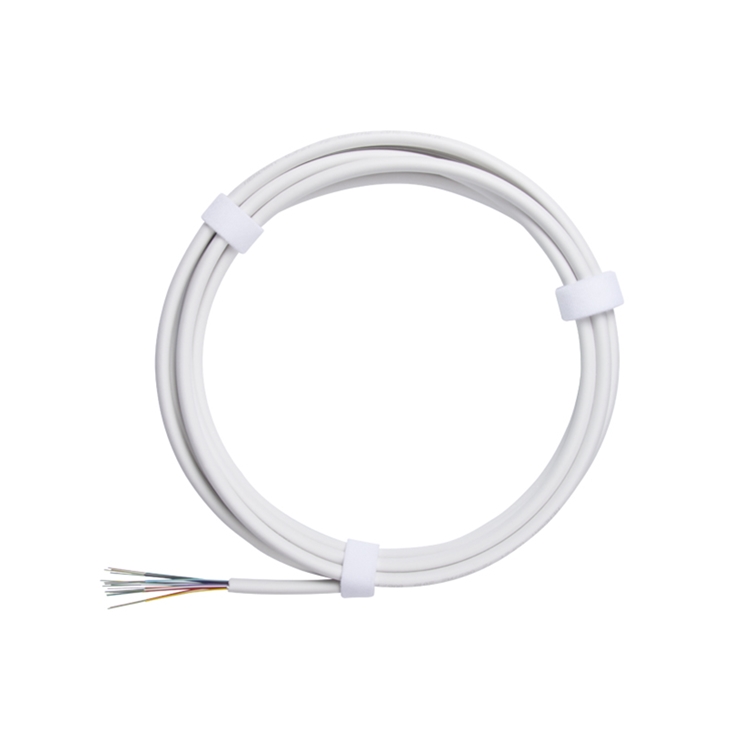

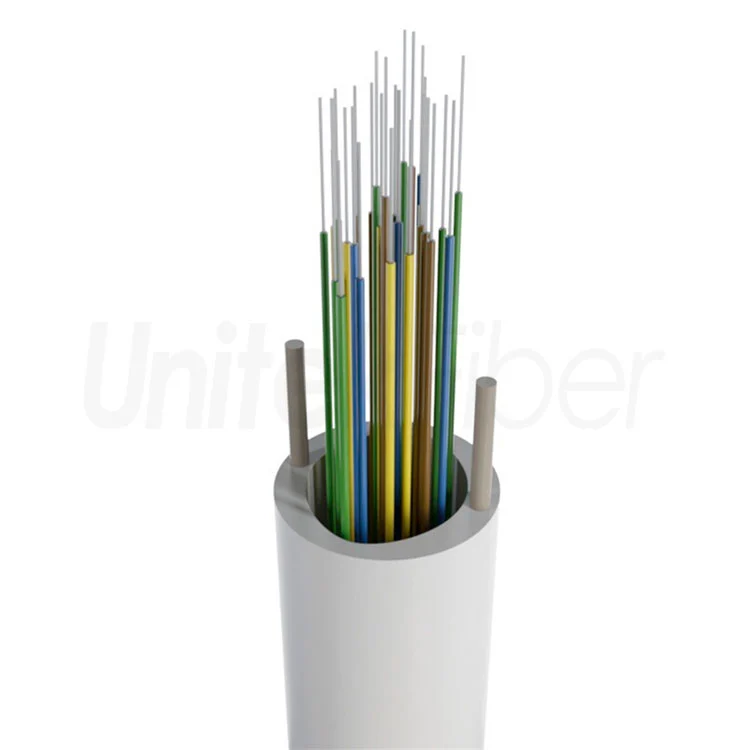

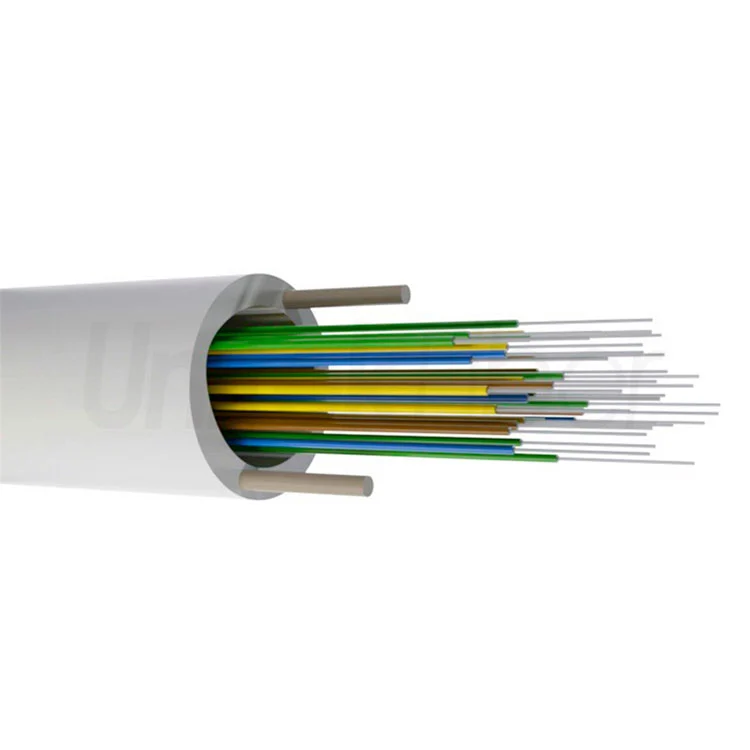

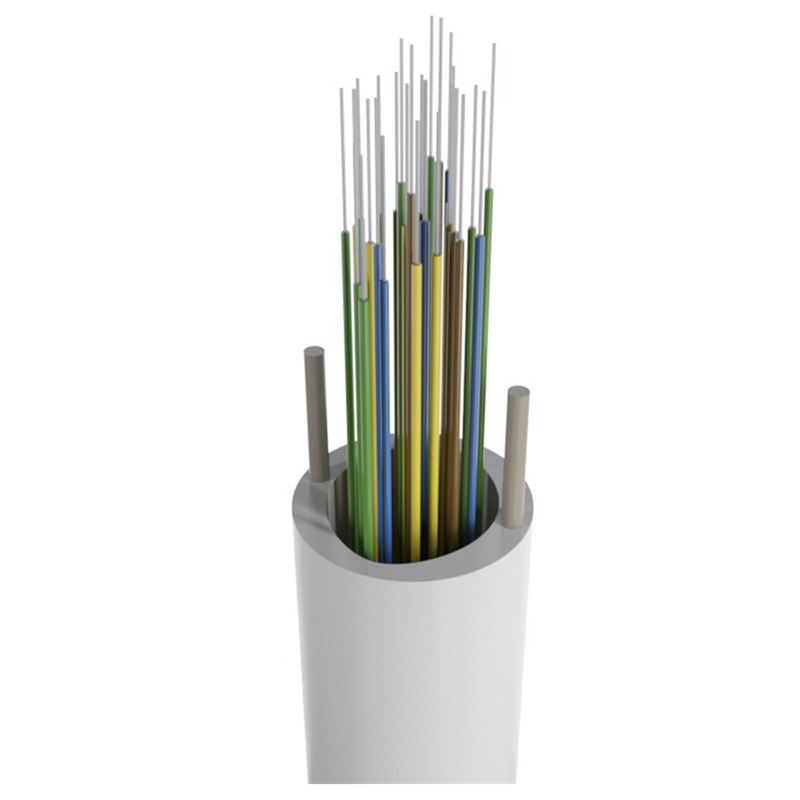

The multiple 900µm flam-retardant tight buffered optical fibers of GJPFXJH optic cable is regarded as the optical communication medium, and two parallel fiber reinforced plastics (FRP) are placed on both sides as the strength components, and then the flame retardant is used to complete the production of the optical cable LSZH ( Low smoke, zero halogen, flame retardant) jacket.
Micro Tube Indoor Outdoor Drop Fiber optic Cable is a popular fiber cable in the market. The drop fiber cable uses multiple 900um flame-retardant tight buffer fibers as optical communication medium, two parallel Fiber Reinforced Plastic (FRP) are placed at the two sides as strength member, then the fiber cable is completed with a flame-retardant LSZH (low smoke, zero halogen, flame-retardant) jacket.
The Fiber Cores of GJPFXJH Fiber Cable is from 2 cores to 288 cores
GJPFXJH Fiber Cable is a indoor and outdoor fiber optic cable with small diameter, light weight, convenient installation and maintenance. Fiber Cable has excellent mechanical and environmental performance. The characteristics of the all-dielectric and dry core structure of the optical cable can improve deployment efficiency and cleanliness. The FRP strength members of the GJPFXJH optic cable have the advantages of stretching and bending resistance.

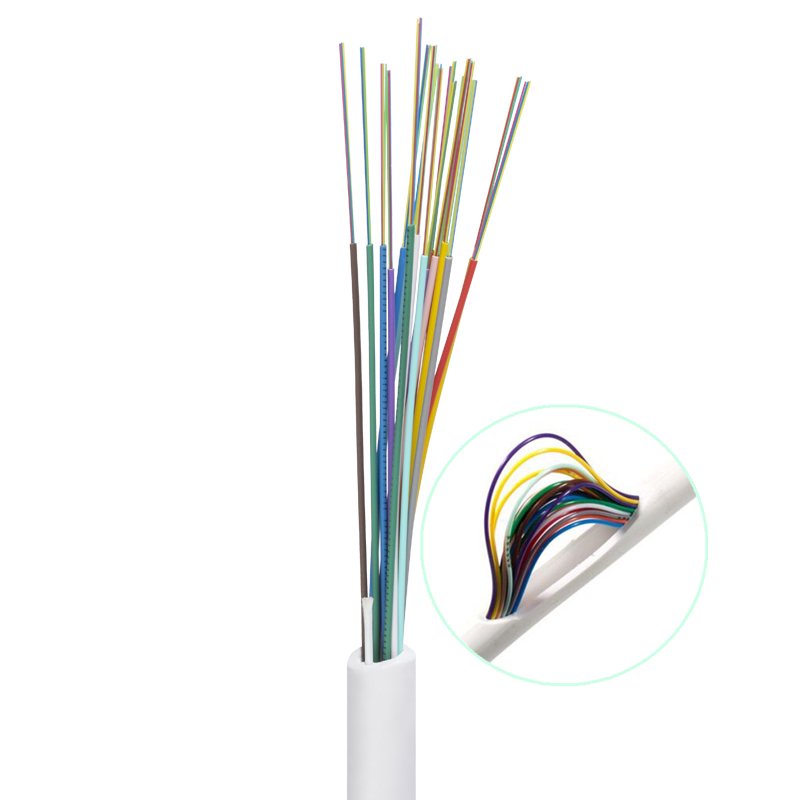

GJPFXJH indoor drop cable is mainly used for vertical and horizontal wiring of buildings. This cable fully reflects the fibre core is peeling easily and branching easily. At the corresponding floor, only the corresponding optical fiber is used to take out the corresponding optical fiber for construction, and it is not necessary to disconnect the entire optical fiber cable, thereby greatly saving construction process. It is now widely used in telecommunications, mobile communication buildings and inter-office communications.
No. of cable | 36 | 72 | ||||
Fiber Model | G.657A2 | |||||
Module | Material | LSZH | ||||
Thickness | 0.17（±0.02）mm | |||||
Diameter | 0.9（±0.05）mm | |||||
Strength Member | Material | FRP | ||||
Diameter | 1.0（±0.05）mm | |||||
No. | 2 | |||||
Outer Sheath | Material | LSZH-FR | ||||
Color | White | |||||
Cable Diameter | 10.5±0.5 | 11.5±0.5 | ||||
Max. allowable tension （Short-term） | 600N | |||||
Max. allowable tension （Long-term） | 200N | |||||
Crush resistance test | 1000N/10cm | |||||
Min. bending radius | Static | 105mm | 115mm | |||
dynamic | 210mm | 230mm | ||||
Temperature range （℃） | Installation | -5~+60 | ||||
Transport&Storage | -40~+70 | |||||
Operation | -5~+60 | |||||

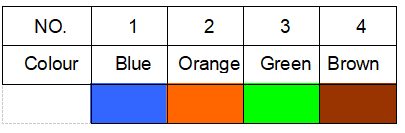

Module Colours
If module number is >12
This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.
Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.
Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.

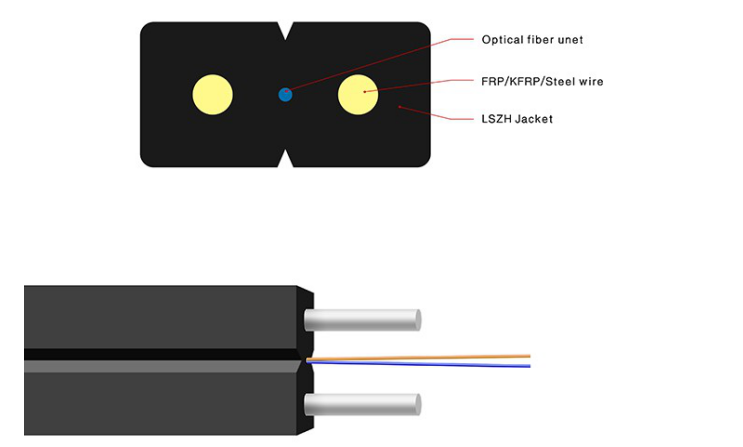

The main application for FTTH drop cable is Fiber to The Home project.
Yes, it is suitable for outdoor application with 70meters pole span.
The strength member for FTTH drop cable can be FRP or steel wire.
FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
