Optical Transceiver Module | SM QSFP28 100G Optical Module 80km 1295/1310nm Wavelength

The 100G QSFP28 ZR4 optical transceiver fully complies with the QSFP28 transceiver module industry standard and related MSA described in the latest SFF-8665/8636, and digital diagnostic functions are available through the I2C interface. It also complies with IEEE 802.3 100GBASE-ZR4 related specifications.

Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Optical Transceiver Module | SM QSFP28 100G Optical Module 80km 1295/1310nm Wavelength

Features


  • Compliant with 100GBASE-ZR4

  • Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4

  • LAN WDM EML laser and PIN receiver with SOA

  • Up to 80km reach for G.652 SMF

  • Hot pluggable 38 pin electrical interface

  • QSFP28 MSA compliant

  • Duplex LC optical receptacle

  • RoHS-10 compliant and lead-free

  • Single +3.3V power supply

  • Maximum power consumption 6.5W

  • Case operating temperature:-40 ~ +85℃


Applications


100GBASE-ZR4 Ethernet Links

Infiniband QDR and DDR interconnects

Client-side 100G Telecom connections


Network Connectivity


QSFP28 ZR4 optical transceiver is packaged in QSFP28 transceiver module with small size and low power consumption, which can provide point-to-point solutions in data centers without deploying legacy CFP/CFP2 interfaces, and can run on point-to-point links up to 80km without optical amplification and Dispersion compensation.


QSFP28 ZR4 optical transceiver

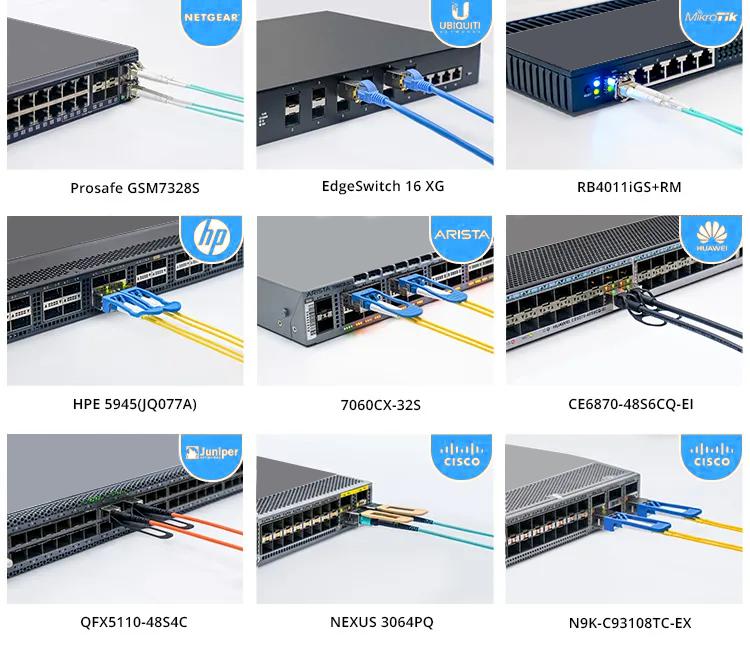

Competibale with all your Switch and 100% Tested in Host Devices


Switch and 100% Tested in Host Devices


High Quality 400G/200G/100G/40G Optical Transceivers, Build Your Fiber Optical Networks Faster, Bigger and Sooner

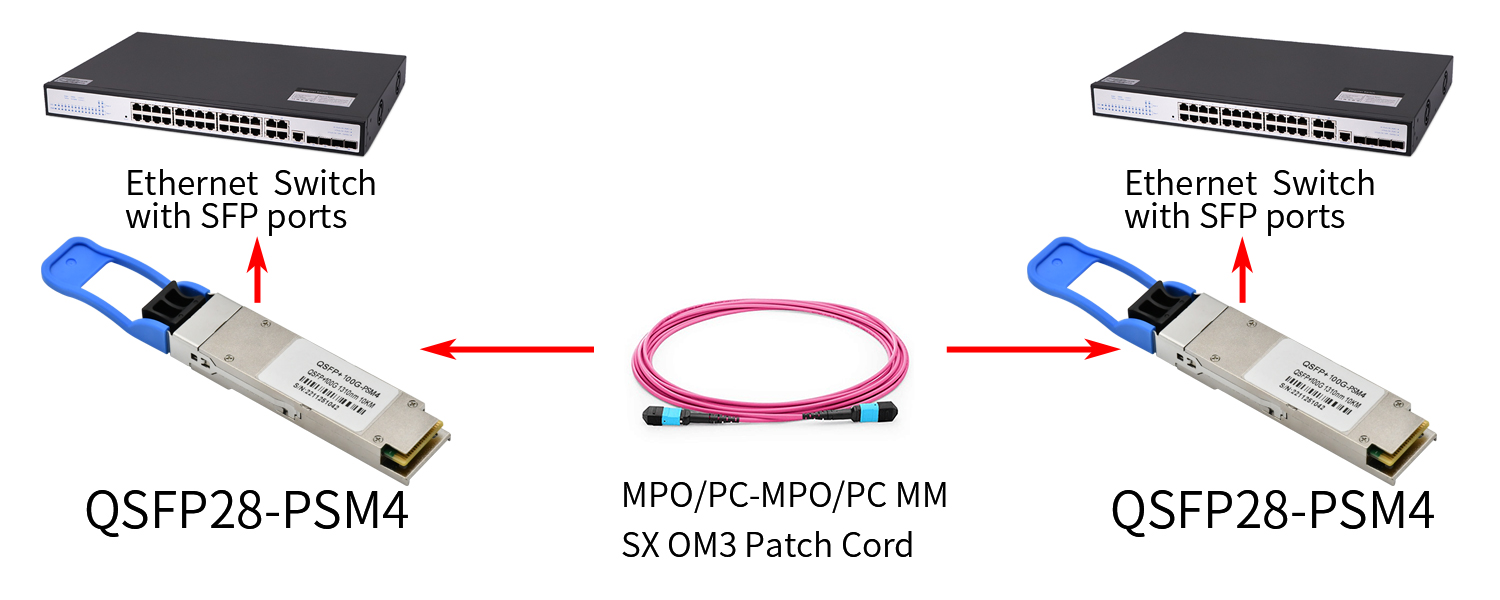

In the face of the explosive growth of data services, the demand for big data transmission in the backbone network is rapidly rising, and the construction of 100G is started by mainstream operators around the world. The 100G data center solution is usually a 100G switch with a 100G QSFP28 optical transceiver module and MTP/MPO fiber jumper.


Build Your Fiber Optical Networks Faster

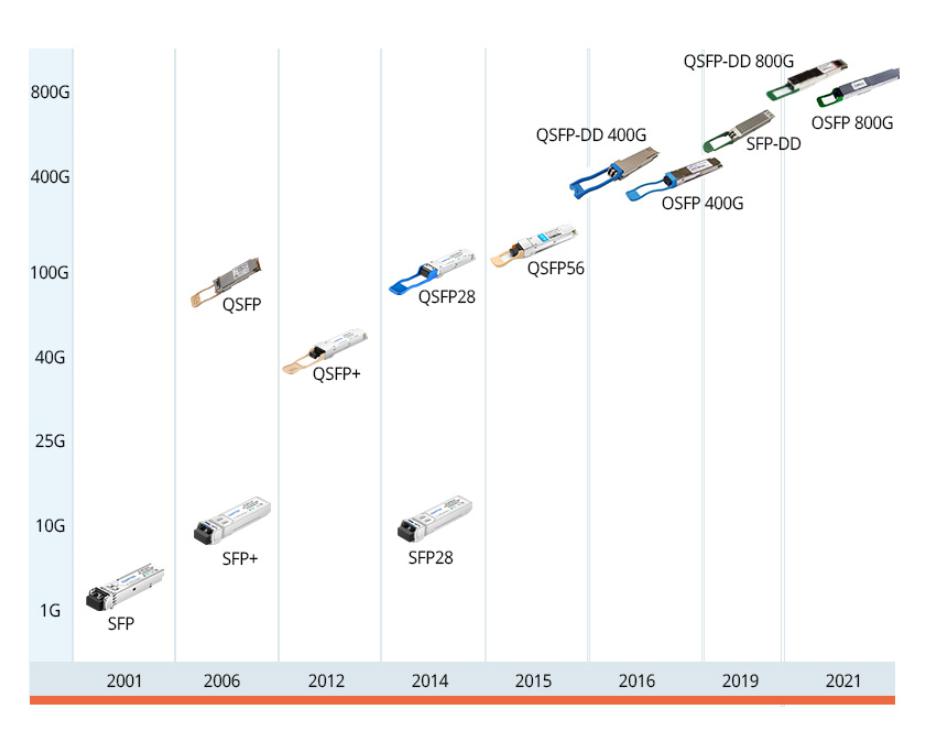

According to different transmission rates, optical transceiver module can be divided into 1G optical transceiver module, 10G optical transceiver module, 25G optical transceiver module, 40G optical transceiver module, 100G optical transceiver module and 400G optical transceiver module.


10G optical transceiver module

Optical Transceiver Module | SM QSFP28 100G Optical Module 80km 1295/1310nm Wavelength

Can you accept OEM/ODM transceiver module order?

Yes, please send inquiry to us or email us sales@unitekfiber.com.

What is a QSFP28 Optic Transceiver Module?

QSFP28 is a hot-pluggable transceiver module designed for 100G data rate.

What are the main application scenarios of 100G optical modules?

100G connectivity for switches and routers in the data center.

What is the farthest transmission distance of a 100G optical module?

QSFP28-ZR4 100G optical transceiver module can transmit 80KM

What connection ports do 100G optical modules have?

Usually, QSFP28 100G optical modules have MPO port and LC port.

Ray
Mar 16, 2023

Thank you for following up. We have received modules. Your website and service is excellent. Thanks.

Work as planned. Good quality product with reasonable price.

Good quality product. prompt & friendly service by the Sales Team and Technical Support Team.

we received your modules and put them into use already. They work flawlessly so far. In our rack it is nice and cozy – they will be in good hands. :-)

Goods arrived in perfect condition and in the time frame allotted.
