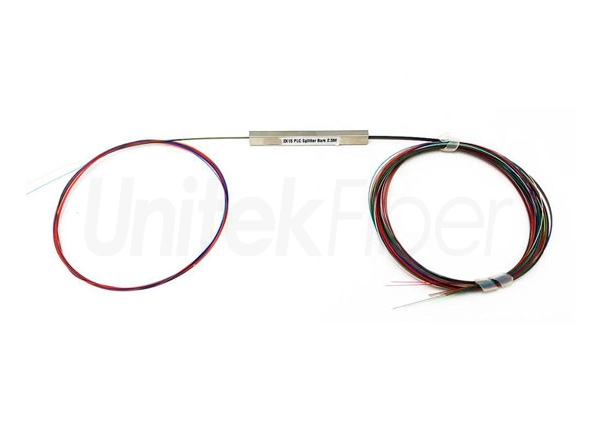

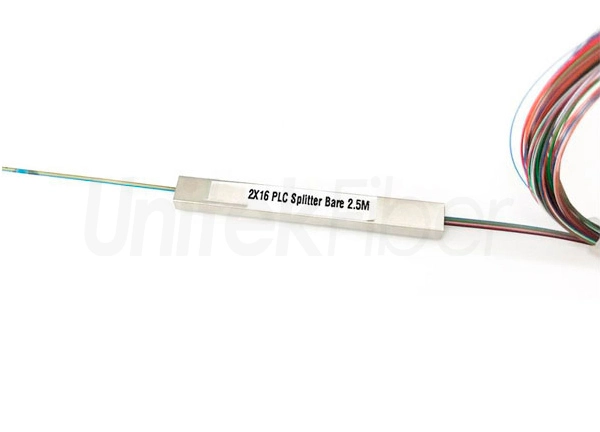

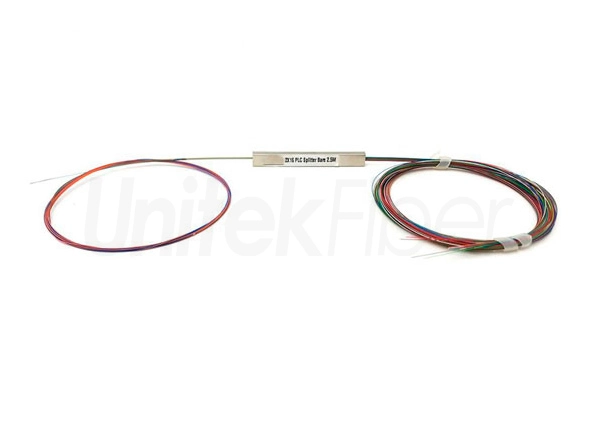

Passive Fiber Optic Network Micro Bare Ribbon PLC Splitter 2 to 16 Ways

Micro Bare Ribbon PLC Splitter is the basic type of the splitter. The PLC splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32, 64 and 128 ways. It is applied for FTTX network, LAN/WAN or CATV network.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Passive Fiber Optic Network Micro Bare Ribbon PLC Splitter 2 to 16 Ways

Features:


  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:

  • From 1260nm to 1650nm

  • Wide Operating Temperature:

  • High Reliability and Stability


Applications:


  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution


Compliance:


  • Telcordia GR-1209-CORE

  • Telcordia GR-1221-CORE


LGX Box PLC Spltter


Packaging and Shipping:


Passive Fiber Optic Network Micro Bare Ribbon PLC Splitter 2 to 16 Ways


Production:


Passive Fiber Optic Network Micro Bare Ribbon PLC Splitter 2 to 16 Ways


Passive Fiber Optic Network Micro Bare Ribbon PLC Splitter 2 to 16 Ways

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

60×7×4

60×7×4

60×7×4

60×12×6

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

50×4×4

50×4×4

50×4×4

60×7×4

60×7×4

N/A

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

80×12×4

80×20×6

N/A
