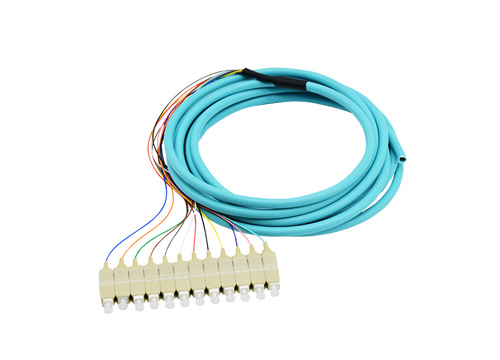

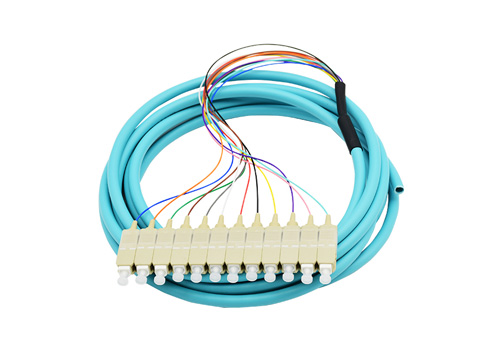

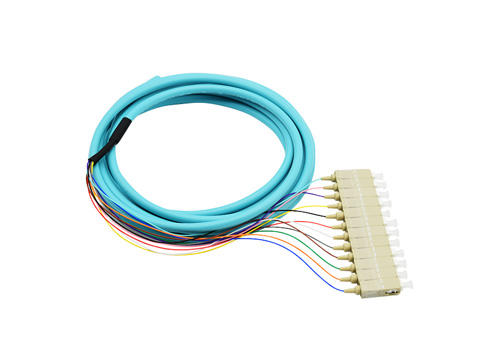

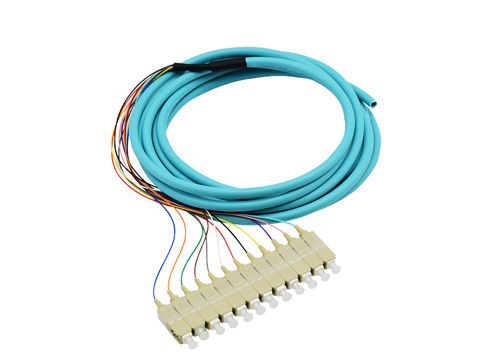

Fiber Optic Pigtail|12 Cores 0.9mm SC PC Multimode OM3 Distribution Optical Pigtails LSZH

A distribution fiber optic pigtail is a pre-terminated optical cable with a fiber connector on one end and exposed optical fibers on the other, used to distribute multiple optical fibers from a central location to different termination points in high-density connectivity applications. They offer easy installation, time-saving, compatibility, and flexibility, and are used in data centers, telecommunications, and enterprise networks. The purpose of a distribution fiber optic pigtail is to distribute these individual optical fibers from a central location to various termination points or devices. The distribution fiber optic pigtail eliminates the need for separate individual fiber optic pigtails for each optical fiber, providing a more organized and efficient solution for connectivity in distribution networks.

Products
Description
FAQ
Specification
Reviews
Video

Fiber Optic Pigtail|12 Cores 0.9mm SC PC Multimode OM3 Distribution Optical Pigtails LSZH

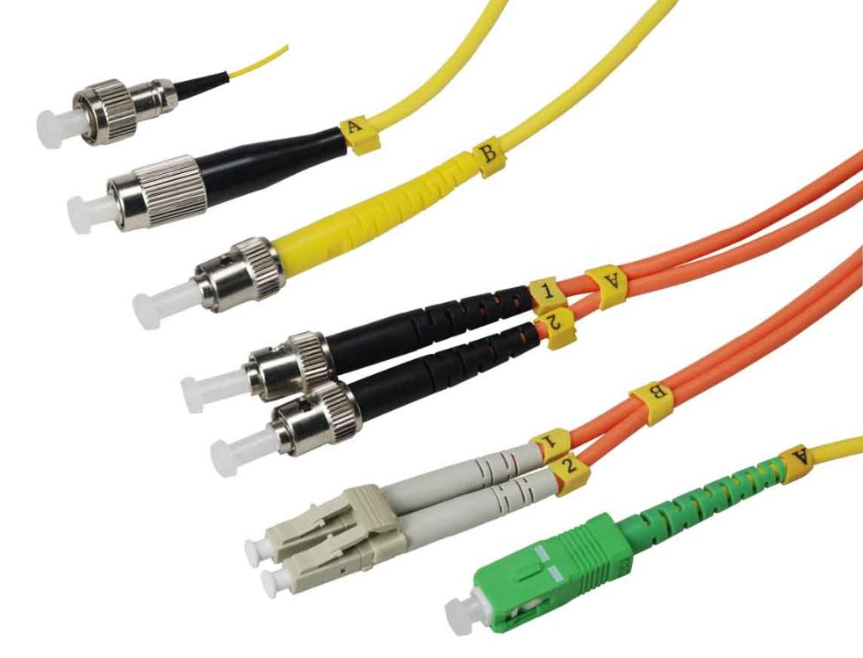

Fiber Connector Common Types for Fiber Optic Pigtails

Distribution fiber optic pigtails are available in a variety of fiber connector types, each offering specific features and advantages to meet different network requirements. The SC fiber connector is widely used due to its push-pull design and compatibility with both single mode and multimode optical fibers. The LC fiber connector, with its small form factor, is commonly used in high-density applications where space is limited. ST fiber connectors feature a bayonet-style coupling mechanism, making them suitable for industrial environments. FC fiber connectors, known for their threaded coupling mechanism, provide secure connections for critical applications. The selection of a specific fiber connector type depends on the equipment or network infrastructure being used and the specific application requirements.

Fiber Optic Pigtails

Understanding the Importance of Color Coding in Distribution Fiber Optic Pigtails

Color coding is an essential aspect of distribution fiber optic pigtails as it simplifies the identification and management of individual fibers. The TIA/EIA-598-B standard defines a 12 color standard color code for fiber optic cables, which applies to the coatings of the optical fiber bundles within the optical cables. For a 6 core distribution fiber optic pigtail, it's common to use either the first or last 6 colors from the standard color code list in a systematic manner. This method ensures consistent and organized identification of the optical fiber cores within the optical cable. When the capacity of the distribution fiber optic pigtail exceeds 12 fibers, the color codes are reused in a cyclical manner. Color coding eliminates confusion and reduces the potential for errors, enhancing the efficiency and accuracy of fiber optic connections. It also facilitates organization within complex systems and allows for easy tracing of specific optical fibers within optical cable assembly bundles, making it an essential feature of distribution fiber optic pigtails.

Color Coding in Distribution Fiber Optic Pigtails

Versatile Applications of Bulk Fiber Optic Pigtails in Modern Communication Networks

distribution fiber optic pigtails are essential for establishing efficient and reliable connections between fiber optic cables and equipment across a wide range of industries. They find applications in telecommunications, data centers, broadcasting, security systems, industrial automation, and healthcare etc. These fiber optic pigtails provide high-speed and low-latency communication, immunity to electromagnetic interference, and enable the transmission of high-resolution images and videos over long distances. The versatility, speed, and reliability of distribution fiber optic pigtails make them integral components of modern communication networks.

Bulk Fiber Optic Pigtails in Modern Communication Networks

Different outer sheath materials meet your different wiring requirements

1. OFNR (Optical Fiber Nonconductive Riser) are designed for riser applications. They are used in spaces inside a building that connect floors, such as vertical zones or spaces between floors. These OFNR fiber optic cables are engineered to prevent the spread of fire from one floor to another within a building.

2. OFNP (Optical Fiber Nonconductive Plenum) are used inside buildings in plenum areas, the areas between a ceiling and the floor above it, where space is reserved for the circulation of air. At the same time, this OFNP fiber optic cable will not emit toxic smoke or steam.

Different Outer Sheath Materials Meet Your Different Wiring Requirements

Packing & Delivery

Packing & Delivery

What is a fiber optic pigtail?

The fiber optic pigtail is a pre-terminated fiber optic cable with a fiber connector on one end and exposed optical fiber on the other.

How do I choose the fiber connector type for my fiber optic pigtail?

The choice of fiber connector type depends on factors such as the network infrastructure, required density, optical fiber type (single mode or multimode), and specific application needs.

Can I customize the optical cable length of fiber optic pigtails?

Yes, Unitekfiber can offer customizable fiber optic cable lengths for fiber optic pigtails.

Can I use bulk fiber optic pigtails for fusion splicing?

Yes, bulk fiber optic pigtails are specifically designed for fusion splicing.

Are there any specific precautions to take when install fiber optic pigtails?

When installing fiber optic pigtails, it is important to avoid bending the fiber beyond its minimum bend radius, prevent contamination of the fiber connector end face, and protect the optical pigtails from excessive tension or strain.

Channing
Jun 05, 2023

The distribution fiber optic pigtail was easy to install, and the multiple fibers within it allowed me to distribute connections throughout the facility with ease.

Verified Purchase
Helpful 0
Albert
Jun 05, 2023

The fiber optic pigtails are durable, reliable, and compatible with a variety of equipment.

Verified Purchase
Helpful 0
Jason
Jun 05, 2023

The distribution fiber optic pigtail are easy to terminate and provide a secure, low-loss connection every time. I highly recommend them to anyone looking for a dependable solution for fiber distribution.

Verified Purchase
Helpful 0
Howar
Jun 05, 2023

The fiber optic pigtails were delivered quickly and were easy to install. I would definitely purchase from this company again.

Verified Purchase
Helpful 0
Aldrich
Dec 20, 2023

These distribution fiber optic pigtails are a game-changer, allowing me to distribute fiber connections throughout my home with ease.

Verified Purchase
Helpful 0
