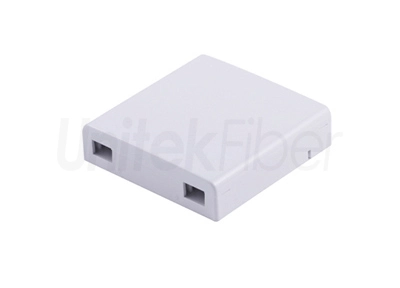

Supply Fiber Optic Faceplate & FTTH Terminal Box 2 Port

UnitekFiber provides various FTTH fiber optic wall plate outlets which is designed in a compact plug-in and internal fiber routing features control bend radius. Our terminal box is installed easily in different installation environments. And the box is sutable for 2 SC simplex adapters and 2 duplex LC adapters.

Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

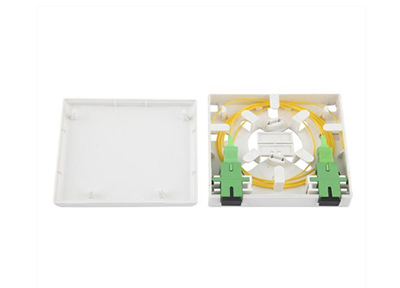

Supply Fiber Optic Faceplate & FTTH Terminal Box 2 Port

Application:


  • A user end product to realize optical fiber to desktop solution.

  • It can be used in home or working area to accomplish double-core fiber access and port output.

  • Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

  • Used in FTTH indoor application, home or work area

  • Provide users with optical access or data access

  • Suitable for 2 pcs SC adapters

  • May store surplus fiber inside, easy for operation


Features:


  • reasonable inner space design

  • sutable bending radius

  • protect optical fiber

  • realize FTTD(fiber to the desktop)system


Packaging & Shipping


Supply Fiber Optic Faceplate & FTTH Terminal Box 2 Port

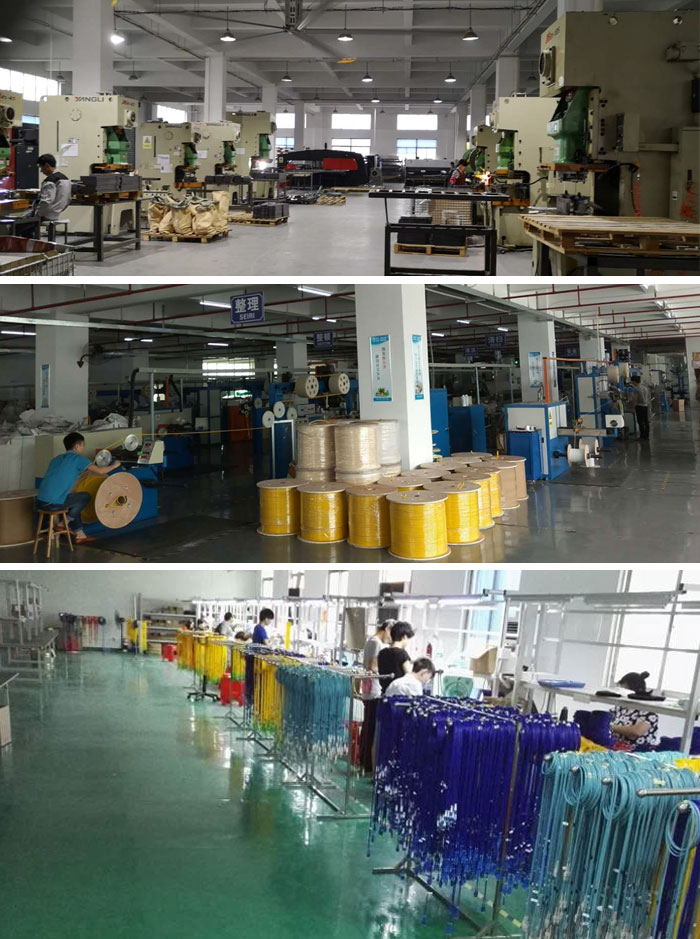

Production


Supply Fiber Optic Faceplate & FTTH Terminal Box 2 Port


Supply Fiber Optic Faceplate & FTTH Terminal Box 2 Port

Item

Parameters

Scope of application

3*2mm drop cable or indoor cable

Fiber cladding diameter

125um(G652 & G657)

Fiber diameter

250um & 900um

Fiber type

SM & MM

Operating temperature

-40 ~ +85℃

Connect adapter

LC, SC, FC, ST


Configuration

Material

Size

Max Capacity

Mounting Way

Weight

Color

PC+ABS

86*86*27mm

SC 2 ports

LC 4 ports

Wall Mounting

0.1kg

White
