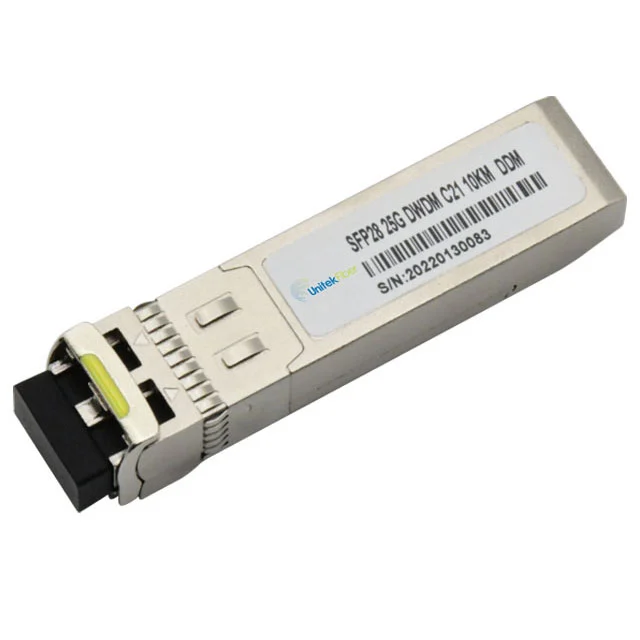

Optical Transceiver Module|SFP28 Bidi Module 1330/1270nm Wavelength 10km LC

The SFP28 optical transceiver module is mainly used for the interconnection of data center servers and switches. It is a new Ethernet standard with multiple advantages. It was proposed by the IEEE 802.3 working group and was completely revised in 2016. The advantage of 25G SFP28 optical transceiver module Ethernet technology is that it can maximize bandwidth and port density. It can achieve 100Gb data transmission through 25Gb/s single-channel physical layer technology.

Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

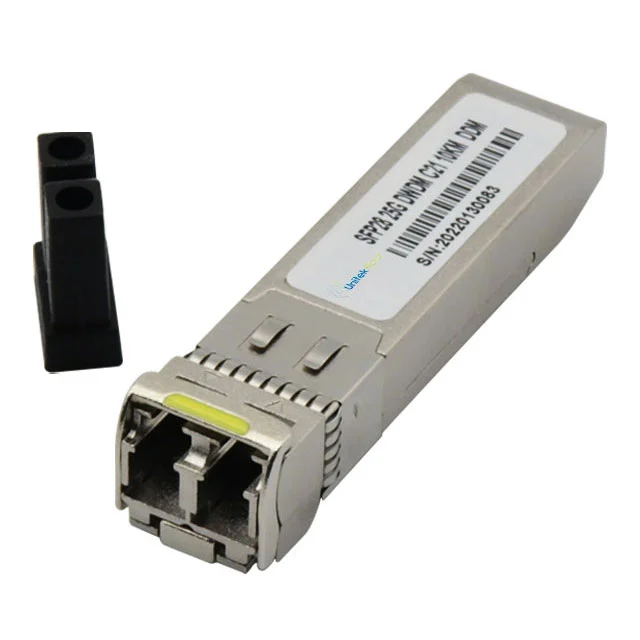

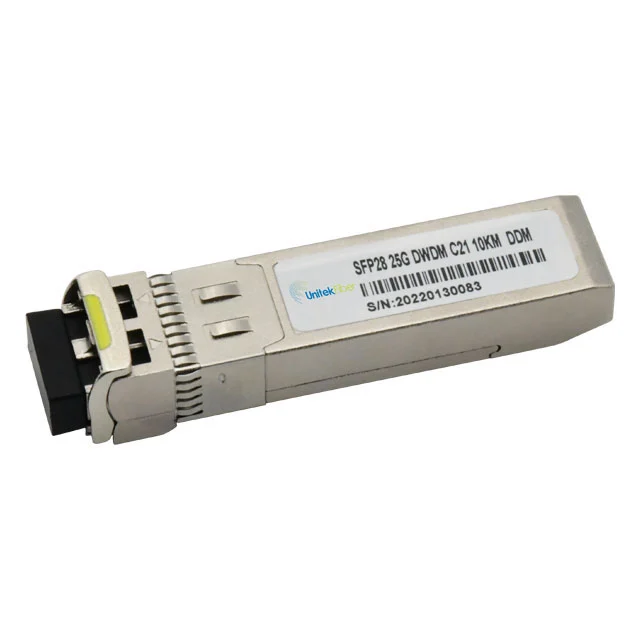

Optical Transceiver Module|SFP28 Bidi Module 1330/1270nm Wavelength 10km LC

Features


lSFP28 MSA compliant

l25G electrical interface (OIF CEI-28G-VSR)

l48 channel (191.3~196.0THz)

l100GHz channel spacing

lMaximum power consumption 2.5W@85℃

lLC duplex connector

lSupports 24.33024G、25.78125Gbps(with FEC);9.8304G、10.1376G、10.3125Gbps

lUp to 10km transmission on single mode fiber

lOperating case temperature: -20 to 85℃, cold start at -40℃

lSingle 3.3V power supply

lRoHS 2.0 compliant


Applications


lCPRI/eCPRI

l10G/25G Ethernet switches and routers

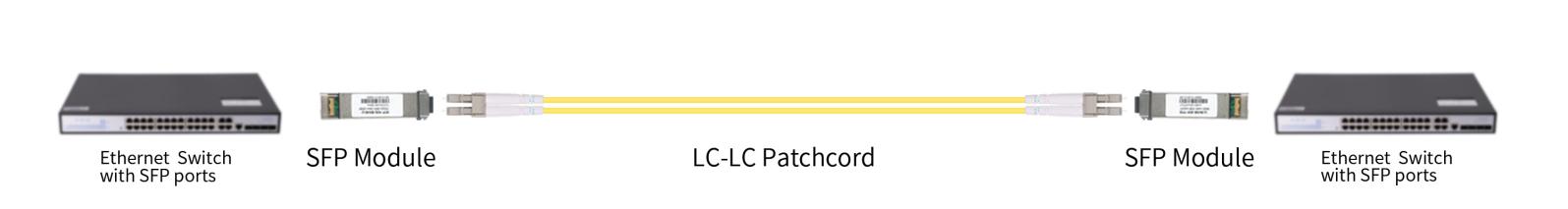

Network Connectivity


The best input/output (I/O) performance and fiber capacity of the SFP28 optical transceiver module is 2.5 times that of 10G Ethernet, and it has a higher port density. It can also save operating costs by reducing the number of TOR switches and cables. Compared with 100G optical transceiver module, the loss of 25G SFP28 optical transceiver module is also smaller.


Optical Transceiver Module

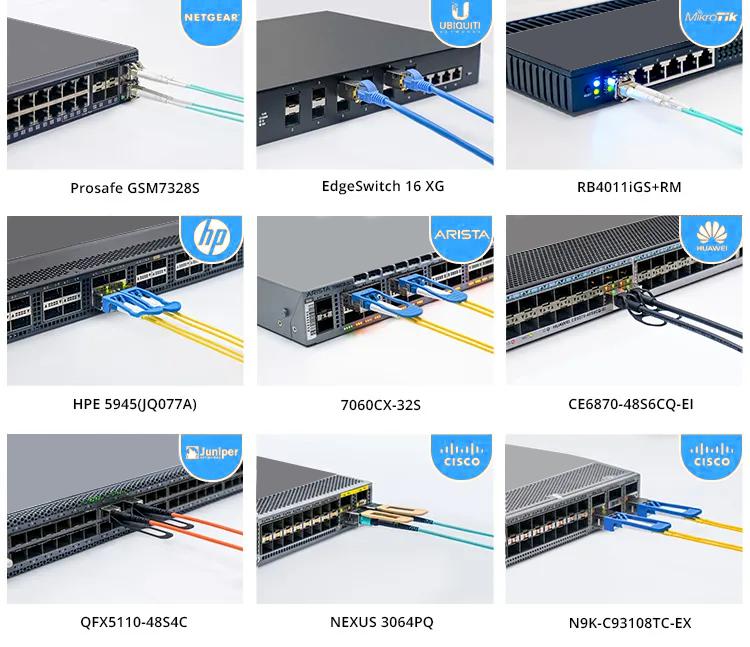

Competibale with all your Switch and 100% Tested in Host Devices


Competibale with all your Switch and 100% Tested in Host Devices


High Quality 400G/200G/100G/40G Optical Transceivers, Build Your Fiber Optical Networks Faster, Bigger and Sooner

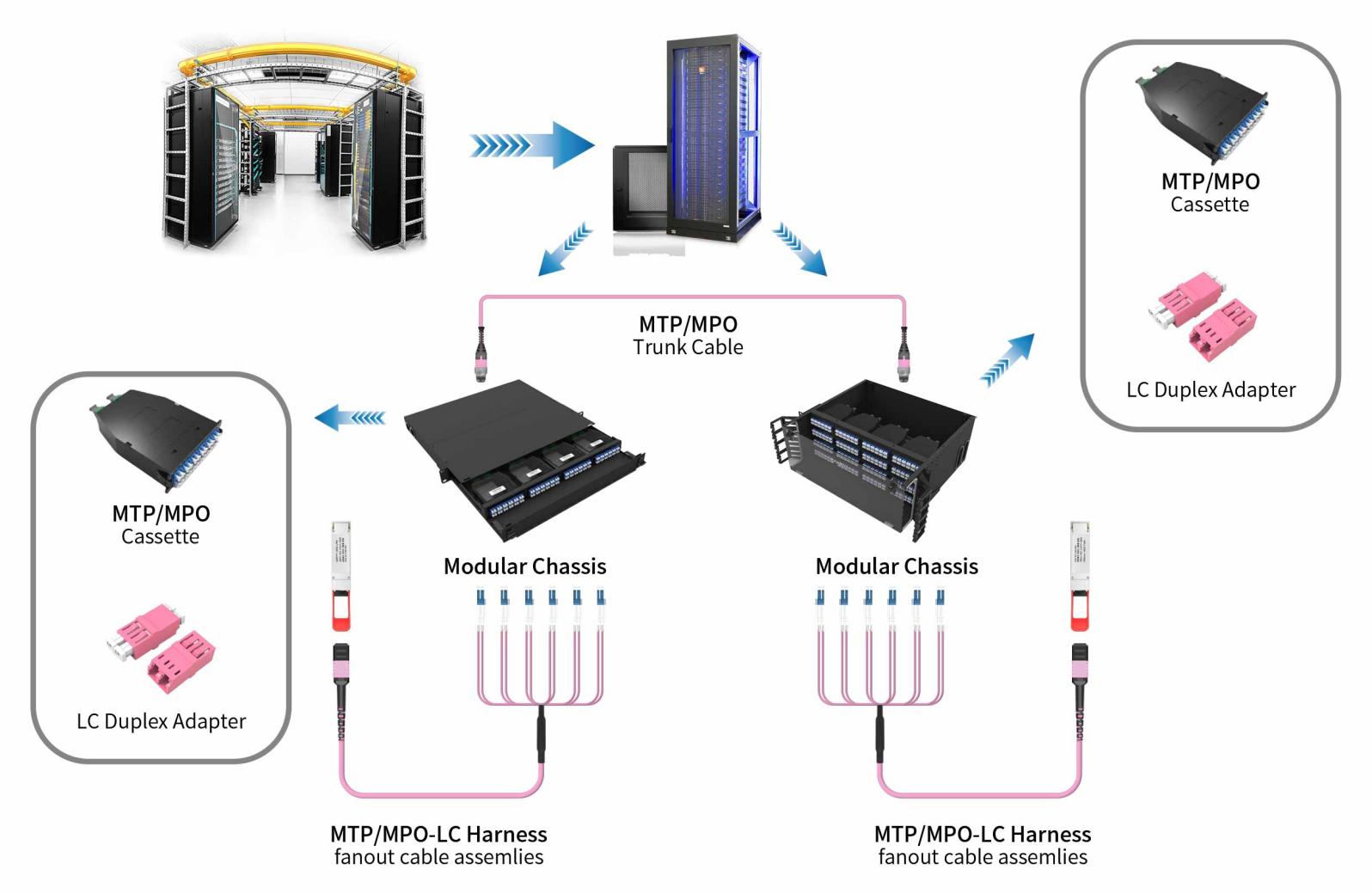

SFP28 optical transceiver modules can be used in high-density 25G Ethernet switch and network interfaces, thus providing operators with a more cost-effective solution for upgrading 10G Ethernet. The QSFP28 optical transceiver module can provide four 25Gbps high-speed signal channels, and is applied to high-density 25G Ethernet switch and network interfaces, providing a smooth upgrade possibility for data centers to further evolve to 100Gbps Ethernet (4x25Gbps).


Bigger and Sooner

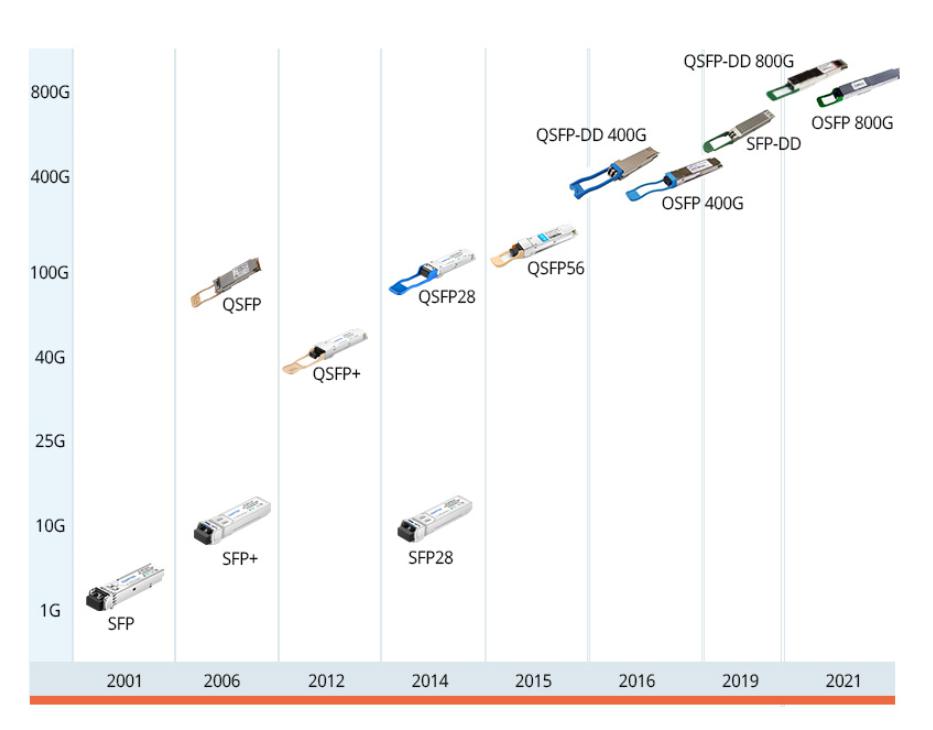

According to different transmission rates, optical transceiver module can be divided into 1G optical transceiver module, 10G optical transceiver module, 25G optical transceiver module, 40G optical transceiver module, 100G optical transceiver module and 400G optical transceiver module.


40G Optical Transceiver Module

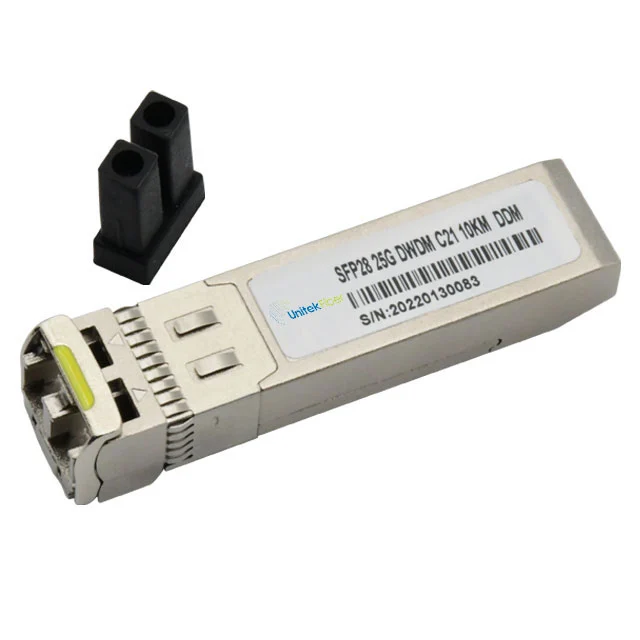

Optical Transceiver Module|SFP28 Bidi Module 1330/1270nm Wavelength 10km LC

Can you accept OEM/ODM transceiver module order?

Yes, please send inquiry to us or email us sales@unitekfiber.com.

What are the types of 25G optical modules?

25G optical modules are roughly divided into three types, 25G dual-fiber modules, 25G WDM modules, and 25G BIDI modules

Can SFP28 ports be interconnected with QSFP28 ports?

100G SR4 multi-mode optical modules can be used for interconnection. Under the premise of equipment support, 100G QSFP28 ports can be configured as 4*25G mode, and then MPO-LC fiber jumpers are used to connect 100G SR4 optical modules and 25G SFP28 optical modules.

What is the maximum transmission distance of the 25G SFP28 optical module?

At present, 25G SFP28 optical modules can transmit up to 40 kilometers. There are 25G SFP28 ER, 25G SFP28 bidi, 25G SFP28 CWDM, and 25G SFP28 DWDM.

How much power does this 25G SFP transceiver draw?

The power consumption of this module <1w.

Taylor
Mar 16, 2023

It plugs in, it just works. No mess, no fuss.

Unbeatable price and delivery time

I bought two of these transceivers to connect two switches together and I have to say It was never so easy my first time with fiber

Works great! Ships the same day.

The transceiver works just fine, I installed it, connected it and the link was up and running.

Verified Purchase
Helpful 0
