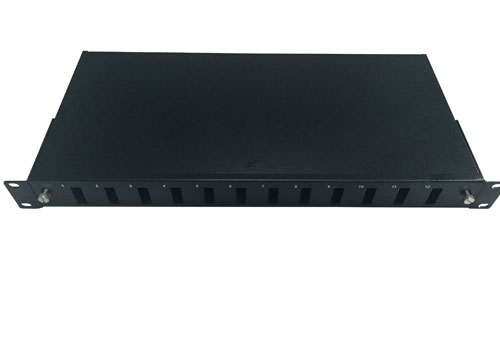

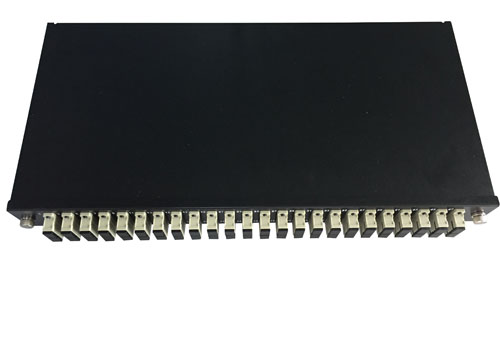

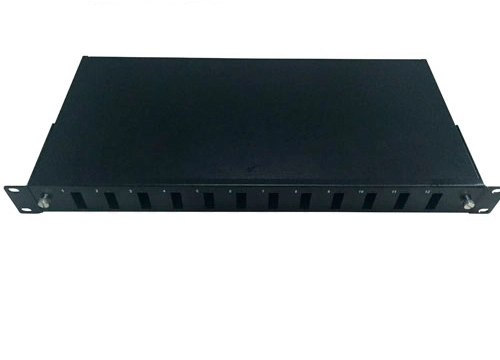

Sliding Termination Box UF-JJ-CL-1U Rack Mounted Fiber Optic Patch Panel 12/24cores

UnitekFiber supplies 1U sliding terminal fiber Patch panel. The patch panel is made of metal in 19" standard structure.. It can be 12ports, 24port in SC termination.

Fiber Optic
Details
Parameter

Details of Sliding Termination Box UF-JJ-CL-1U Rack Mounted Fiber Optic Patch Panel 12/24cores

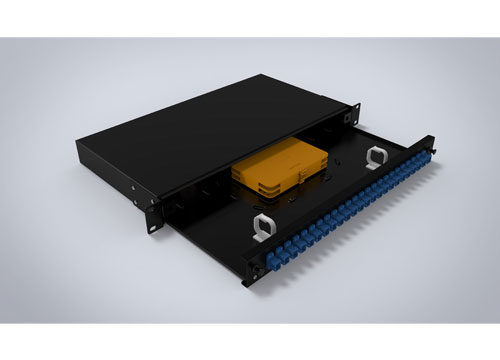

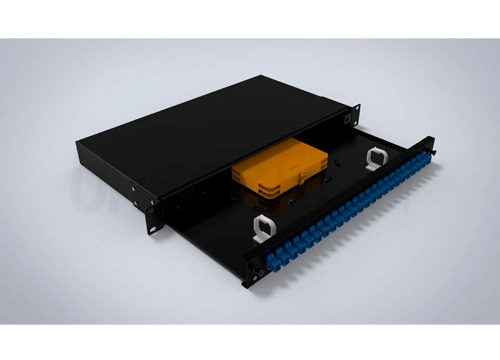

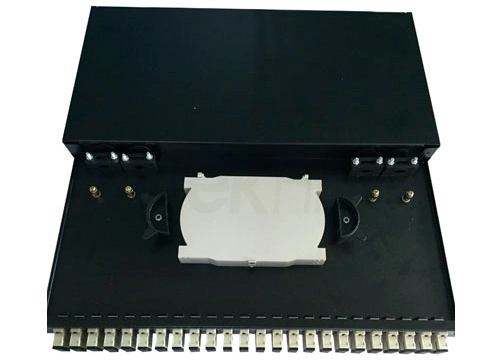

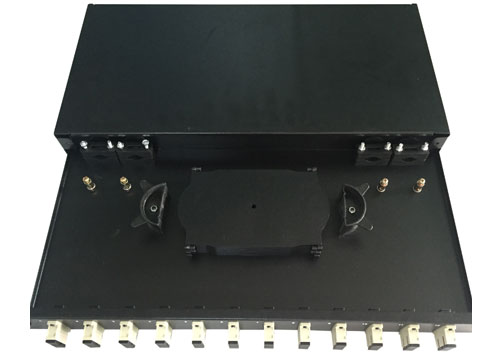

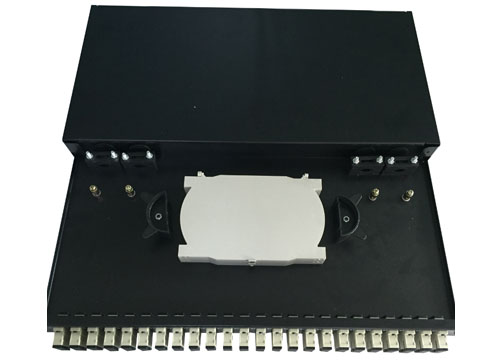

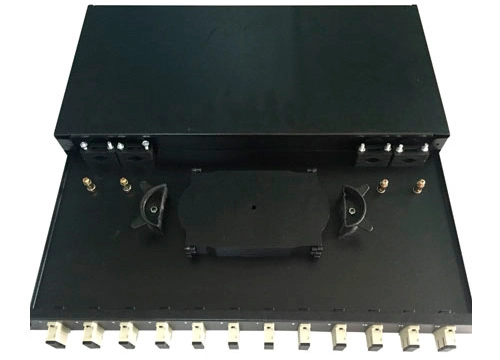

In the middle of the patch panel loaded with one splice cassette.The maximum capacity for splice cassette is 24pcs/pcs. It can be applied in branch connection of optical cable termination. Sliding design makes fiber splicing and storage easily. Rack mounted fiber panels is suitable for FC,SC,ST,LC adapters.


Features:


  • Used to the branch connection of optical cable termination

  • Rack mounting 19'' Standard Structure

  • Available for the installation of SC, LC, ST, FC adapters

  • Drawer Structure, Easy for operation.

  • Compact design for space saving

  • Easy for management and operation

  • Sprayed surface treatment process

  • Customizable color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging and Shipping


Sliding Termination Box UF-JJ-CL-1U Rack Mounted Fiber Optic Patch Panel 12/24cores


Production


Sliding Termination Box UF-JJ-CL-1U Rack Mounted Fiber Optic Patch Panel 12/24cores



Parameter of Sliding Termination Box UF-JJ-CL-1U Rack Mounted Fiber Optic Patch Panel 12/24cores

Packing Information

Type

Size(cm)

Max capacity

Outer carton diameter(cm)

Outer carton diameter

UF-JJ-CL-1U

48.2*30*1U

24

48.5*42*35/5pcs

27.5

UF-JJ-CL-2U

48.2*30*2U

72

49.5*34*54.5/4pcs

26.4

UF-JJ-CL-3U

48.2*30*3U

96

50*35*54/3pcs

23.1

UF-JJ-CL-4U

48.2*30*4U

144

50*35*54/2pcs

18.9
