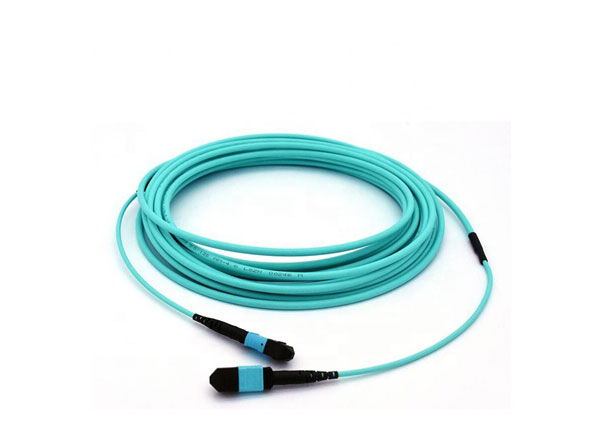

High-capacity Wiring MPO/MTP Cables|MPO - LC Fiber Optic Patch Cord 8 Cores OM3 OM4

In order to meet the high-density and high-efficiency cable connection requirements of high-speed and large-capacity optical communication systems, MPO/MTP fiber optic patch cords have emerged. MPO/MTP multi-core technology, not only 8 core / 12 core, or even 72 core / 96cores and 144 cores. The MTP / MPO high-density cabling system is a high-density fiber patch cord and ribbon cable, which is quickly configured in the field. It is an ideal solution for the data center in the context of increasing the high-capacity wiring in the user data center.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of High-capacity Wiring MPO/MTP Cables|MPO - LC Fiber Optic Patch Cord 8 Cores OM3 OM4

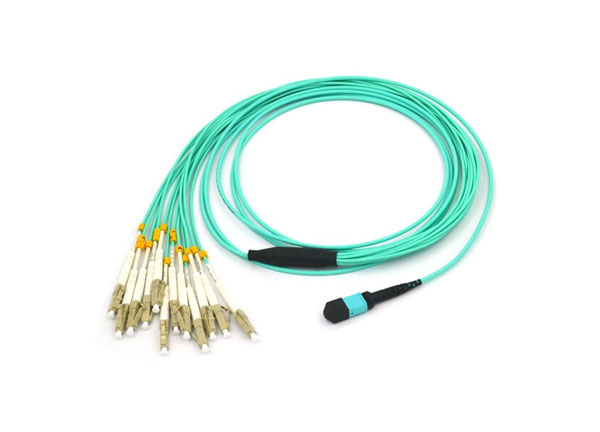

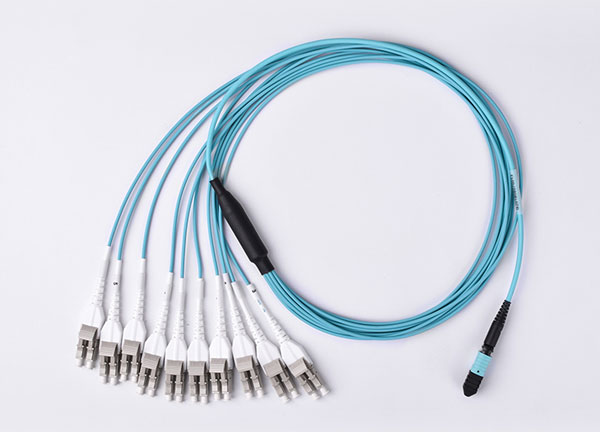

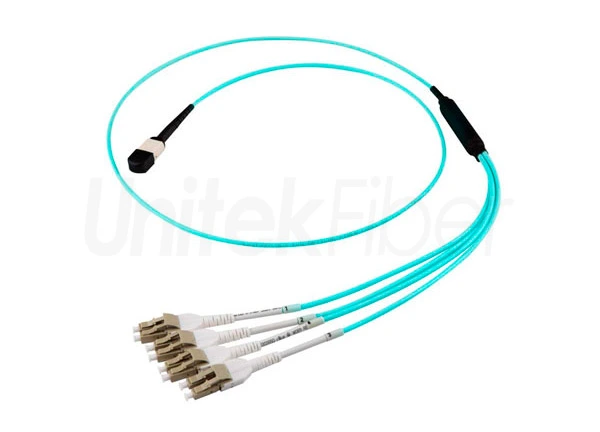

MPO/MTP Breakout fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 12 fibers in one easy plug-in. The fan-out side has 12 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.

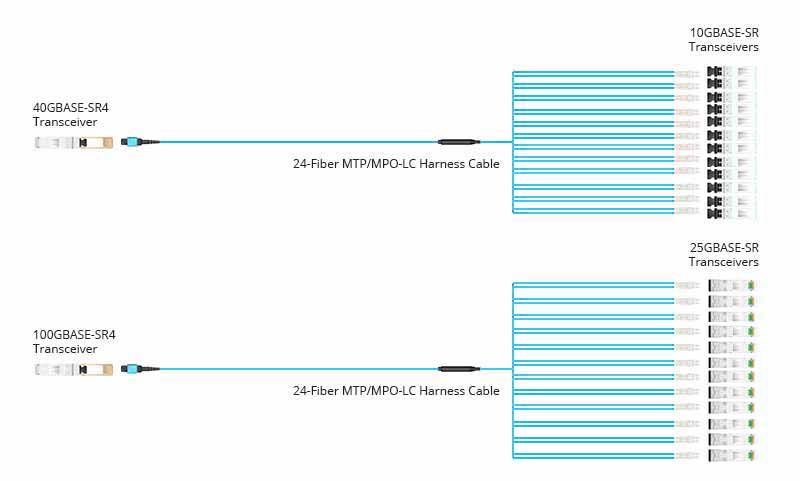

Network Connectivity


High-capacity Wiring MPO/MTP Cables|MPO - LC Fiber Optic Patch Cord 8 Cores OM3 OM4



Product Highlights


Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling







High-capacity Wiring MPO/MTP Cables|MPO - LC Fiber Optic Patch Cord 8 Cores OM3 OM4

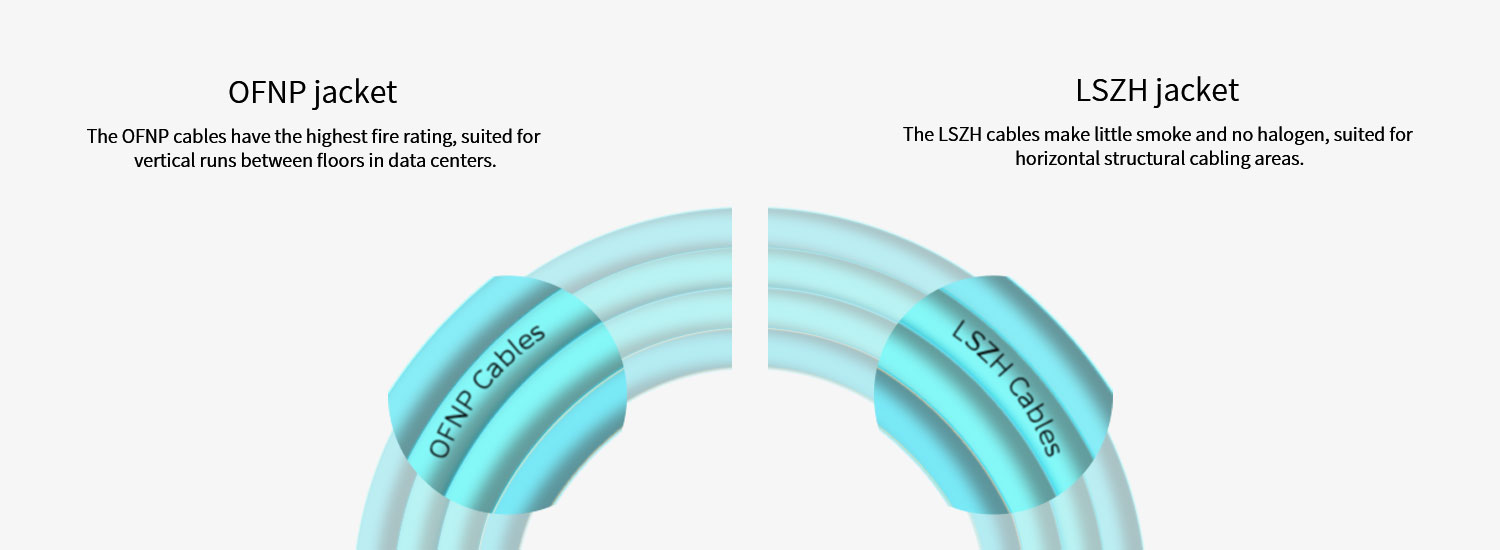

2 Custom Cable Jacket


High-capacity Wiring MPO/MTP Cables|MPO - LC Fiber Optic Patch Cord 8 Cores OM3 OM4

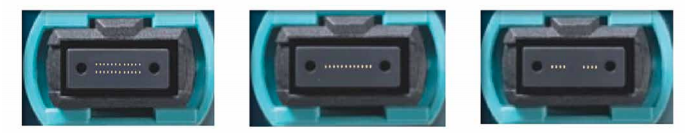

3 Custom MPO Connectors




Parameter of High-capacity Wiring MPO/MTP Cables|MPO - LC Fiber Optic Patch Cord 8 Cores OM3 OM4

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Catherin
Jul 25, 2022

Pulling this through ceilings and in conduit - this is fantastic cable. Flexible doesn't hold shape. Very nice to crimp as well.

Verified Purchase
Helpful 1
