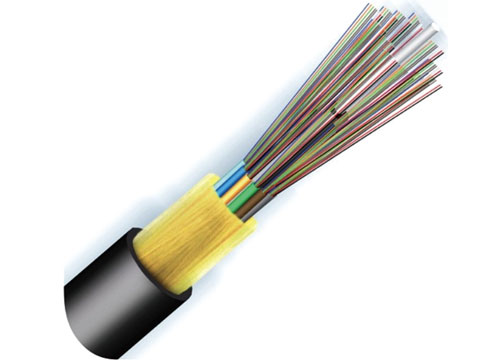

OSP Fiber Optic Cable|Outdoor GYFTY33 Fiber Cable Water-proof 24 Cores Single Mode G652D PE Jacket

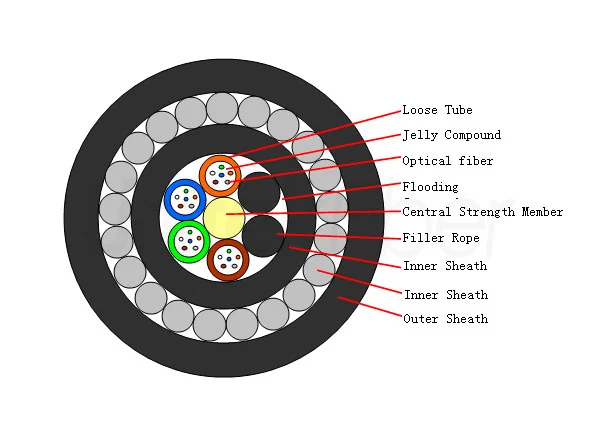

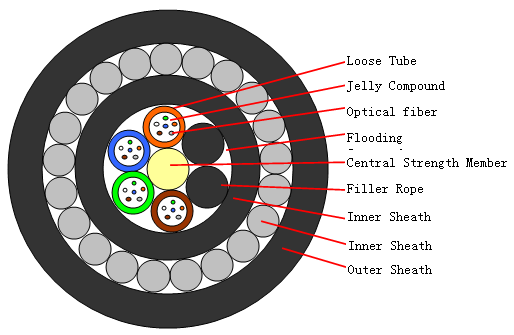

Water-proof GYFTY33 fiber optic cable is based on the GYFTY fiber optic cable structure, with enhanced waterproof and anti-extrusion functions. After being coated with aluminum tape longitudinally, a layer of PE inner sheath is extruded, and then a single layer or double layer thin round steel wire armor is longitudinally wrapped After installation, the polyethylene outer sheath is finally extruded into a cable.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of OSP Fiber Optic Cable|Outdoor GYFTY33 Fiber Cable Water-proof 24 cores Single Mode G6

Water-proof GYFTY33 fiber optic cable is based on the GYFTY fiber optic cable structure, with enhanced waterproof and anti-extrusion functions. After being coated with aluminum tape longitudinally, a layer of PE inner sheath is extruded, and then a single layer or double layer thin round steel wire armor is longitudinally wrapped After installation, the polyethylene outer sheath is finally extruded into a cable.


Optical Cable for Sale


Features:


Use high-quality optic fiber to ensure that the Fiber optic cable has excellent transmission performance;

Strict process and raw material control to ensure the stable operation of the fiber optic cable for more than 30 years;

The full-section water-blocking structure ensures good water-blocking and moisture-proof performance;

The loose tube is filled with special grease to protect the optic fiber critically;

Corrosion-resistant, high Young’s modulus phosphating steel wire is used for the center reinforcement;

Longitudinal wrapped double-sided coated wrinkled aluminum tape, thin round steel wire wrapped for armor, to ensure the mechanical compression, tensile and elastic properties of the optical cable


Optical Cable Price


The high voltage electrical cable is laid in a trench.


Application:


Long-distance communication,

inter-office communication,

CATV and computer network transmission systems, etc.

Laying method: direct buried, underwater;

Operating temperature: -40℃~70℃;


Fiber Optic Wire Cable


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of OSP Fiber Optic Cable|Outdoor GYFTY33 Fiber Cable Water-proof 24 cores Single Mode G652

No. of Cable48
Fiber ModelG652D
Central Strength MemberMaterialFRP
Diameter(±0.05)mm2.0
Loose TubeMaterialPBT
Diameter(±0.06)mm1.8
Thickness(±0.03)mm0.30
The Max.Core NO./Tube12
Filler ropeMaterialLDPE
Diameter(±0.06)mm1.80
No.2
Water Blocking layer(Material)Flooding Compound
Inner


Sheath

MaterialMDPE
Thickness(±0.1)mm0.8
Strength MemberMaterialGalvanized steel wire
Diameter(±0.05)mm1.2
Outer SheathMaterialMDPE
Thickness(±0.2)mm1.8
Cable Diameter(±0.2)mm13.2
Cable Wetght(±20)kg/km310
Min. bending radiusWithout Tension15.0×Cable-φ
Under Maximum Tension30.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70


Fibre & Loose Tube Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

What is an OSP fiber optic cable?

It's outside plant (OSP) fiber optic cables.

What type of fiber cable is mostly used in OSP installations?

Such as GYTA53 fiber optic cable, GYFTY53 fiber optic cable, GYTS fiber optic cable, GYTA33 fiber optic cables, GYFTY fiber optic cables, etc.

Where OSP fiber optic cable should be used?

Conduit in Concrete Slab or grade below concrete slab, and Exterior Camera Installation.

How long about the product quality guarantee period?

25 years guarantee for fiber optic cable.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.

What's your payment terms?

Visa, MasterCard, T/T, PAYPAL, Western Union, etc. 30% Payment in advance and 70% balance before shipment.
