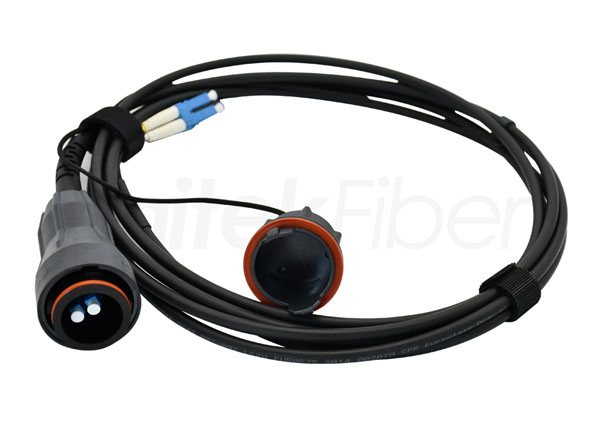

FTTA Waterproof Outdoor Fiber Optical Patch Cord Assembly AARC ODC Connector

UnitekFiber produces FTTA Waterproof Outdoor Assemblies which used for outdoor RRU models and systems. This cable assemblies connect with AARC, ODC connectors. The conectors are female type and male type. The cable jacket can be PVC, LSZH and PC. All our cables meet the standards of IEC61754-20 and RoHS and REACH materials compliant.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of FTTA Waterproof Outdoor Fiber Optical Patch Cord Assembly AARC ODC Connector

Application:


  • Multi-purpose Outdoor

  • For connection between distribution box and RRH

  • Deployment in Remote Radio Head cell tower application


Feature:


  • IP65 protection, salt-mist proof

  • FTTA feeder for all common RRU models and systems

  • Standard assemlies and customized lengths available with short leat time

  • Ruggedised design and installation proof

  • Available diameter: 5~8 mm

  • All cable contain rodent resistance

  • All cable assemblies, tested  in factory

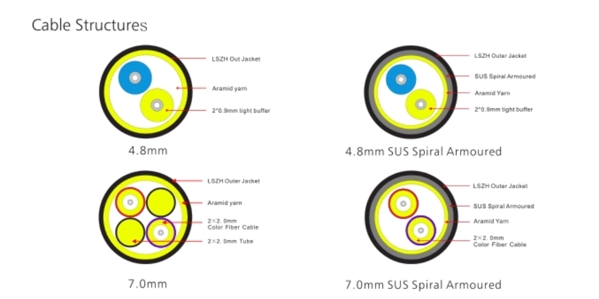

Cable Structure


Packaging & Shipping


FTTA Waterproof Outdoor Fiber Optical Patch Cord Assembly AARC ODC Connector


Production


FTTA Waterproof Outdoor Fiber Optical Patch Cord Assembly AARC ODC Connector


Parameter of FTTA Waterproof Outdoor Fiber Optical Patch Cord Assembly AARC ODC Connector

Type

SM-UPC

SM-APC

MM-UPC

Typical

Max

Typical

Max

Typical

Max

Insertion Loss

≤0.1dB

≤0.3dB

≤0.15dB

≤0.3dB

≤0.05dB

≤0.3dB

Return Loss

≥50dB

≥60dB

≥30dB

Durability

500 mating cycles

Working temperature


-40 - 85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
