FTTx Fiber Optic Cable|All Dielectric GYFXTBY Fiber Drop Cable Flat Central Loose Tube 2 Core G652D PE|LSZH

GYFXTBY fiber optic cable is uni-tube dielectric flat drop fiber cable which features a single tube design for easy installation. The flat drop fiber cable can provide excellent compression resistance which is applied for self-supporting drop installations as well as conduit constructions.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of FTTx Fiber Optic Cable|All Dielectric GYFXTBY Fiber Drop Cable Flat Central Loose Tub

Optical Cable for Sale

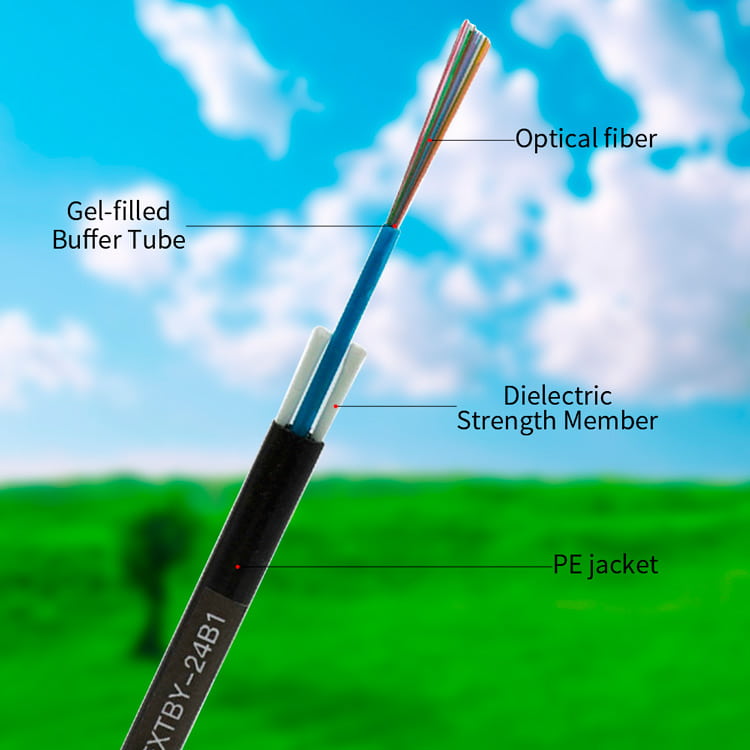

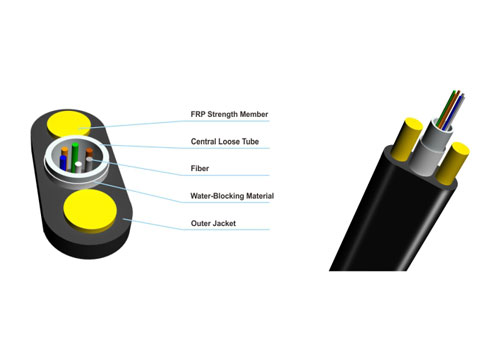

Outdoor GYFXTBY Flat Cable Single Mode Fiber Optic Cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube. The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension. The cable consists of a central loose tube, filled with a synthetic oil based jelly, non-nutritive to fungus, electrically non-conductive, homogeneous and free from dirt and foreign matter, containing up to 12 optical fibres. Two Fiber Reinforced Plastics (FRP) elements are longitudinally applied parallel with the tube, and an outer black PE sheath, UV resistant.


Optical Cable Price

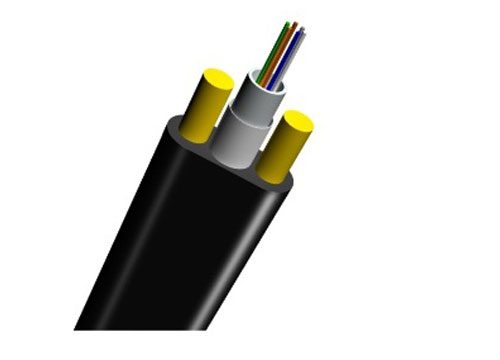

The Fiber Cores of Flat Fiber Cable is 2-24Cores

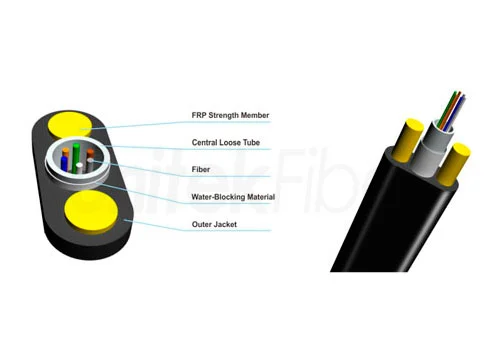

Features of GYFXTBY Fiber optic Cable

Fiber Optic Wire Cable



The PBT loose tube material has good hydrolysis resistance, and the tube is filled with special ointment to protect the optical fiber; The flat optical cable is all non-metallic structure, light in weight, easy to lay, and has better anti-electromagnetic and lightning protection effects; Drop cable has the advantages of corrosion resistance, UV protection and environmental protection; Precise control of the excess length of the fiber cable ensures that the optical cable has good tensile performance and temperature characteristics.


Applications of  Flat Fiber optic Cable


Fiber Optic Wire for Sale


The flat fiber optic cable is end of the household access, the agricultural network lightning distribution area overhead, also can application indoor and outdoor wiring in open areas. Mainly used for building pipelines or overhead drop cables, and can also be used for access networks, outdoor to indoor drop cables.


Professional Assistance For Flat Fiber Optic Cabling System.


Fo Cable Type


The optical cable layout is generally led from the entrance hole in front of the office to the optical transceiver through the underground access room. Due to the complexity of routing, manual deployment should be adopted. When laying, there should be a special person at the upper and lower corridors and each corner to pull according to the unified command, keep the fiber drop in a slack state during the pulling, and flat optic cable is strictly forbidden to make small circles and dead bends.


Packing & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of FTTx Fiber Optic Cable|All Dielectric GYFXTBY Fiber Drop Cable Flat Central Loose Tube

No. of Cable1
Fiber ModelG.652D
subelementTight lineMaterialPVC
Thickness0.32(±0.05)mm
Diameter0.9(±0.1)mm
Strength MemberMaterialAramid Yarn
Inner SheathMaterialLSZH
Thickness0.45(±0.05)mm
Diameter2.9(±0.1)mm
ColorWhite
Strength MemberMaterialFRP
Diameter1.5(±0.05)mm
No.2
Water Blocking Layer(Material)Special Water Blocking material used for


Effecive water blocking and ease of installation

Ripcord(Material)Nylon
Outer SheathMaterialMDPE
ColorBlack
Cable Diameter(4.3±0.2)×(7.8±0.2)mm
Cable Wetght29(±2)kg/km
Max. allowable tension


(Short-term)

1350N
Max. allowable tension


(Long-term)

300N
Crush resistance test2000N/10cm
Min. bending radiusStatic100mm
dynamic150mm
Temperature range


(℃)

Installation-30~+60
Transport&Storage-40~+75
Operation-40~+70

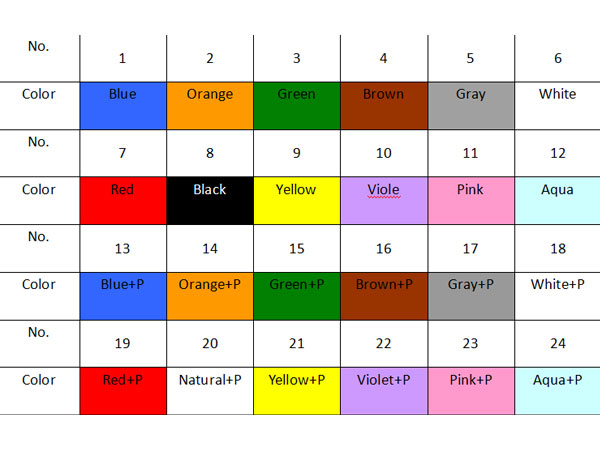

Fibre Colors

Fibre Colors
* "P" means Point mark

Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

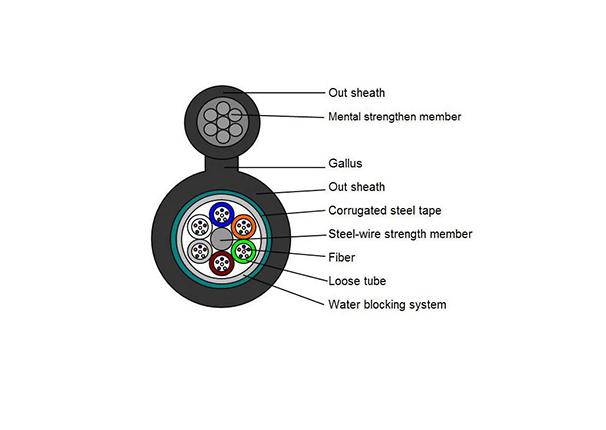

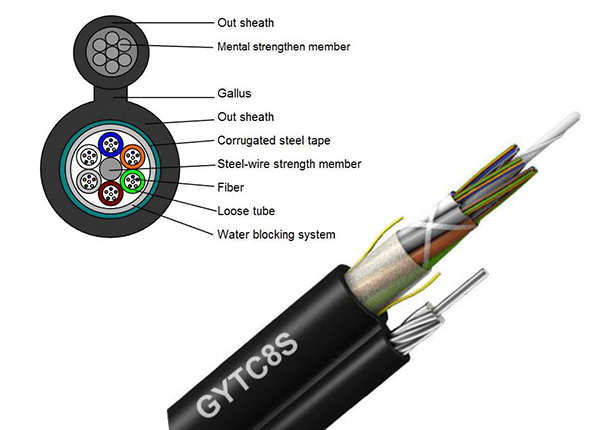

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.

Reviews

Allen
Jul 13, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
Helpful 0
