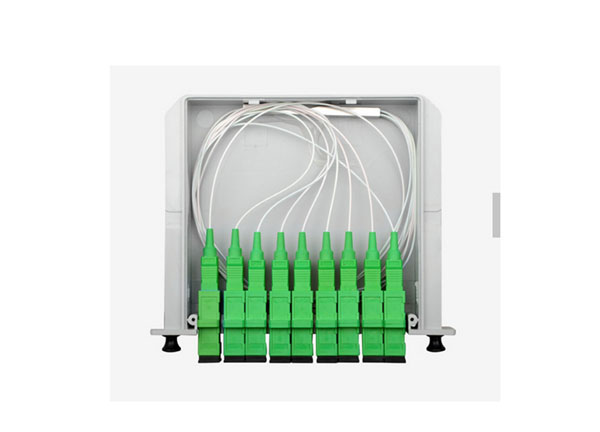

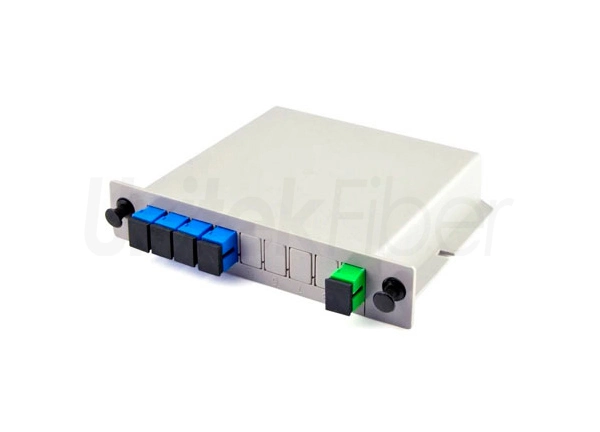

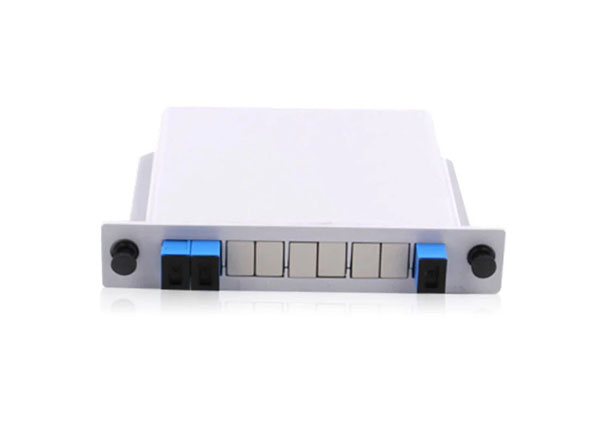

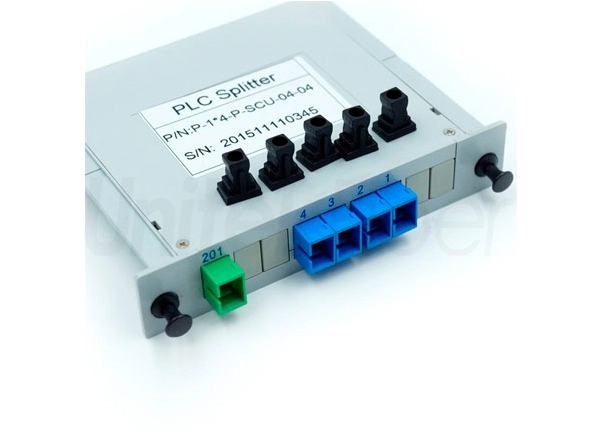

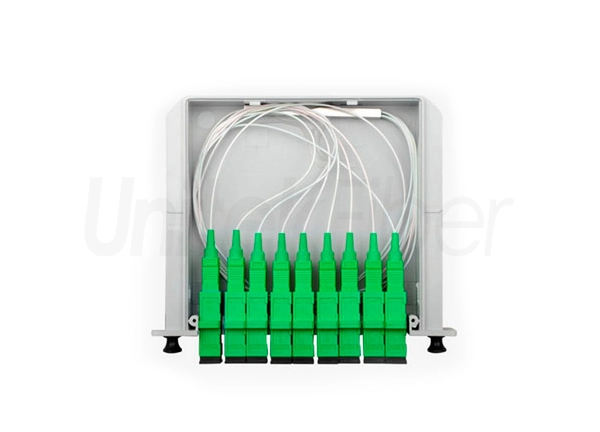

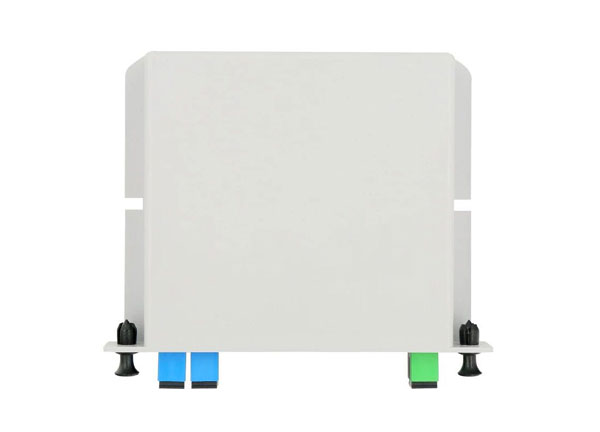

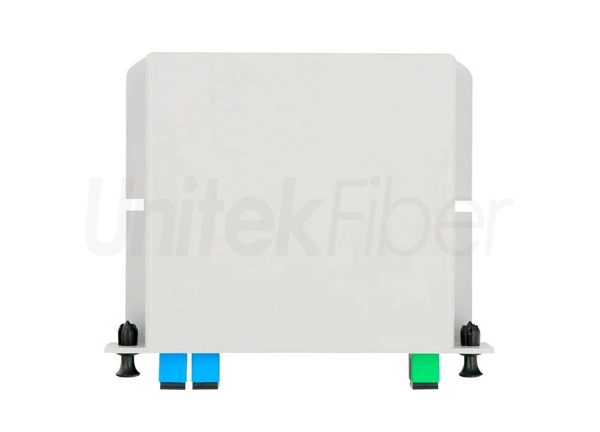

Manufacturing LGX box type of PLC splitter.The LGX box type of PLC splitter integrates the light splitter and the adapter, which greatly facilitates the construction of the project and reduces the damage caused by the improper construction or storage of the conventional box splitter. 1:4 and 1:8 use one slot, 1:16 occupies two slots, 1:32 occupies four slots.
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
High Reliability and Stability
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance:
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE

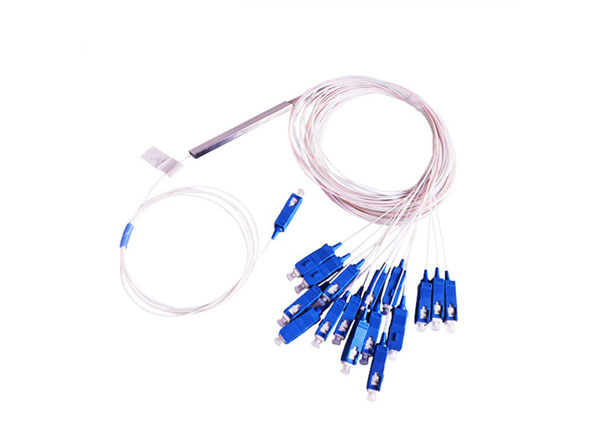

Table 1 – 1×N PLC Splitter
Parameters | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260～1650 | ||||||||
Fiber Type | G657A or customer specified | ||||||||
Insertion Loss (dB)(Min/Max) | 3.8/4.0 | 7.2/7.4 | 9.5/9.8 | 10.5/10.7 | 12.1/12.6 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | |
Loss Uniformity (dB) | 0.6 | 0.6 | 1.0 | 0.8 | 1.1 | 1.2 | 1.5 | 2.5 | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
Operating Temperature(℃) | -40～+85 | ||||||||
Storage Temperature(℃)) | -40～+85 | ||||||||
Operating Humidity | 5% ~ 85% RH | ||||||||
Storage Humidity | 5% ~ 85% RH | ||||||||
Device Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×4×4 | 50×7×4 | 60×12×4 | |
Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 | 140×115×18 | |
Mini-Module Dimension (mm) (L×W×H) | 50×7×4 | 50×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 60×12×4 | 80×20×6 | N/A | |

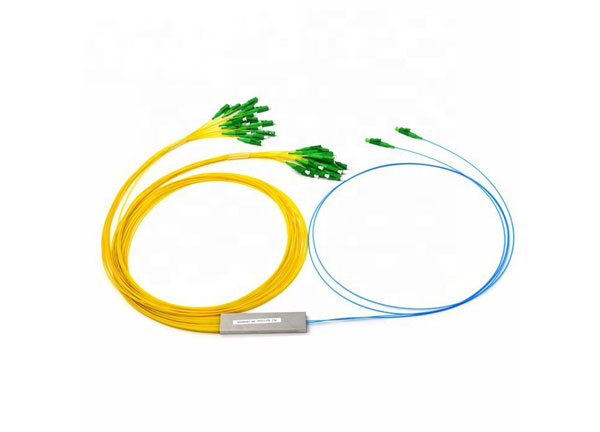

Table 2 – 2×N PLC Splitter
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
Operating Wavelength (nm) | 1260～1650 | ||||||
Fiber Type | G657A or customer specified | ||||||
Insertion Loss (dB)(Min/Max) | 3.9/4.2 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.2/17.7 | 21.0/21.5 | |
Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 1.8 | 2.0 | 2.5 | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
Operating Temperature(℃)) | -40～+85 | ||||||
Storage Temperature(℃)) | -40～+85 | ||||||
Operating Humidity | 5% ~ 85% RH | ||||||
Storage Humidity | 5% ~ 85% RH | ||||||
Device Dimension (mm) (L×W×H) | 40×4×4 | 50×4×4 | 50×4×4 | 50×7×4 | 60×7×4 | 60×12×4 | |
Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 | |
Mini-Module Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | N/A | |
