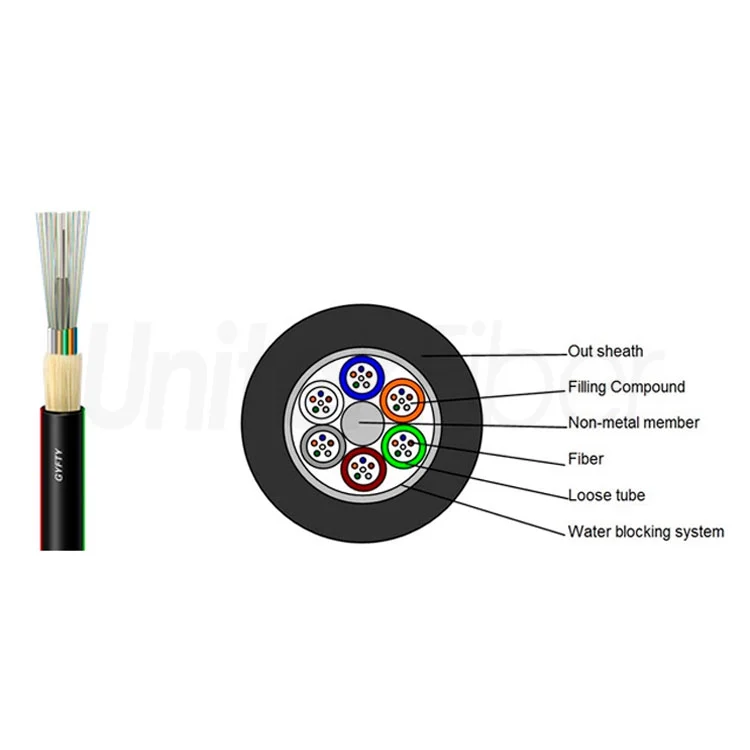

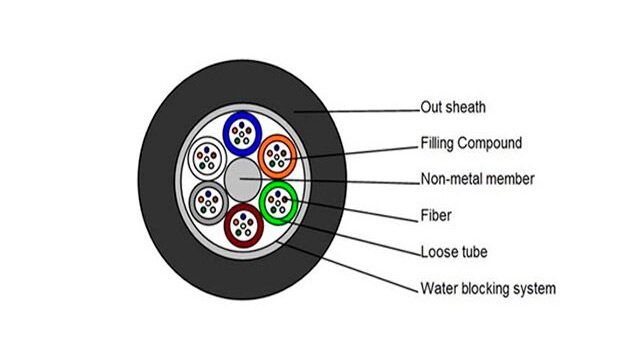

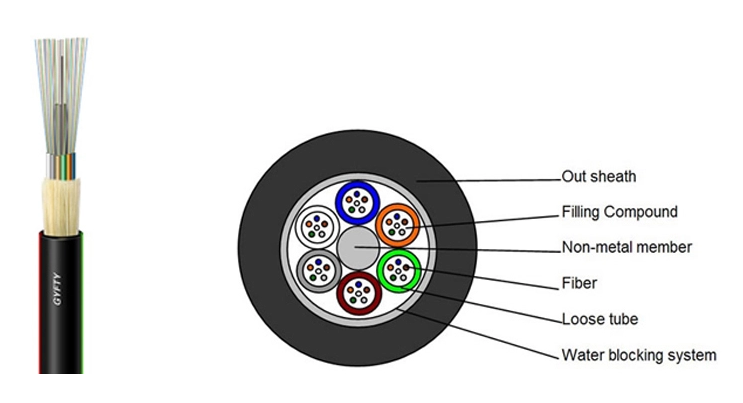

The center of the GYFTY cable core is a glass fiber reinforced plastic (FRP), which is twisted around a loose tube (and filler rope) into a compact and circular cable core. The gaps in the cable core are filled with water blocking fillers, and a layer of polyethylene inner sheath is extruded outside the cable core to form a cable.

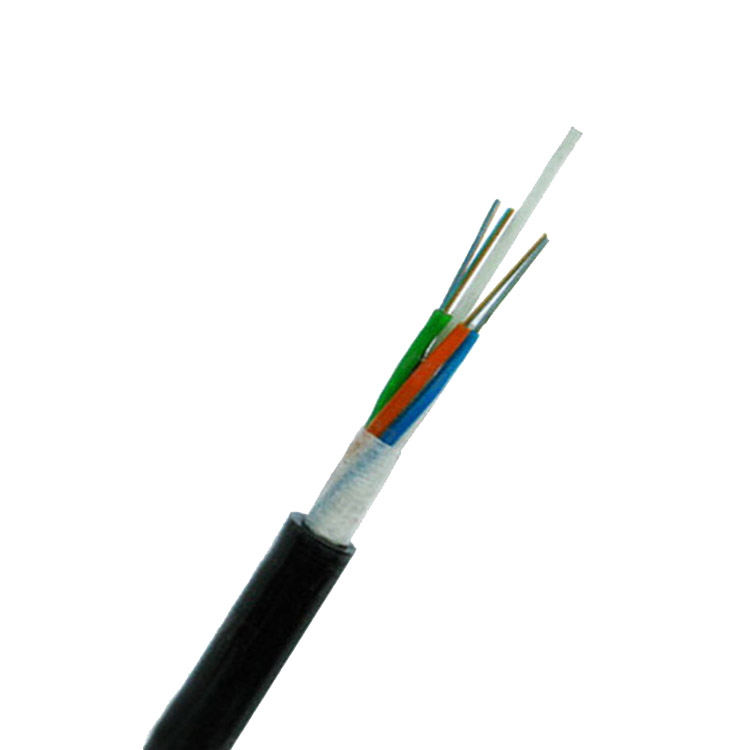

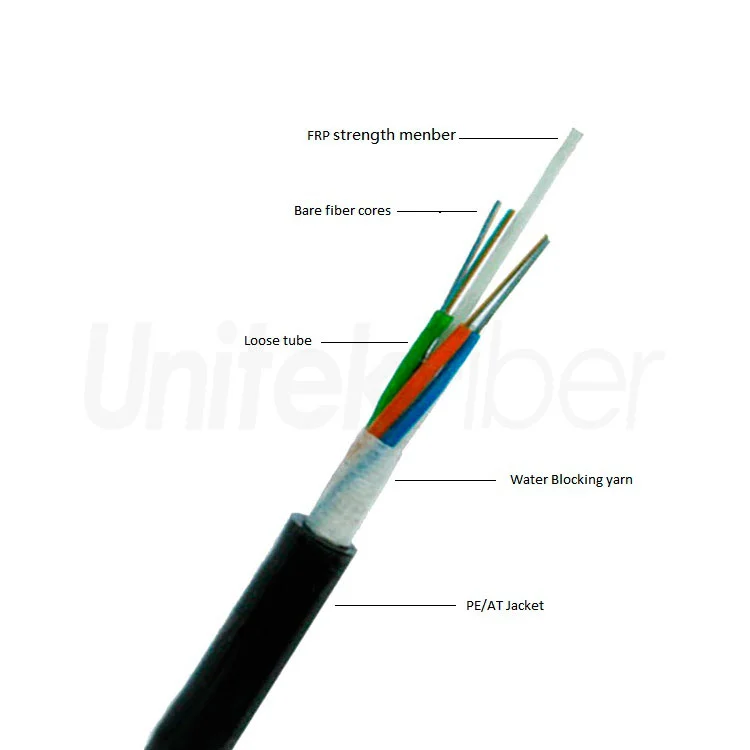

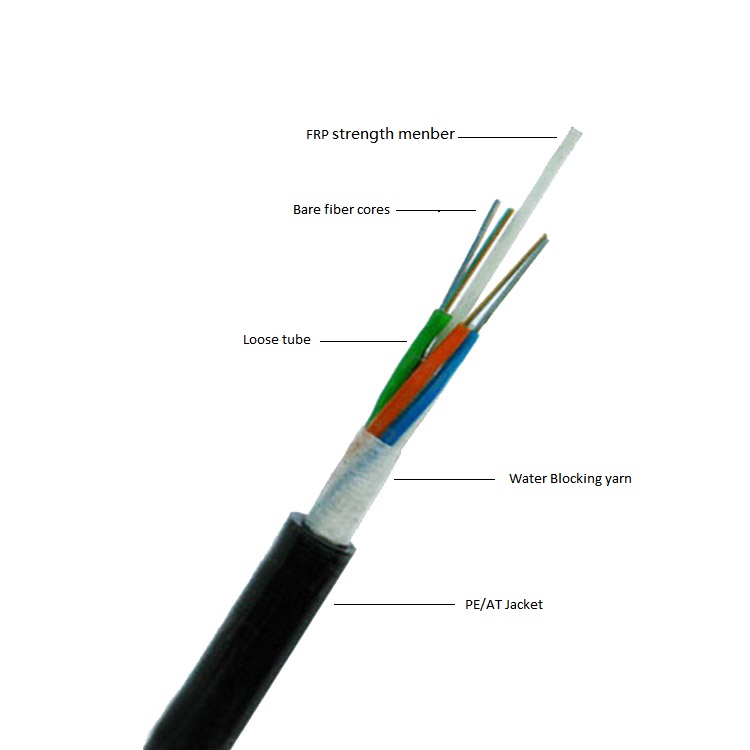

GYFTY fiber optic cable is a stranded non-metallic structure. Optical fibers are protected in loose tubes filled with Gel jelly.FRP locates in the center of cores as a non-metallic strength member. These loose tubes are stranded around a central strength member. The optical fiber cable core is water proof with water blocking material, GYFTY fiber optic cable is completed with a PE sheath for mechanical protection.
The Fiber Cores of GYFTY Fiber Cable is from 2 cores to 288 cores.
GYFTY fiber optic cable is used precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the cable optic fiber. GYFTY fiber optical cable has excellent flexibility and bending resistance. Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance. Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation.PE sheath has good resistance to solar radiation.
GYFTY Fiber Optic Cable Aerial and Duct is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct installation applications.
No. of cable
Central Strength Member
The Max.Core NO./Tube
Water Blocking layer(1)（Material）
Water Blocking layer(2)（Material）
Water blocking tape
Min. bending radius
Under Maximum Tension
Fibre & Loose Tube Colors
Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.
The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.
Our fiber cable can be bent with diameters of 2.5cm or less.
We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.
Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.
Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
I have received the order, and your shipping time is out of expected. And the FTTH drop cable are functioning just as expected. we have always been satisfied with our equipment from you.
