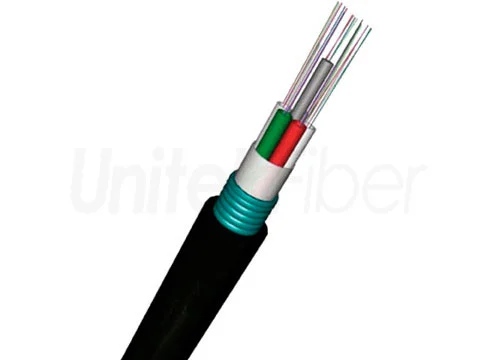

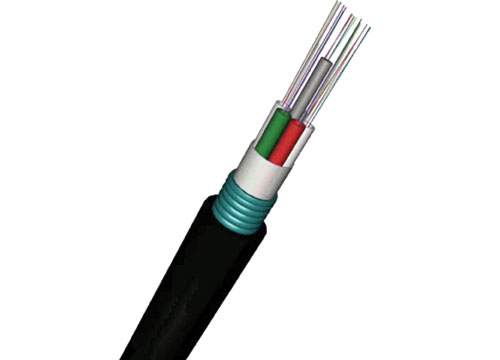

Outside Plant Fiber Cable| GYTS Fiber Optic Cable 12 core Armored Steel Tape Stranded Loose Tube

UnitekFiber supplies OSP(Outside Plant) GYTS fiber cable. The cable is 6 loose tubes stranded together with filling compound of waterproof system around the central reinforcement steel member.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Outside Plant Fiber Cable| GYTS Fiber Optic Cable 12 core Armored Steel Tape Stranded

Optical Cable for Sale

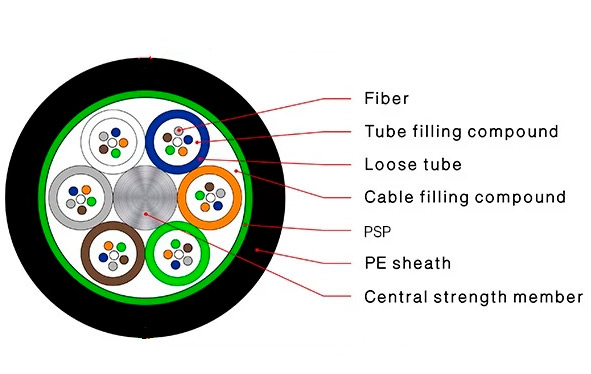

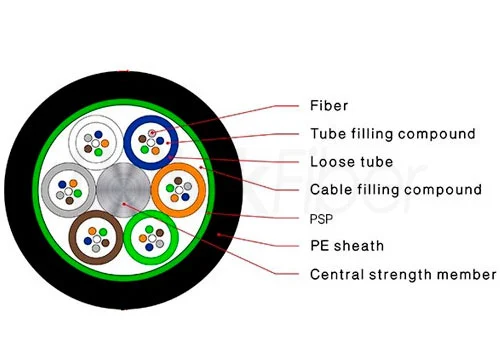

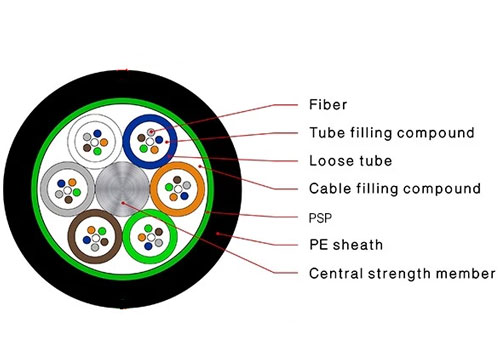

GYTS armored fiber optic cable is stranded loose tube outdoor cable with metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cable types, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The steel-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Optical Cable Price


The Fiber Cores of GYTS Fiber Cable is from 2 cores to 288 cores


Features of GYTS Fiber-optic Cable


Fiber Optic Wire Cable

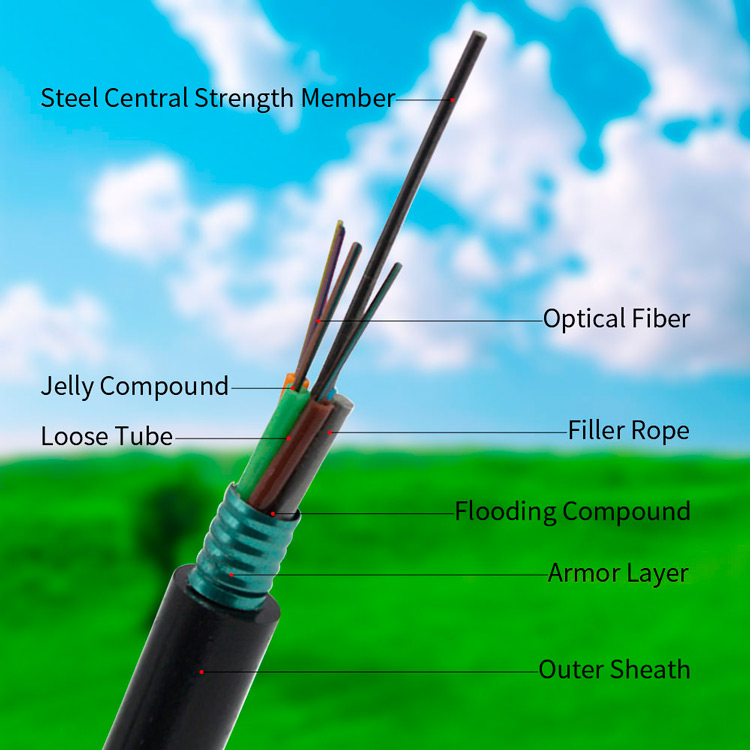

GYTS (metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cables, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The aluminum-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Applications of GYTS Fiber-optic Cable


Fiber Optic Wire for Sale


GYTS fiber optic cable is used for duct or aerial fields. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for high requirements of moisture resistance environment.


Professional Assistant For GYTS Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Outside Plant Fiber Cable| GYTS Fiber Optic Cable 12 core Armored Steel Tape Stranded L

No. of cable

2~30

32~60

62~72

74~96

Fiber Model

G.652D

Design(StrengthMember+Tube&Filler)

1+5

1+5

1+6

1+8

Central Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.5

1.5

2.1

2.1

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

2.1

2.1

2.1

Thickness(±0.03)mm

0.32

0.35

0.35

0.35

The Max.Core NO./Tube

6

12

12

12

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

2.1

2.1

2.1

Water Blocking layer(Material)

Flooding Compound

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter

9.6

10.5

11.1

12.7

Cable Wetght

92

108

132

170

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

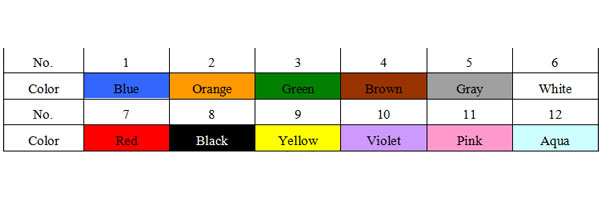

Fibre & Loose Tube Colors

OSP(Outside Plant) Steel Tape Stranded Loose Tube Fiber Optic Cable GYTS


What is an OSP fiber optic cable?

It's outside plant (OSP) fiber optic cables.

What type of fiber cable is mostly used in OSP installations?

Such as GYTA53 fiber optic cable, GYFTY53 fiber optic cable, GYTS fiber optic cable, GYTA33 fiber optic cables, GYFTY fiber optic cables, etc.

Where OSP fiber optic cable should be used?

Conduit in Concrete Slab or grade below concrete slab, and Exterior Camera Installation.

How long about the product quality guarantee period?

25 years guarantee for fiber optic cable.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.

What's your payment terms?

Visa, MasterCard, T/T, PAYPAL, Western Union, etc. 30% Payment in advance and 70% balance before shipment.
