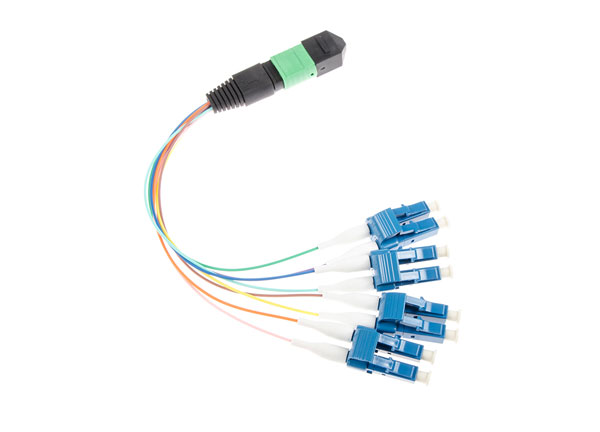

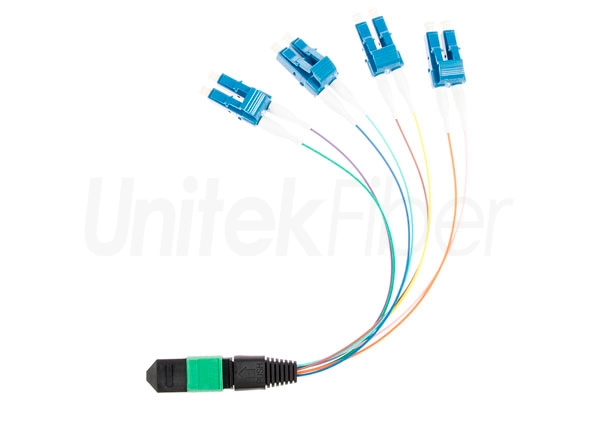

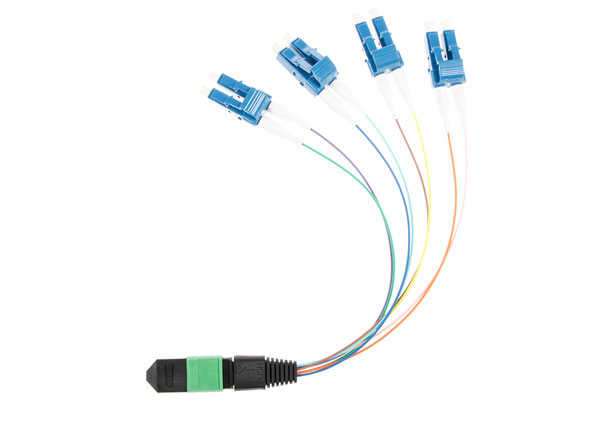

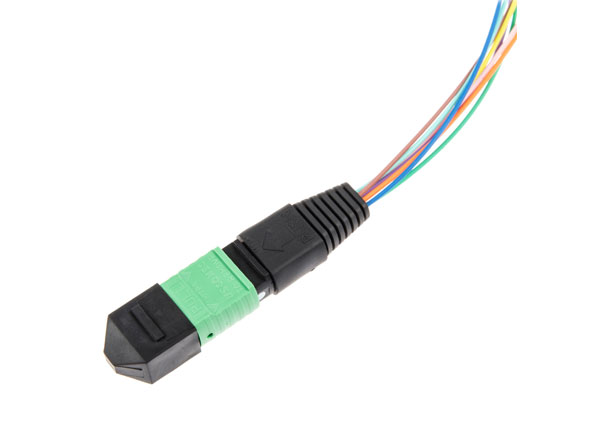

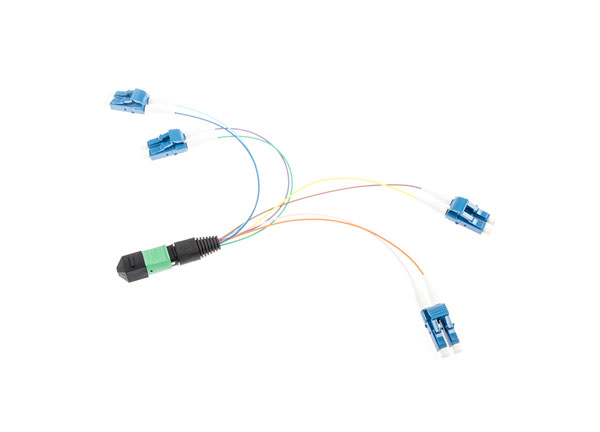

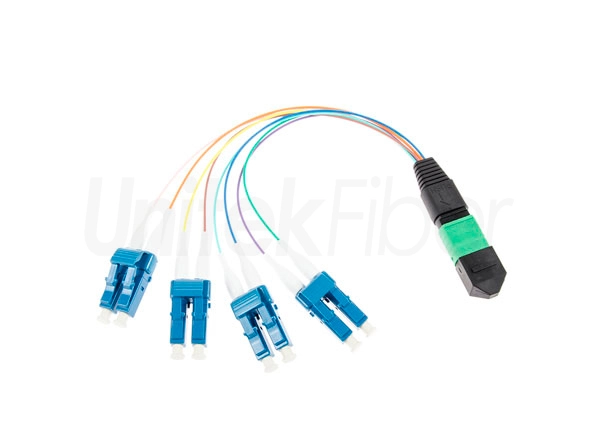

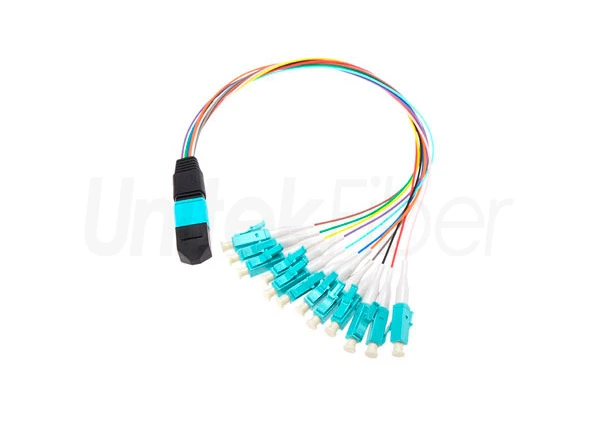

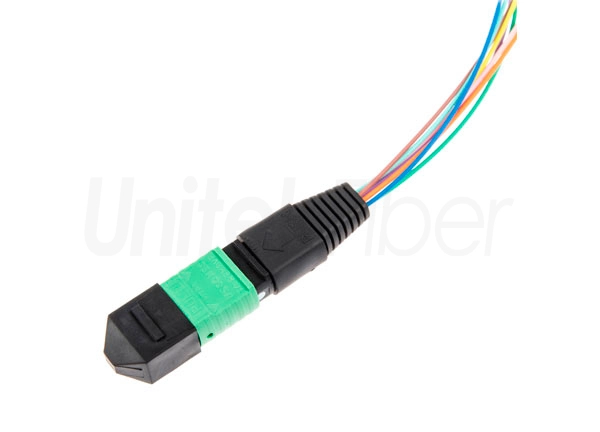

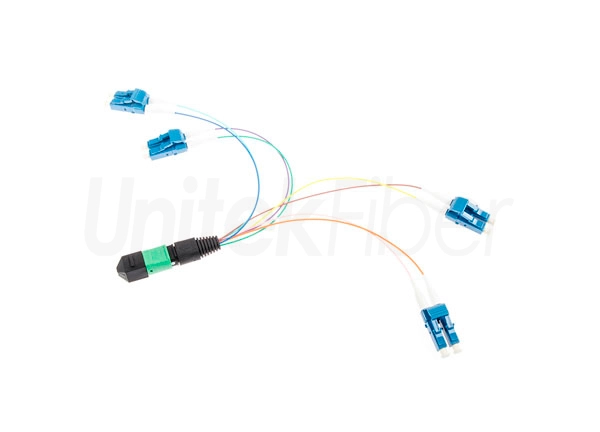

Factory OEM MTP/MPO Fiber Cable|8cores MTP to LC Duplex Pigtail Patchcord SM MM

Supplying various forms of MTP optical jumpers. Our best selling MPO/MTP patchcords MTP/PO to LC patchcord. They are high-performance design which are widely used in environments that require high-density integrated fiber optic lines.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Details of Factory OEM MTP/MPO Fiber Cable|8cores MTP to LC Duplex Pigtail Patchcord SM MM

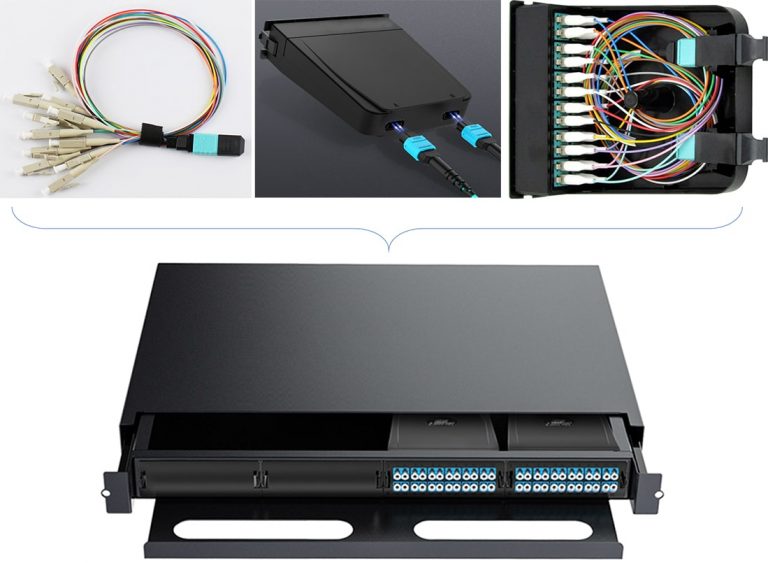

MPO/MTP cables are used in Plug-and-Play cassettes for multi-fiber to single-fiber splitting out interconnects. MTP/MPO fiber cables are fully configurable and available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.




Network Connectivity

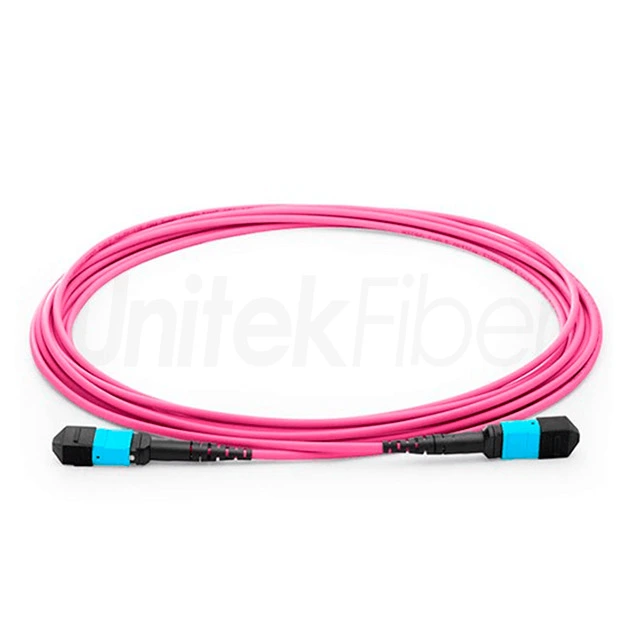

High Density MPO/MTP Fiber Cable|MPO- MPO Trunk Cable 12 Cores OM4 Pink 10M LSZH


MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.


High Density MPO/MTP Fiber Cable|MPO- MPO Trunk Cable 12 Cores OM4 Pink 10M LSZH



Product Highlights



Superior Workmanship Guarantees Stable Transmission


high-density-mpo-mtp-fibHigh Density MPO/MTP Fiber Cable|MPO- MPO Trunk Cable 12 Cores OM4 Pink 10M LSZHer-cable-mpo-mpo-trunk-cable-12-cores-om4-pink-10m-lszh3.png


Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling



High Density MPO/MTP Fiber Cable|MPO- MPO Trunk Cable 12 Cores OM4 Pink 10M LSZH


High Density MPO/MTP Fiber Cable|MPO- MPO Trunk Cable 12 Cores OM4 Pink 10M LSZH


Custom Standard Connectors


High Density MPO/MTP Fiber Cable|MPO- MPO Trunk Cable 12 Cores OM4 Pink 10M LSZH


UnitekFiber MTP MPO cables deliver the higher bandwidth needed for high-def conferencing and HDTV configurations. We offer a variety of MTP cables in several types and lengths. MPO stands for "multi-fiber push on." MPO cables have a higher port density, meaning you pull one cable with 12 fibers! MTP is a brand name for an MPO connector, but the two acronyms are often used interchangeably.

Parameter of Factory OEM MTP/MPO Fiber Cable|8cores MTP to LC Duplex Pigtail Patchcord SM MM

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
