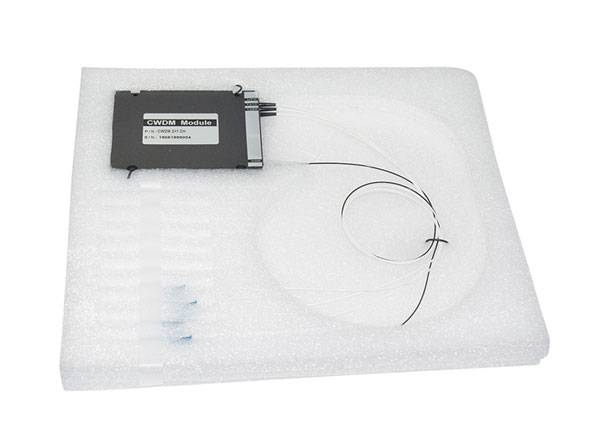

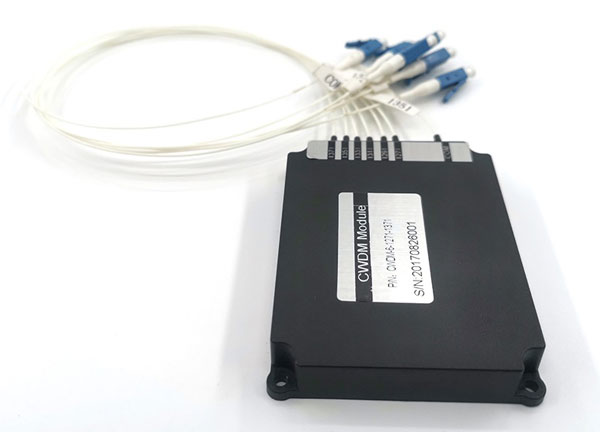

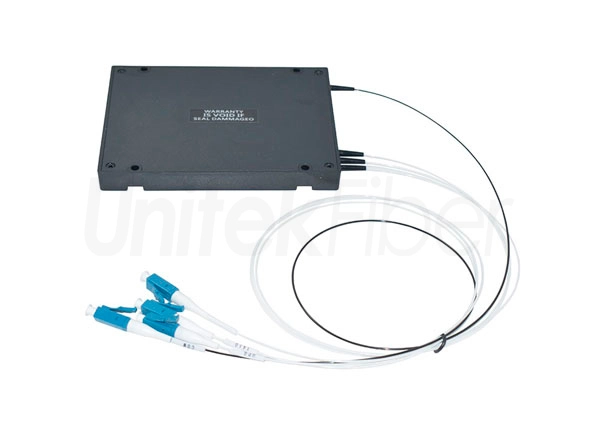

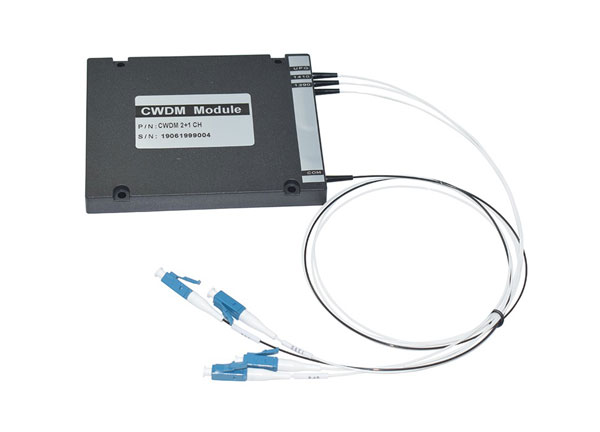

CWDM Mux / Demux (Coarse Wavelength Division Multiplexing) is a low-cost WDM transmission technology for the metropolitan area network access layer. CWD Mux / Demux can increase network capacity by transmitting multiple data channels with separate optical wavelengths (1270nm to 1610nm) on the same single fiber.
lLow Insertion Loss
lHigh Channel Isolation
lOptical path epoxy free
lExcellent thermal stability and reliability
lGood channel-to-channel uniformity
lWide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)
lWide Operating Temperature: -20 to +70℃
lTelcordia GR-1221 Compliance and RoHS Environmental Protection Standard

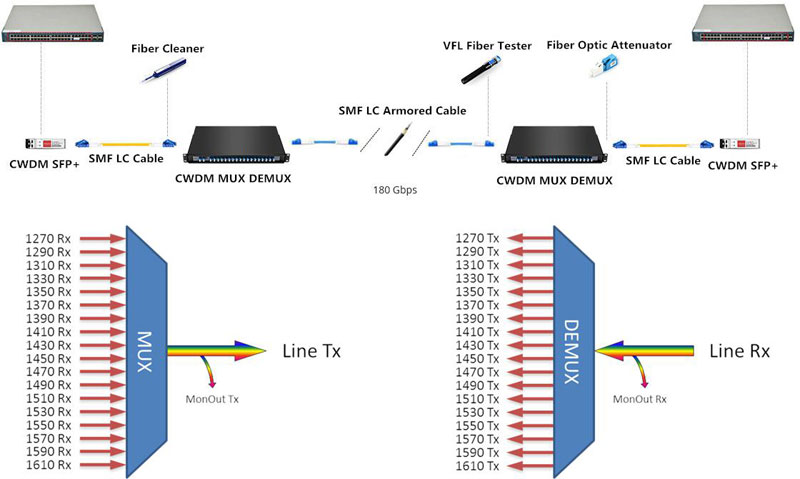

lCWDM Network
lAdd/Drop System
lCATV Fiberoptic System
lMetro/Access Network
lFiber Optical Amplifier
Parameter | 4 Channel | 8 Channel | 18 Channel | ||||
Mux | Demux | Mux | Demux | Mux | Demux | ||
Channel Wavelength (nm) | 1270~1610 | ||||||
Center wavelength Accuracy (nm) | ±0.5 | ||||||
Channel Spacing (nm) | 20 | ||||||
Channel Passband (@-0.5dB bandwidth (nm) | 15 | ||||||
Insertion Loss (dB) | ≤1.5 | ≤2.5 | ≤3.2 | ||||
Channel Uniformity (dB) | ≤0.5 | ≤1.0 | ≤1.5 | ||||
Channel Ripple (dB) | 0.3 | ||||||
Isolation (dB) | Adjacent | >30 | >30 | >30 | >30 | >30 | >30 |
Non-adjacent | >45 | >45 | >45 | >45 | >45 | >45 | |
Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||
Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
Polarization Dependent Loss (dB) | <0.1 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||
Directivity (dB) | >50 | ||||||
Return Loss (dB) | >45 | ||||||
Maximum Power Handling (mW) | 500 | ||||||
Opterating Temperature (°C) | -5~+75 | ||||||
Storage Temperature (°C) | -40~85 | ||||||
Package dimension (mm) | L100 x W80 x H10 or L120xW80xH18 | ||||||
