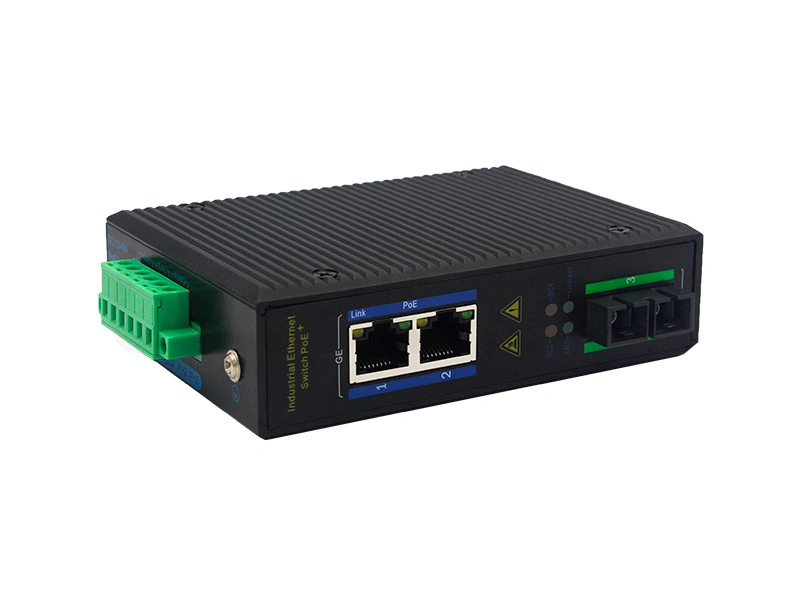

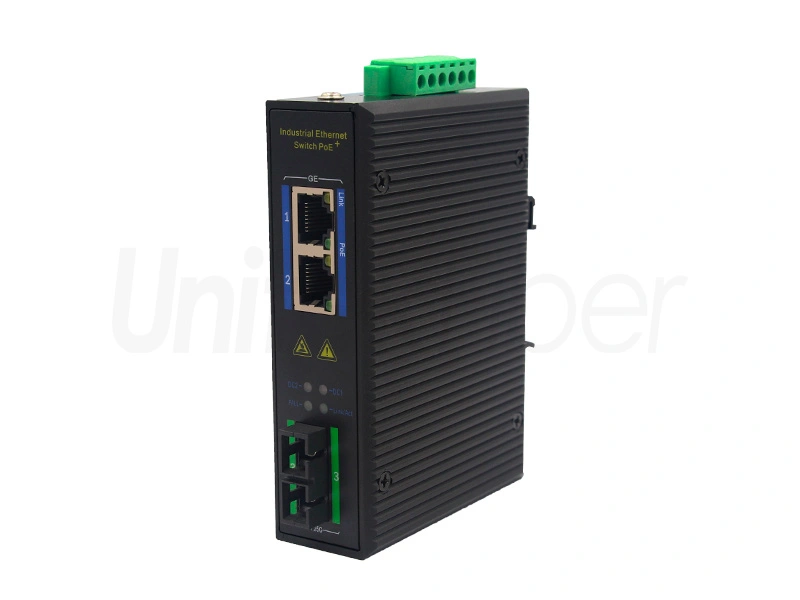

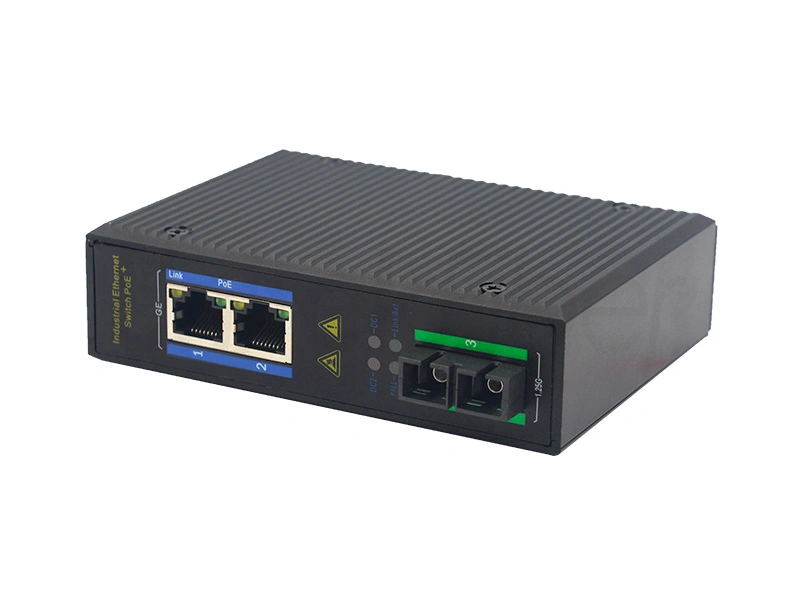

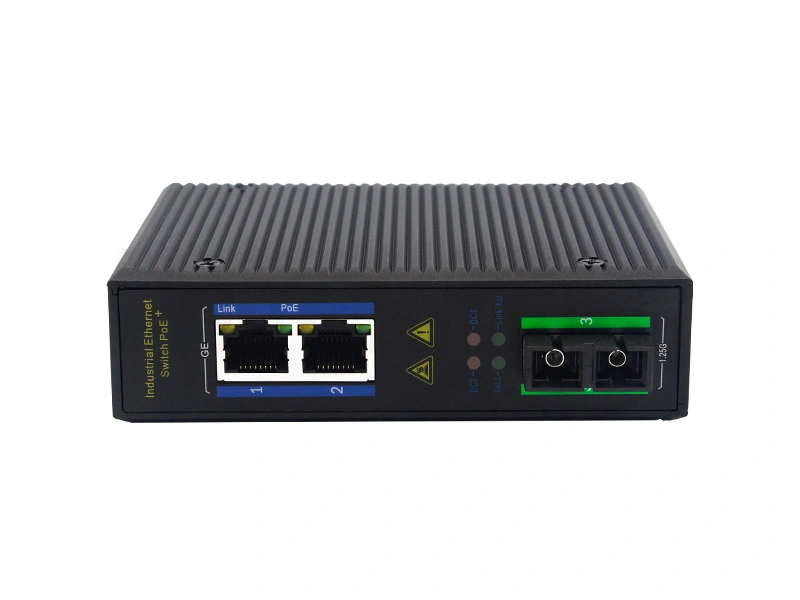

10/100/1000M RJ45 2 Ports + Optical Port Unmanaged industrial PoE Ethernet Switch For Data Center

2 Gigabit electrical port + 1 Gigabit optical port industrial-grade Ethernet switch,with full duplex/half duplex, MDI/MDI-X adaptive, supporting IEEE802.3, IEEE802.3x, IEEE802.3u standards. The LED light system status indicator can help the system maintainer monitor the network connection status.







Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

10/100/1000M RJ45 2 Ports + Optical Port Unmanaged industrial PoE Ethernet Switch For Data Center

Features


l2 Gigabit electrical ports, and 1 1000Mbps optical ports, built-in power

lIEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant

lSupport PoE IP cameras, PoE WIFI AP, and PoE IP phones

lFluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure

lUp to 30W per port (total power budget: 120W) for powering PoE-enabled devices

lAll ports support wire speed switching, jumbo frame transmission

lSupport upstream ports lightning protection

lDynamic power control to ensure stable output power (Enhanced)

lImproved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)

lPower-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)

lReliable short-circuit protection to ensure safety (Enhanced)

lOver-voltage and under-voltage protection (Some other manufacturers' products don't support this)


Packaging and Shipping


High Quality Fiber Optic Cable


Production


Bulk Single Mode Fiber Optic Cable


10/100/1000M RJ45 2 Ports + Optical Port Unmanaged industrial PoE Ethernet Switch For Data Center

Product Description

2 channel 100M PoE electrical port + 1 channel 100M FX optical port industrial-grade Ethernet POE switch

Interface

2xRJ45 ports, 1 fiber optic ports

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;IEEE802.3af;

IEEE802.3at;

POE Standards

Standard PoE: IEEE802.3af/ IEEE802.3at


PoE interface:1 port suport PoE


Output power:

Maximum power15.4W (IEEE 802.3af)

Maximum power30W (IEEE 802.3at)

POE port automatic identify af/at


Output voltage: DC48~57V


Power supply mode: 1/2+;3/6-

RJ45 Interface

10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Fiber Interface

1000BaseFX port (SC/FC/ST /SFP optional)

Switch properties

Application level: Layer 2

Total backplane bandwidth: 15.2Gbps

Whole machine packet forwarding rate: 11.3088Mpps

MAC address table: 1K

Packet buffer: 512K

Exchange delay:<3µs

Exchange method: store-forward

Power consumption:<3W

Protection Level

IP40

LED indicator

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Power Supply

Input voltage: 48~57V (dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power supply redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Working Environment

Working temperature: -40~85℃ ;

Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industrial Standard

MI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV

IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV

IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz)

IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Shell: metal material

Installation: DIN rail type, wall-mounted installation

Weight: 0.36Kg

Size:118 x 86 x 39mm(length×width×height)

MTBF

300,000 hours

Warranty

5 years
