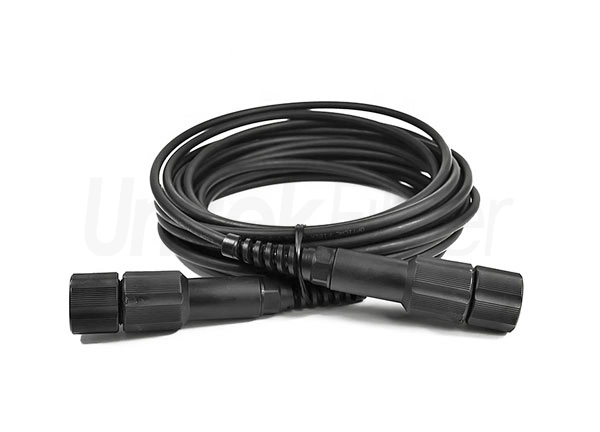

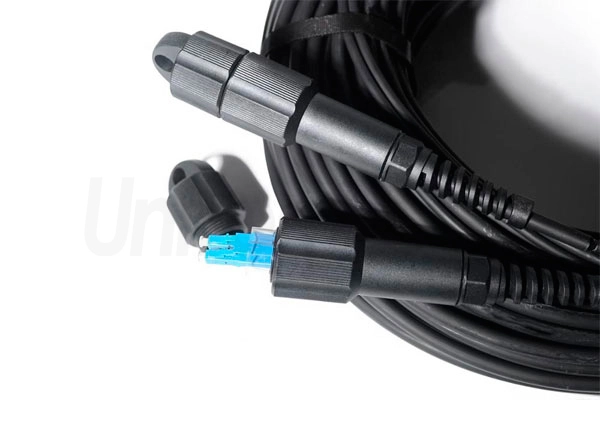

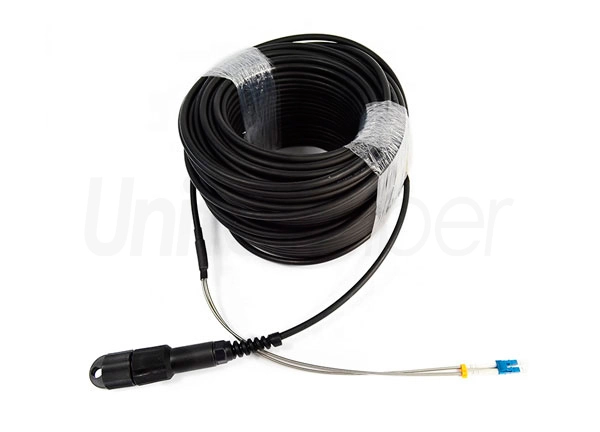

Patchcord 7.0mm PDLC to PDLC Armored Fiber Optic Jumper FTTA IP67 Outdoor Cable Assembly

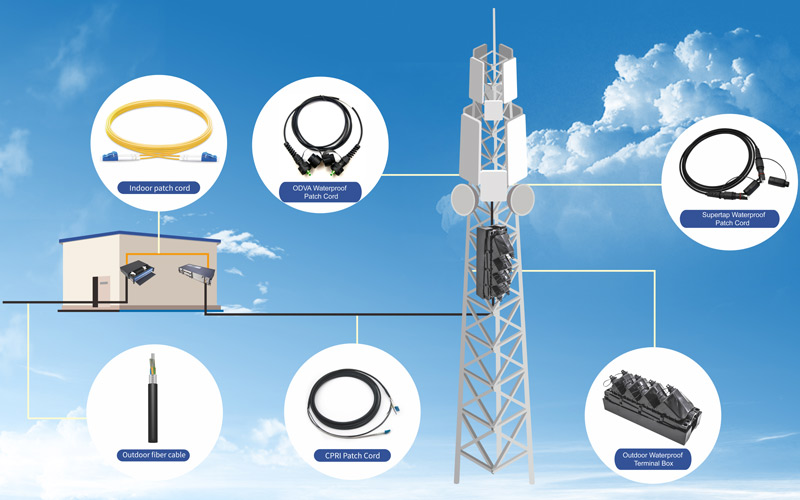

The purpose of the PDLC remote waterproof jumper is to provide a waterproof, fireproof, mouse-proof, soft, freely retractable waterproof jumper. The PDLC remote optical cable is often used for waterproof docking of the equipment port of the communication base station. It is often used in the outdoor environment to withstand sunlight, high temperature, and rain.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Patchcord 7.0mm PDLC to PDLC Armored Fiber Optic Jumper FTTA IP67 Outdoor Cable Assem

Characteristics


  • High reliability;

  • CE & RoHS compliant;

  • 100% connectors tested;

  • Repeatability: >1000 times;

  • Deliery 100% passed products;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;

  • Return Loss: UPC>50dB, APC>60dB;


Applications


  •  Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV

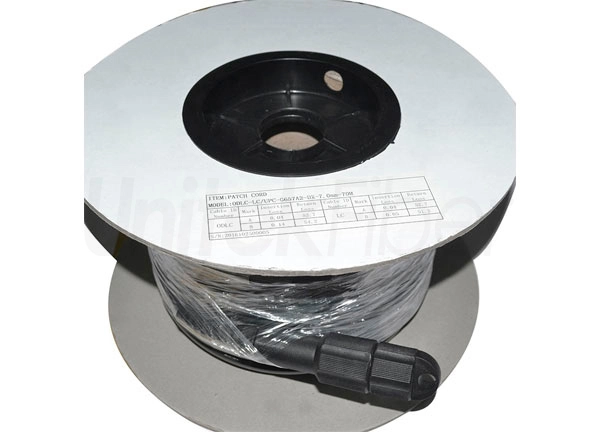

Packaging and Shipping


Patchcord 7.0mm PDLC to PDLC Armored Fiber Optic Jumper FTTA IP67 Outdoor Cable Assembly


Production


Patchcord 7.0mm PDLC to PDLC Armored Fiber Optic Jumper FTTA IP67 Outdoor Cable Assembly


Parameter of Patchcord 7.0mm PDLC to PDLC Armored Fiber Optic Jumper FTTA IP67 Outdoor Cable Assembl

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
