Outdoor ADSS Fiber Optic Cable|All Dielectric Self Supporting Cable SM G652D Central Loose Tube Single Sheath PE

The All Dielectric Self Supporting ADSS fiber optic cable operates at an overhead position supported by two points at a large span (usually hundreds of meters or even more than one kilometer).

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Outdoor ADSS Fiber Optic Cable|All Dielectric Self Supporting Cable SM G652D Central

Optical Cable for Sale

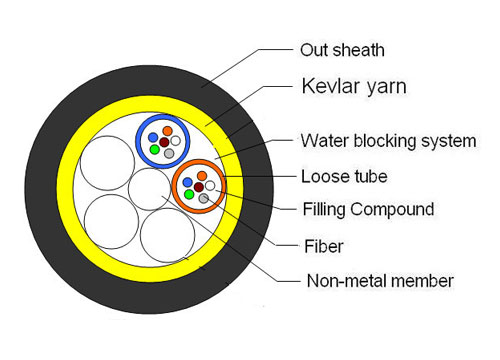

The structure of ADSS fiber cable can be in a stranded structure design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (usually FRP). ADSS optical cable is used for high-voltage transmission lines, using the power system transmission tower pole, the entire optical cable is a non-metallic medium, and is self-supporting and suspended at the position where the electric field intensity is the smallest on the power tower.


Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores


Features of ADSS Fiber optic Cable


Optical Cable Wire

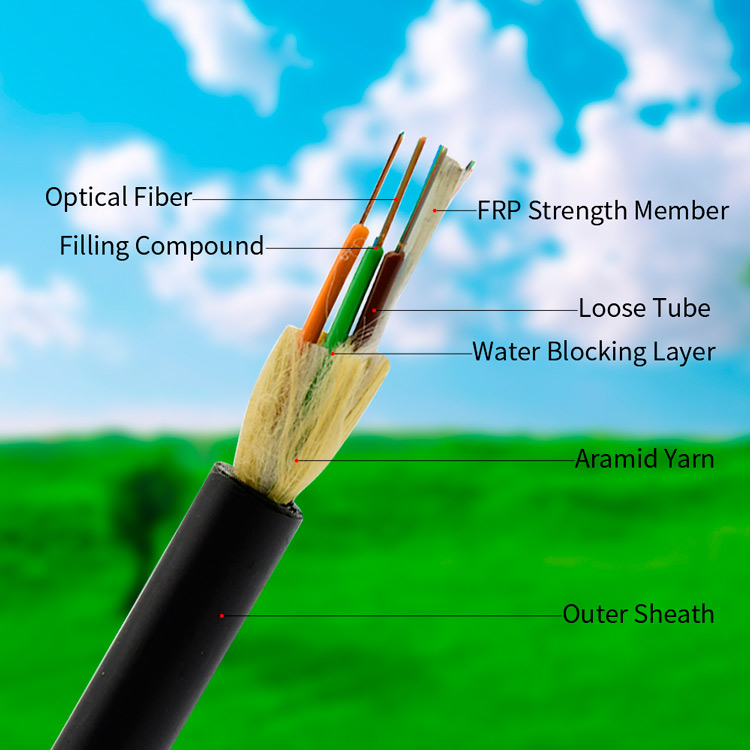

The ADSS fiber cable have a wide temperature range(-40℃ ~+80℃) and small cable diameter, it is more convenient to reduces ice and wind loads and maintains stable transmission. The inner structure use a water-blocking layer for better waterproofing. Aramid Yarn is a important part for fiber optical cable for tensile resistance. They provide tensile strength to the finished cable assembly. ADSS fiber optic cable structure is suitable for existing high-voltage transmission lines.


Applications of ADSS Fiber optic Cable


Optical Fibre Price


As a kind of self-supporting aerial fiber optic cable, ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. ADSS optical cable has been widely used in the communication construction of power system urban network transformation and rural network transformation.


Professional Assistant For ADSS Fiber Optic Cabling System


OFC Cable Price

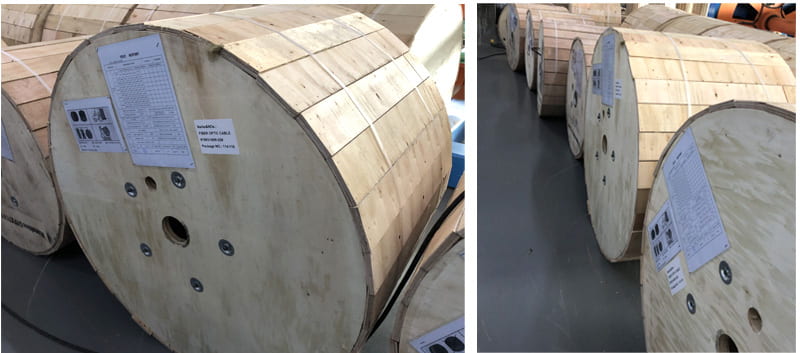

Packaging & Shipping


Single Sheath Non-metal Central Loose Tube Outdoor fiber Optic Cable(ADSS-S) packaging and shipping

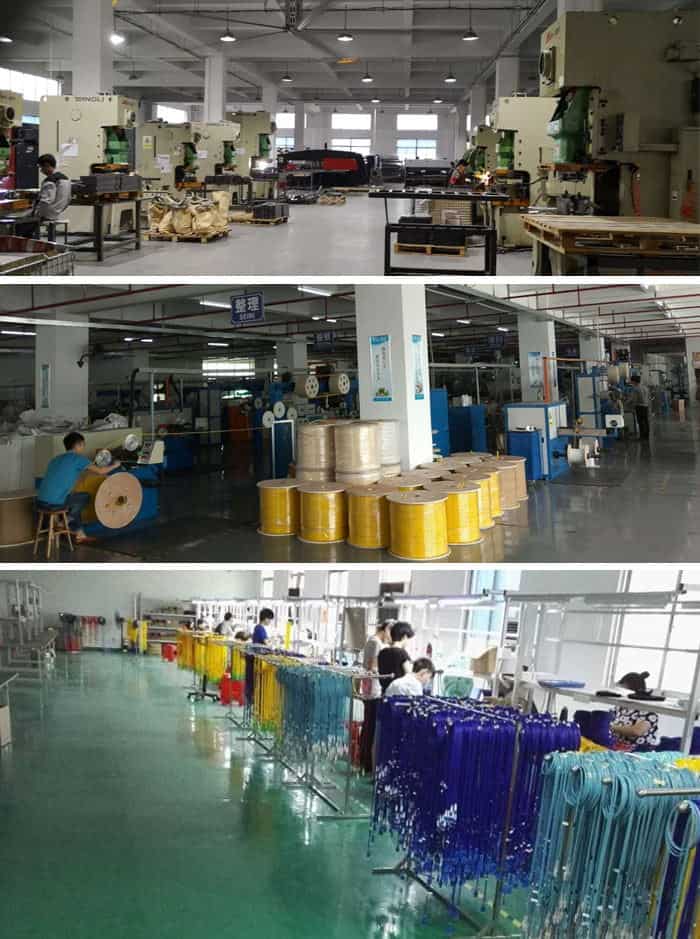

Production

Single Sheath Non-metal Central Loose Tube Outdoor fiber Optic Cable(ADSS-S)

Parameter of Outdoor ADSS Fiber Optic Cable|All Dielectric Self Supporting Cable SM G652D Central Lo

No. of cable

/

6

12

24

48

72

96

Design

(StrengthMember+Tube&Filler)

/

1+5

1+5

1+5

1+5

1+6

1+8

Fiber type

/

G.652D

Central Strength Member

Material

mm

FRP

Diameter

(±0.05mm)

1.5

1.5

1.5

1.5

2.1

2.1

Loose Tube

Material

mm

PBT

Diameter

(±0.05mm)

1.8

1.8

1.8

2.1

2.1

2.1

Thickness

(±0.03mm)

0.32

0.32

0.32

0.35

0.35

0.35

MAX.NO./per

6

6

6

12

12

12

Filler Rope

Material

mm

LDPE

Diameter

(±0.05mm)

1.8

1.8

1.8

2.1

NO.

4

3

1

1

Water Blocking Layer

Material

/

Flooding Compound& Water Blocking tape

Additional Strength Member

Material

/

Aramid Yarn

Outer Sheath

Material

mm

MDPE

Thickness

1.8(nominal)

colour

black.

Cable Diameter(±0.2mm)

mm

9.6

9.6

9.6

10.2

10.8

12.1

Cable Wetght(±10.0kg/km)

kg/km

67

67

67

78

87

116

Attenuation coefficient

1310nm

dB/km

≤0.35

1550nm

≤0.21

Cable breaking strength(RTS)

kn

≥5.8

Working Tension (MAT)

kn

≥2.2

Wind velocity

m/s

30

Icing

mm

5

Span

m

200

Crush Resistance

Short Term

N/100mm

≥2200

Long Term

≥1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fibre & Loose Tube Colors
Fibre & Loose Tube Colors


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
