Hot Sales ADSS Fiber Optic Cable 12F 24F 48F 96F 144F G652D Single Mode Stranded Loose Tube Span Outdoor Aerial

UnitekFiber supplies All-dielectric self-supporting ADSS fiber cable. Due to its unique structure, good insulation, high temperature resistance, and high tensile strength, ADSS FIBER Optical Cable can provide a fast and economical transmission channel for power communication systems.


Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Hot Sales ADSS Fiber Optic Cable 12F 24F 48F 96F 144F G652D Single Mode Stranded Loose Tube Span Out

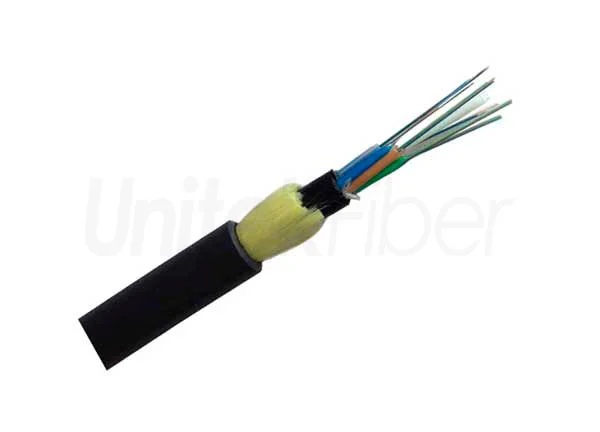

Optical Cable for Sale

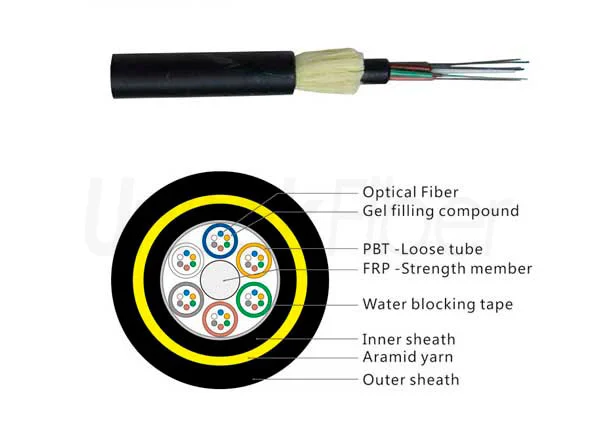

The production process is sophisticated, the aramid yarn is uniformly stressed and has excellent stress-strain performance. The structure of double jacket ADSS fiber cable has an extra layer of jacket, which improved compressive strength, it also be in a stranded structure design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (usually FRP).

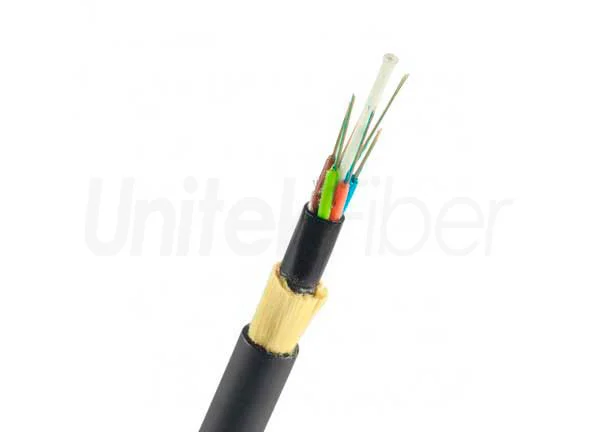

Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores


Features of ADSS Fiber optic Cable

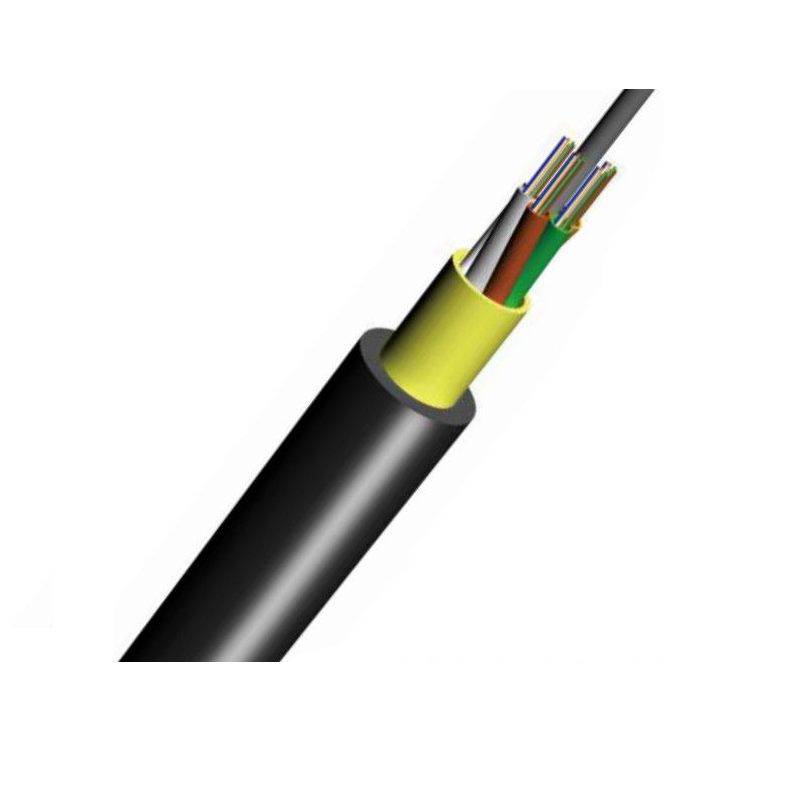

Optical Cable Wire



ADSS all-dielectric self-supporting fiber optic cable has non-metallic structure, good insulation performance and lightning protection. It can be constructed without power failure, and the failure of the power line will not affect the normal transmission of the optical cable. High tensile strength, can exceed 90KN. With single-mode, multi-mode fiber and integrated cable design. The sleek shape makes the cable have superior aerodynamic performance. The all-dielectric cable structure is conducive to installation and maintenance.


Applications of ADSS Fiber optic Cable


Optical Fibre Price


This ADSS fiber optic cable type is aimed to be used for voice, data, broadband and CATV transmission in Long Distance, Backbone and Local Area Networks with Aerial installation method. The special design of ADSS fiber cable suitable for installation on Power Transmission Lines and nearby Power Utilities.


Professional Assistant For ADSS Fiber Optic Cabling System

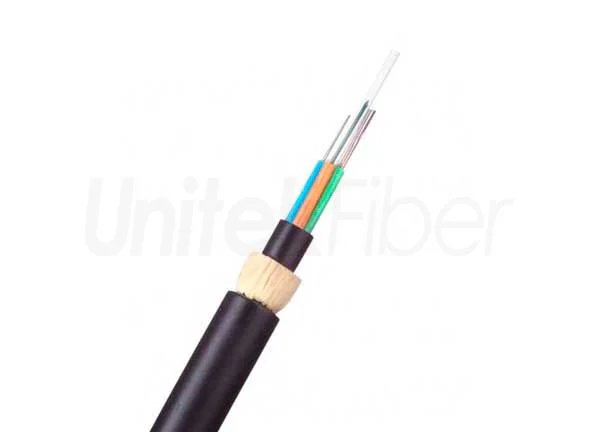

OFC Cable Price

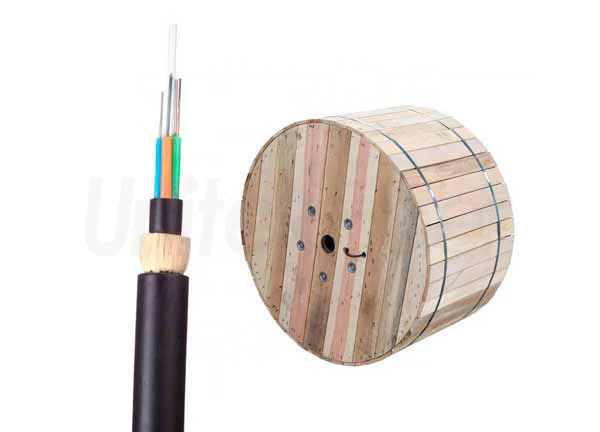

Packaging & Shipping




Production


Blown Fibre

Hot Sales ADSS Fiber Optic Cable 12F 24F 48F 96F 144F G652D Single Mode Stranded Loose Tube Span Out

Product Parameter

No. of cable96
Fiber ModelG.652D
Design(StrengthMember+Tube&Filler)1+8
Central Strength MemberMaterialFRP
Diameter(±0.05)mm2.1
Additional


Sheath

MaterialMDPE
Diameter(±0.05)mm3.4
Loose TubeMaterialPBT
Diameter(±0.06)mm2.10
Thickness(±0.03)mm0.35
The Max.Core NO./Tube12
Water Blocking layer(Material)Flooding Compound
Inner sheathMaterialMDPE
Thickness(±0.1)mm0.7
Strength Member(Material)Aramid yarn
RipcordMaterialNylon
No.2
ColorRed
Outer SheathMaterialHDPE
Thickness(±0.1)mm1.5
Cable Diameter(±0.2)mm13.0
Cable Weight(±5)kg/km135
Rated tensile strength(RTS)20kn
Maximum operation stress8kn
Every day stress(EDS)5kn
Ultimate operation stress(UOS)12kn
E-midulus13kn/mm2
Thermal expansion copercient5.3×10-6/℃
Min. bending radiusWithout Tension10.0×Cable-φ
Under Maximum Tension20.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors
What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
