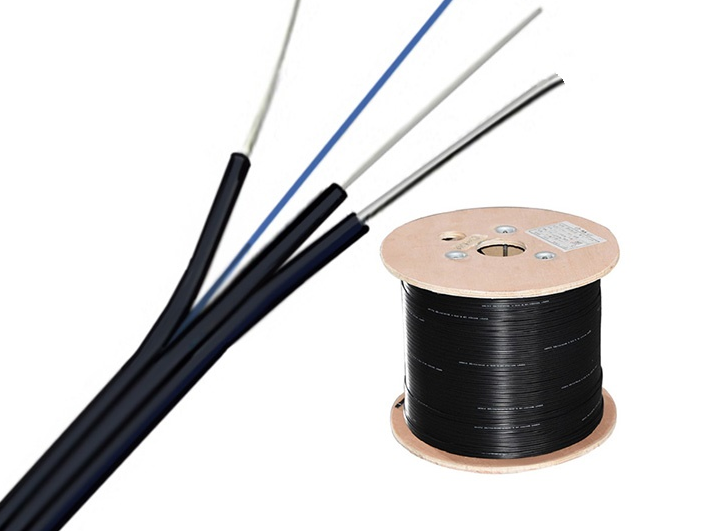

Outdoor FTTH Drop Fiber Optic Cable GJXFH Single Mode 9/125um G657 Fibers 1 2 4 Cores Flame Retardant LSZH Black

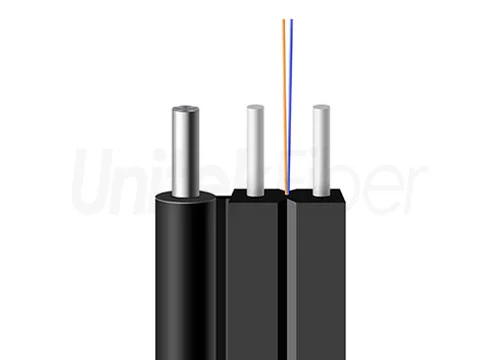

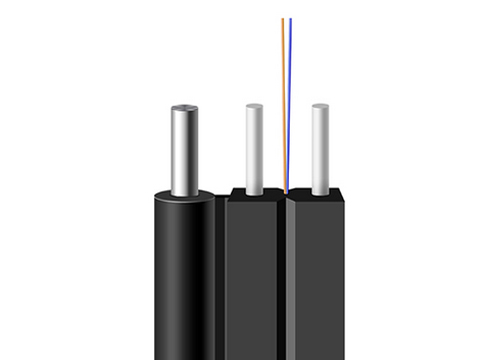

FTTH outdoor drop cable(GJYXFCH/GJYXCH) is also called self-supporting butterfly drop optical cable with a indoor butterfly cable and an additional strength member 1-12 fiber cores.FTTH outdoor drop cable(GJYXFCH/GJYXCH) is also called self-supporting butterfly drop optical cable which consists of  a indoor butterfly cable and an additional strength member at the two sides. The fiber count can be 1-12 fiber cores.

Cores
1
2
4
8
12
Series
GJYXCH GJXH
GJPFH
Indoor/outdoor-S
Indoor/outdoor-D
GYFXTBY
Products
Description
FAQ
Specification
Reviews
Video

Outdoor FTTH Drop Fiber Optic Cable GJXFH Single Mode 9/125um G657 Fibers 1 2 4 Cores Flame Retardan

Outdoor fiber optic drop cable GJXFH Single Mode 9/125um G657 Fibers 1 2 4 cores Flame retardant LSZH Black


Outdoor FTTH Drop Fiber Optic Cable GJXFH Single Mode 9/125um G657 Fibers 1 2 4 Cores Flame Retardant LSZH Black

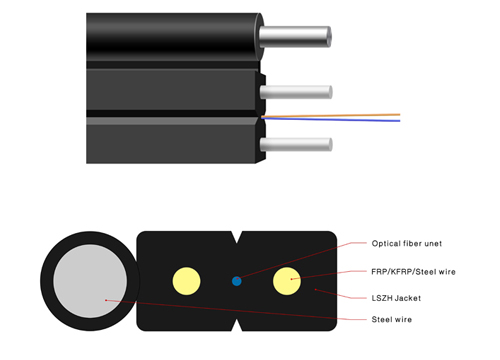

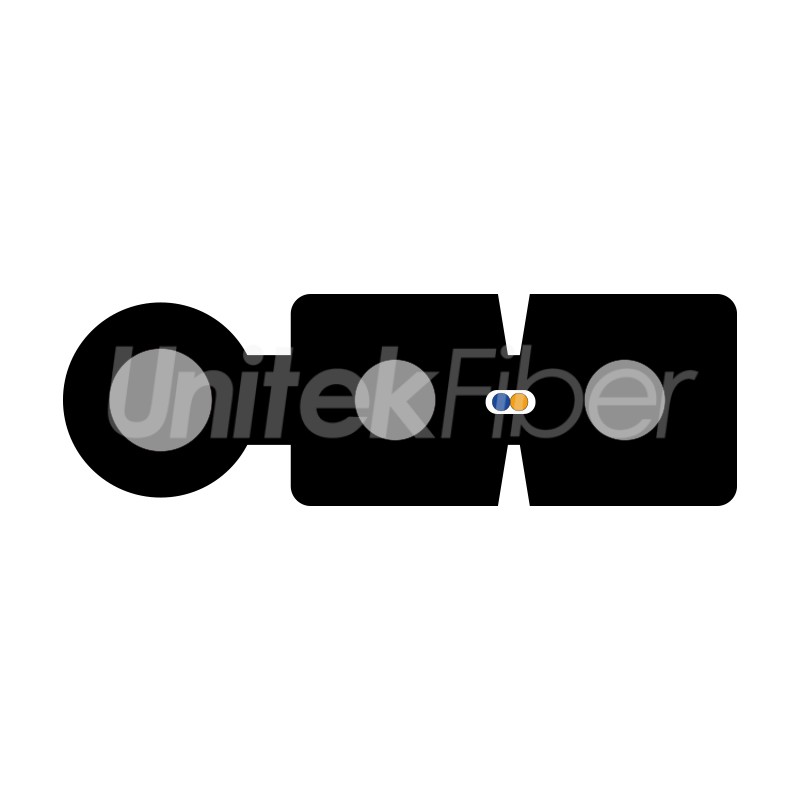

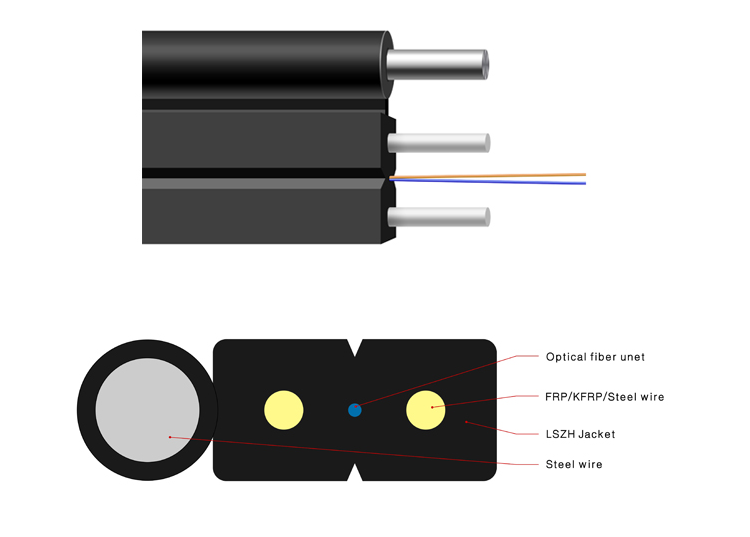

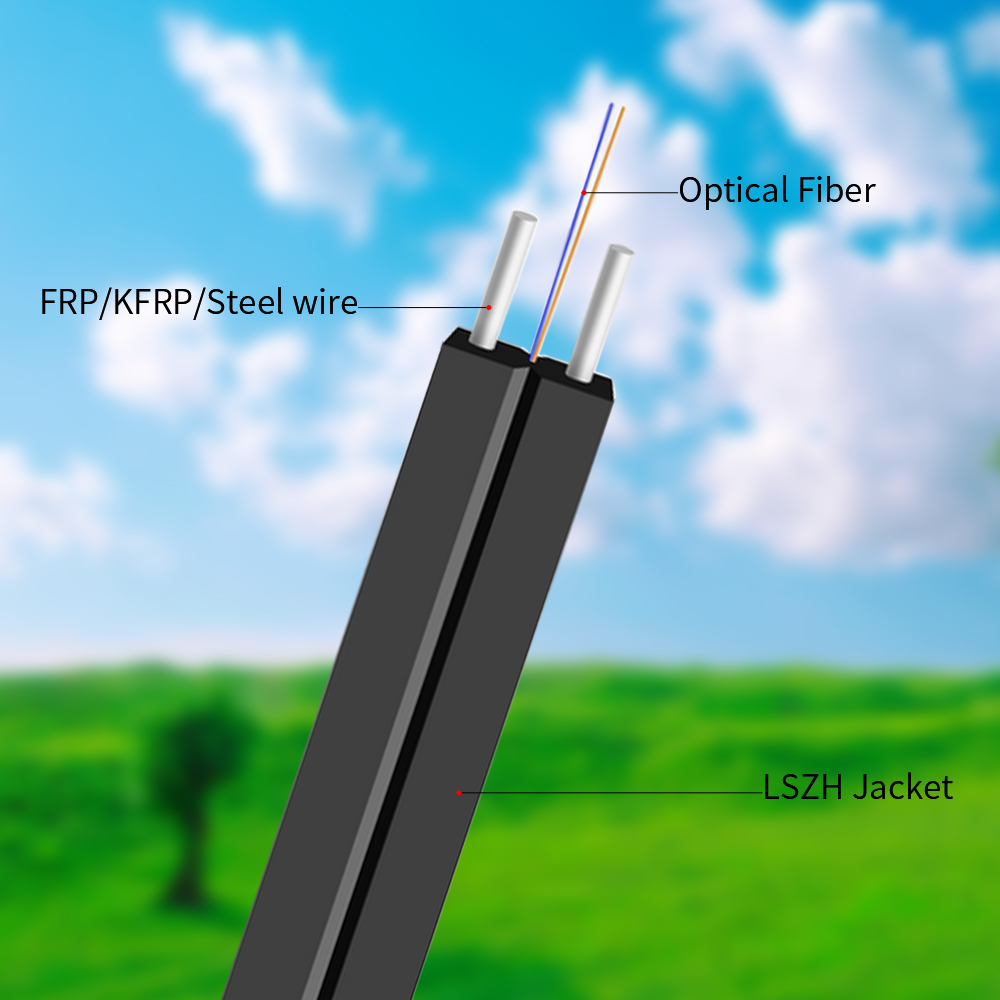

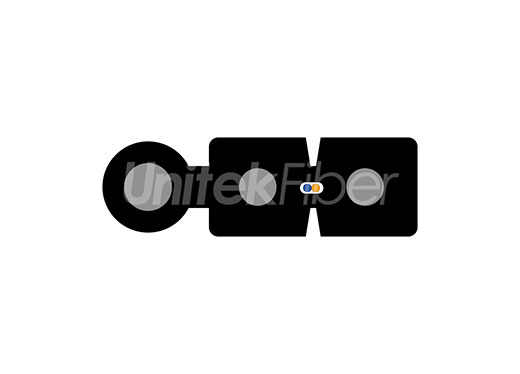

FTTH (Fiber to the home) drop cable, the outer skin is generally black and white, the diameter is relatively small, and the flexibility is good; the cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape. The fiber inside the cable is mostly G.657A2 small bending radius fiber, which can be laid at a bending radius of 20mm. The fiber Cores of FTTH drop cable is from 2 cores to 6 cores



Features of FTTH drop cable



Features Of Ftth Drop Cable





FTTH cable is use special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. Simple structure, light weight and high practicability.Novel flute design, easily strip and splice, simplify the installation and maintenance.Low smoke, zero halogen and flame retardant sheath.

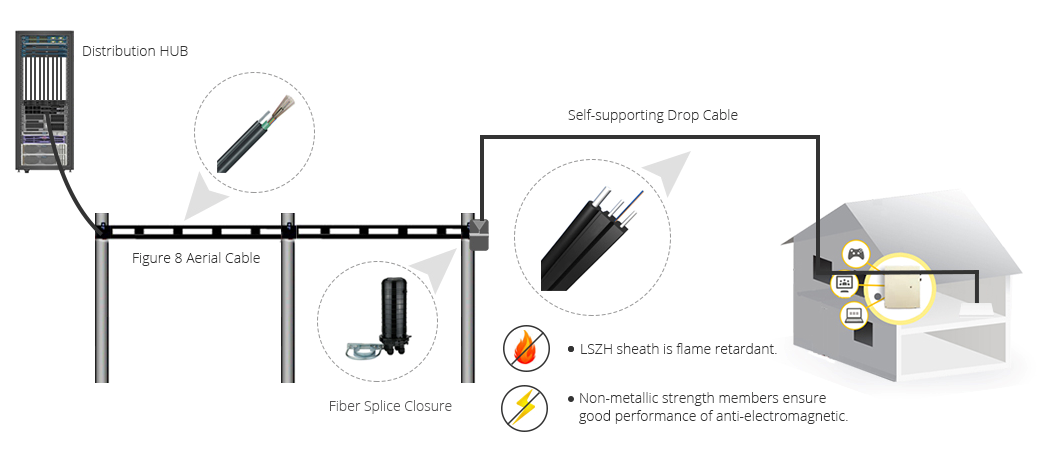

Applications of FTTH drop cable


FTTH outdoor drop cable is a new type of fiber optic cable. It is a butterfly-shaped cable. Because it is small in size and light in weight, it is suitable for the application of Fiber to the Home. It can be cut according to the distance of the site, increased the efficiency of construction. The unique 8-shaped structure of the drop cable can realize the field end in the shortest time.




FAQ

Could you offer samples?

Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.

Does FTTH Drop Cable work with singlemode upc 9-125 micro fiber?

Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.

Do any LC fast connectors work with FTTH drop cable?

Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.

What is the main application for FTTH drop cable?

The main application for FTTH drop cable is Fiber to The Home project.

Is FTTH drop cable suitable for outdoor runs?

Yes, it is suitable for outdoor application with 70meters pole span.

What is the strength members for FTTH drop cable?

The strength member for FTTH drop cable can be FRP or steel wire.

What is the function of FRP?

FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
