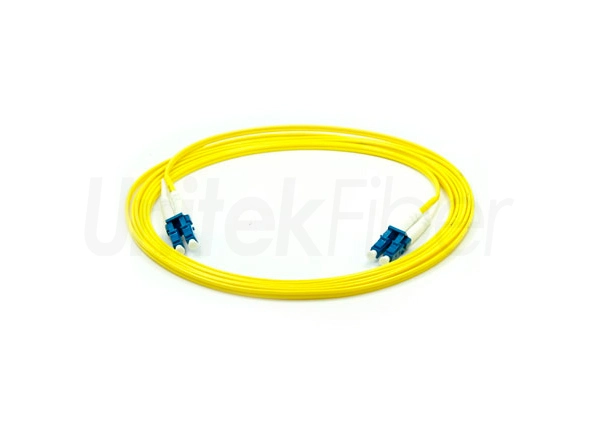

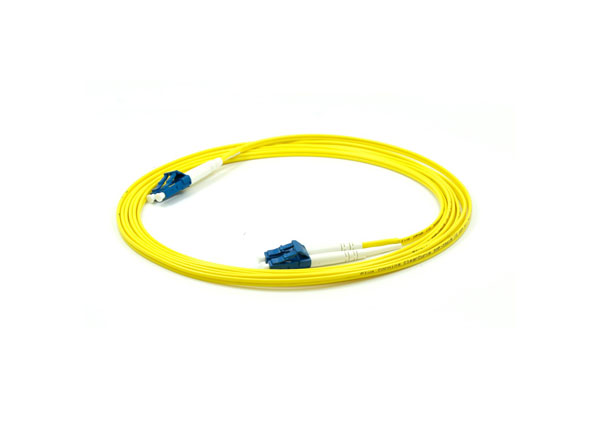

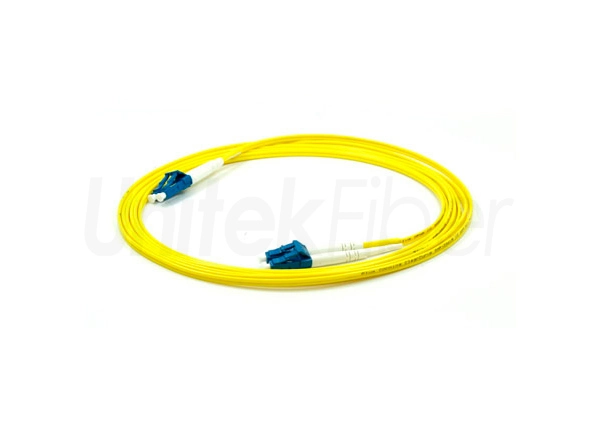

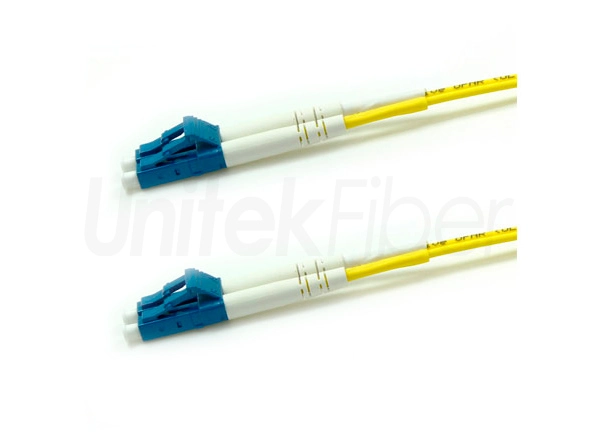

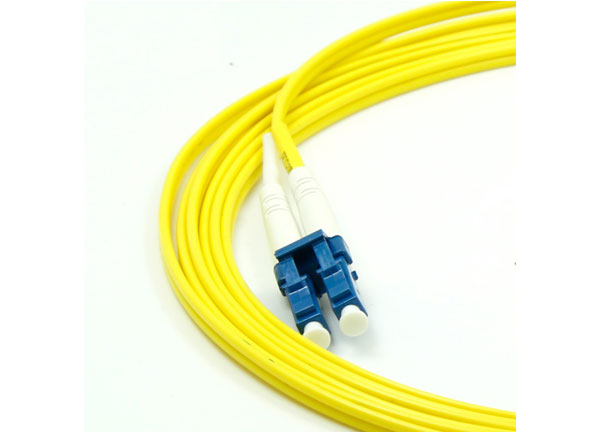

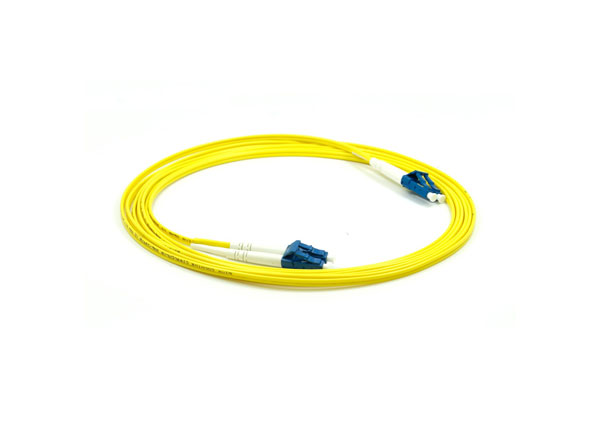

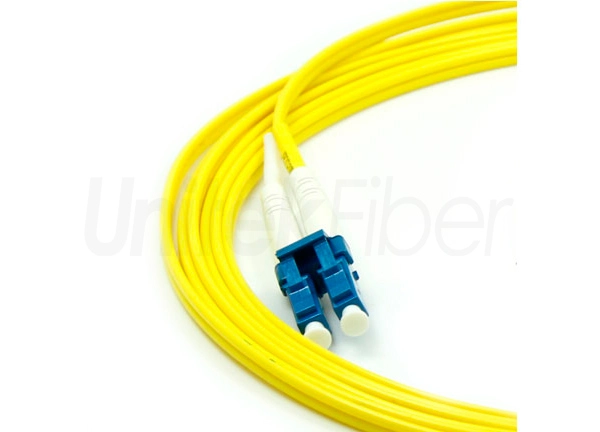

Duplex Jumper LC/UPC to LC/UPC Fiber Optic Patch Cord OS2 9/125um Corning Fiber G657

According to the shape of the connector, the fiber Patch lead can be divided into: FC patchcord, SC patchcord, LC patchcord, E2000 patchcord etc.. According to the grinding method of the ferrule (end surface), it can be divided into: PC , UPC, APC etc. Cable TV optical transceivers generally require FC/APC patchcords.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Duplex Jumper LC/UPC to LC/UPC Fiber Optic Patch Cord OS2 9/125um Corning Fiber G657

Characteristics


  • High reliability;

  • CE & RoHS compliant;

  • 100% connectors tested;

  • Repeatability: >1000 times;

  • Deliery 100% passed products;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;

  • Return Loss: UPC>50dB, APC>60dB;


Applications


  •  Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV


Packaging and Shipping


Duplex Jumper LC/UPC to LC/UPC Fiber Optic Patch Cord OS2 9/125um Corning Fiber G657


Production


Duplex Jumper LC/UPC to LC/UPC Fiber Optic Patch Cord OS2 9/125um Corning Fiber G657


Parameter of Duplex Jumper LC/UPC to LC/UPC Fiber Optic Patch Cord OS2 9/125um Corning Fiber G657

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
