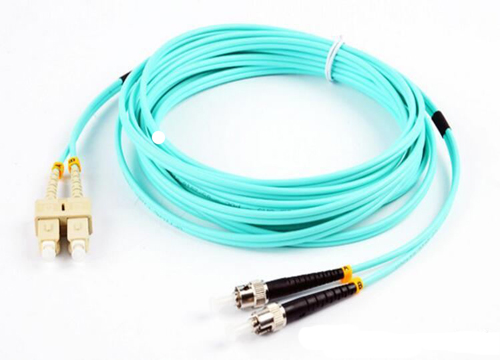

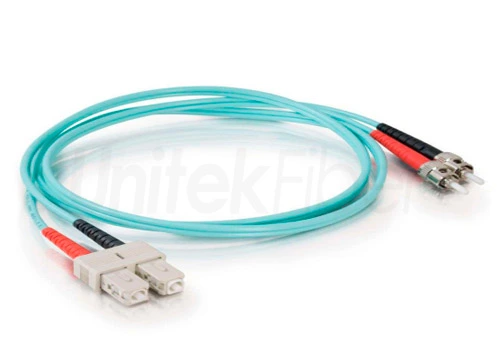

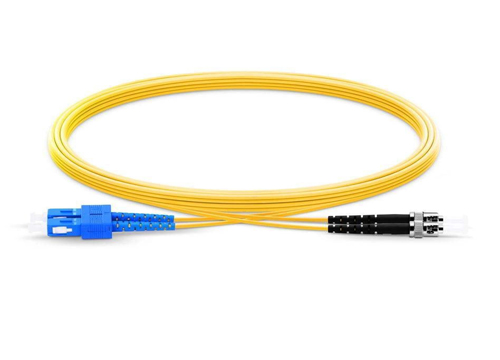

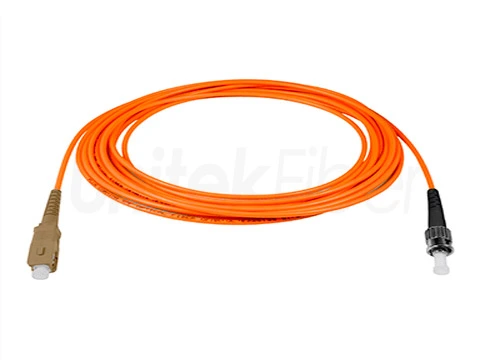

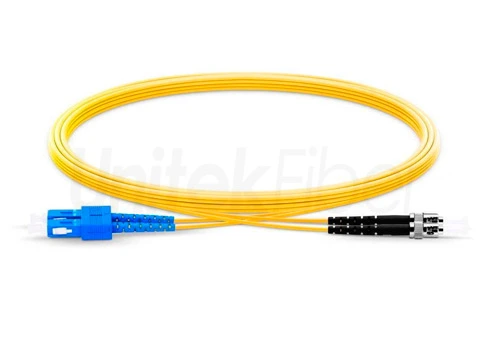

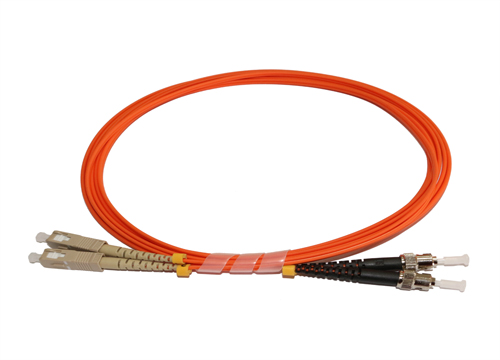

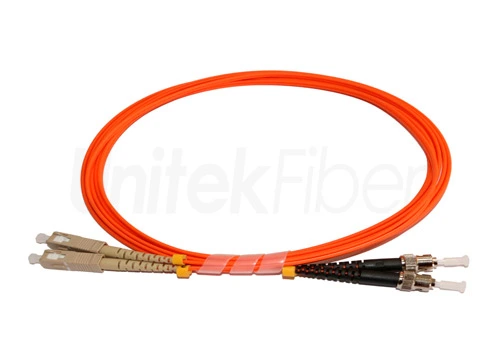

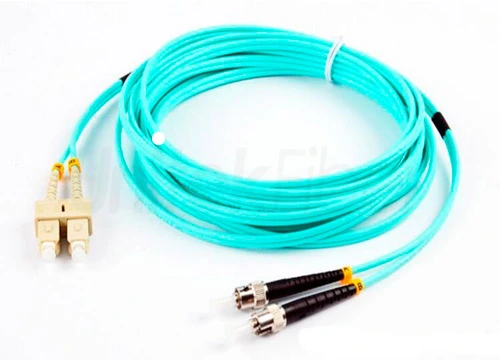

High Density Fiber Optic Patchcord SC-ST OM3 OM4 SM 2.0mm 3.0mm OFNR OFNP

UnitekFiber manufactures SC-ST fiber patchcords. The patch cord can be OS1, OM1,OM2, OM3, OM4 and OM5 with different cable length.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of High Density Fiber Optic Patchcord SC-ST OM3 OM4 SM 2.0mm 3.0mm OFNR OFNP

Here we introduction the detial inforation about ST patch cable. The outer casing of the ST connector is round, fastened with a turnbuckle, and the core is exposed. After the plug is inserted, it has a bayonet fixed for half a rotation, and is generally used on a fiber optic transceiver. LC-ST multimode OM2 fiber patch cord is with zirconia ceramic ferrule for stable signal transmission. The LSZH outer jacket is easy to install and provides maximum protection for the cable. Supports up to 10G Ethernet 82m transmission.


Characteristics:


  • Using high precision ceramic ferrule

  • Low insertion loss and high return loss

  • Excellent stability and high repetition

  • 100% Optic test (Insertion Loss & Return Loss)


Application:


  • Telecommunication Network

  • Fiber Broad Band Network

  • CATV system

  • LAN and WAN system

  • FTTP


Packaging and Shipping


High Density Fiber Optic Patchcord SC-ST OM3 OM4 SM 2.0mm 3.0mm OFNR OFNP

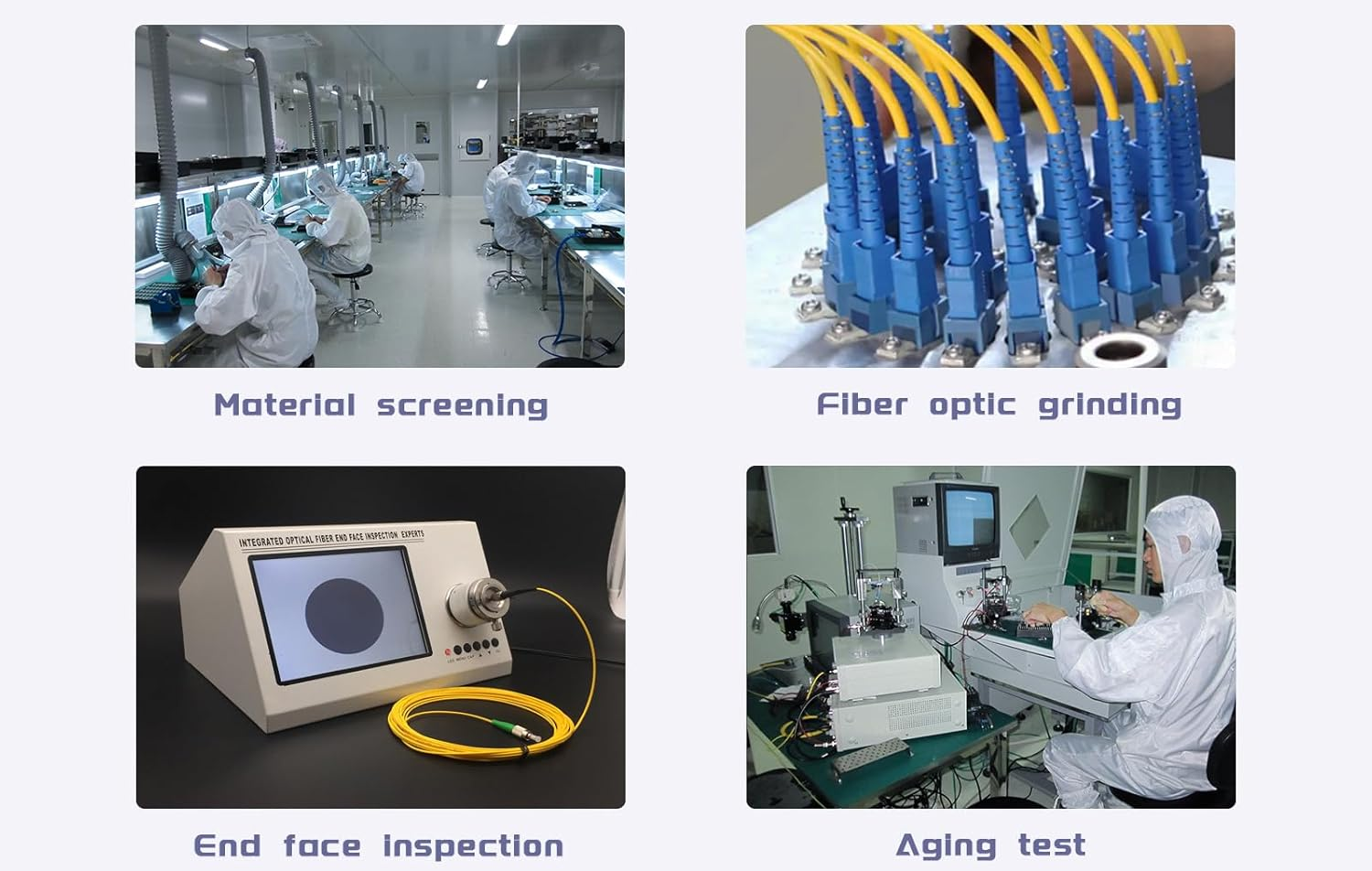

Production


High Density Fiber Optic Patchcord SC-ST OM3 OM4 SM 2.0mm 3.0mm OFNR OFNP

Parameter of High Density Fiber Optic Patchcord SC-ST OM3 OM4 SM 2.0mm 3.0mm OFNR OFNP

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
