Hot SFP28 25G 10KM CWDM 5G Network Optical Transceiver Single Mode LC Duplex

UnitekFiber provides 25G SFP28 optical transceiver, which is a low cost and low power consumption optical transceiver. 10G optical transceivers cannot meet the current needs of users for the network, so 25G SFP28  has been favored by most people.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Details of Hot SFP28 25G 10KM CWDM 5G Network Optical Transceiver Single Mode LC Duplex

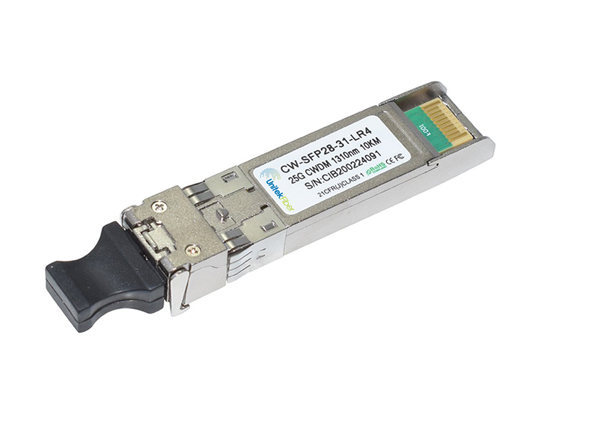

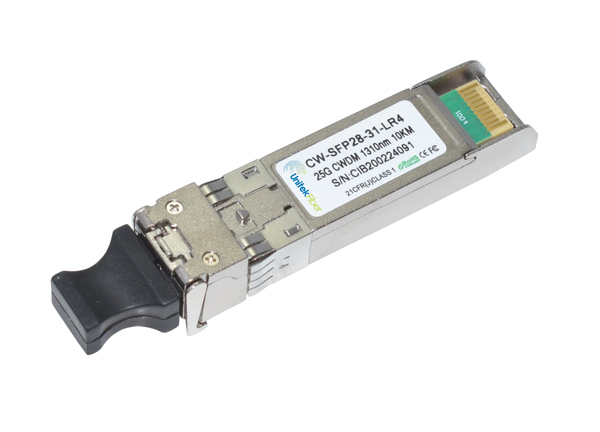

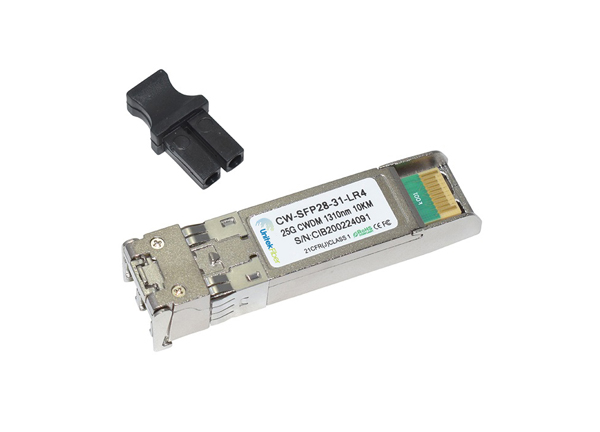

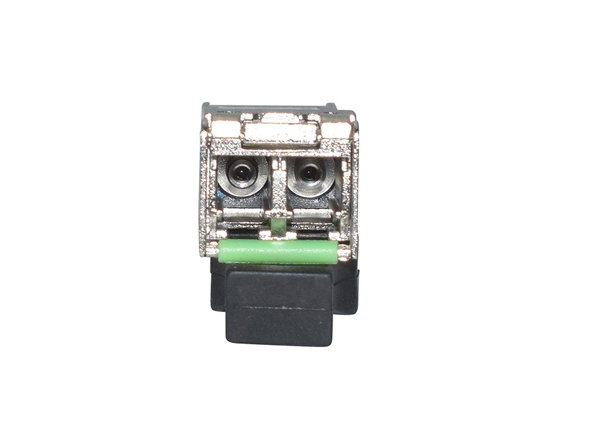

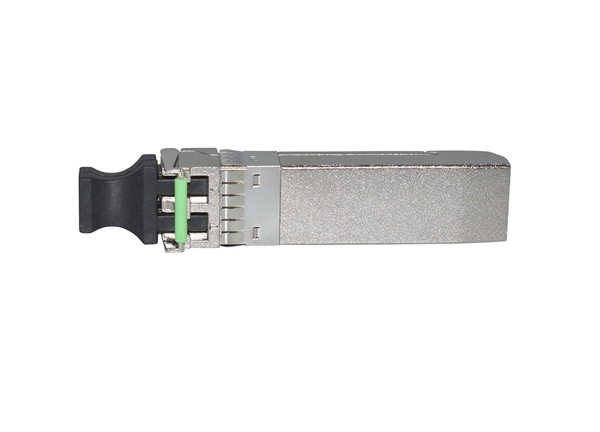

Hot SFP28 25G 10KM CWDM 5G Network Optical Transceiver Single Mode LC Duplex


This HW DWDM-SFP25G-IR Compatible SFP28 transceiver provides 25GBase-DWDM throughput up to 10km over single mode fiber (SMF) using a wavelength of 1560.61nm via an LC duplex connector. Sfp transceiver provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

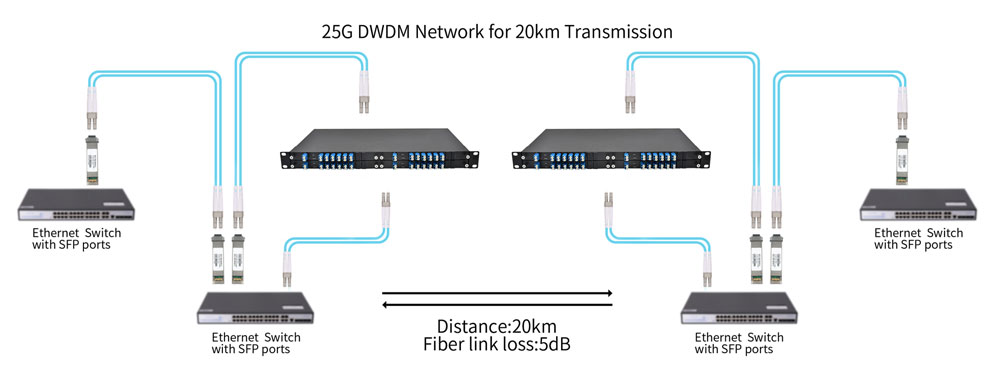

Network Connectivity


Hot SFP28 25G 10KM CWDM 5G Network Optical Transceiver Single Mode LC Duplex


Product Highlights

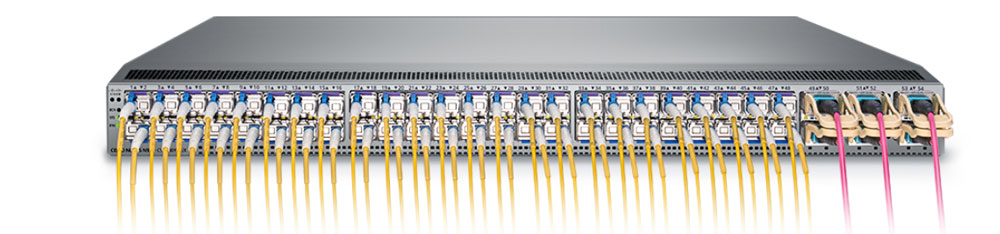

25G Connectivity for Data Center

The 25G DWDM SFP28 optical module is a single-mode duplex with a working wavelength range of 1271~1331nm, which can be used for short-distance data transmission in 25G Ethernet switches, routers, network interface cards (NICs) and storage network equipment.

Hot SFP28 25G 10KM CWDM 5G Network Optical Transceiver Single Mode LC Duplex



Tested in Host Devices for Proven Interoperability

The 25G DWDM SFP28 optical module can transmit up to 10km through single-mode fiber. SFP28 optical module can not only increase the bandwidth but also realize long-distance transmission.

Hot SFP28 25G 10KM CWDM 5G Network Optical Transceiver Single Mode LC Duplex


As an upgraded version of SFP+, SFP28 can handle 25Gbit/s per channel while ensuring backward compatibility with SFP and SFP+ 25G DWDM SFP28 DOM Optical Transceiver Modules are an important carrier for implementing 25G Ethernet technology in cloud and enterprise data center environments.

Parameter of Hot SFP28 25G 10KM CWDM 5G Network Optical Transceiver Single Mode LC Duplex

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UF-SFP28-25G-SR

SFP28

25G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UF-SFP28-25G-LR

SFP28

25G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-ER

SFP28

25G

1310nm

EML/PIN

40km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-CWDM-LR

SFP28

25G

1271nm/1291nm/1311nm /1331nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-CWDM-ER

SFP28

25G

1271NM/1291NM/1311NM

/1331NM/1351NM/ 1371NM

DML/PIN

40km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-DWDM-LR/ER

SFP28

25G

C21-C60-40

DML/PIN

10KM/40KM

SMF

Duplex LC

0℃~70℃

UF-FP28-BIDI-25G-LR

SFP28

25G

1270/1330nm

DML/PIN

10KM

SMF

LC

0℃~70℃


What are the types of 25G optical modules?

25G optical modules are roughly divided into three types, 25G dual-fiber modules, 25G WDM modules, and 25G BIDI modules.

Is there any damage to the module if it is used for transmission over a short distance of 10m for an 25G optical module of 10km? Do I need to use attenuator?

We need to ensure that the receiving power of the module is not more than the receiver overload power to avoid the module being broken. So to get the 25G LR to work at 10m, you need to add about 3dB attenuation.

Are any of these modules compatible with Huawei Equipment?

Yes, Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

How much power does this 25G SFP transceiver draw?

The power consumption of this module <1w.

Can SFP28 ports be interconnected with QSFP28 ports?

100G SR4 multi-mode optical modules can be used for interconnection. Under the premise of equipment support, 100G QSFP28 ports can be configured as 4*25G mode, and then MPO-LC fiber jumpers are used to connect 100G SR4 optical modules and 25G SFP28 optical modules.

What is the maximum transmission distance of the 25G SFP28 optical module?

At present, 25G SFP28 optical modules can transmit up to 40 kilometers. There are 25G SFP28 ER, 25G SFP28 bidi, 25G SFP28 CWDM, and 25G SFP28 DWDM.

Catherin
Aug 08, 2022

Pulling this through ceilings and in conduit - this is fantastic cable. Flexible doesn't hold shape. Very nice to crimp as well.

Verified Purchase
Helpful 1
