Underground Fiber Optic Cable GYTA SM G652D Stranded Loose Tube Cable Armoured 24 Cores PE Jacket

GYTA adopts hydrolysis-resistant high-strength loose tube, the optical cable filling material ensures high reliability, and its APL makes the optical cable resistant to compression and moisture. GYTA fiber optic cables are available in 2 cores to 144 cores. GYTA is a compact stranded loose tube fiber optic cable; the cable jacket is made of strong polyethylene. This cable has good mechanical and temperature properties.


Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Underground Fiber Optic Cable GYTA SM G652D Stranded Loose Tube Cable Armoured 24 Cores PE Jacket

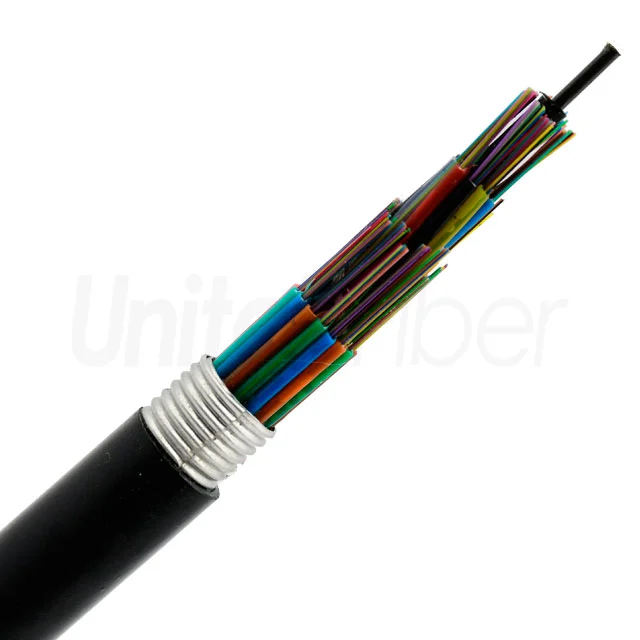

GYTA fiber optic cable is constructed with 250 micron fibers packed into a loose casing made of high-modulus material, filled with a waterproof compound.The center of the cable core is a metal reinforced core, for some fiber optic cable core number, metal reinforced core outside also need to squeeze a layer of polyethylene (PE).Loose casing (and filling rope) is twisted around the center stiffener to form a compact and round cable core, with gaps in the core filled to block water filler.APL coated aluminum strip (APL) longitudinally wrapped and extruded polyethylene sheathed cable.



Adss Fiber Optic Cable Installation



Features of GYTA Fiber optic Cable

Adss Cable SpecificationAdss Fiber Installation

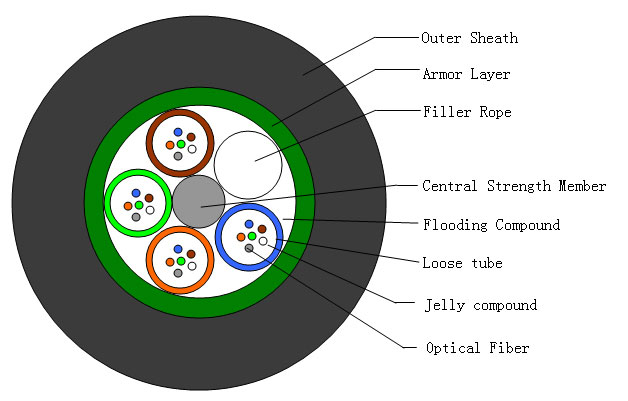

GYTA (metal strengthening member, loose tube stranded and filled, aluminum-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cables, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The aluminum-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Applications of GYTA Fiber optic Cable


Adss Cable Installation

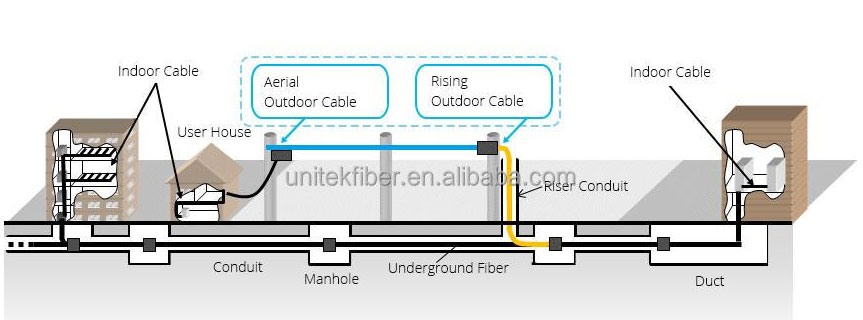

GYTA fiber optic cable is used for duct or aerial fields. These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for high requirements of moisture resistance environment.



Corning Adss Fiber Optic Cable

Underground Fiber Optic Cable GYTA SM G652D Stranded Loose Tube Cable Armoured 24 Cores PE Jacket

Technical data

No. of cable

36

Fiber Model

G652D

Design(StrengthMember+Tube&Filler)

1+5

Central Strength Member

Material

Steel Wire

Diameter±0.05mm

1.4

Additional Sheath

Material

MDPE

Thickness±0.05mm

Loose Tube

Material

PBT

Diameter±0.06mm

1.9

Thickness±0.03mm

0.30

The Max.Core NO./Tube

12

Filler rope

Material

LDPE

Diameter±0.06mm

1.9

Water Blocking layerMaterial

Flooding Compound

Moisture Barrier

Material

Polymer Coated Aluminum Tape

Thickness±0.03mm

0.20

Inner

Sheath

Material

MDPE

Thickness±0.2mm

0.8

Strength Member

Material

Steel wire

Diameter±0.05mm

1.4

Outer Sheath

Material

MDPE

Thickness±0.2mm

1.7

Cable Diameter±0.2mm

14.2

Cable Wetght±20kg/km

384

Min. bending radius

Without Tension

15×Cable-φ

Under Maximum Tension

30×Cable-φ

Temperature range

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

Application

NO.

Item

Requirement

1

Allowable Tensile Strength

Short Term

10000N

Long Term

5000N

2

Allowable Crush Resistance

Short Term

5000 (N/100mm)

Long Term

3000 (N/100mm)

Fibre Colours

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Slate

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

Loose Tube Colours

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Slate

White

No.

7

8


Color

Red

Black



What's the delivery time for sample order?

Normally about 7days after confirmation.


Could you offer samples?

Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.


What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.


Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
