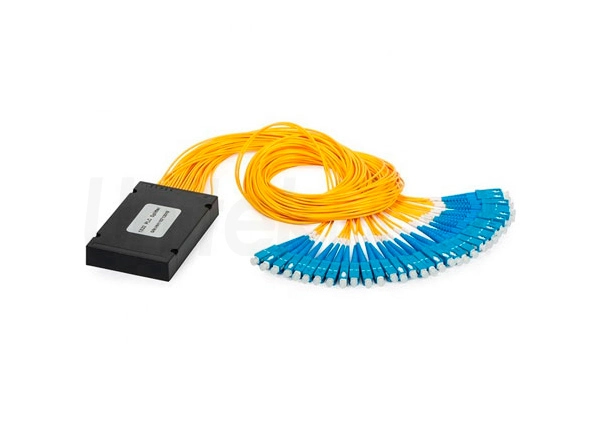

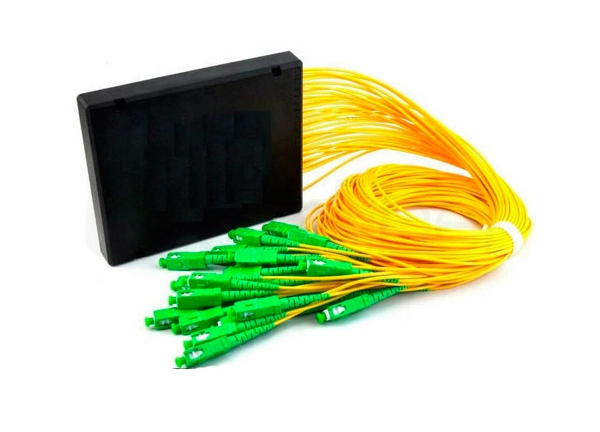

UnitekFiber provide high quality fiber optical products. We are producing all type of PLC splitters, such as Micro bare ribbon fiber PLC splitter, Mini steel type PLC splitter, ABS box type, LGX type and jack mounted chassis type PLC splitters. All our PLC splitter products are good repeatability and exchangeability and 100% NEW raw material and well quality control ensure the best life time.
lLow Insertion loss
lLow PDL
lCompact Design
lGood channel-to-channel uniformity
lWide Operating Wavelength:
lFrom 1260nm to 1650nm
lWide Operating Temperature
lHigh Reliability and Stability
lFTTX Systems
lPON Networks
lCATV Links
lOptical Signal Distribution
lTelcordia GR-1209-CORE
lTelcordia GR-1221-CORE
Table 1 – 1×N PLC Splitter
Parameters | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260～1650 | ||||||||
Fiber Type | G657A or customer specified | ||||||||
Insertion Loss (dB)(Min/Max) | 3.8/4.0 | 7.2/7.4 | 9.5/9.8 | 10.5/10.7 | 12.1/12.6 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | |
Loss Uniformity (dB) | 0.6 | 0.6 | 1.0 | 0.8 | 1.1 | 1.2 | 1.5 | 2.5 | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
Operating Temperature(℃) | -40～+85 | ||||||||
Storage Temperature(℃)) | -40～+85 | ||||||||
Operating Humidity | 5% ~ 85% RH | ||||||||
Storage Humidity | 5% ~ 85% RH | ||||||||
Device Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×6 | |
Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 120×80×18 | 140×115×18 | |
Mini-Module Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | |
Table 2 – 2×N PLC Splitter
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
Operating Wavelength (nm) | 1260～1650 | ||||||
Fiber Type | G657A or customer specified | ||||||
Insertion Loss (dB)(Min/Max) | 3.9/4.2 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.2/17.7 | 21.0/21.5 | |
Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 1.8 | 2.0 | 2.5 | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
Operating Temperature(℃)) | -40～+85 | ||||||
Storage Temperature(℃)) | -40～+85 | ||||||
Operating Humidity | 5% ~ 85% RH | ||||||
Storage Humidity | 5% ~ 85% RH | ||||||
Device Dimension (mm) (L×W×H) | 50×4×4 | 50×4×4 | 50×4×4 | 60×7×4 | 60×7×4 | N/A | |
Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 | |
Mini-Module Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×4 | 80×20×6 | N/A | |
