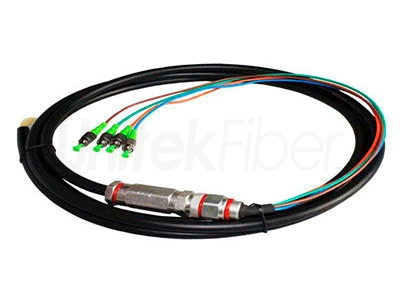

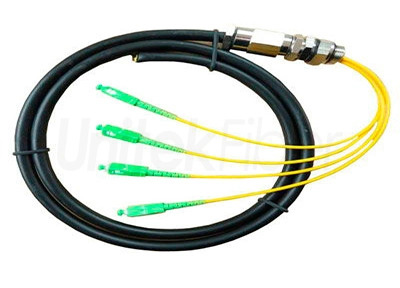

Waterproof Pre-Terminated Fiber Optical Pigtail SC LC Connectors for CATV

UnitekFiber Waterproof Pre-terminated Fiber Optical pigtail is to connect the optical node to the backbone fiber in CATV system. Its design fits Aerial, Base station, and Vault applications.The cable is with a rotational nut to avoid cables twists and enables a quick and easy installation. The fiber counts for our waterproof pigtail is from 2 to 12 fibers.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Waterproof Pre-Terminated Fiber Optical Pigtail SC LC Connectors for CATV

Application:


  • FTTX + LAN .

  • Optical fiber CATV .

  • Local Area Networks .

  • Testing Equipment .

  • Fiber Optic Telecommunication .


Features:


  • 100% factory tested

  • Insertion loss UPC Max 0.25 dB  ; Insertion loss APC Max 0.30 dB

  • Return loss UPC Max -55 dB  ; Return Loss APC Max -65 dB

  • Operating temperature -40°C (-40°F) ~ 75°C (167°F)

  • Installation temperature -30°C (-22°F) ~ 60°C (140°F)

  • Storage temperature -40°C (-40°F) ~ 70°C (158°F)

  • Pull strength short term 1335 N

  • Pull strength long term 400 N

  • Mounting thread 5/8"-24 thread UNEF

  • Interferofeet test results available


Complied Standards:


Meet standards: Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series, etc.

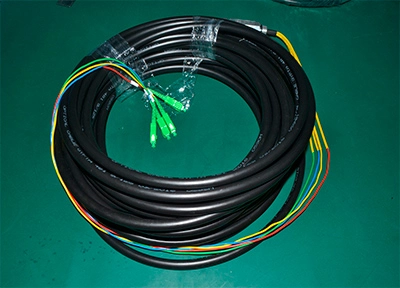

Packaging & Shipping


Waterproof Pre-Terminated Fiber Optical Pigtail SC LC Connectors for CATV


Production


Waterproof Pre-Terminated Fiber Optical Pigtail SC LC Connectors for CATV


Parameter of Waterproof Pre-Terminated Fiber Optical Pigtail SC LC Connectors for CATV

TypeSM-UPCSM-APCMM-UPC
TypicalMaxTypicalMaxTypicalMax
Insertion Loss≤0.1dB≤0.3dB≤0.15dB≤0.3dB≤0.05dB≤0.3dB
Return Loss≥50dB≥60dB≥30dB
Durability500 mating cycles
Working temperature

-40 – 85℃


Fiber Colors

Fiber Colors

Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bartley
Jul 25, 2022

Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.

Verified Purchase
Helpful 0
