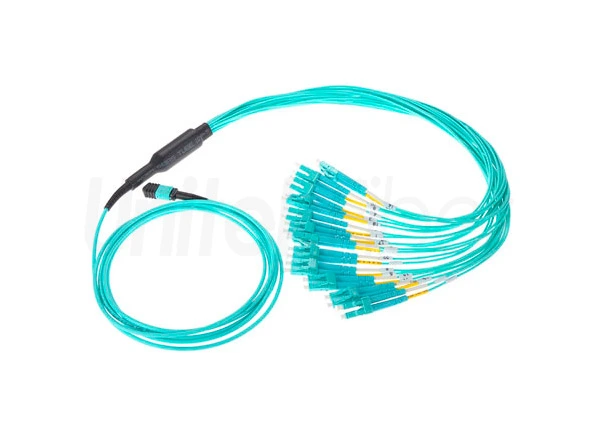

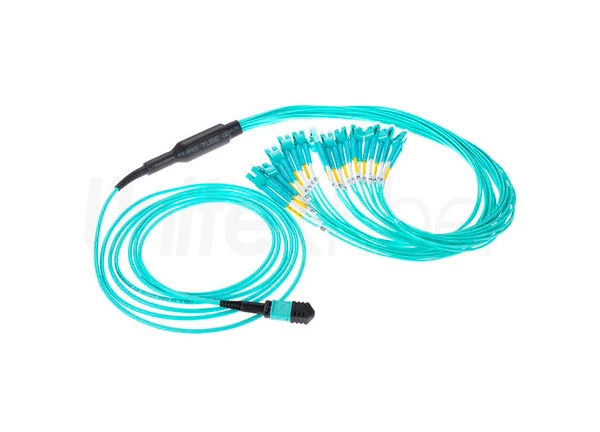

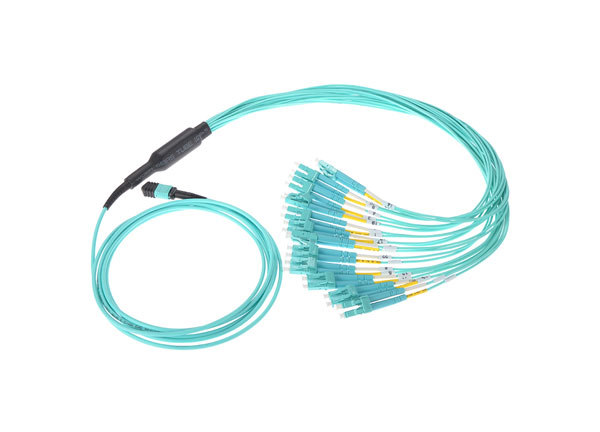

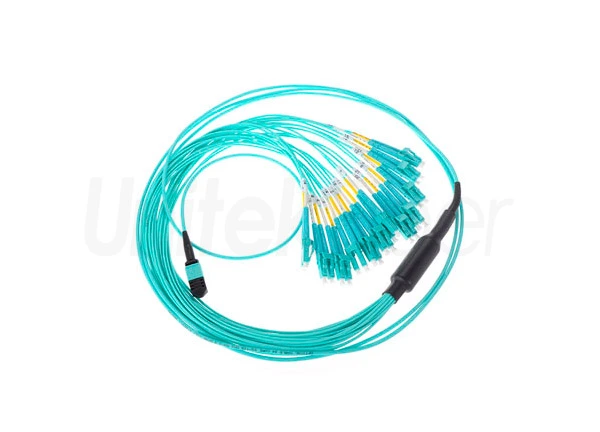

UnitekFiber MPO MTP to LC 24 Fibers Optic Trunk Jumper OM3 12 to 144 Cores

UnitekFiber supplies MPO/MTP fiber optic trunk jumpers. MPO/MTP trunk jumpers is small in size.It is smaller than SC connectors. With high precision, precise MT guide pins and guide holes ensure accurate fiber optic docking. MPO/MTP trunk jumpers is in a high density and precise geometric design to support fiber connections from 12 to 144 cores.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of UnitekFiber MPO MTP to LC 24 Fibers Optic Trunk Jumper OM3 12 to 144 cores

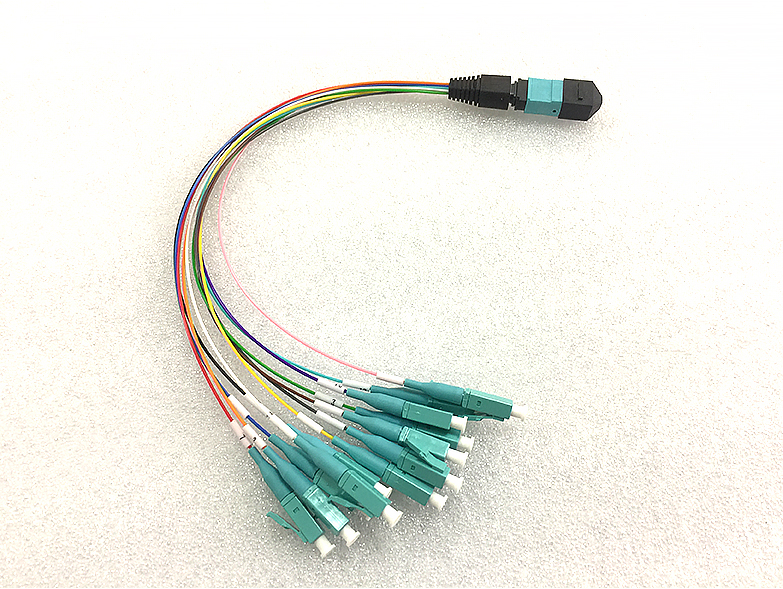

MPO/MTP Breakout fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 12 fibers in one easy plug-in. The fan-out side has 12 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.

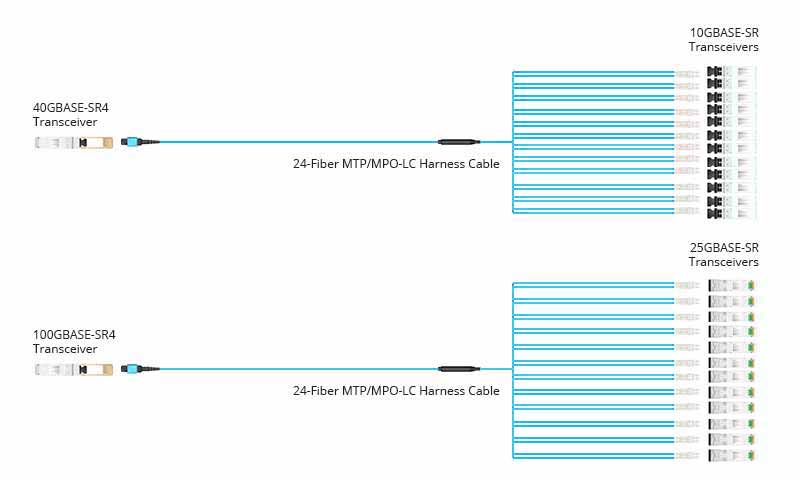

Network Connectivity


UnitekFiber MPO MTP to LC 24 Fibers Optic Trunk Jumper OM3 12 to 144 Cores


Product Highlights



Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling.







UnitekFiber MPO MTP to LC 24 Fibers Optic Trunk Jumper OM3 12 to 144 Cores

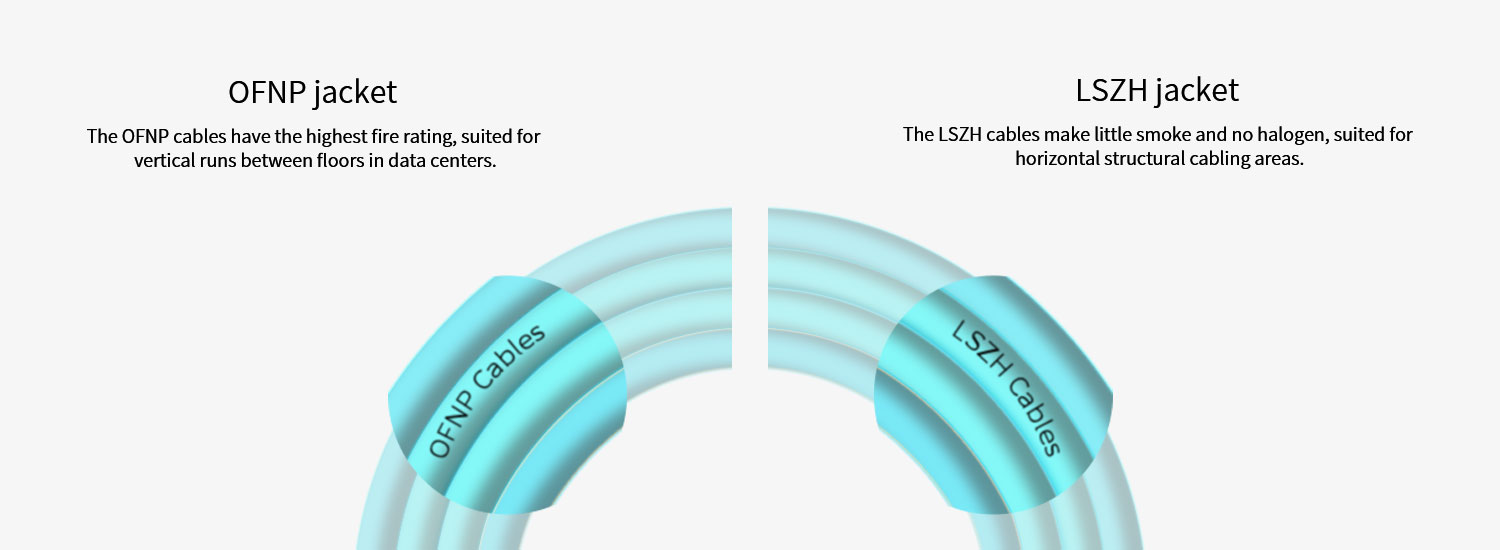

2 Custom Cable Jacket


UnitekFiber MPO MTP to LC 24 Fibers Optic Trunk Jumper OM3 12 to 144 Cores

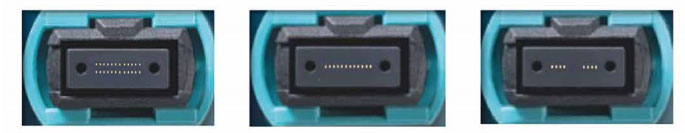

3 Custom MPO Connectors





Parameter of UnitekFiber MPO MTP to LC 24 Fibers Optic Trunk Jumper OM3 12 to 144 cores

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bartley
Jul 25, 2022

Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.

Verified Purchase
Helpful 2
