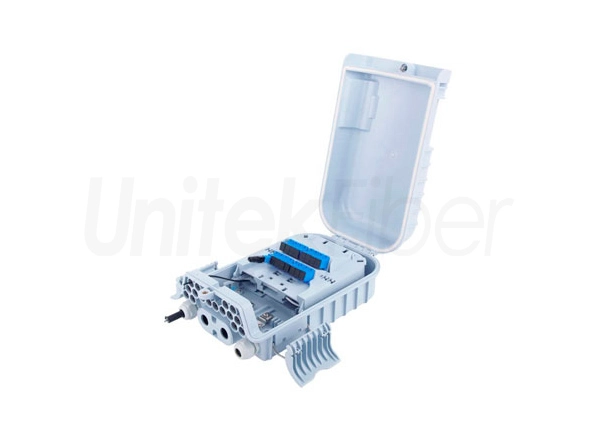

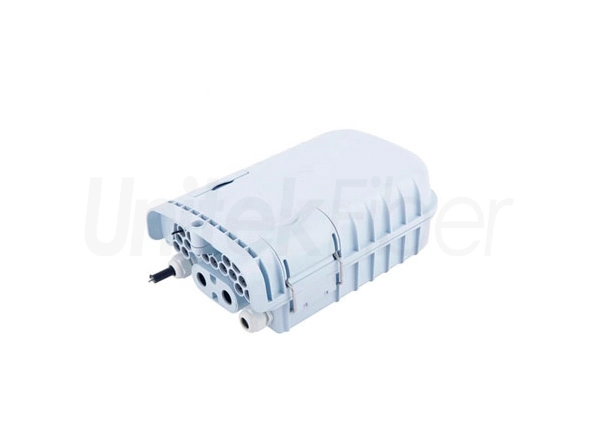

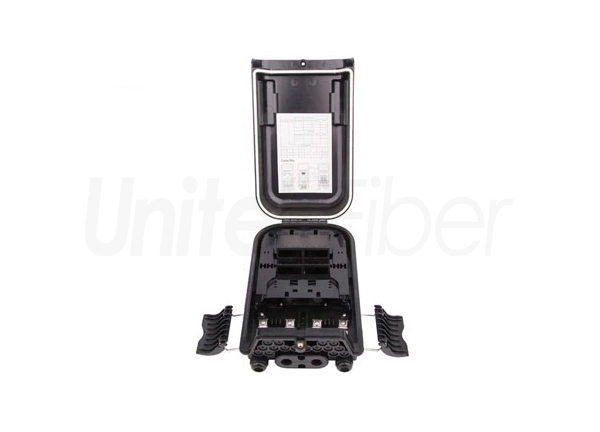

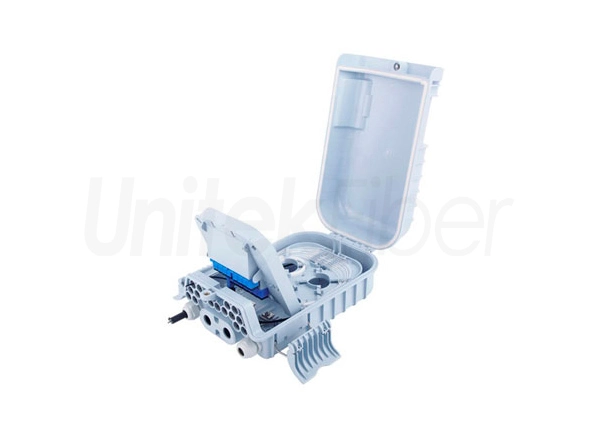

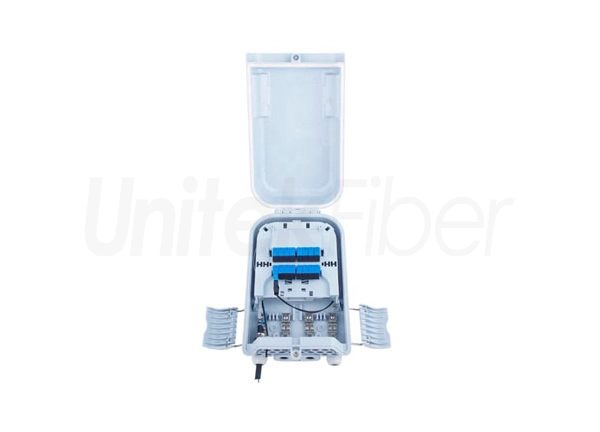

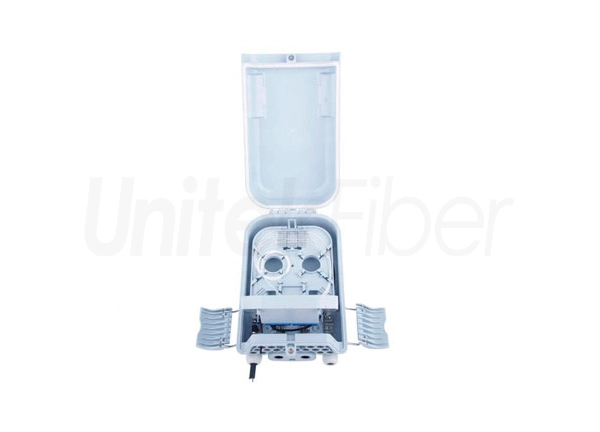

High Quality Waterproof Fiber Optical Distribution Box Splitter 16 Fibers

High quality fiber optical distribution box is able to hold up to 16 fibers. This distribution box is suitable for 1*8 and 1*16 insert type PLC splitter. It is applied as a termination point for the feeder cable to connect with FTTH drop cable for FTTx network solutions. IP65 Rated Water-proof design, to meet the outdoor application environments


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Quality Waterproof Fiber Optical Distribution Box Splitter 16 fibers

Application:


  • Widely used in FTTH access network

  • Telecommunication networks

  • CATV networks

  • Data communication networks

  • Local area Networks


Features


  • Industry Standard User Interface, be made of high impact plastic.

  • Up to 16 FTTH drops.

  • Can accommodate 1x8 & 1x16 PLC splitter.

  • Indoor or outdoor using, waterproof.

  • Wall mounting and pole mounting application.

  • Wet-proof, water-proof, dust-proof, protection level up to IP65

  • Construction-lightweight plastic offers strength

  • Resistance to chemical and U.V attack


Packaging & Shipping

High Quality Waterproof Fiber Optical Distribution Box Splitter 16 fibers


Production


High Quality Waterproof Fiber Optical Distribution Box Splitter 16 fibers


High Quality Waterproof Fiber Optical Distribution Box Splitter 16 fibers

Configuration

Material

PC+ABS

Entry ports

1 Midspan+2 Cable gland( total 4 ports)

Outlet ports

16

Cores

16

Color

Grey black or white(optional)

Ip degree

65

Adapter installation

16 (SC LC )

PLC installation

support(1x8 or 1x16)

inlet cable dimension

midspan(13.5mm)/cable gland(12mm)

outlet cable

2x3 drop cable &<4.5 round cable

Installation method

wall mounting or pole mounting

Dimension

287x172x102mm

Weignt

1.4KG

No. of splice tray

4
