MTP/MPO Fiber Cable|40G Multimode 50/125 96 Strands MTP-MTP Fiber Optic Jumper

UnitekFiber provides 96 strands MTP-MTP fiber optical jumper. MTP fiber optical jumpers are mda by MTP connectors connect with fiber optic cables in various forms.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of MTP/MPO Fiber Cable|40G Multimode 50/125 96 Strands MTP-MTP Fiber Optic Jumper

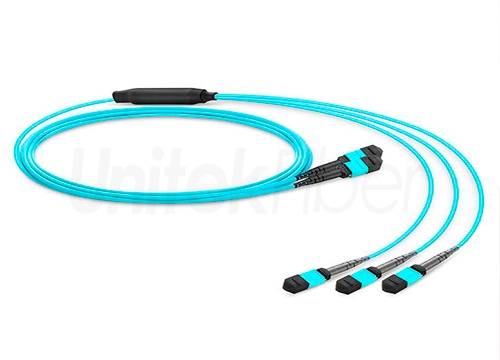

MPO conversion cable is designed to provide a more flexible multi-fiber cabling system based on MPO products. Unlike MPO harness cable, MPO conversion cables are terminated with MPO connectors on both ends, can provide more possibilities for the existing 24-fiber cabling system.

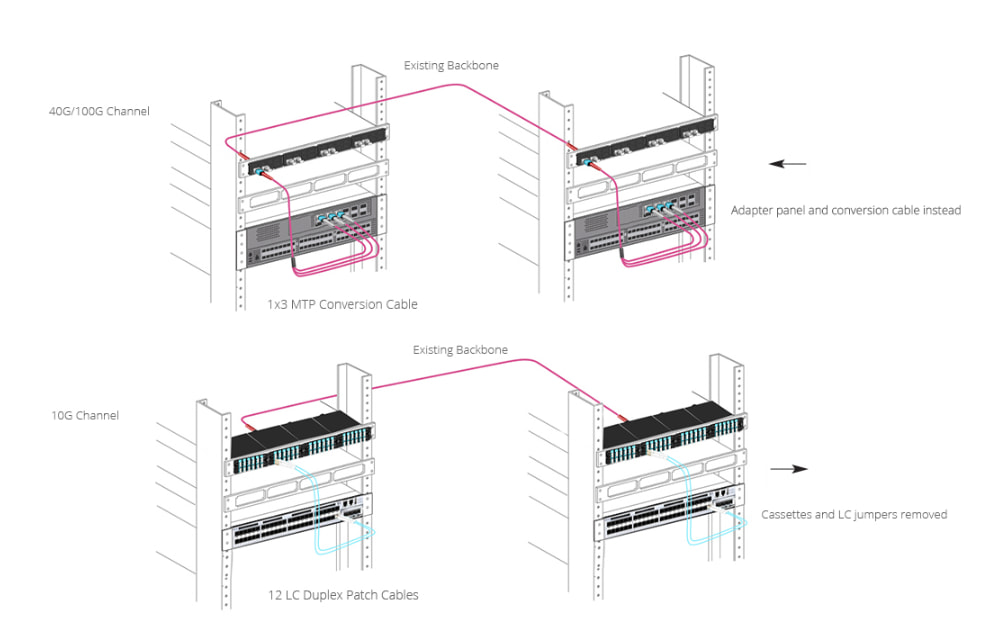

The 40G/100G MPO conversion cables eliminate the wasted fibers in current 40G transmissions and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MPO conversion cables is a more cost-effective and lower-loss option.

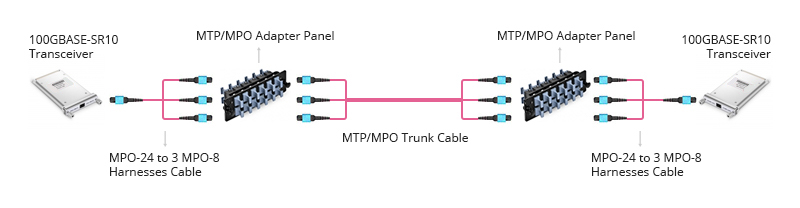

The MTP / MPO trunk jumper facilitates the rapid use of high density backbones. Reduce network installation or reorganization time and cost savings in data centers or other high-density environments. Microcore cable maximizes bend radius and minimizes weight and size for internal junction boxes, patch panels, and rugged MPO/MTP branches, traversing MDA, HDA and EDA spaces.


Network Connectivity


Mpo To Mpo Cable

Mtp Optical Connector


Product Highlights



Easy Installation and High-performed Advantages Facilitate Your Connection


Mtp Trunk Cable


Superior Workmanship Guarantees Stable Transmission


Mpo Fiber Optic Cable


MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.



Perfect High-performance Fiber



Excellent bending and compression resistance make it an ideal choice for high density cabling


Mpo Trunk Cable

Mpo Fiber Optic Cable Assemblies


Custom Cable Jacket


Mpo Patch Cable



Parameter of MTP/MPO Fiber Cable|40G Multimode 50/125 96 Strands MTP-MTP Fiber Optic Jumper

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

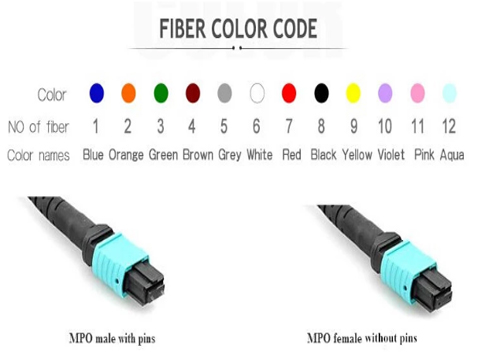

Fiber Color Code

Fiber Color Code


FAQ

Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Download

Reviews

Catherin
Jul 25, 2022

Pulling this through ceilings and in conduit - this is fantastic cable. Flexible doesn't hold shape. Very nice to crimp as well.

Verified Purchase
Helpful 0
