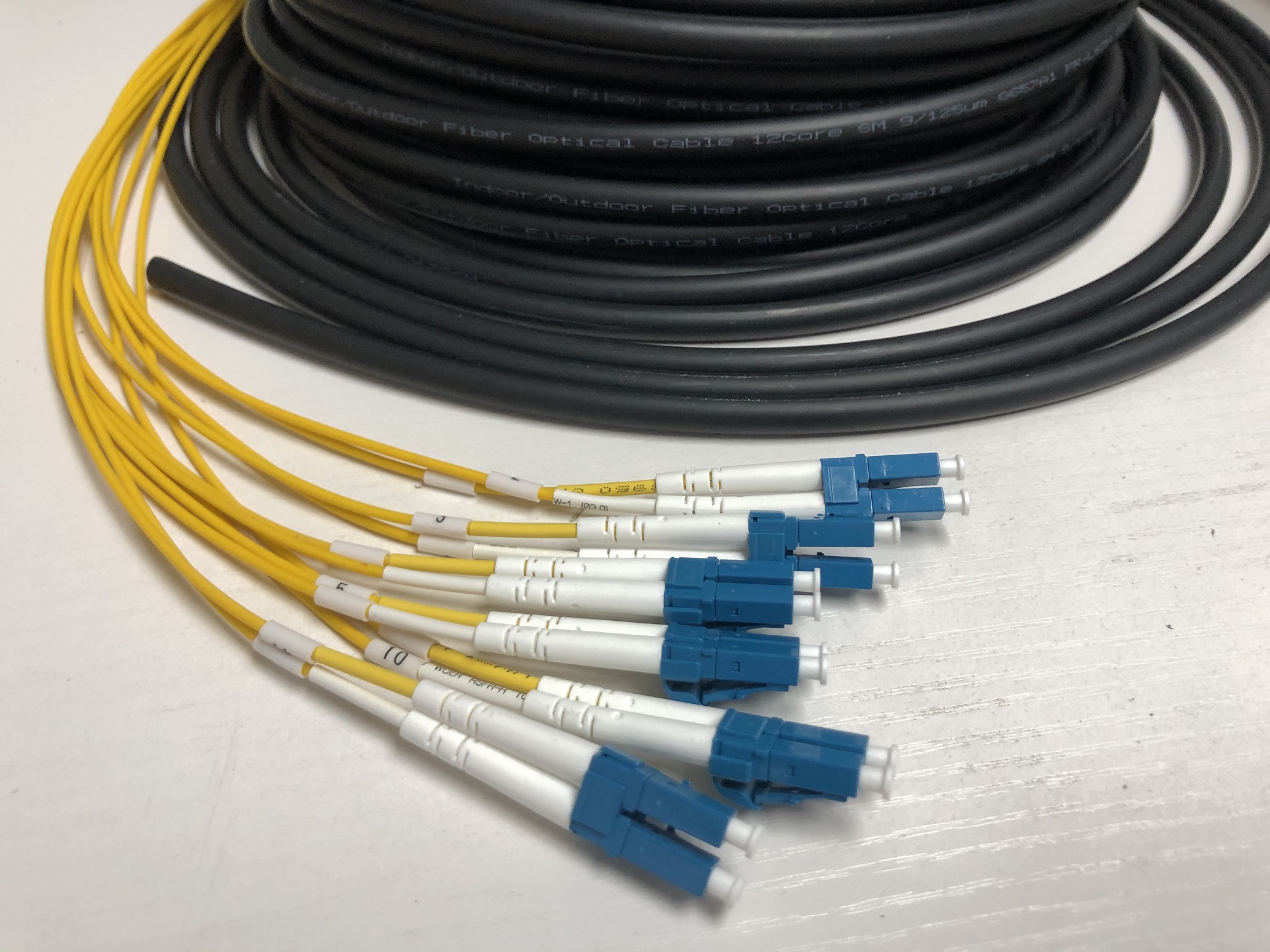

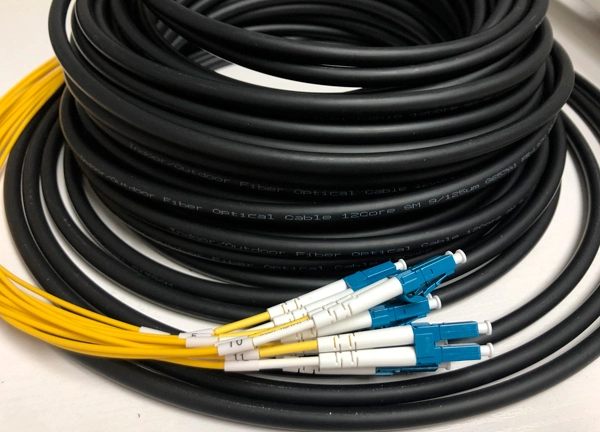

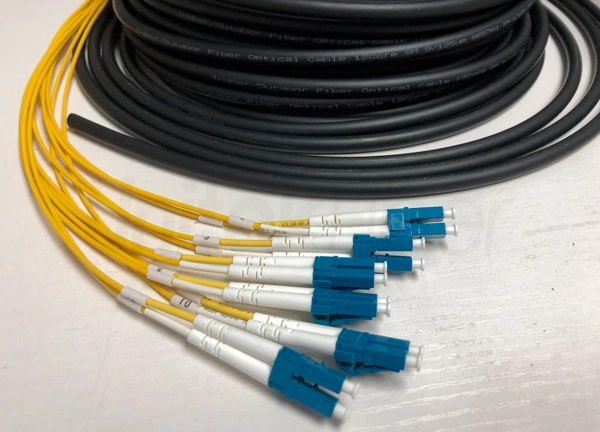

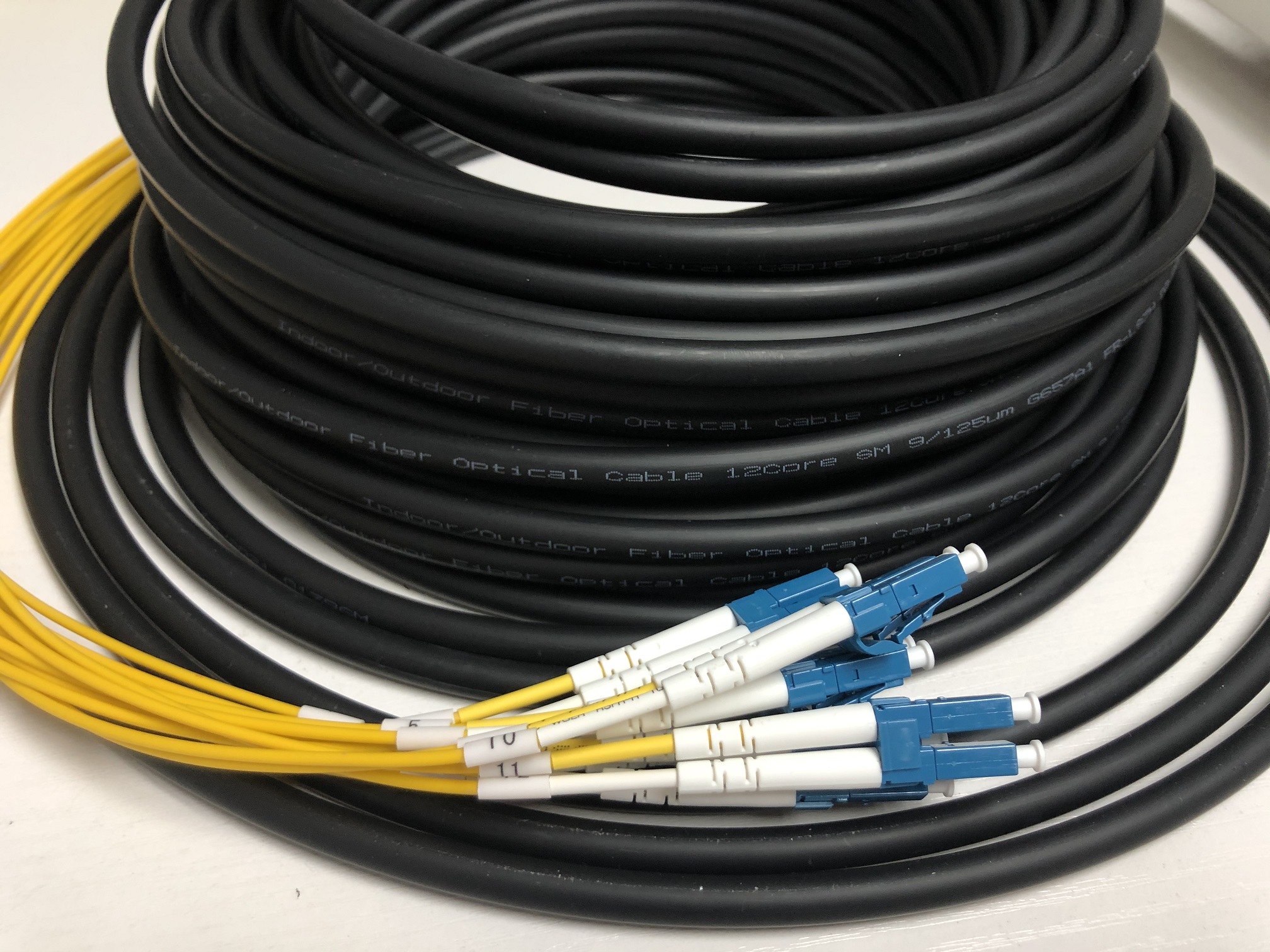

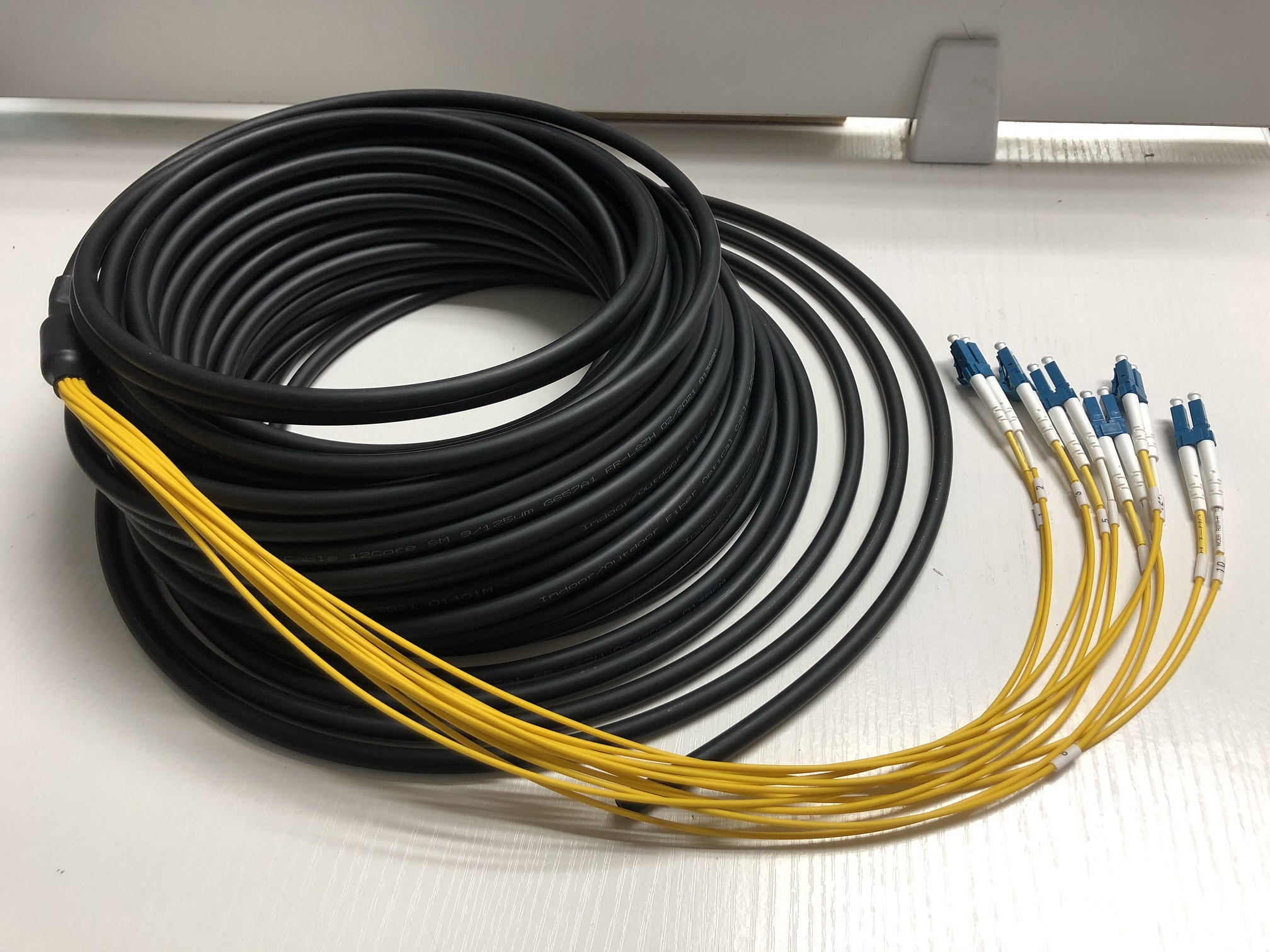

Indoor/outdoor Fiber Patchcord 6 Cores LC/UPC duplex 7.5mm Raser Reted OFNR Black

Unitekfiber produce pre-terminated indoor/outdoor fiber optic patchcord. This 6 fibers indoor/outdoor patchcord is Riser (OFNR) rated black jacket and features 250µm fibers in the central tube. The patchcord can be terminated with LC, SC, ST and FC connectors etc. lt realizes safe and reliable fiber connection with waterproof fouction.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor/outdoor Fiber Patchcord 6 cores LC/UPC duplex 7.5mm Raser reted OFNR Black

Characteristics:


This indoor/outdoor fiber patchcord is of low insertion loss, good repeatability,large return loss, good mutual insertion performance and good temperature stability. This kind of 6 cores pre-terminated fiber patch cord is suitable for riser, duct, horizontal and vertical cabling connection.


Application:


The 6 cores fiber patch cord is widely used for cabling construction, FTTx networks and base station, suitable for fiber optic networks far transmission in indoor/outdoor harsh environment.


Physical Information





LC Pigtail Fanout Drawing


                        LC Pigtail Fanout drawing



SC Pigtail Fanout Drawing


                        SC Pigtail Fanout drawing

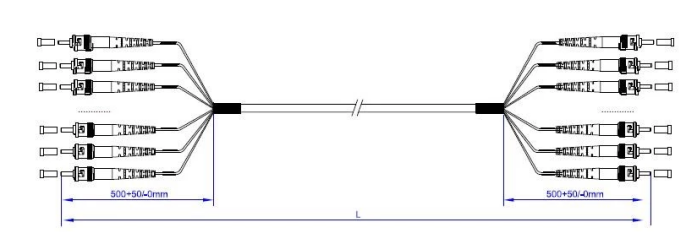

ST Pigtail Fanout Drawing


                          ST Pigtail Fanout drawing


Quality Control


  • Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25db max for >97% of samples,Return Loss >55dB)

  • All products factoy tested

  • Geometrical Characteristics comply with IEC 61755-3-1

  • All materials comply with IEC and ROHS

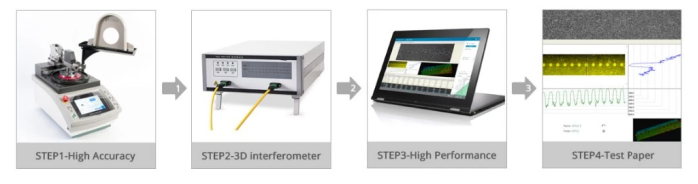

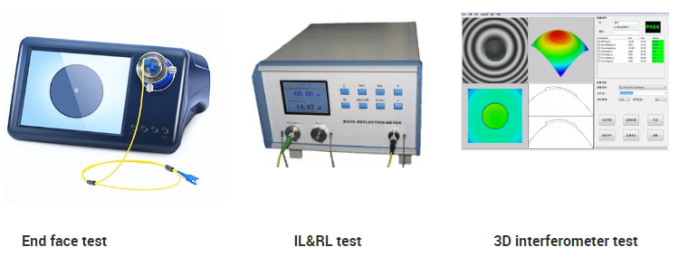

Our test program including: end face test,3D interferometer test, singlemode IL&RL test, multimode IL&RL test.




Indoor/outdoor Fiber Patchcord 6 Cores LC/UPC duplex 7.5mm Raser Reted OFNR Black



High Quality MTP/MPO Cable Guarantee


Indoor/outdoor Fiber Patchcord 6 Cores LC/UPC duplex 7.5mm Raser Reted OFNR Black

Parameter of Indoor/outdoor Fiber Patchcord 6 cores LC/UPC duplex 7.5mm Raser reted OFNR Black

Optical Specification

Connector

SC,FC,LC,ST,MU,E2000

Polishing

SM/UPC

MM/PC

SM/APC

Insertion Loss(max)

≤0.30dB

≤0.25dB

≤0.30dB

Return Loss(min)

≥50 dB

≥35 dB

≥60 dB

Tensile Strength

>300N

Durability

<0.20 dB typical change, 1000 matings

Repeatability

≤0.1dB

Storage , Operating Temperature [°C]

-40~+85


Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset


≤50 um

Fiber Spherical Height


+/- 50 nm

Angular Offset


——

8°± 0.2°



Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
