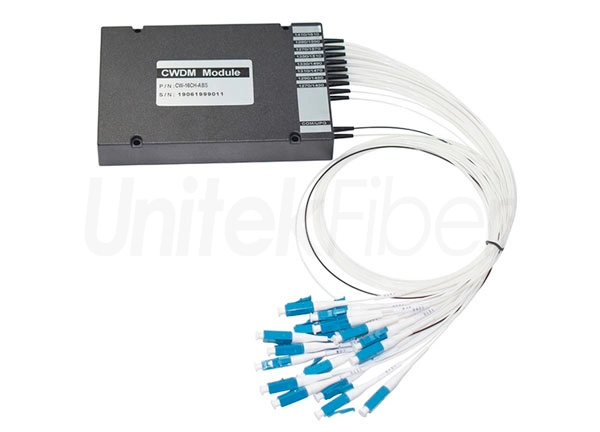

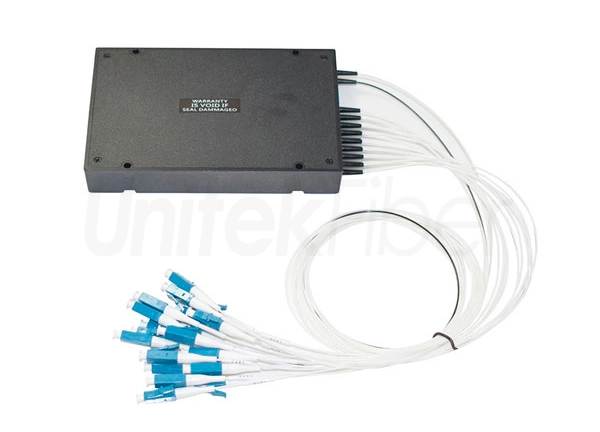

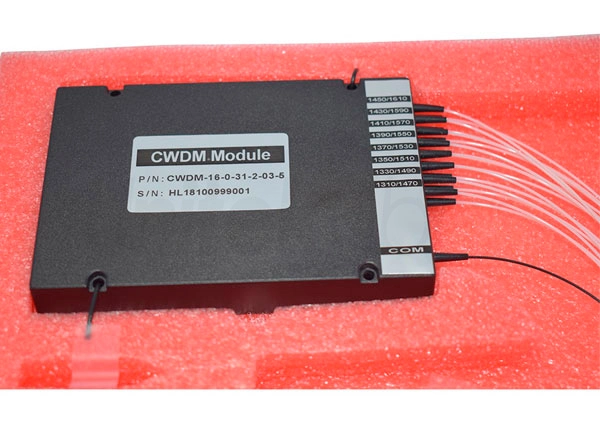

16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Multiplexer Transmission Equipment

Dual-fiber CWDM Mux/Demux should also be used in pairs. One multiplexes multiple signals and transmits them together through a single fiber, while the other end demultiplexes the integrated signal on the other side of the fiber. This device is applied in CWDM network, CATV Fiber optic System and metro/access networks.


Fiber Optic
Details
Parameter

Details of 16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Multiplexer Transmission Equipment

Features


  • Low Insertion Loss

  • High Channel Isolation

  • Optical path epoxy free

  • Excellent thermal stability and reliability

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)

  • Wide Operating Temperature: -20 to +70℃

  • Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard


Application


  • CWDM Network

  • Add/Drop System

  • CATV Fiberoptic System

  • Metro/Access Network

  • Fiber Optical Amplifier

16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Multiplexer Transmission Equipment

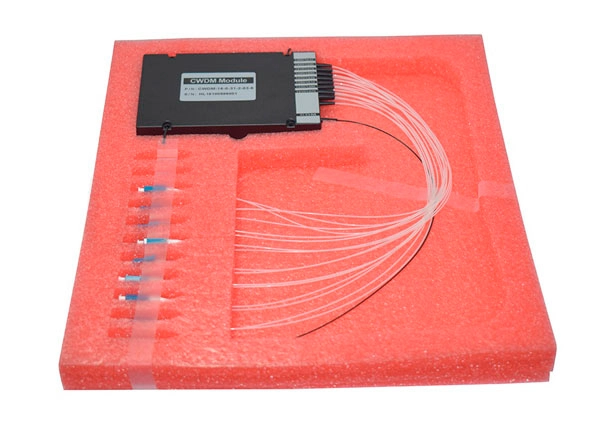

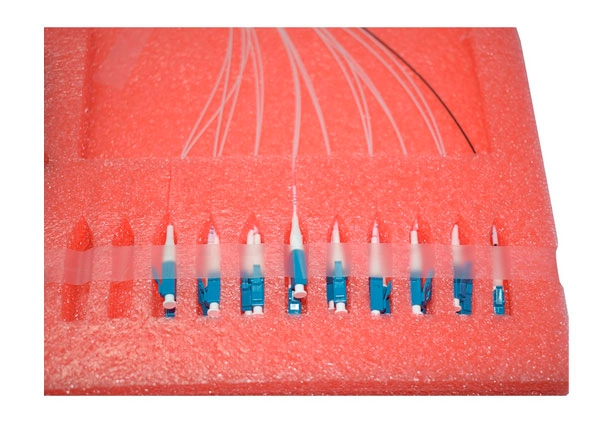

Packaging and Shipping


16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Multiplexer Transmission Equipment


Production


16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Multiplexer Transmission Equipment


Parameter of 16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Multiplexer Transmission Equipment

Parameter

4 Channel

8 Channel

18 Channel

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength (nm)

1270~1610

Center wavelength Accuracy (nm)

±0.5

Channel Spacing (nm)

20

Channel Passband (@-0.5dB bandwidth (nm)

15

Insertion Loss (dB)

≤1.5

≤2.5

≤3.2

Channel Uniformity (dB)

≤0.5

≤1.0

≤1.5

Channel  Ripple (dB)

0.3

Isolation (dB)

Adjacent

>30

>30

>30

>30

>30

>30

Non-adjacent

>45

>45

>45

>45

>45

>45

Inertion Loss Temperature Sensitivity (dB/°C)

<0.005

Wavelength Temperature Shifting (nm/°C)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

500

Opterating Temperature (°C)

-5~+75

Storage Temperature (°C)

-40~85

Package dimension (mm)

L100 x W80 x H10 or L120xW80xH18
