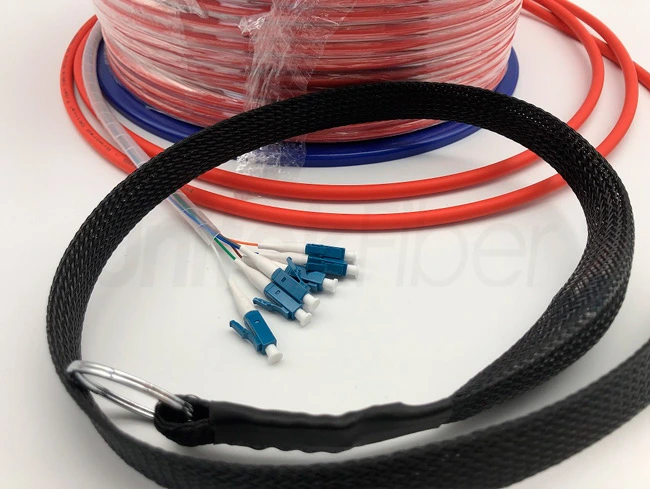

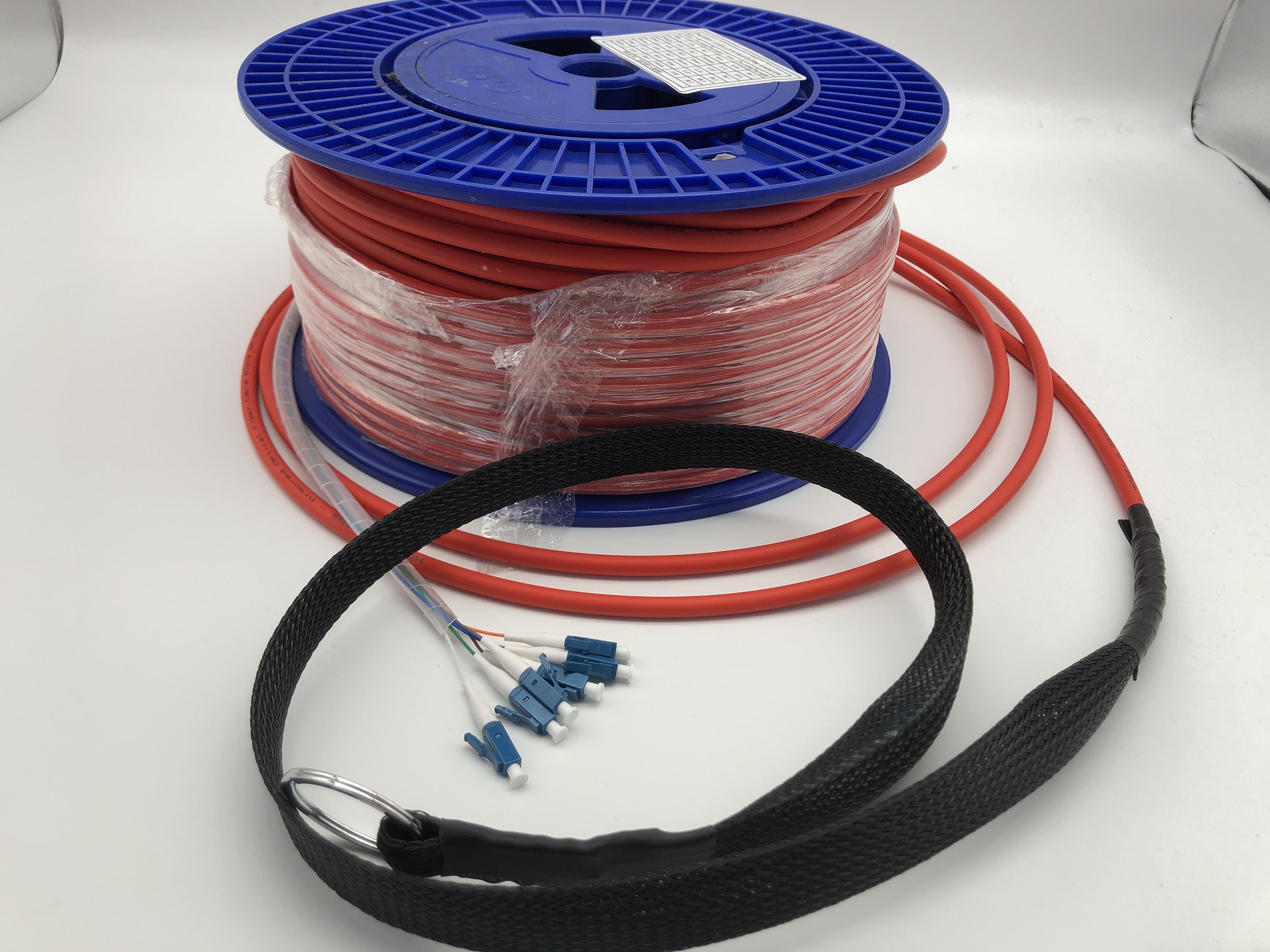

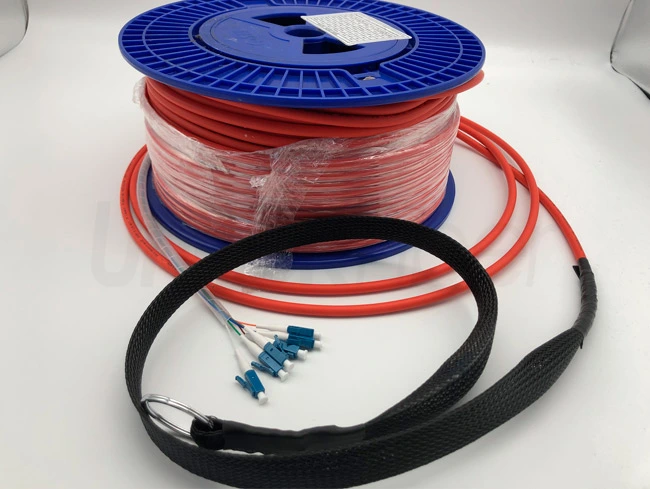

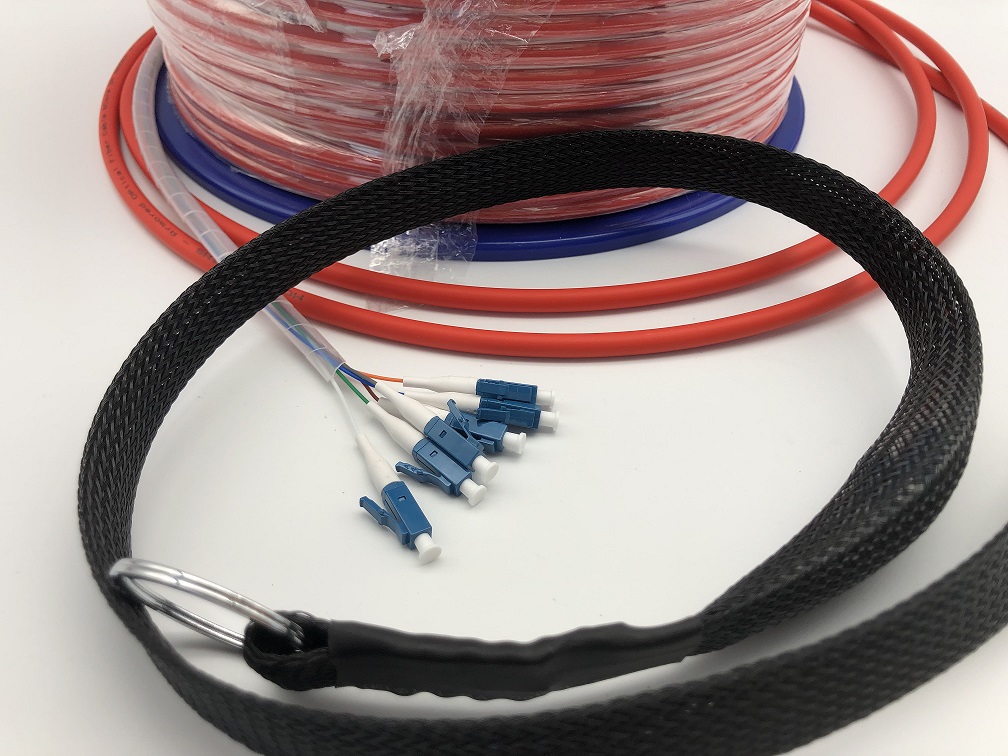

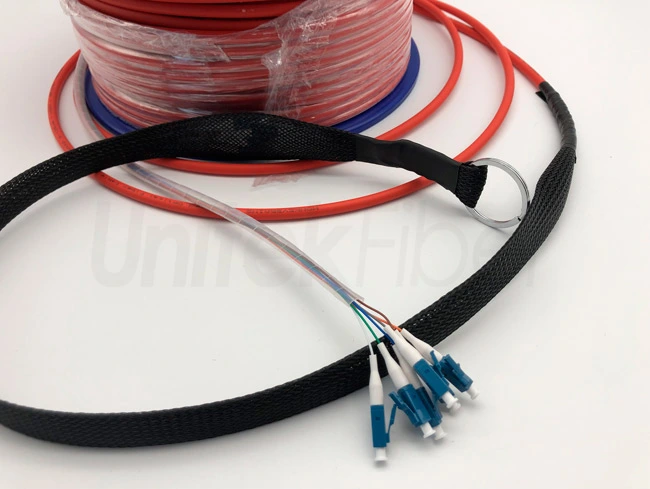

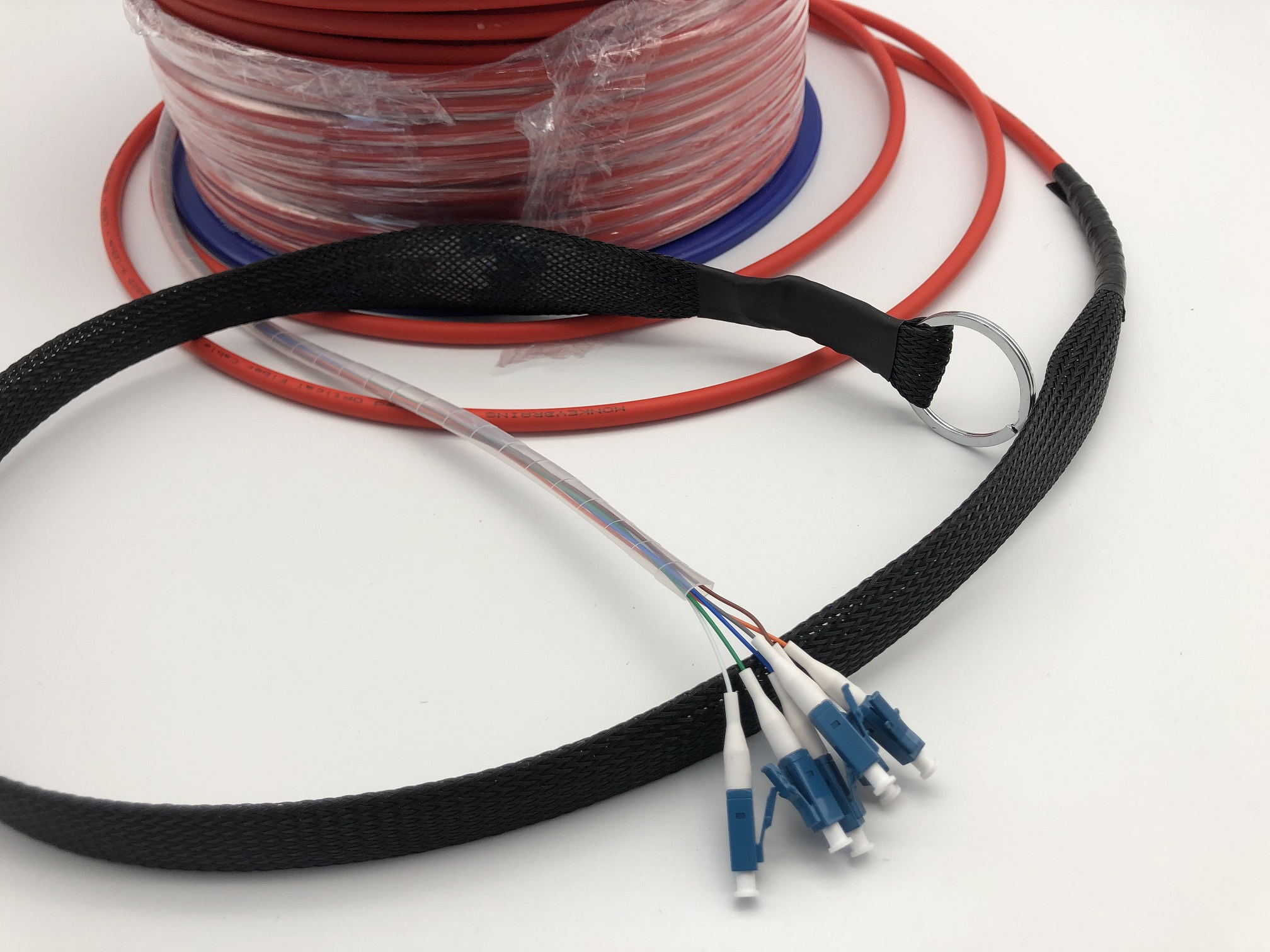

Armored Bulk Fiber Cable Optic Jumper 6 Cores LC/UPC-LC/UPC Pulling Eye Assembles LSZH Red

The Armored fiber optic jumper is made with Armored bulk fiber cable. The Armored bulk fiber optic cable is with 6 colors of 0.9mm subsidiary fiber cables, Kevlar yarn and steel tape is used as strength member to make bulk fiber cable more stronger. The outer jacket is flame-retardant LSZH. It is assembled with LC connectors at the both ends. And a pulling eye assembled at the one end  makes installation more convenient. All the cable are 100% tested according to IEC 61753 and IEC 61300-3-34.


Length
Fiber Optic
Details
Parameter
FAQ
Download
Reviews
Video

Details of Armored Bulk Fiber Cable Optic Jumper 6 cores LC/UPC-LC/UPC Pulling Eye Assembles LSZH Re

Applications:


  • Telecommunications networks

  • CATV, LAN, MAN and WAN application

  • Data processing networks

  • Cable television

  • Fibre-To-The-Home (FTTH)

  • Premises distribution


Features:


  • 100% pre-terminated and tested in factory to ensure transfer performance

  • Rapid configuration and networking, reduce installation time

  • Supports 40G and 100G network applications

  • Jacket material: LSZH, OFNR, OFNP available

  • Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass

  • Supports up to 4F, 8F, 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

  • OEM service is avaibable


Physical Information


LC Pigtail Fanout Drawing

LC Pigtail Fanout drawing


SC Pigtail Fanout Drawing

SC Pigtail Fanout drawing


ST Pigtail Fanout Drawing

ST Pigtail Fanout drawing


Quality Control


  • Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,

    <0.25db max for >97% of samples,Return Loss >55dB)

  • All products factoy tested

  • Geometrical Characteristics comply with IEC 61755-3-1

  • All materials comply with IEC and ROHS

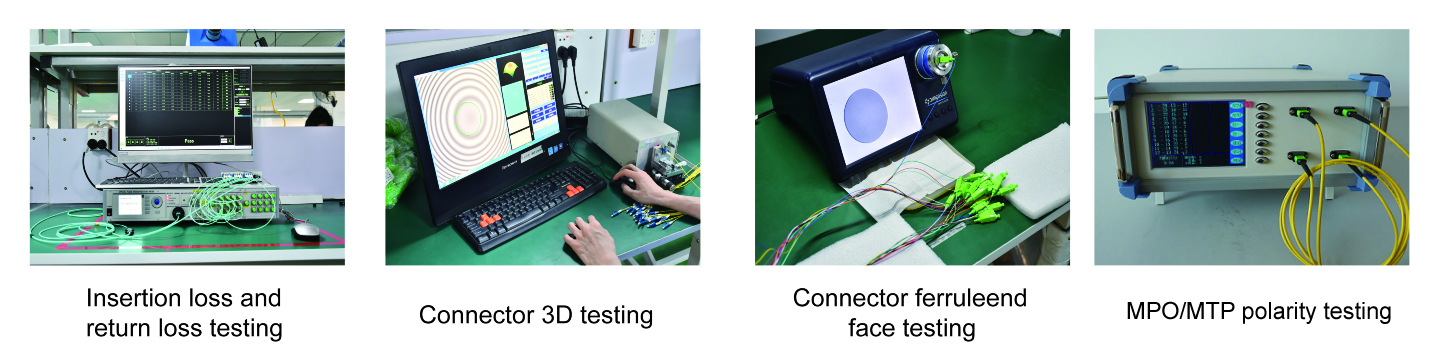

Our test program including: end face test,3D interferometer test, singlemode IL&RL test, multimode IL&RL test.

Our Tests


High Quality MTP/MPO Cable Guarantee


High Quality MTP/MPO Cable Guarantee


Packaging & Shipping


Bulk Fiber Cable LC/UPC-LC/UPC 12 Colors Cores Fiber Optic Patchcord SM G657A1 PVC


Production


Bulk Fiber Cable LC/UPC-LC/UPC 12 Colors Cores Fiber Optic Patchcord SM G657A1 PVC


Parameter of Armored Bulk Fiber Cable Optic Jumper 6 cores LC/UPC-LC/UPC Pulling Eye Assembles LSZH

Optical Specification

Connector

SC,FC,LC,ST,MU,E2000

Polishing

SM/UPC

MM/PC

SM/APC

Insertion Loss(max)

≤0.30dB

≤0.25dB

≤0.30dB

Return Loss(min)

≥50 dB

≥35 dB

≥60 dB

Tensile Strength

>300N

Durability

<0.20 dB typical change, 1000 matings

Repeatability

≤0.1dB

Storage , Operating Temperature [°C]

-40~+85


Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset


≤50 um

Fiber Spherical Height


+/- 50 nm

Angular Offset


     ——

8°±0.2°
