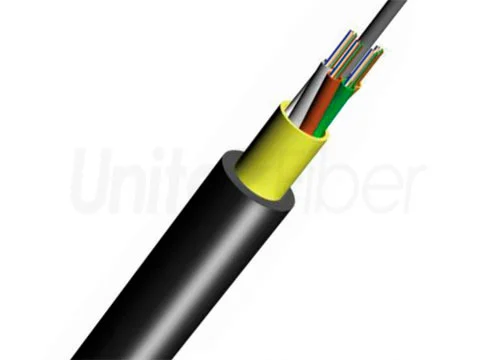

Customized Fiber Optical Cable|Aerial All Dielectric Self Supporting Cable ADSS 48core SM G652D Single Jacket PE

UnitekFiber supply two popular ADSS fiber cables. One is Single sheath ADSS cable, another is double sheath ADSS cable.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Customized Fiber Optical Cable|Aerial All Dielectric Self Supporting Cable ADSS 48cor

Optical Cable for Sale

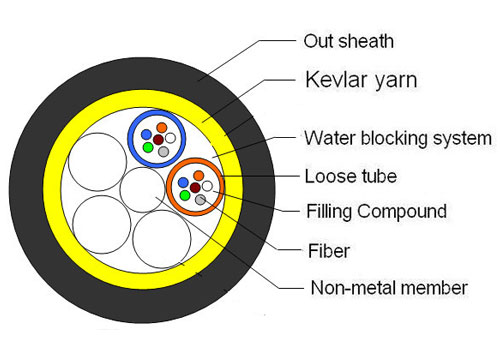

This type is able to obtain longer fiber lengths. The rest parts are basically similar to the central tube structure. The structure of ADSS fiber cable can be in a stranded structure design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (usually FRP). Although the diameter and weight are relatively big, ADSS cables with this structure are better to be deployed for large span applications.


Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores


Features of ADSS Fiber optic Cable


Fiber Optic Wire Cable



ADSS optical cable has strong low-temperature resistance and environmental adaptability. ADSS Fiber optic cable is All-dielectric self supporting wire, without any metal for avoid lightning strike. It is very convenient line installation and maintenance. The ADSS fiber cable have a wide temperature range and small cable diameter, it is more convenient to reduces ice and wind loads and maintains stable transmission. The inner structure use a water-blocking layer for better waterproofing. Aramid Yarn is a important part for fiber optical cable for tensile resistance.


Applications of ADSS Fiber optic Cable


Fiber Optic Wire for Sale


As a kind of self-supporting aerial fiber optic cable,  ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. This comprehensive solution introduction will cover the definition, structure, advantages, and applications of ADSS cables. The optical cable is laid independently without relying on the transmission line, which is convenient for construction and maintenance.


Professional Assistant For ADSS Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Customized Fiber Optical Cable|Aerial All Dielectric Self Supporting Cable ADSS 48core

No. of cable

/

6

12

24

48

72

96

Design

(StrengthMember+Tube&Filler)

/

1+5

1+5

1+5

1+5

1+6

1+8

Fiber type

/

G.652D

Central Strength Member

Material

mm

FRP

Diameter

(±0.05mm)

1.5

1.5

1.5

1.5

2.1

2.1

Loose Tube

Material

mm

PBT

Diameter

(±0.05mm)

1.8

1.8

1.8

2.1

2.1

2.1

Thickness

(±0.03mm)

0.32

0.32

0.32

0.35

0.35

0.35

MAX.NO./per

6

6

6

12

12

12

Filler Rope

Material

mm

LDPE

Diameter

(±0.05mm)

1.8

1.8

1.8

2.1

NO.

4

3

1

1

Water Blocking Layer

Material

/

Flooding Compound& Water Blocking tape

Additional Strength Member

Material

/

Aramid Yarn

Outer Sheath

Material

mm

MDPE

Thickness

1.8(nominal)

colour

black.

Cable Diameter(±0.2mm)

mm

9.6

9.6

9.6

10.2

10.8

12.1

Cable Wetght(±10.0kg/km)

kg/km

67

67

67

78

87

116

Attenuation coefficient

1310nm

dB/km

≤0.35

1550nm

≤0.21

Cable breaking strength(RTS)

kn

≥5.8

Working Tension (MAT)

kn

≥2.2

Wind velocity

m/s

30

Icing

mm

5

Span

m

200

Crush Resistance

Short Term

N/100mm

≥2200

Long Term

≥1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

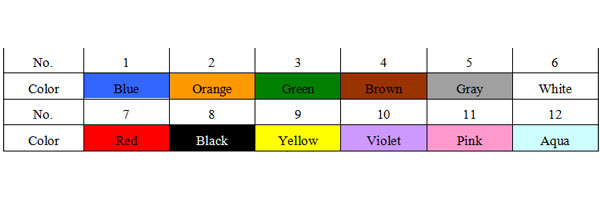

Fibre & Loose Tube Colors

Manufacture All-dielectric Single Jacket Aerial 48 cores Fiber optical cable ADSS


Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

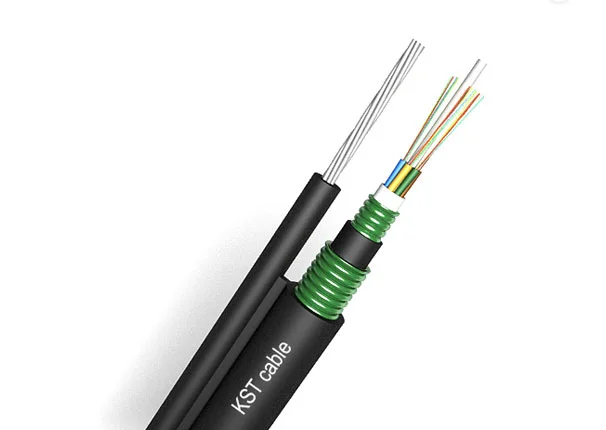

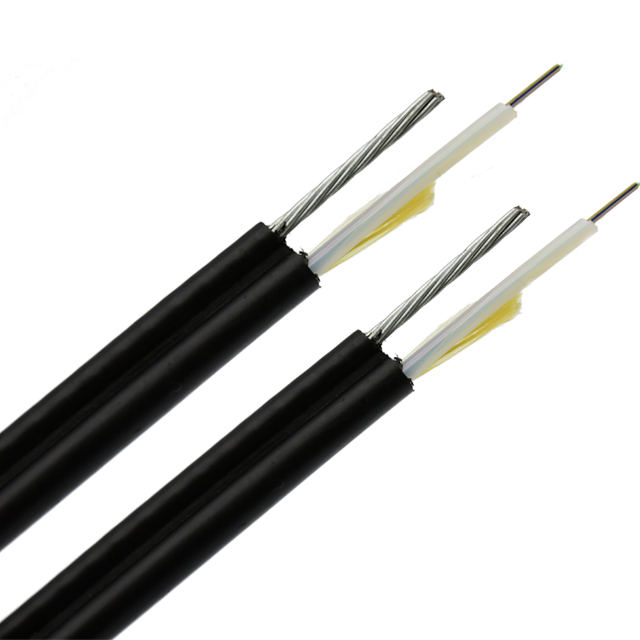

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

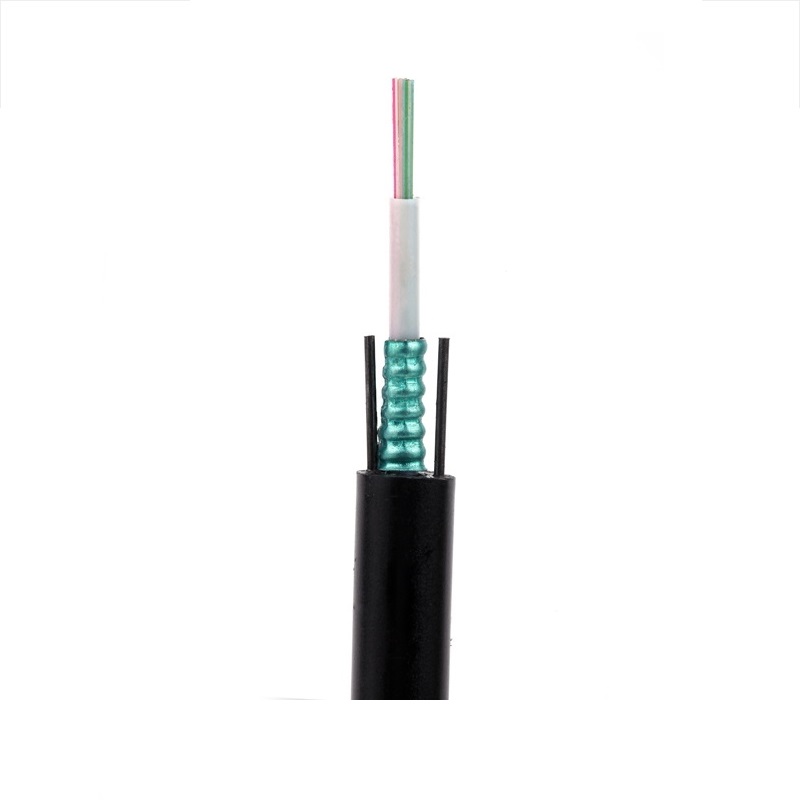

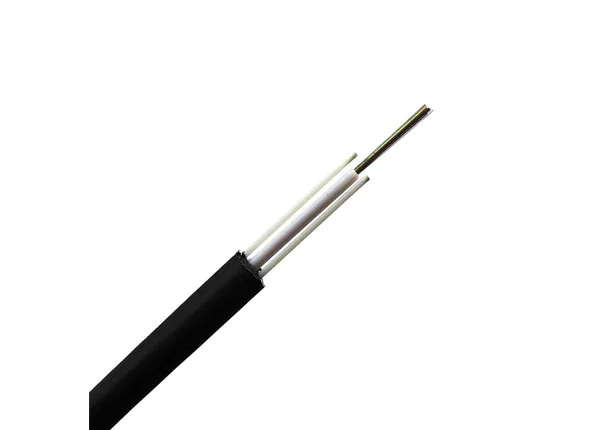

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
