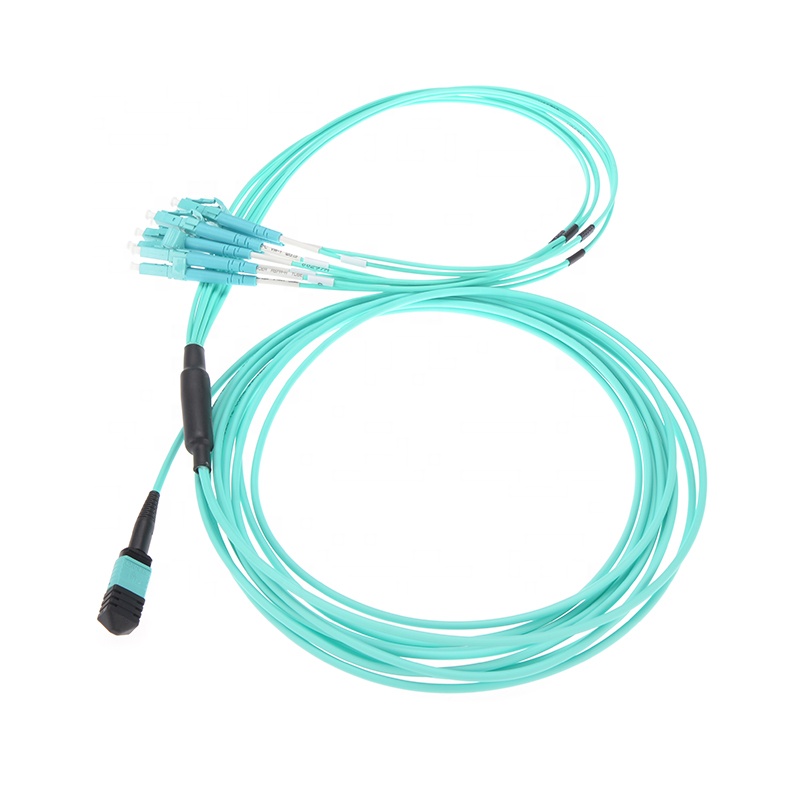

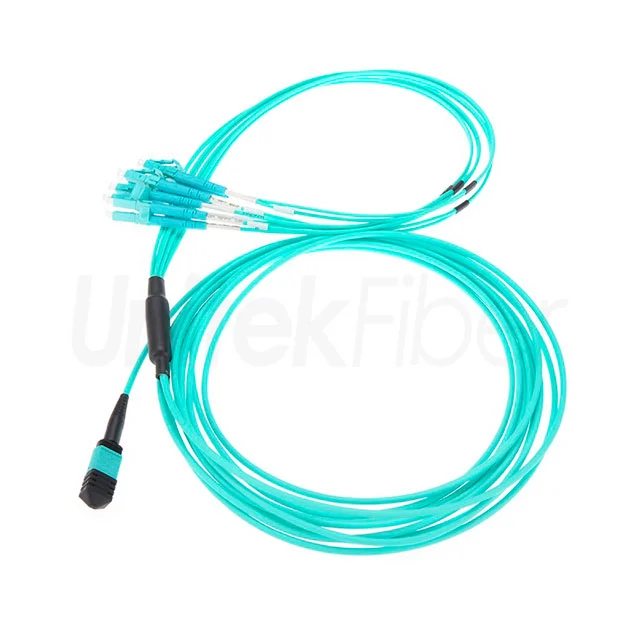

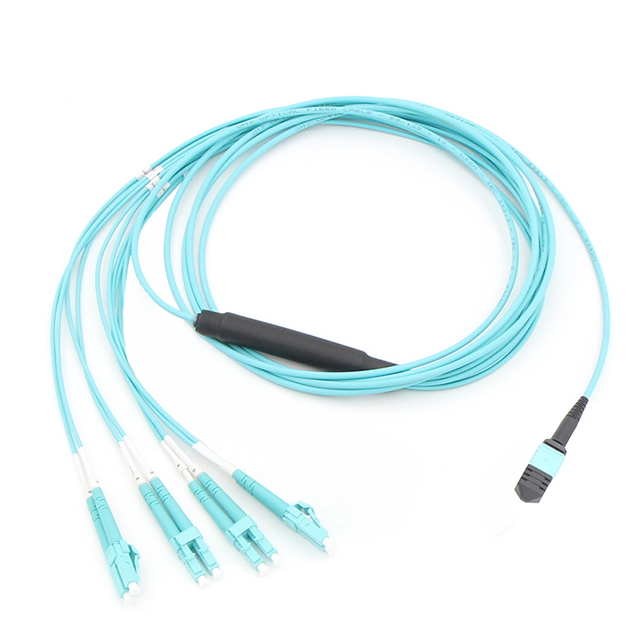

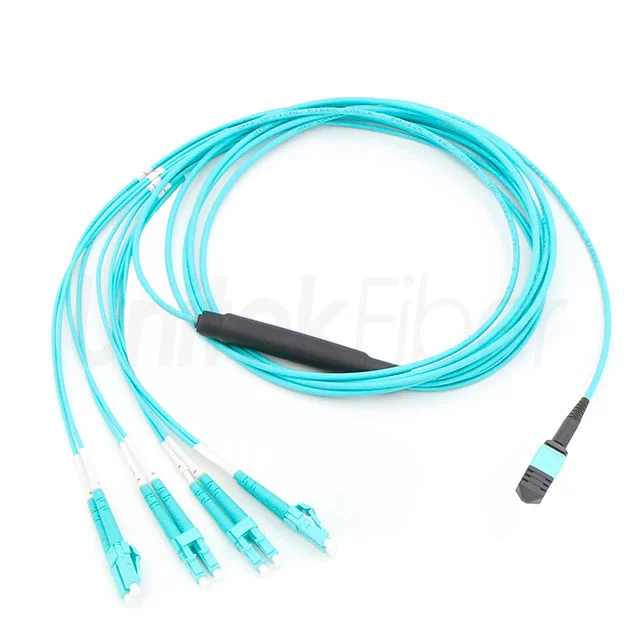

MPO Fiber Cable to LC Fiber Optic Patch Cord 8 12 Cores OM3 with 2.0mm Pigtail

MPO Fiber Cable to LC Fiber Optic Patch Cord can be 8 cores and 12cores. one end with a MPO fiber connector and another end with 8 or 12pcs of LC connectors. MPO to LC fiber cables are so popular in the market.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of MPO Fiber Cable to LC Fiber Optic Patch Cord 8 12 cores OM3 with 2.0mm Pigtail

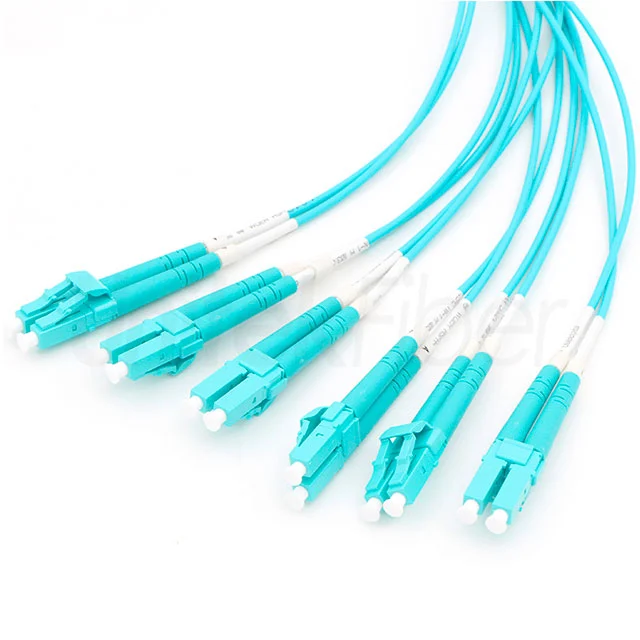

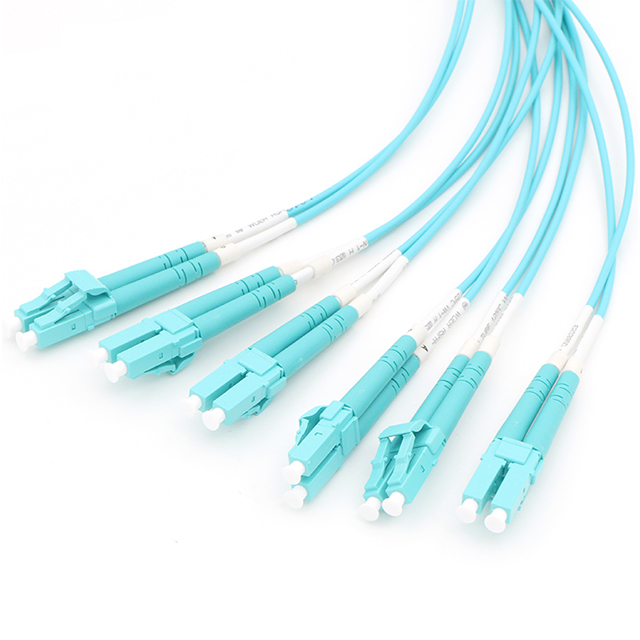

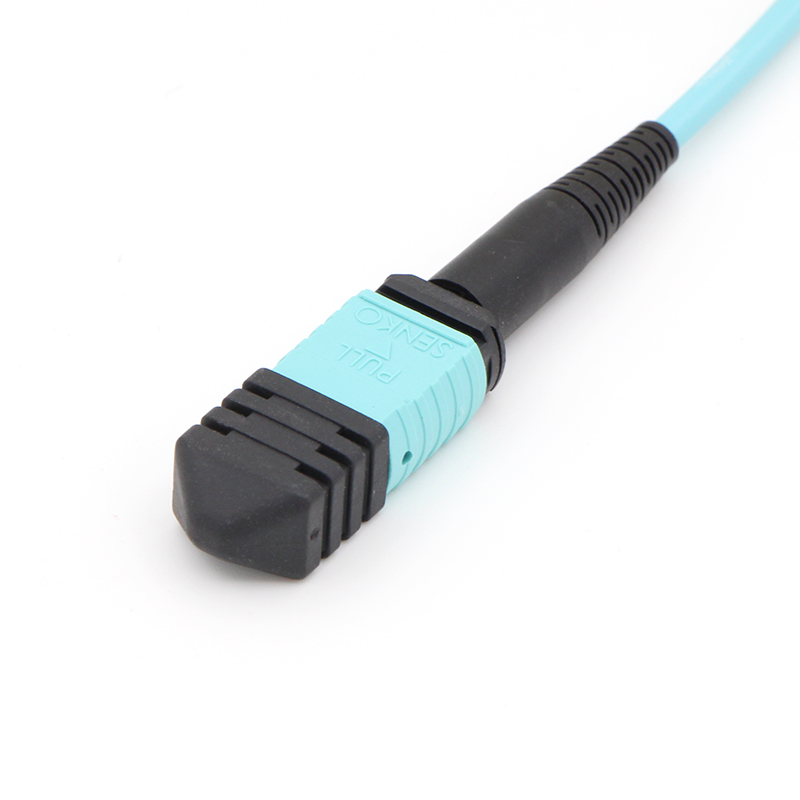

MPO/MTP Breakout fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 12 fibers in one easy plug-in. The fan-out side has 12 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.

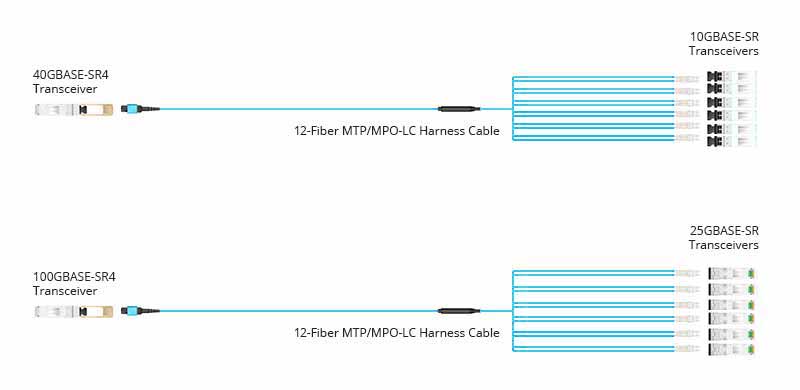

Network Connectivity


Mpo Cable

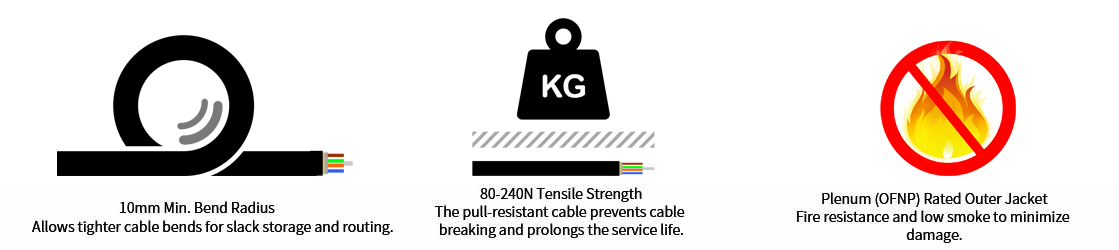

Product Highlights


Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling










Make MTP Breakout Cable Your Choice for High Density Fiber Networks

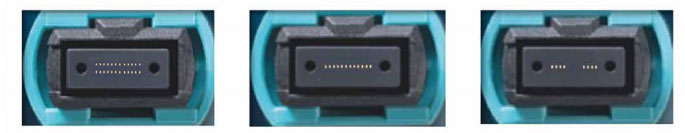

1Custom Fiber Count


Mtp Fiber Optic Cable

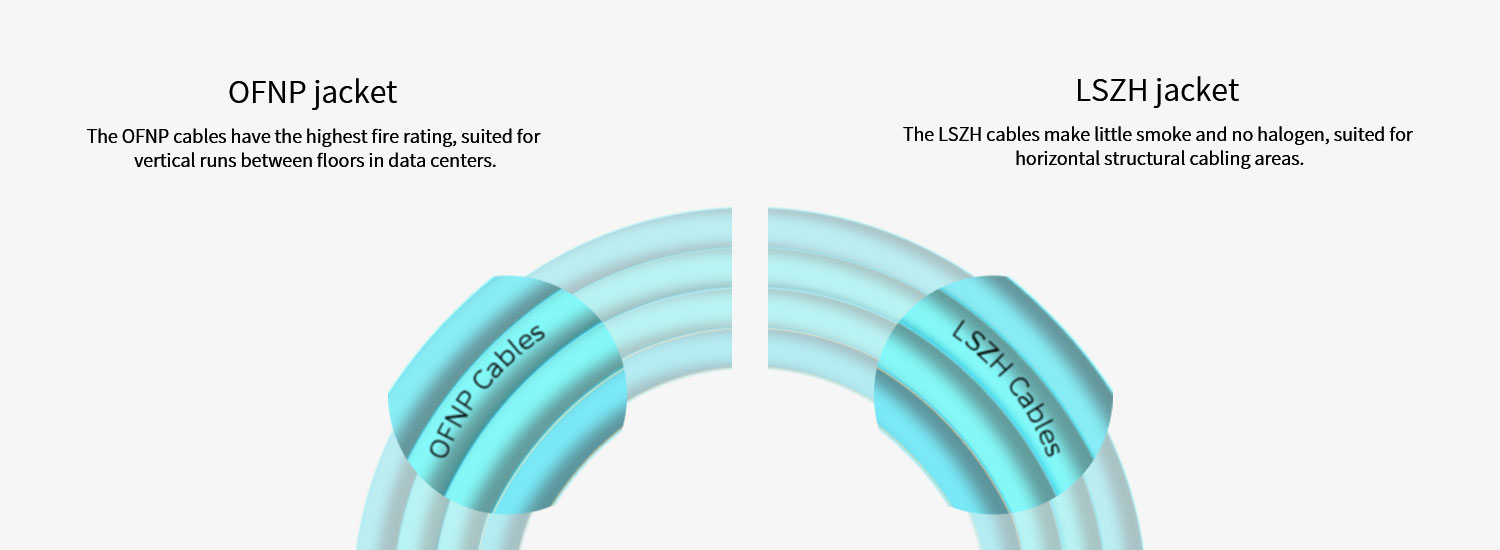

2Custom Cable Jacket

Mtp Mpo Fiber Connector

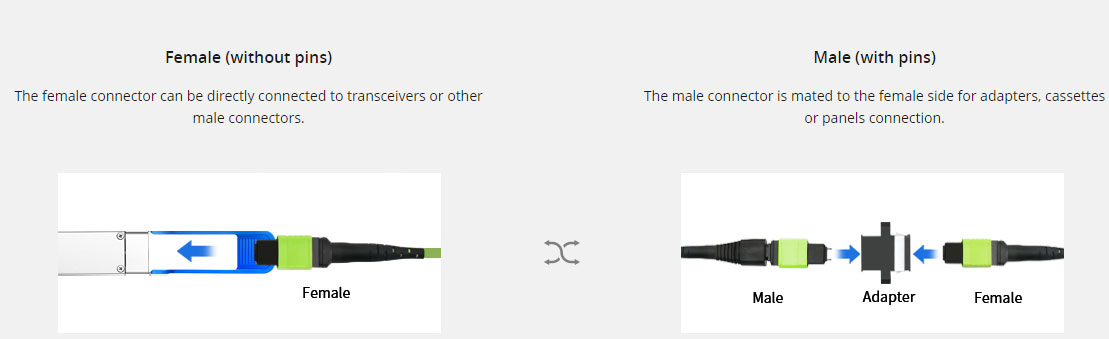

3 Custom MPO Connectors

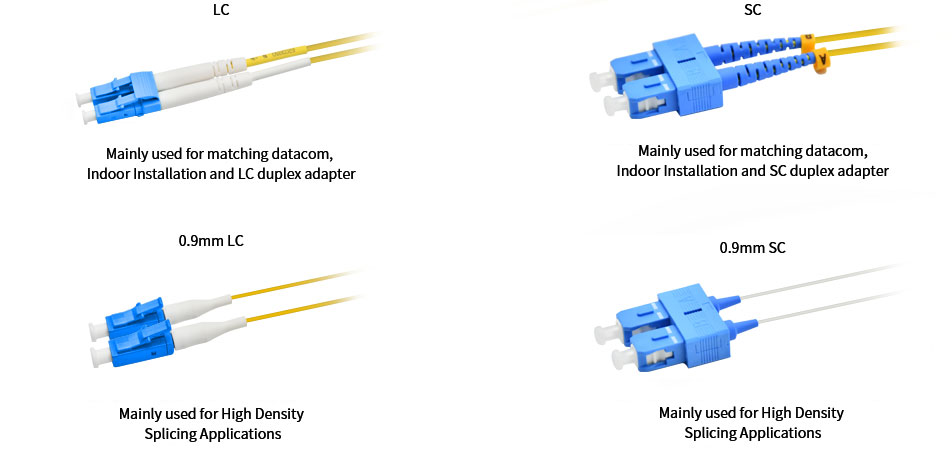

4Custom Standard Connectors


Parameter of MPO Fiber Cable to LC Fiber Optic Patch Cord 8 12 cores OM3 with 2.0mm Pigtail

Model

SM

MM

Connector A: MPO/MTP

Connector Fiber Count

8, 12, 24, 48 Core

Polish

PC, APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB, APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B: LC, LC Uniboot, SC, FC, ST

Polish

PC, APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB, APC≥60dB

≥35dB

Durability (500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

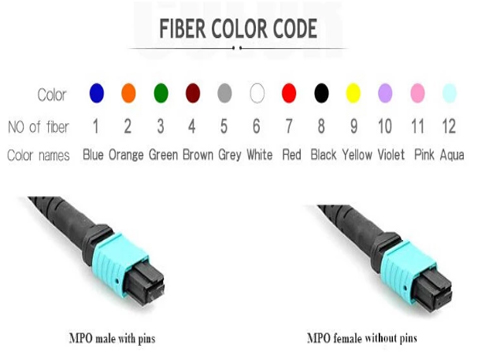

Fiber Color Code

Fiber Color Code

FAQ

Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Download

Reviews

Cikey
Jul 25, 2022

Wonderful cables.

I have received the order, and your shipping time is out of expected. And the FTTH drop cable are functioning just as expected. we have always been satisfied with our equipment from you.

Verified Purchase
Helpful 0
