GYFTY53 cable is double sheathed glass yarn fiber cable. The function of using glass yarn is to prevent rodent. The layer stranded loose tubes with water blocking filling compound form a cable core.
Then the inner jacket and outer jacket with material of Polyethylene between glass yarn. The structure of GYFTY53 is suitable for direct buried and duct installation.
lFull cross-section water-blocking structure to ensure good water blocking and moisture resistance.
lLoose tube is filled with special ointment for key protection of fiber.
lGlass yarn to ensure the the cable has good tensile properties, and rat-bite prevention.
lNon-metallic strength member is applicable for multi-thunder area.
lProduct life is 30 years.
lCore Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
lLaying method: overhead, pipeline
lWorking temperature: -40℃~+60℃
lBend radius: Static 12.5 times the cable diameter
lDynamic 25 times optical cable diameter
No. of cable | / | 4~30 | 32~60 | 62~72 | 72~96 | |||
Design (StrengthMember+Tube&Filler) | 1+5 | 1+5 | 1+6 | 1+8 | ||||
Fiber type | / | G.657A1 | ||||||
Central Strength Member | Material | mm | FRP | |||||
Diameter (±0.05mm) | 1.5 | 1.5 | 2.1 | 2.1 | ||||
Loose Tube | Material | mm | PBT | |||||
Diameter (±0.05mm) | 1.8 | 2.1 | 2.1 | 2.1 | ||||
Thickness (±0.03mm) | 0.32 | 0.35 | 0.35 | 0.35 | ||||
MAX.NO./per | 6 | 12 | 12 | 12 | ||||
Water Blocking Layer | Material | / | Flooding Compound | |||||
Inner Sheath | Material | mm | MDPE | |||||
Thickness | 0.9（nominal） | |||||||
colour | black. | |||||||
Additional Strength Member | Material | / | Glass Yarn | |||||
Outer Sheath | Material | mm | LSZH | |||||
Thickness | 1.8（nominal） | |||||||
colour | black. | |||||||
Cable Diameter(±0.2mm) | mm | 11.0 | 11.6 | 12.2 | 13.5 | |||
Cable Wetght(±10.0kg/km) | kg/km | 102 | 115 | 130 | 150 | |||
Attenuation coefficient | 1310nm | dB/km | ≤0.35 | |||||
1550nm | ≤0.21 | |||||||
Cable breaking strength(RTS) | kn | ≥3 | ||||||
Crush Resistance | Short Term | N/100mm | ≥2200 | |||||
Long Term | ≥1100 | |||||||
Min. bending radius | Without Tension | mm | 10.0×Cable-φ | |||||
Under Maximum Tension | 20.0×Cable-φ | |||||||
Temperature range （℃） | Installation | ℃ | -20~+60 | |||||
Transport&Storage | -40~+70 | |||||||
Operation | -40~+70 | |||||||

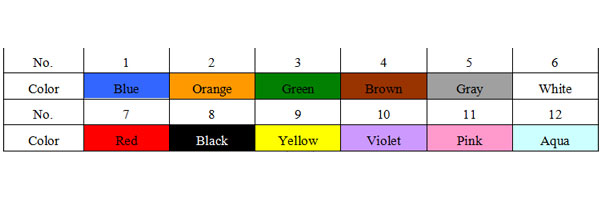

Fibre & Loose Tube Colors

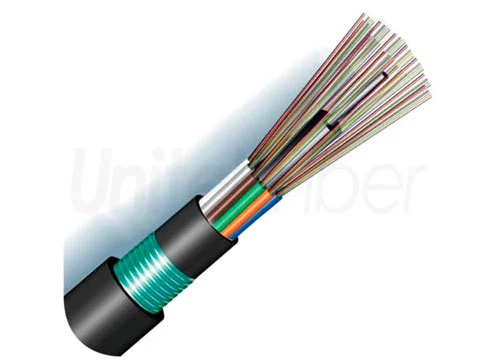

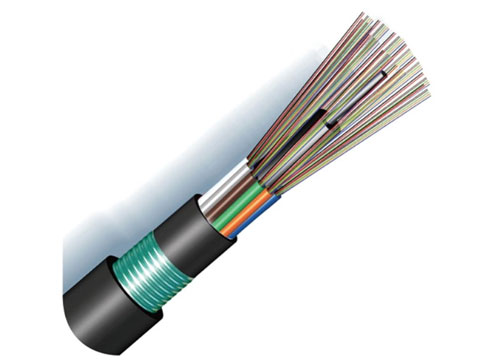

The anti-rodent armored fiber optical cable is made of stainless steel as a protective structure, which protects the optical fiber very well.
Because mice have the habit of grinding their teeth, it is very destructive, and the broken optical cable causes the network to be paralyzed.
Add chemical components to the sheath, use multi-layer sheath armored.
Yes, can be overhead and pipeline application.
The MOQ of anti-rodent fiber optic cable is 2km.
Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.
