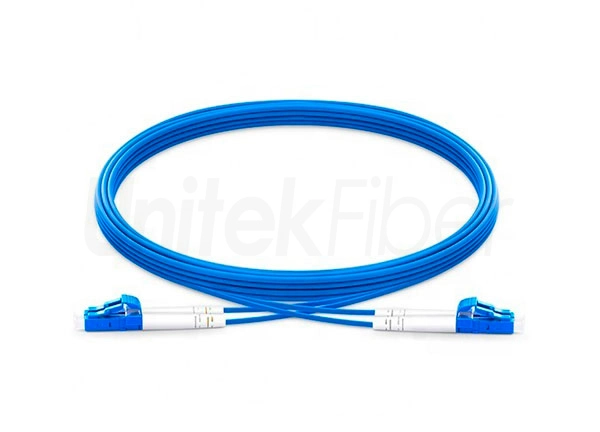

Fiber Optic Patchcord LC/UPC-LC/UPC Jumper Cables Steel Armored Duplex 1m Blue

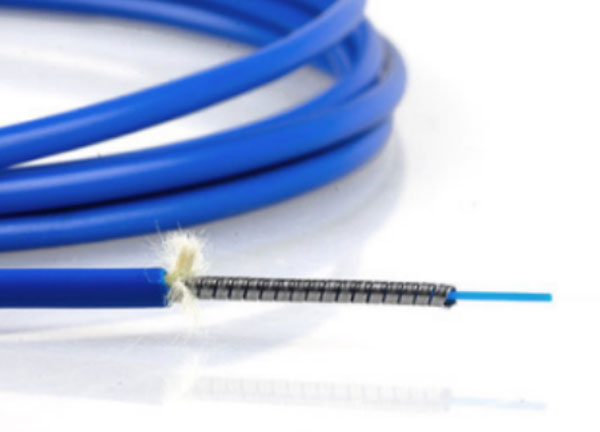

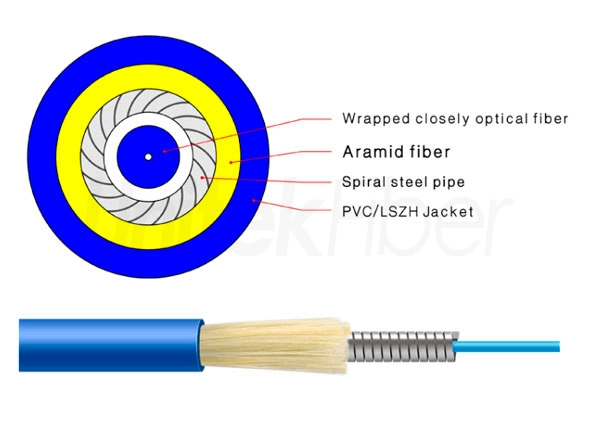

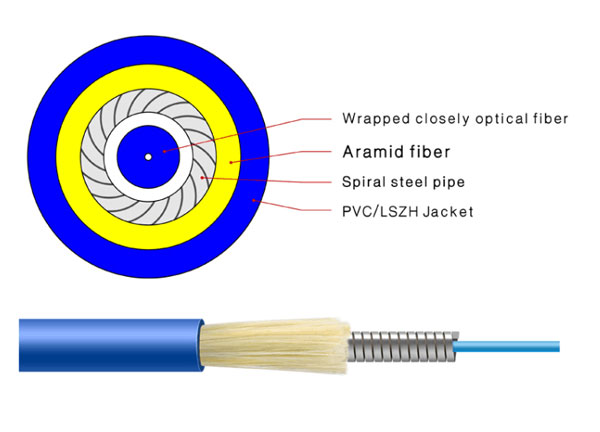

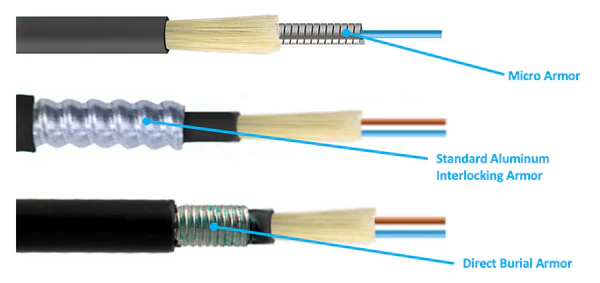

The armored optical fiber patchcord(jumper) has the advantages that the optical fiber is not easy be broken or be damaged than the traditional optical fiber jumper. It uses a tiny flexible stainless steel to protect the optical fiber.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Fiber Optic Patchcord LC/UPC-LC/UPC Jumper Cables Steel Armored Duplex 1m Blue

Characteristics


lHigh reliability;

lCE & RoHS compliant;

l100% connectors tested;

lRepeatability: >1000 times;

lDeliery 100% passed products;

lInsertion Loss(SM): Typical<0.2dB, Max<0.3dB;

lReturn Loss: UPC>50dB, APC>60dB;


Applications


lTelecommunications

lLocal Area Network (LAN)

lFiber to the home (FTTH)

lOptical patch panels

lTesting Instruments

lCATV


Packaging and Shipping


Fiber Optic Patchcord LC/UPC-LC/UPC Jumper Cables Steel Armored Duplex 1m Blue


Production


Fiber Optic Patchcord LC/UPC-LC/UPC Jumper Cables Steel Armored Duplex 1m Blue


Fiber Optic Patchcord LC/UPC-LC/UPC Jumper Cables Steel Armored Duplex 1m Blue

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
