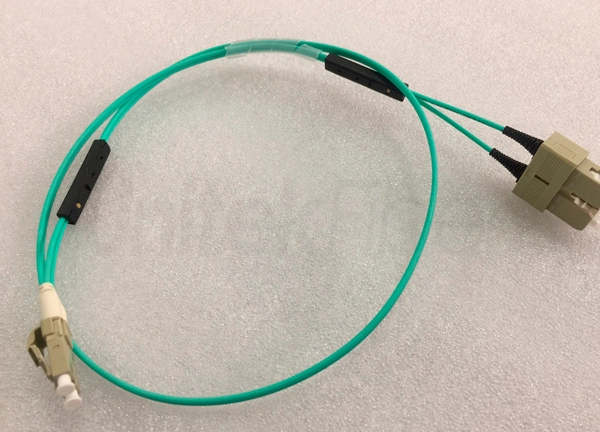

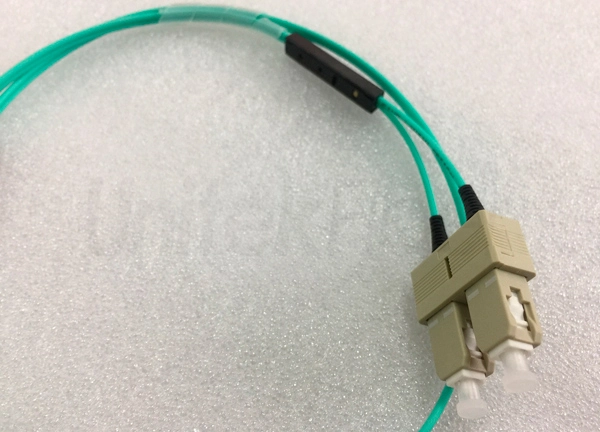

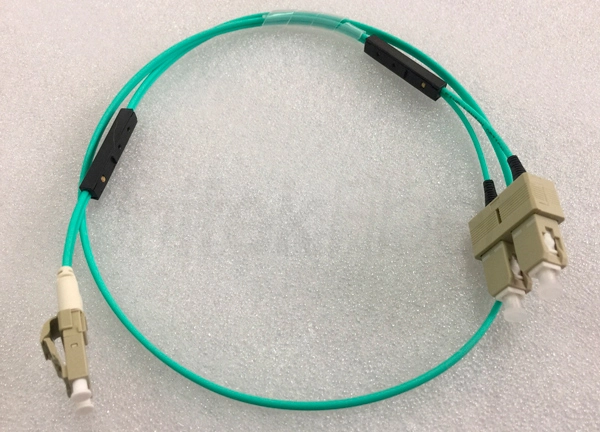

Traceable Fiber Optic Jumper Cable LC/PC-SC/PC Patchcord Duplex OM3 Aqua 1M LSZH

The design of traceable fiber optic jumper is that the LED indicators are installed at both ends of the fiber optic jumper to provide visual indication. A simple LED tool can power one end of the fiber jumper. This traceable fiber jumper can determine the far end of the jumper in the connection area, except for errors caused by incorrect labels, missing labels or confusion.



Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Traceable Fiber Optic Jumper Cable LC/PC-SC/PC Patchcord Duplex OM3 Aqua 1M LSZH

Characteristic:


The multimode OM3 fiber type can reduce the insertion loss when the fiber jumper passes through congestion. What's more, this kind of optical jumper can simplify and speed up deployment and cross-connect to eliminate errors during movement and increase fiber capacity.


Application:


The tracable fiber jumper is suitable for high-density environments with crowded optical cables, or cross-rack connection and cross-room interconnection.

Parameter of Traceable Fiber Optic Jumper Cable LC/PC-SC/PC Patchcord Duplex OM3 Aqua 1M LSZH

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
