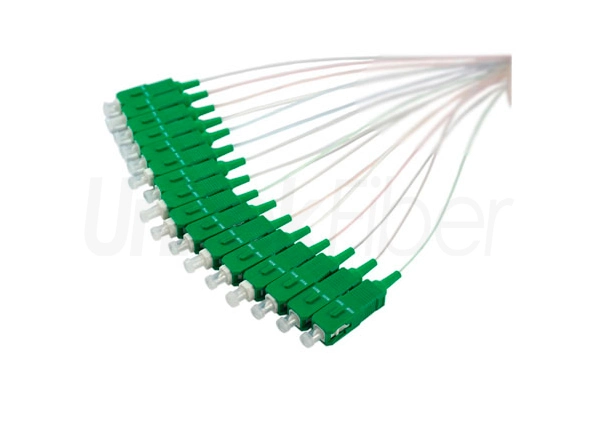

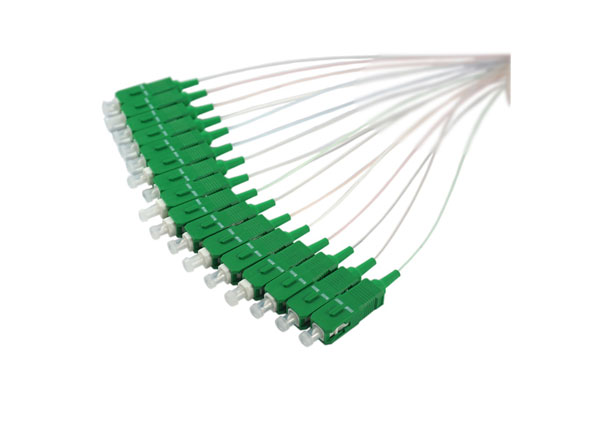

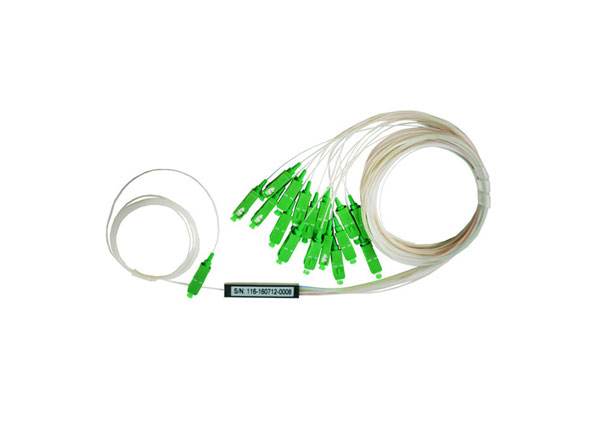

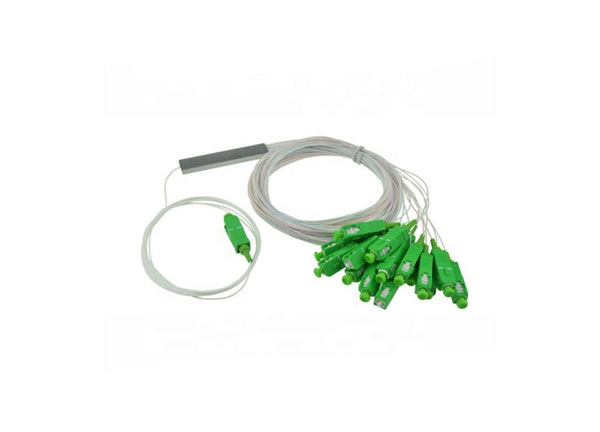

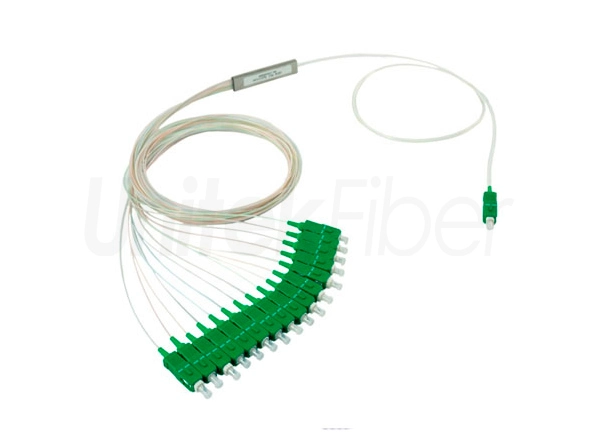

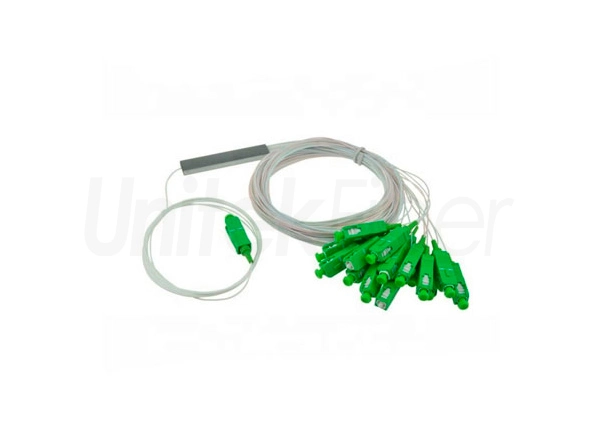

Fiber Optical PLC Splitter 1x16 0.9mm SC APC Connectors for PON Networks

UnitekFiber Provides Ribbon bare fiber PLC splitters, micro mini type splitters and ABS box type etc. Our PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Fiber Optical PLC Splitter 1x16 0.9mm SC APC Connectors for PON Networks

Features:


  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:

  • From 1260nm to 1650nm

  • Wide Operating Temperature:

  • High Reliability and Stability


Applications:


  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution


Compliance:


  • Telcordia GR-1209-CORE

  • Telcordia GR-1221-CORE


LGX Box PLC Spltter


Packaging and Shipping:


Fiber Optical PLC Splitter 1x16 0.9mm SC APC Connectors for PON Networks


Production:


Fiber Optical PLC Splitter 1x16 0.9mm SC APC Connectors for PON Networks


Fiber Optical PLC Splitter 1x16 0.9mm SC APC Connectors for PON Networks

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

60×7×4

60×7×4

60×7×4

60×12×6

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

50×4×4

50×4×4

50×4×4

60×7×4

60×7×4

N/A

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

80×12×4

80×20×6

N/A
