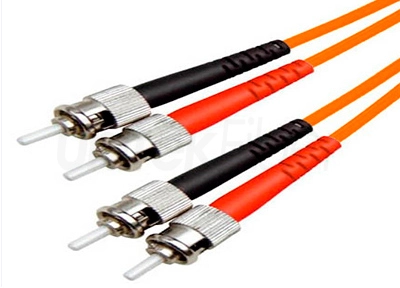

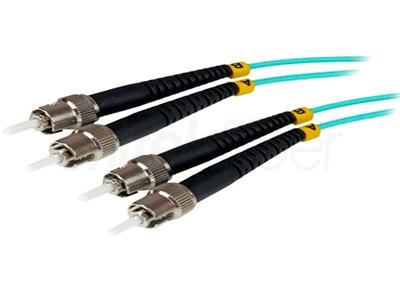

Supply Fiber Optic Connectors ST APC UPC SM Multimode OS2, OM1, OM2, OM3 OM4

UnitekFiber provides many types of Single Mode and Multimode fiber optical connectors. Such as SC, LC, FC, ST, MU and MTRJ etc.All our fiber optical connectors are functionally tested befroe shipping.

Fiber Optic
Details
Parameter

Details of Supply Fiber Optic Connectors ST APC UPC SM Multimode OS2, OM1, OM2, OM3 OM4

Features:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule


Applications:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks


Packaging & Shipping


Supply Fiber Optic Connectors ST APC UPC SM Multimode OS2, OM1, OM2, OM3 OM4


Production


Supply Fiber Optic Connectors ST APC UPC SM Multimode OS2, OM1, OM2, OM3 OM4


Parameter of Supply Fiber Optic Connectors ST APC UPC SM Multimode OS2, OM1, OM2, OM3 OM4


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85
