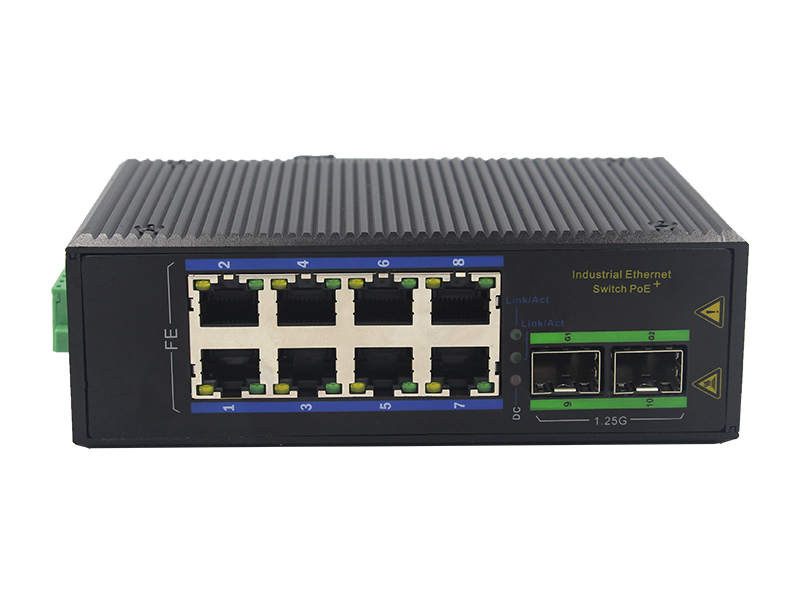

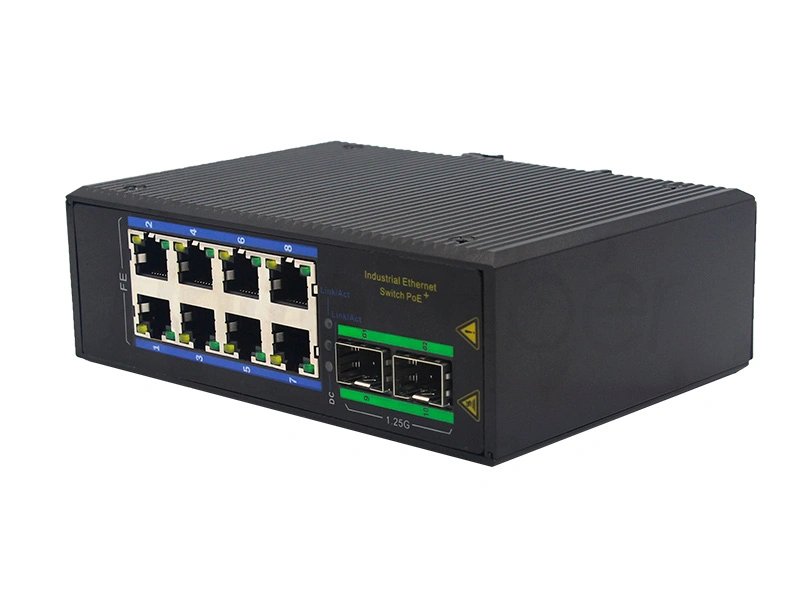

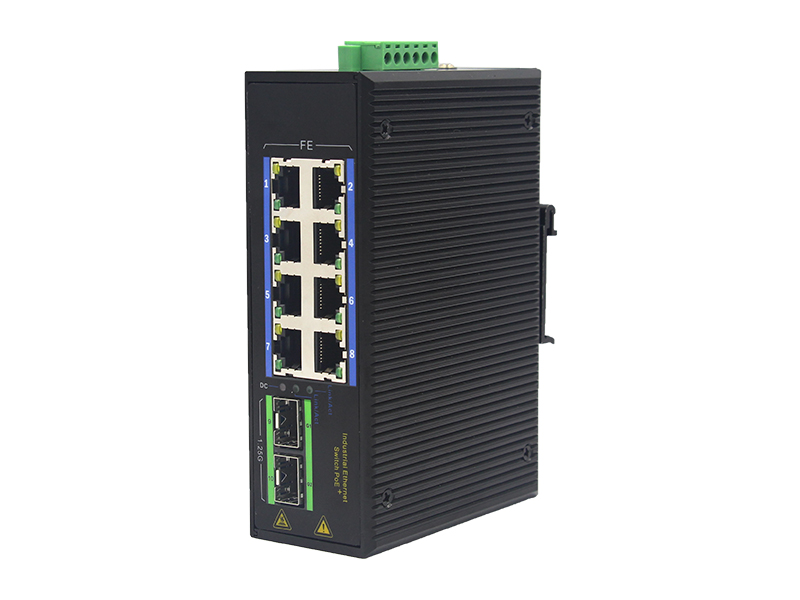

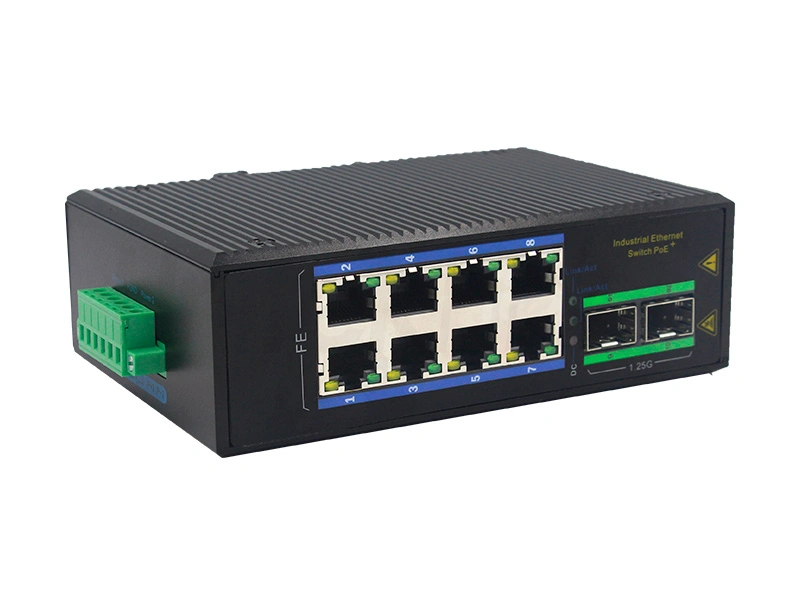

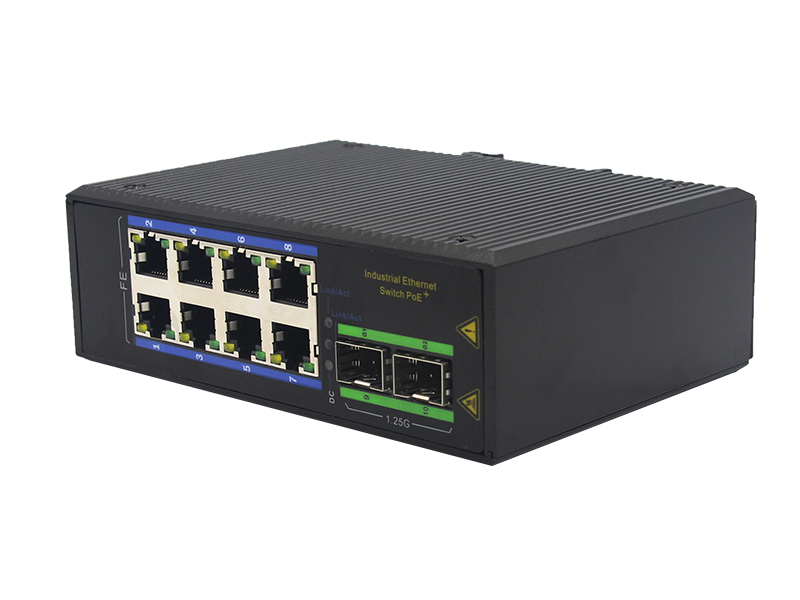

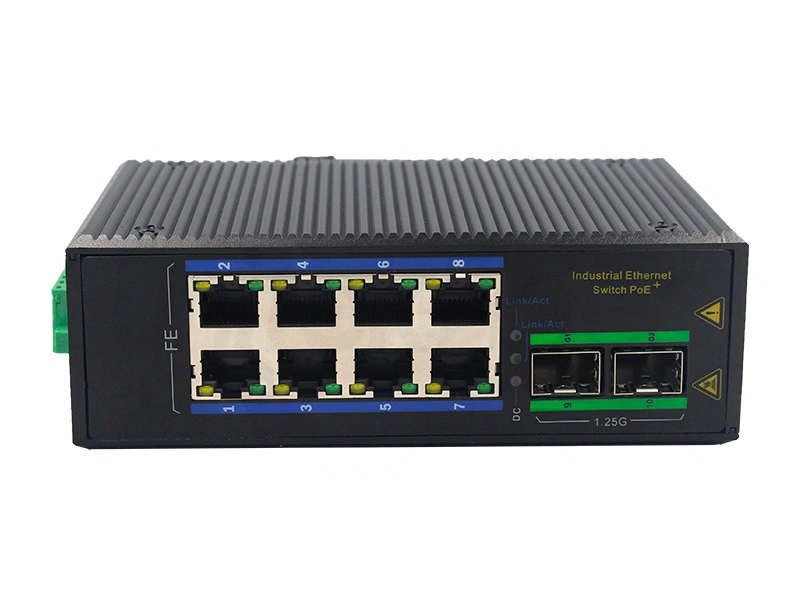

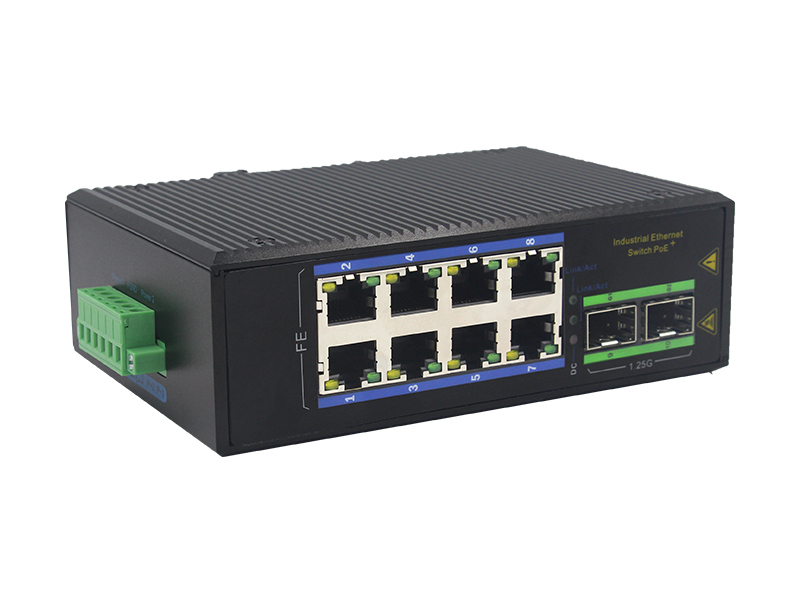

Unmanaged 100M 8 Electrical Ports 0/100/1000M 2 SFP Ports Industrial Ethernet PoE Switch Manufactures

The industrial Ethernet switch with 2 Gigabit optical ports + 8 100M electrical ports is equipped with 2 Gigabit Ethernet ports (SFP) to facilitate the construction of a Gigabit redundant ring network. This Ethernet switch supports redundant ring network (self-healing time <20ms) and RSTP protocol, enhances the reliability and practicality of the network system. Its reliable hardware design is especially suitable for industrial communication applications that require continuous operation.

















Fiber Optic
Details
Parameter

Details of Unmanaged 100M 8 Electrical Ports 0/100/1000M 2 SFP Ports Industrial Ethernet PoE Switch

Features


  • 2 Gigabit optical PoE ports, and 8 100Mbps electrical ports, built-in power

  • IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant

  • Support PoE IP cameras, PoE WIFI AP, and PoE IP phones

  • Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure

  • Up to 30W per port (total power budget: 120W) for powering PoE-enabled devices

  • All ports support wire speed switching, jumbo frame transmission

  • Support upstream ports lightning protection

  • Dynamic power control to ensure stable output power (Enhanced)

  • Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)

  • Power-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)

  • Reliable short-circuit protection to ensure safety (Enhanced)

  • Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)

Packaging and Shipping


packaging shipping


Production


production


Parameter of Unmanaged 100M 8 Electrical Ports 0/100/1000M 2 SFP Ports Industrial Ethernet PoE Switc

Product Description

100M 8xRJ45 ports, 1000M 2xSFP port industrial-grade Ethernet POE switch

Interface

8xRJ45 ports, 2 fiber optic port

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;IEEE802.3af;

IEEE802.3at;

POE Standards

Standard PoE: IEEE802.3af/ IEEE802.3at


PoE interface:1 port suport PoE


Output power:

Maximum power15.4W (IEEE 802.3af)

Maximum power30W (IEEE 802.3at)

POE port automatic identify af/at


Output voltage: DC48~57V


Power supply mode: 1/2+;3/6-

RJ45 Interface

10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Fiber Interface

1000BaseFX port (SC/FC/ST /SFP optional)

Switch properties

Application level: Layer 2

Total backplane bandwidth: 15.2Gbps

Whole machine packet forwarding rate: 11.3088Mpps

MAC address table: 1K

Packet buffer: 512K

Exchange delay:<3µs

Exchange method: store-forward

Power consumption:<3W

Protection Level

IP40

LED indicator

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Power Supply

Input voltage: 48~57V (dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power supply redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Working Environment

Working temperature: -40~85℃ ;

Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industrial Standard

MI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV

IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV

IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz)

IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Shell: metal material

Installation: DIN rail type, wall-mounted installation

Weight: 0.36Kg

Size:118 x 86 x 39mm(length×width×height)

MTBF

300,000 hours

Warranty

5 years
