400G Optical Transceiver

Fiber Optic

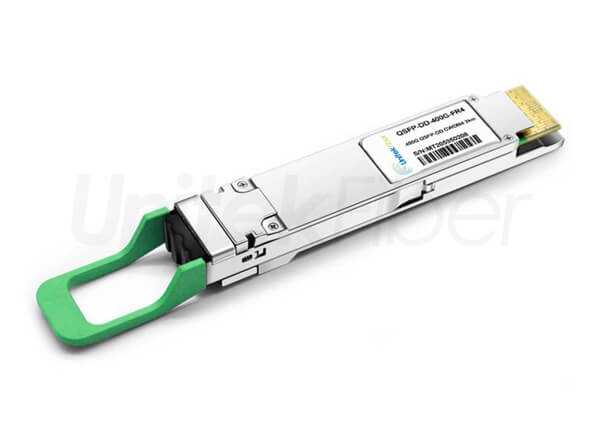

400G QSFP-DD Optical Transceiver

A 400G QSFP-DD optical transceiver is a high-speed optical transceiver module designed to facilitate ultra-fast data transmission in network communications. QSFP-DD optical transceiver operates at a data rate of 400 Gigabits per second (Gbps) and is widely used in applications that demand high bandwidth, such as data centers, cloud computing, and telecommunications infrastructure.

The 400G QSFP-DD optical transceiver utilizes advanced optical modulation techniques, such as Pulse Amplitude Modulation 4 (PAM4), to achieve higher data rates over optical fibers. QSFP-DD optical transceiver typically employs multiple lanes or channels to transmit data simultaneously, each operating at 100Gbps or higher. These channels can be aggregated or multiplexed to achieve the overall data rate of 400Gbps.

The deployment of 400G QSFP-DD optical transceiver allows for increased network capacity, improved data transfer speeds, and enhanced efficiency in handling large volumes of data. QSFP-DD optical transceiver supports the growing demands of bandwidth-intensive applications, such as high-definition video streaming, virtualization and artificial intelligence.

Types of 400G Optical Transceiver

Different Form-Factors of 400G Optical Transceivers

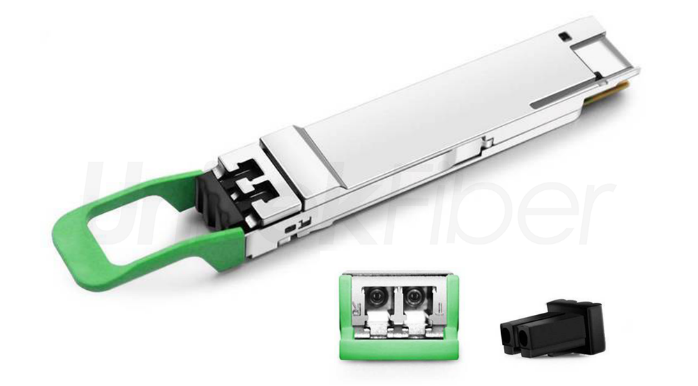

QSFP-DD (Quad Small Form Factor Pluggable Double Density): QSFP-DD optical transceiver is a compact and high-density form factor that supports 8 lanes of 50 Gbps each, resulting in a total data rate of 400 Gbps.


400G Optical Trancseiver

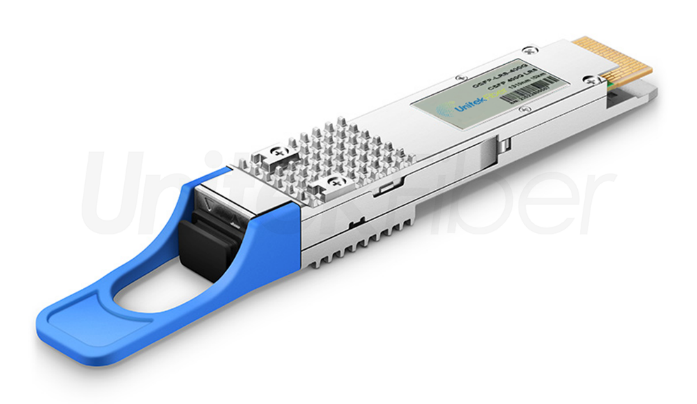

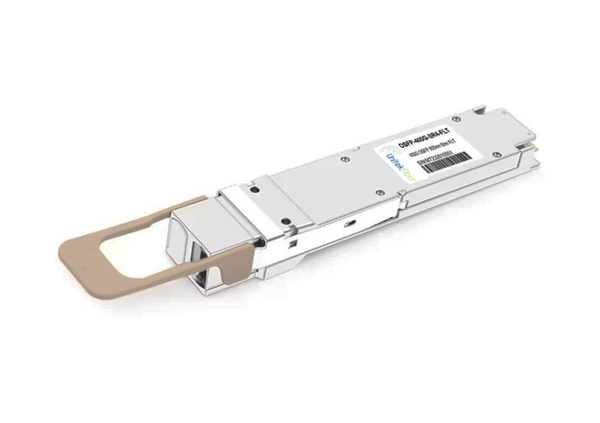

OSFP (Octal Small Form Factor Pluggable): OSFP optical transceiver supports 8 lanes of 50 Gbps each, providing a total data rate of 400 Gbps. OSFP optical transceiver supports are slightly larger than QSFP-DD optical transceiver but offer better thermal performance.


400G Optical Trancseiver

CFP8 (C Form-factor Pluggable): CFP8 optical transceiver supports 16 lanes of 25 Gbps each, resulting in a total data rate of 400 Gbps. CFP8 optical transceiver are backward compatible with existing CFP and CFP2 interfaces, making them suitable for upgrading older network equipment to higher speeds. However, due to their larger size, CFP8 optical transceiver are not as widely adopted as QSFP-DD and OSFP optical transceiver.


400-optical trancseiver

UnitekFiber is a professional manufacturer of optical transceivers, can offers a comprehensive range of optical transceivers, including 400G, 200G, 100G, 40G, 25G, 10G, and 1.25G optical transceivers. These optical transceivers are designed to meet the needs of various networking applications, from data centers to telecommunications networks. Please contact us via Email at sales@unitekfiber.com if you have any inquiry.
