OSP All-dielectric Cables|GYFTY Fiber Optical Cable 6 Cores G652D SM Stranded Loose Tube

UnitekFiber manufacturing OSP fiber cables GYFTY. The cable is made of non metallic materials.It is suitable for pipeline and overhead laying, mainly used in places with strong electromagnetic hazard.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of OSP All-dielectric Cables|GYFTY Fiber Optical Cable 6 cores G652D SM Stranded Loose T

Optical Cable for Sale

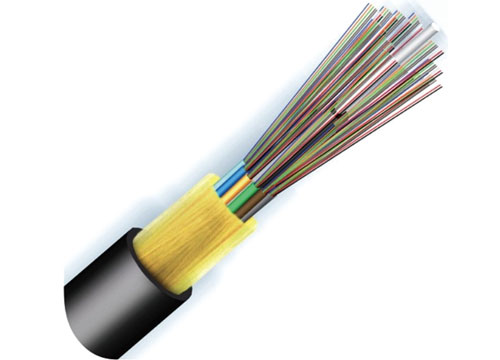

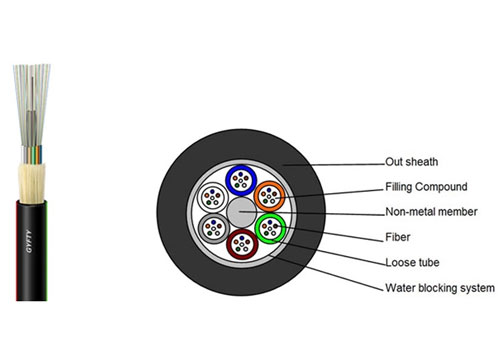

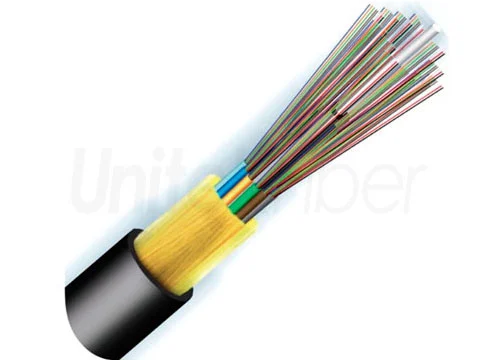

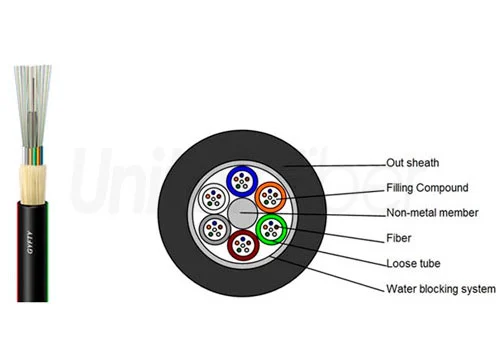

GYFTY fiber optic cable is a stranded non-metallic structure. Optical fibers are protected in loose tubes filled with Gel jelly. FRP locates in the center of cores as a non-metallic strength member. These loose tubes are stranded around a central strength member. The optical fiber cable core is waterproof with water-blocking material, GYFTY fiber optic cable is completed with a PE sheath for mechanical protection.


Optical Cable Price


The Fiber Cores of GYFTY Fiber Cable is from 2 cores to 288 cores

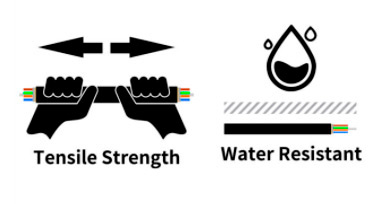

Features of GYFTY Fiber optic Cable

Fiber Optic Wire Cable


GYFTY fiber optic cable is used precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the cable optic fiber. GYFTY fiber optical cable has excellent flexibility and bending resistance. Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance. Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation.PE sheath has good resistance to solar radiation.


Applications of GYFTY Fiber-optic Cable


Fiber Optic Wire for Sale


GYFTY Fiber Optic Cable Aerial and Duct is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct installation applications.


Professional Assistant For GYFTY Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of OSP All-dielectric Cables|GYFTY Fiber Optical Cable 6 cores G652D SM Stranded Loose Tub

No. of cable

12

24

Fiber Model

G.652D

Design(StrengthMember+Tube&Filler)

1+5

Central Strength Member

Material

FRP

Diameter(±0.05)mm

1.5

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

6

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

Water Blocking layer(1)(Material)

Flooding Compound

Water Blocking layer(2)(Material)

Water blocking tape

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter

9.1

Cable Wetght


Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

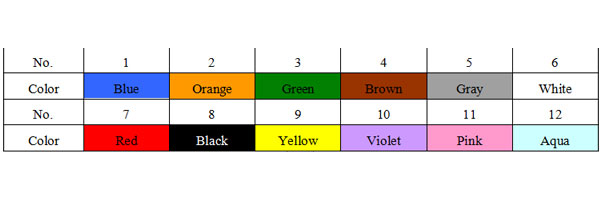

Fibre & Loose Tube Colors

OSP All-dielectric Stranded Loose Tube Fiber Optical Cable GYFTY


What is an OSP fiber optic cable?

It's outside plant (OSP) fiber optic cables.

What type of fiber cable is mostly used in OSP installations?

Such as GYTA53 fiber optic cable, GYFTY53 fiber optic cable, GYTS fiber optic cable, GYTA33 fiber optic cables, GYFTY fiber optic cables, etc.

Where OSP fiber optic cable should be used?

Conduit in Concrete Slab or grade below concrete slab, and Exterior Camera Installation.

How long about the product quality guarantee period?

25 years guarantee for fiber optic cable.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.

What's your payment terms?

Visa, MasterCard, T/T, PAYPAL, Western Union, etc. 30% Payment in advance and 70% balance before shipment.
