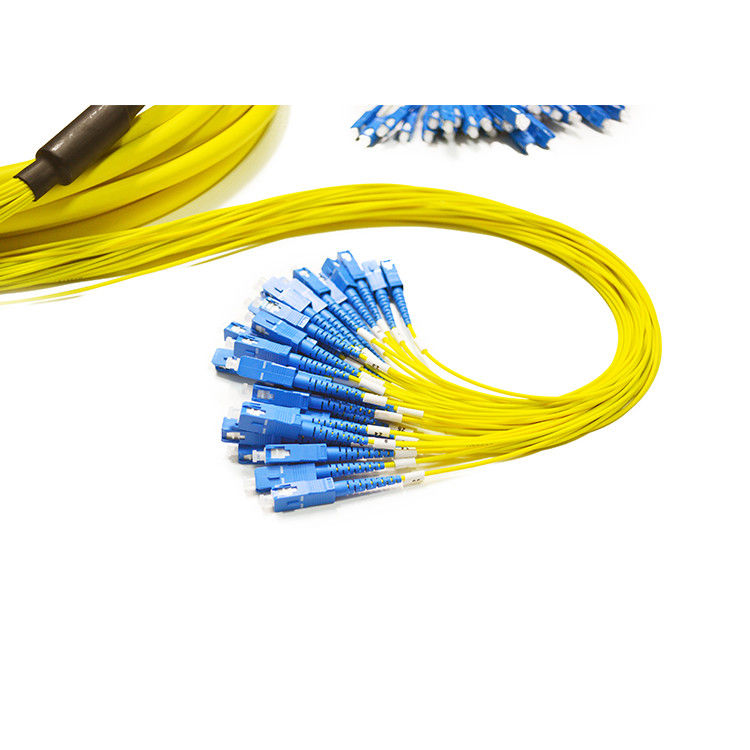

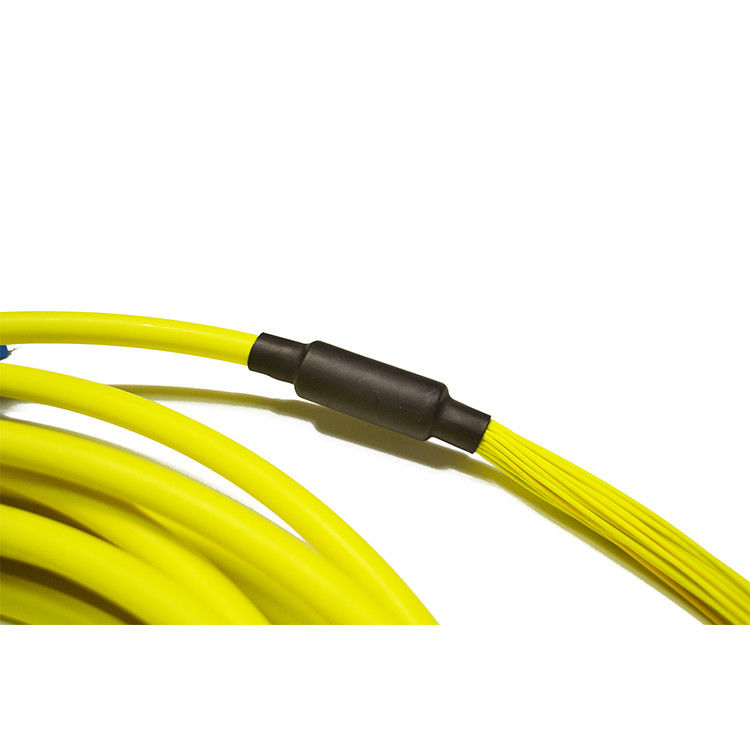

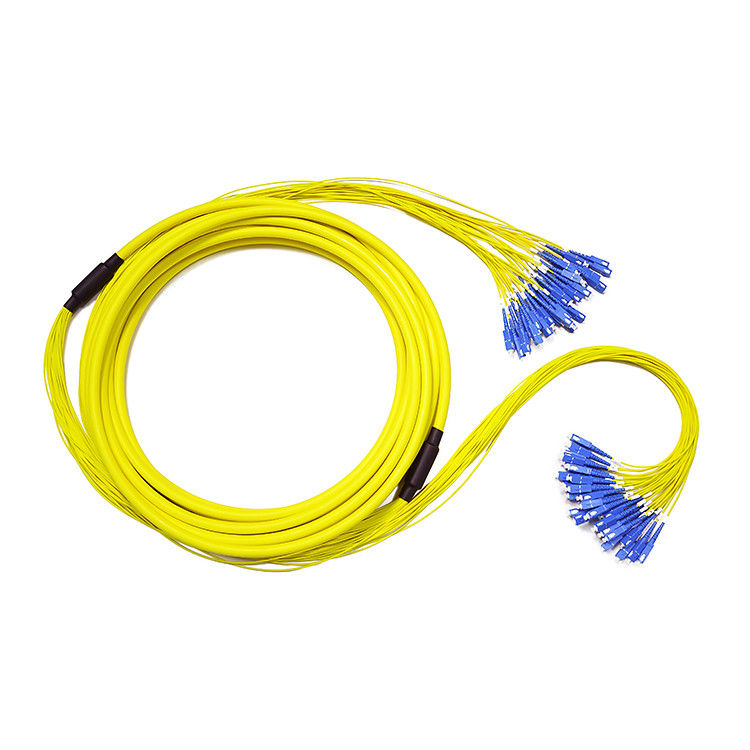

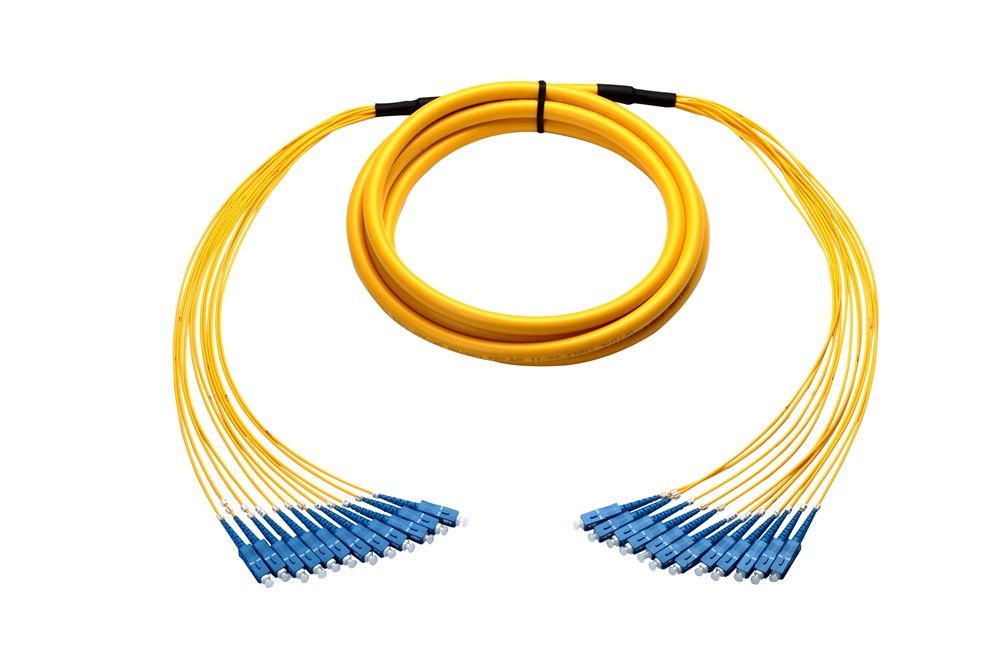

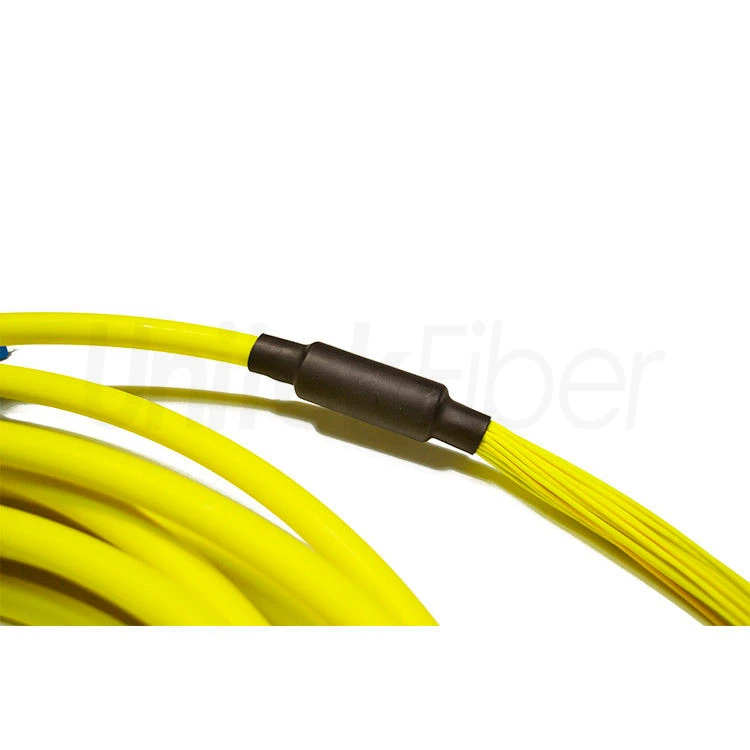

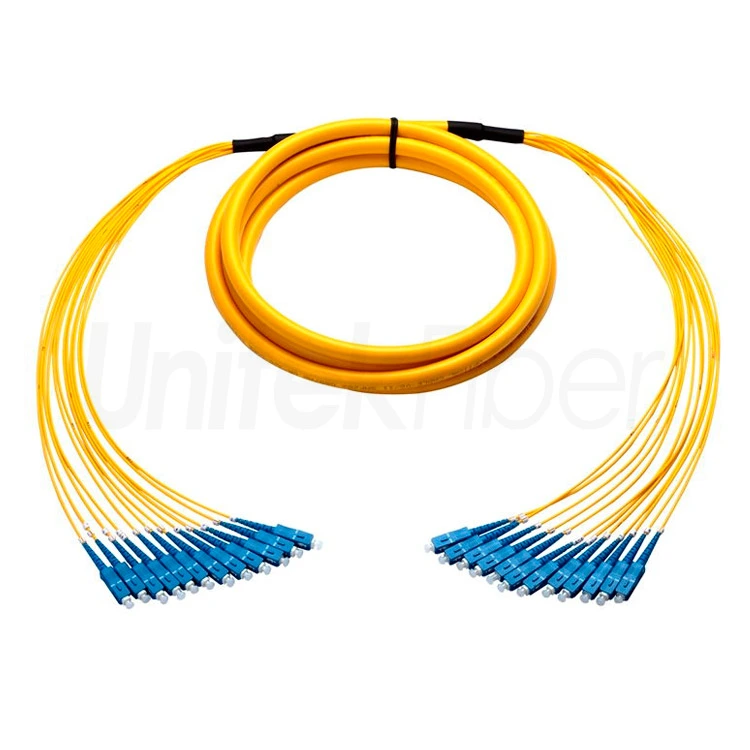

SC fiber patch cord is using G657A1/G657A2 bend insensitive fiber core, and PVC-OFNR outer jacket. And added aramid yarns as strength reinforced elements. All breakout patch cord will 100% tested in factory. As a multi-fiber connector, bulk fiber optic jumpers can be 4 to 144cores. Breakout SC-SC fiber patch cord are designed for patch panels or cable ducts where space-saving is required. For fiber patch cables that run from patch panels to equipment or patch panels to patch panels, the fan-out fiber patch cables or distribution optical patch cord can save space for cable ducts.
Fiber Cable Patch Cord by Unitekfiber are contained with a 0.88mm thick buffer with a 4.5mm diameter complete with Kevlar for additional protection. The length of breakout fiber part is 50cm. Pre-terminated multi-fiber optic fibers consist of optical cable terminated with various types of connectors, such as the ST, FC, SC, LC, MU, MTRJ, E2000 connector types. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1, OM2/OM3/OM4, and OS2 fiber specifications. Fiber Optic Jumper come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.
LC Fiber Patch Cord Fanout drawing
SC Fiber Patch Cord Fanout drawing
ST Fiber Patch Cord Fanout drawing
FC Fiber Patch Cord Fanout drawing

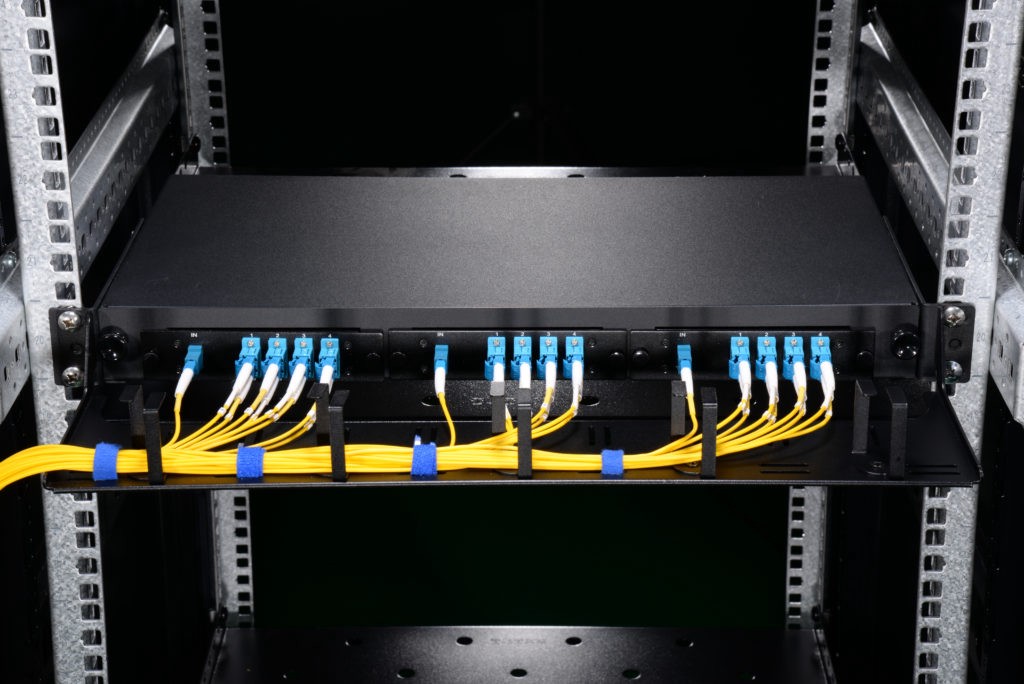

Indoor distribution fiber patch lead are primarily used to cross-connect optic fibers patch panels or distribution center panels. Our premium indoor distribution fiber optical patch cord are assembled with superior quality fiber patch cord and premium LC and SC connectors for high speed, low loss fiber network transmission.
.jpg "SC_to_SC_Breakout_Fiber_Optical_Patch_Cord_32_48Cores_Corning_G657A1_OFNR_Bulk_Fiber_Optic_Cables_(4).jpg")
Of course, we can offer duplex connectors for 2.0mm diameter breakouts. For 0.9mm diameter breakouts, duplex connectors are not available.

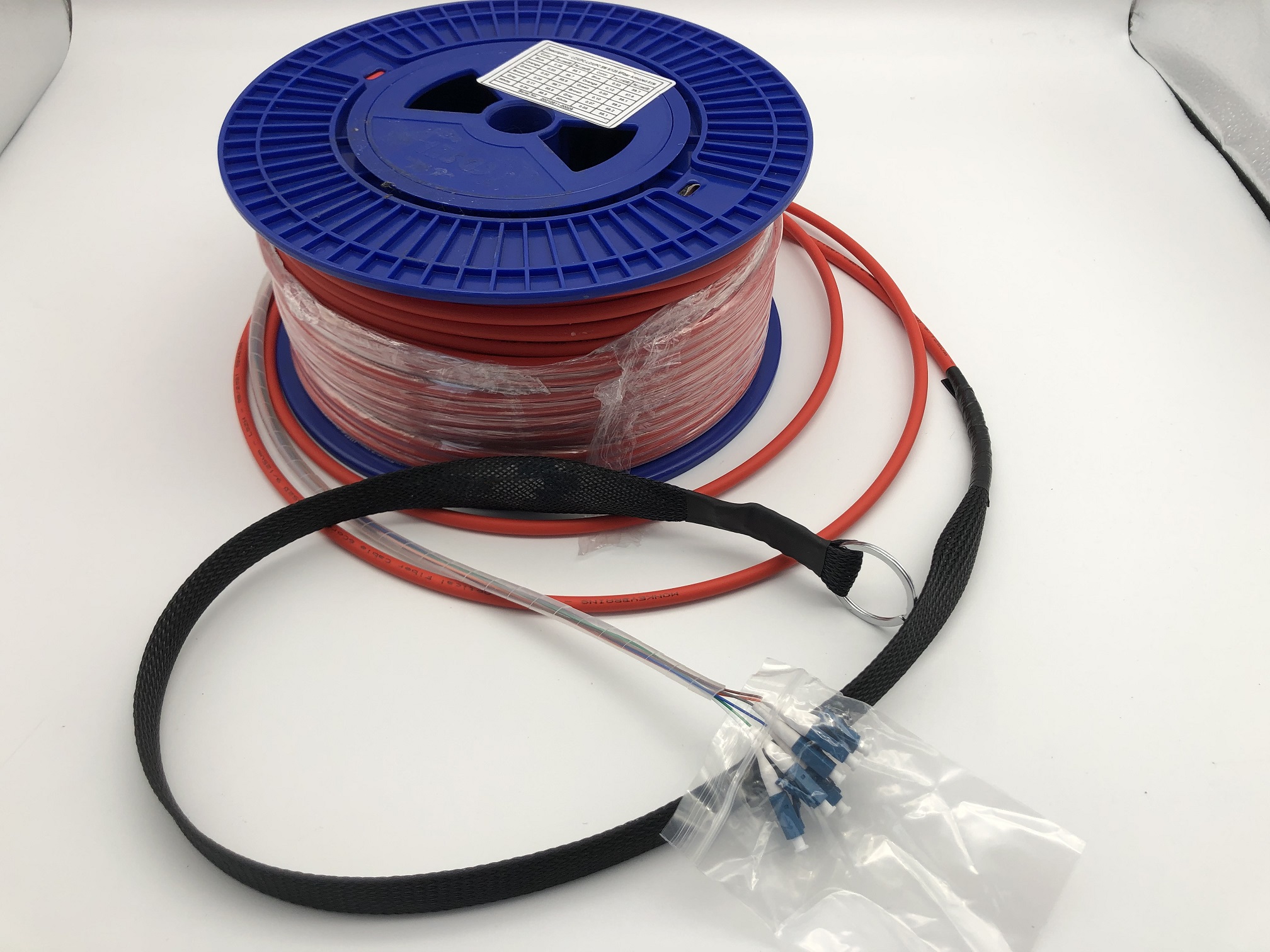

You can also note for adding a spool before ordering. Please kindly contact our sale team at sales@unitekfiber.com for more details.
Hi Dear, Thanks for your question. The branch length of 0.5m is included in the total length.
Yes, this optical cable supports single-mode and multi-mode connections, providing flexible options for a variety of different devices and application scenarios.
You can definitely get the color you want, but the structure of the 4.8mm fiber optic cable please kindly send the request list and cable structure drawing to our sales teams at sales@unitekfiber.com
Using the breakout fiber patch cord in fiber optic patch panel - this is fantastic patch cable. Flexible doesn't hold shape. Very nice to crimp as well.
Items shipped as describe, very good quality and very fast delivery period.
My account manager was always communicating at every stage of the purchase process. I will certainly purchase again and recommend this product to anyone.
Many details of the solution were worked out with their technical team and the response was very timely.
Compared online and found this to be the best bang for the buck. Installed these in my fiber channel switches and things are running as smooth as they possibly can.
