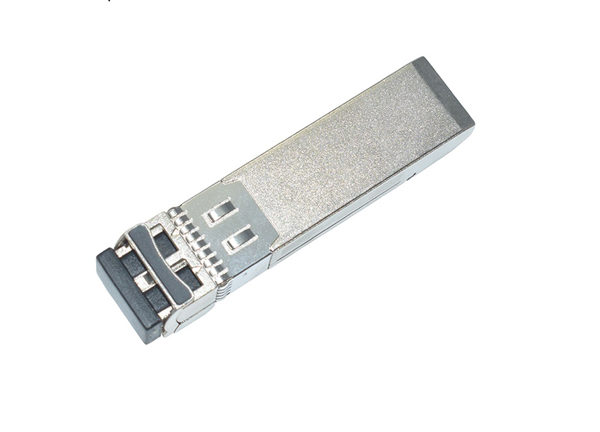

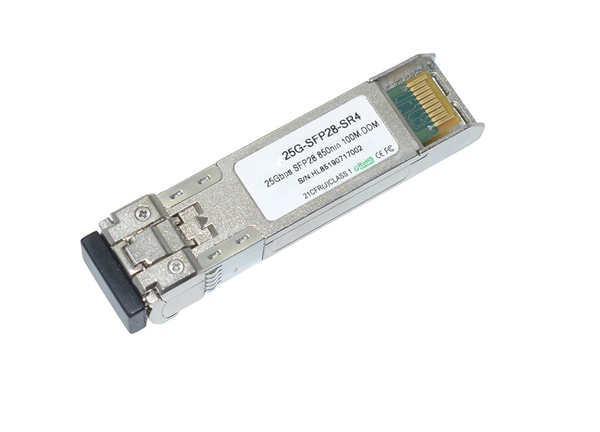

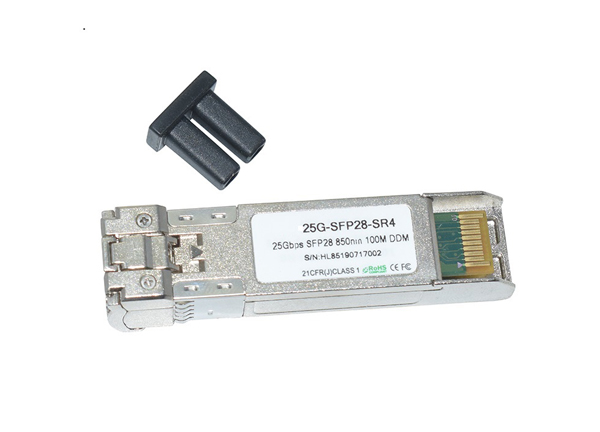

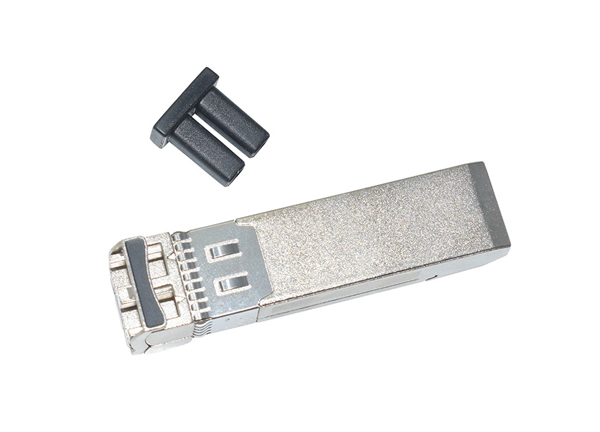

High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports

SFP28 25G optical module supports the DOM (Digital Optical Monitoring) function, which can help network management to monitor all aspects of the optical transceiver in real time. The multimode SFP28 25 optic modules is widely used, mainly for 25G Short-distance data transmission in Ethernet switches, routers, network interfaces (NIC) and storage network equipment.


Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports

High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports


The Cisco SFP-25G-LR-S Compatible SFP28-SM-25G-31-10K is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. SFP transceiver is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 10km using OS2 fiber. This optical module is designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm.


Network Connectivity


Direct connection with 25GBASE SFP28 LR Transceivers


High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports

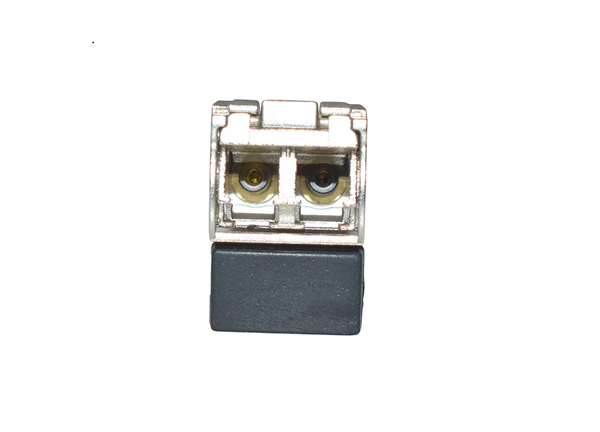

The optical interface uses a duplex LC connector. SFP28 optical modules provide reliable long life, high performance and consistent service. 25G optical modules will become the mainstream solution for 5G fronthaul.


Product Highlights


25G Connectivity for Data Center

DWDM SFP28 optical modules are designed for carrier and large enterprise networks that require scalable, flexible and cost-effective systems.


High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports


Tested in Host Devices for Proven Interoperability

Meet the needs of 5G fronthaul services, with a maximum transmission distance of up to 10 kilometers, suitable for 25G Ethernet and CPRI/eCPRI 5G fronthaul networks.


High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports


DWDM SFP28 transceiver modules are widely used in telecommunications, cable TV and data centers with large data traffic. With the rapid growth of network traffic, data centers are constantly upgraded and iterated, bringing huge opportunities to the optical module industry. As the core component of long-distance and large-capacity optical networks, fiber optic transceivers are developing towards small size, high speed, and low power consumption in order to meet the market development trend.


High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports

High Reliability SFP28 25G Optical Transceiver Module Multimode 850nm 100m Dual LC Ports

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UF-SFP28-25G-SR

SFP28

25G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UF-SFP28-25G-LR

SFP28

25G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-ER

SFP28

25G

1310nm

EML/PIN

40km

SMF

Duplex LC

0℃~70℃

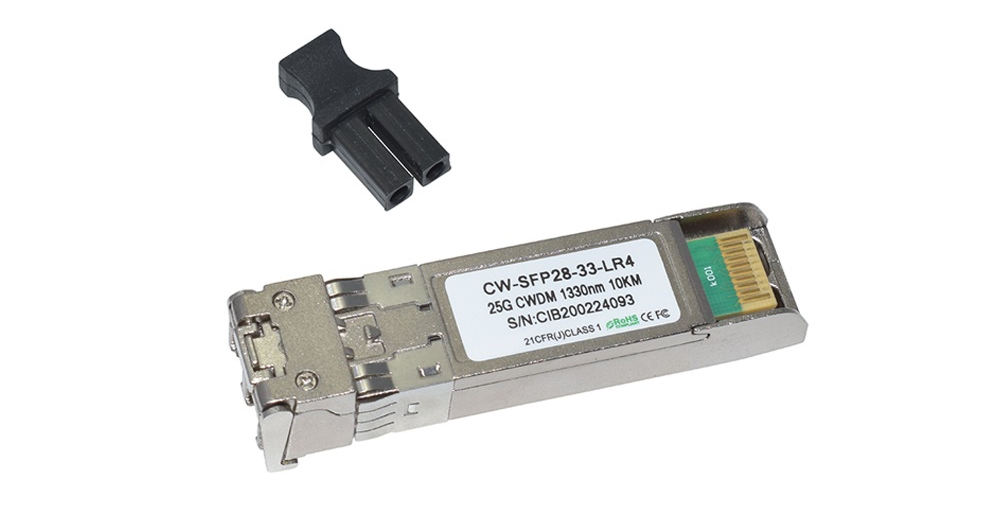

UF-SFP28-25G-CWDM-LR

SFP28

25G

1271nm/1291nm/1311nm /1331nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-CWDM-ER

SFP28

25G

1271NM/1291NM/1311NM

/1331NM/1351NM/ 1371NM

DML/PIN

40km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-DWDM-LR/ER

SFP28

25G

C21-C60-40

DML/PIN

10KM/40KM

SMF

Duplex LC

0℃~70℃

UF-FP28-BIDI-25G-LR

SFP28

25G

1270/1330nm

DML/PIN

10KM

SMF

LC

0℃~70℃


What are the types of 25G optical modules?

25G optical modules are roughly divided into three types, 25G dual-fiber modules, 25G WDM modules, and 25G BIDI modules.

Is there any damage to the module if it is used for transmission over a short distance of 10m for an 25G optical module of 10km? Do I need to use attenuator?

We need to ensure that the receiving power of the module is not more than the receiver overload power to avoid the module being broken. So to get the 25G LR to work at 10m, you need to add about 3dB attenuation.

Are any of these modules compatible with Huawei Equipment?

Yes, Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

How much power does this 25G SFP transceiver draw?

The power consumption of this module <1w.

Can SFP28 ports be interconnected with QSFP28 ports?

100G SR4 multi-mode optical modules can be used for interconnection. Under the premise of equipment support, 100G QSFP28 ports can be configured as 4*25G mode, and then MPO-LC fiber jumpers are used to connect 100G SR4 optical modules and 25G SFP28 optical modules.

What is the maximum transmission distance of the 25G SFP28 optical module?

At present, 25G SFP28 optical modules can transmit up to 40 kilometers. There are 25G SFP28 ER, 25G SFP28 bidi, 25G SFP28 CWDM, and 25G SFP28 DWDM.
