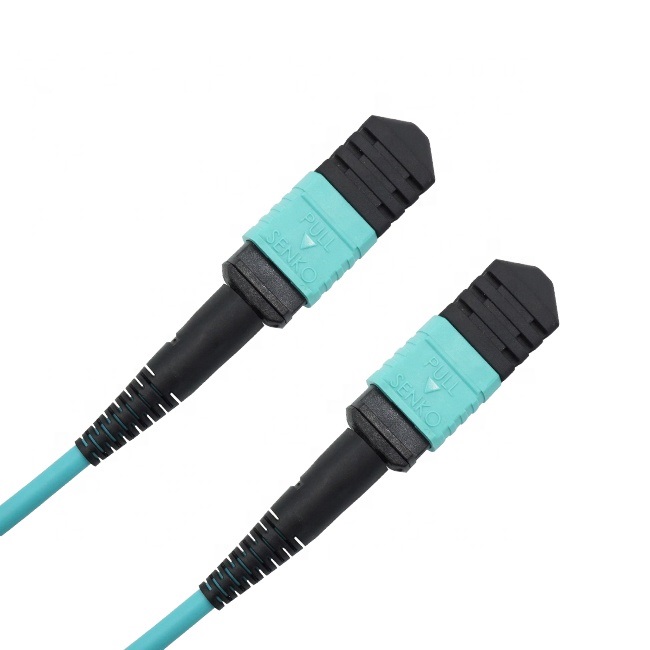

Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers Type C

C Type MPO/MTP fiber optical is that the adjacent pairs of fiber core positions are crossed . The fiber core 1 at one end is at the other end position 2, and the fiber core 2 at one end is at the other end position of 1. Tthe one end positioning key is upward, and the other end positioning key is downward.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

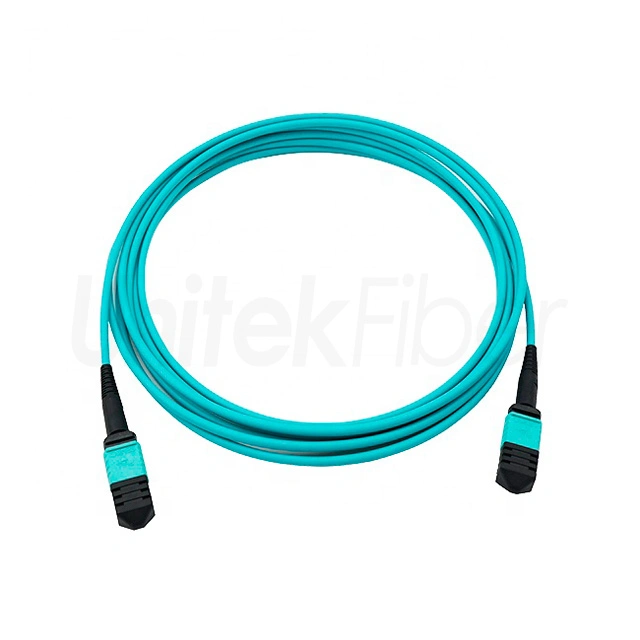

Details of Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers Type C

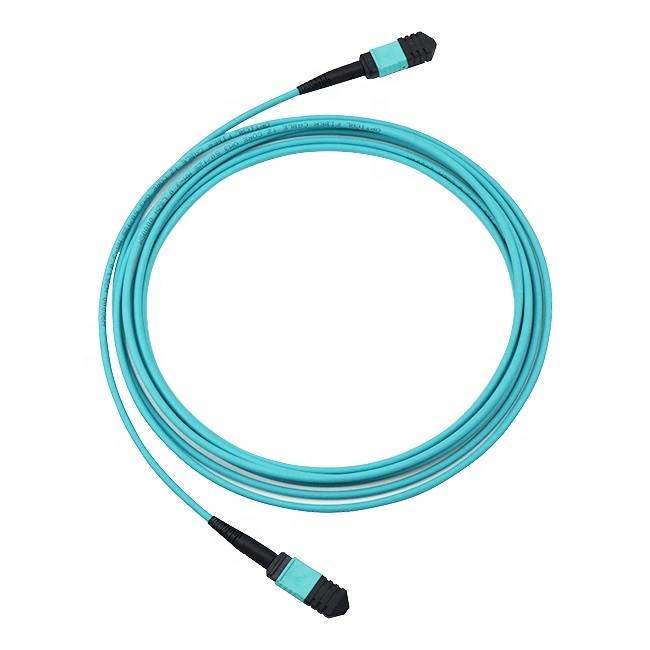

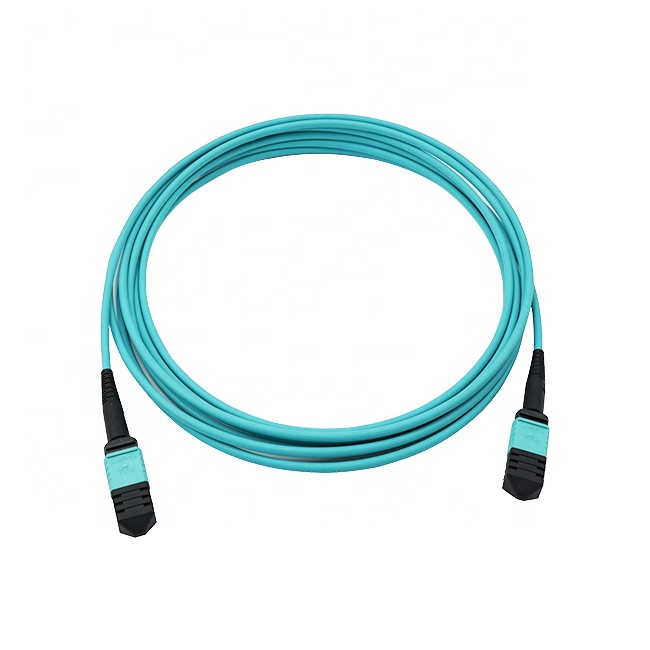

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MPO connectors and Corning fiber, Multi Mode MPO/MTP cable is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.


Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers Type C



Network Connectivity

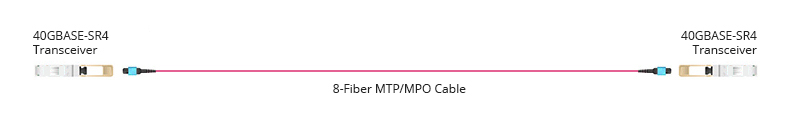

Base-8 MTP/MPO Cabling for 40G-40G Connection




Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers Type C



The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-SR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.

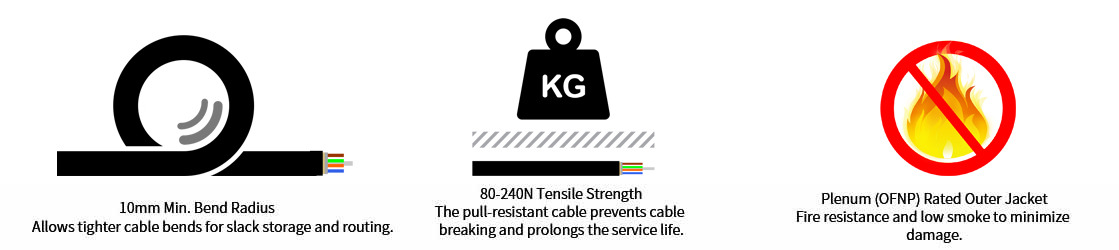

Product Highlights

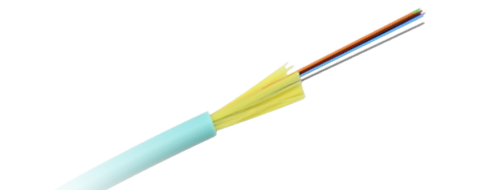

Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling







Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers Type C

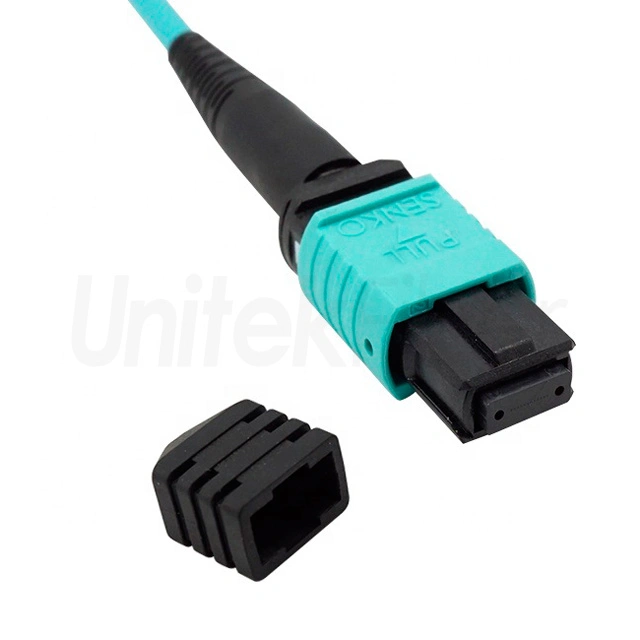

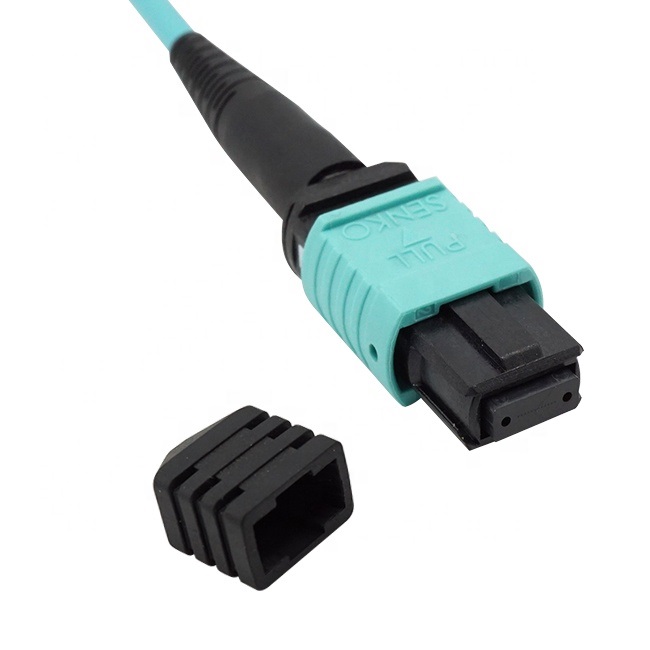

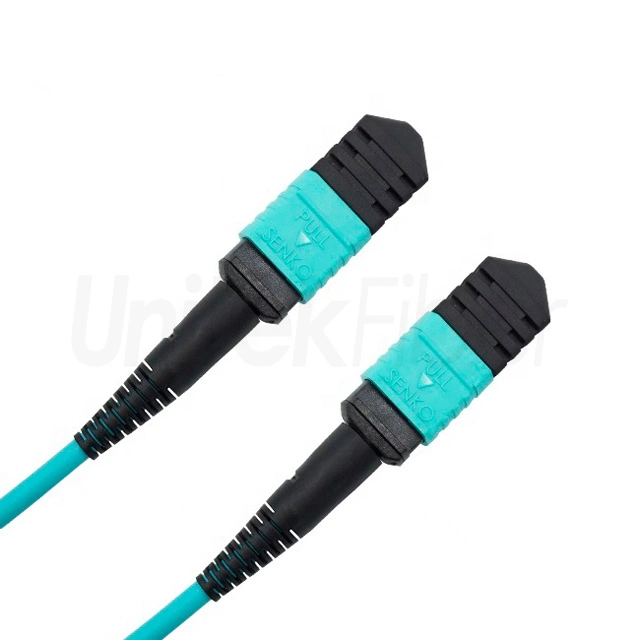

MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.


Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers Type C







Parameter of Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers Type C

Model

SM

MM

Connector A:MPO/MTP

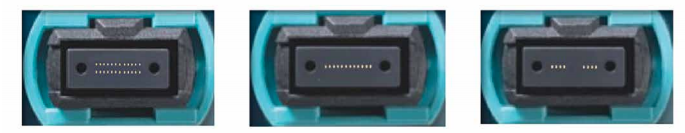

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

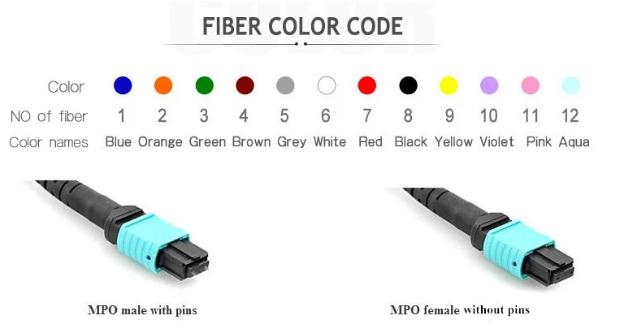

Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Bradley
Jul 25, 2022

Great fiber. Keep me regular. Worked as intended.

Verified Purchase
Helpful 1
