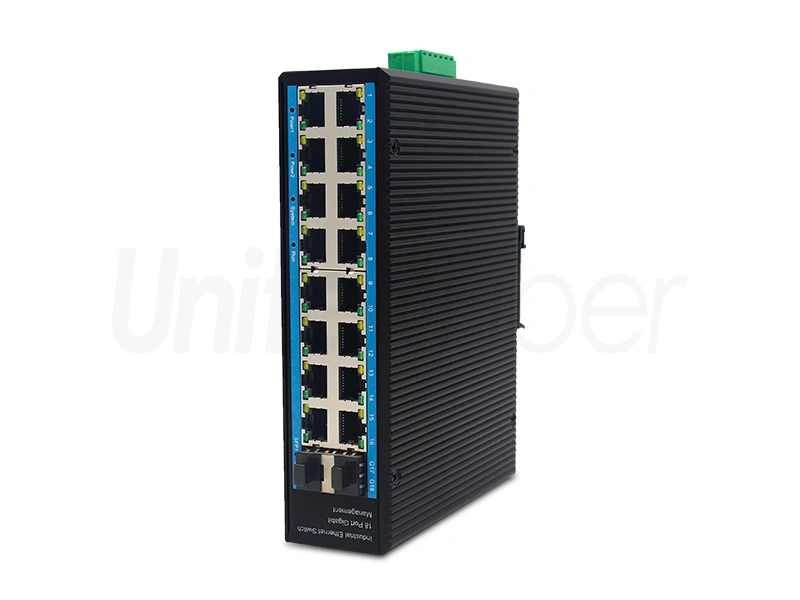

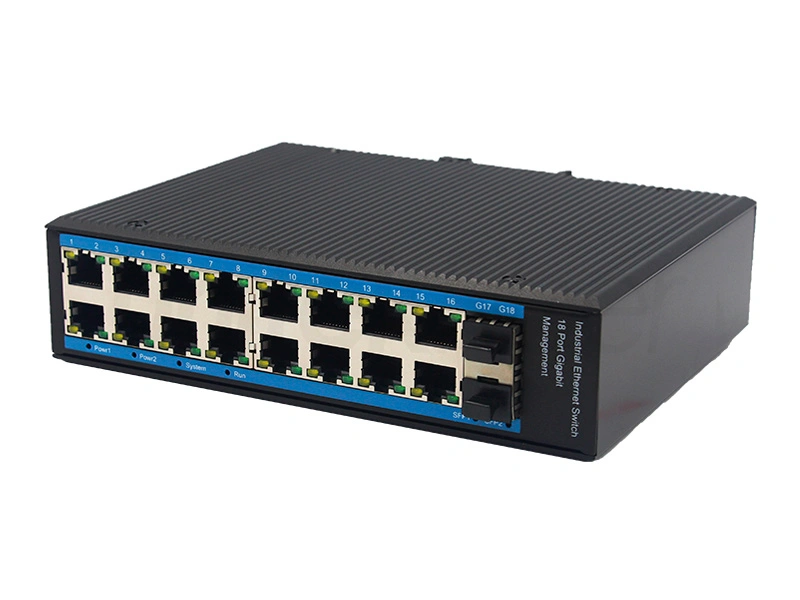

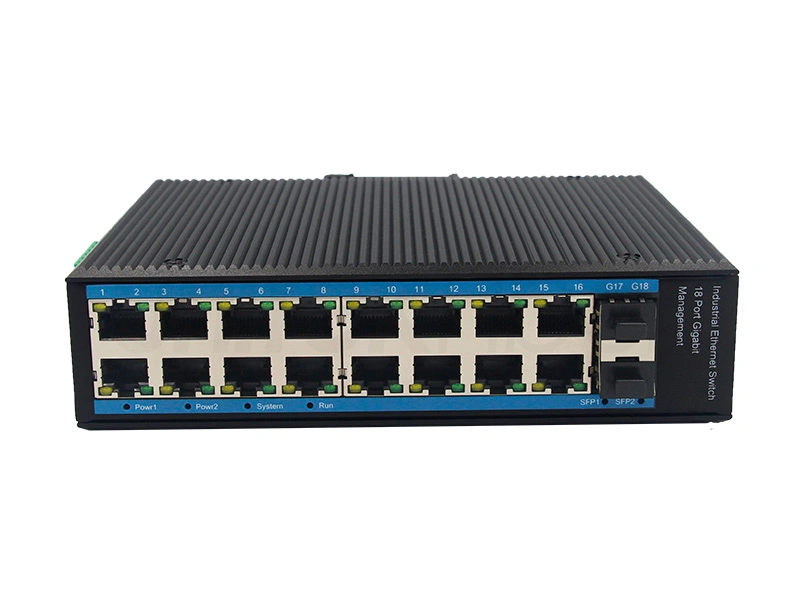

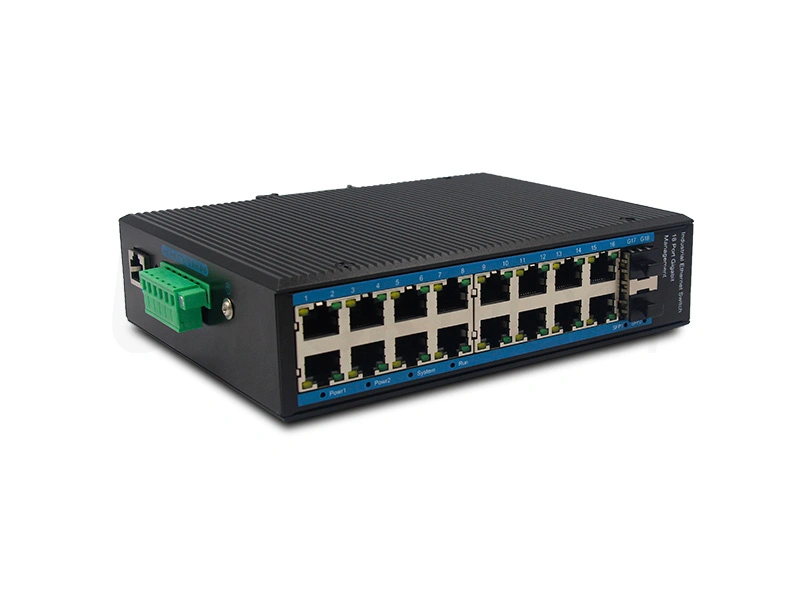

China High Performance Industrial POE Switch with 16 RJ45 Electrical Ports

The 16-port+2 sfp ports switch is a high-performance switch with low power consumption and fanless design. It conforms to RoHS standard and meets the requirements of environmental protection. It can be widely used in various application environments such as small and medium-sized enterprises, small offices, Internet cafes, hotels, schools, and homes.



Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

China High Performance Industrial POE Switch with 16 RJ45 Electrical Ports

Features


l16 Port Gigabit Industrial Ethernet Switch/Industrial Media Converter/Industrial Switch POE/Industrial Fiber Switch/Industrial Switch/Inustrial POE Switch

l16 Port 10/100/1000Base POE ports + 2(100/1000M) SFP Slots

lSupports both IEEE 802.3af and 802.3at, and every port PoE configuration function

lG.8032, support<50ms industrial quick ring protection

l52 VDC (10 ~58VDC), dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.

lDIN-Rail mounting or Wall-mounted install


Packaging and Shipping


China High Performance Industrial POE Switch with 16 RJ45 Electrical Ports


Production


China High Performance Industrial POE Switch with 16 RJ45 Electrical Ports


China High Performance Industrial POE Switch with 16 RJ45 Electrical Ports

Product Description

1000M 16xRJ45 ports, 2xSFP ports Managed Industrial Ethernet Switch

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEE802.3z 100Base-X; IEEE802.3x; IEEE802.3af;

IEEE802.3at;

RJ45 Interface

10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optic Fiber Interface

1000BaseFX port (SC/FC/ST/SFP optional)

Copper Cable

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Optic Fiber Cable

MM:850nm  0~550M

SM:1310nm  0~2KM, 1310nm  0~40KM,1550nm  0~120KM

Switch properties

Application level: Layer 2

Total backplane bandwidth: 149.76Gbps

MAC address table: 16K

Packet buffer: 8Mbits

Exchange delay:<5us

Exchange method: store-forward

Protection Level

IP40

L2 layer protocol

G.8032 (ERPS), IEEE802.3, IEEE802.3u, IEEE802.3z , IEEE802.3x, IEEE802.3ad, IEEE802.1p

IEEE802.1x, IEEE802.3ab, IEEE802.1Q, IGMP Snooping

LED indicator

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Power Supply

Input voltage: DC48-57V (dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power supply redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Management and maintenance

Support Console, WEB management mode

Support SNMP v1/v2/v3

Working Environment

Working temperature: -40~85℃ ;  Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industrial Standard

MI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV

IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV

IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz)

IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Shell: metal material

Installation: DIN rail type, wall-mounted installation

Weight: 0.85Kg
Size: 179×134×46mm

MTBF

300,000 hours

Warranty

5 years
